CyberPower PDU20BHVIEC8R. PDU types: Basic, Rack capacity: 1U, Mounting: Horizontal/Vertical. AC outlets quantity: 8 AC outlet(s), AC outlet types: C13 coupler, Power plug: C20 coupler. Cable length: 3.05 m, Certification: UL60950_1 ETL, CSA C22.2. Nominal input voltage: 208-230 V, Maximum current: 20 A, AC input frequency: 50 - 60 Hz. Weight (imperial): 0.907 kg (2 lbs), Dimensions (W x D x H) (imperial): 444.5 x 38.1 x 44.5 mm (17.5 x 1.5 x 1.75")

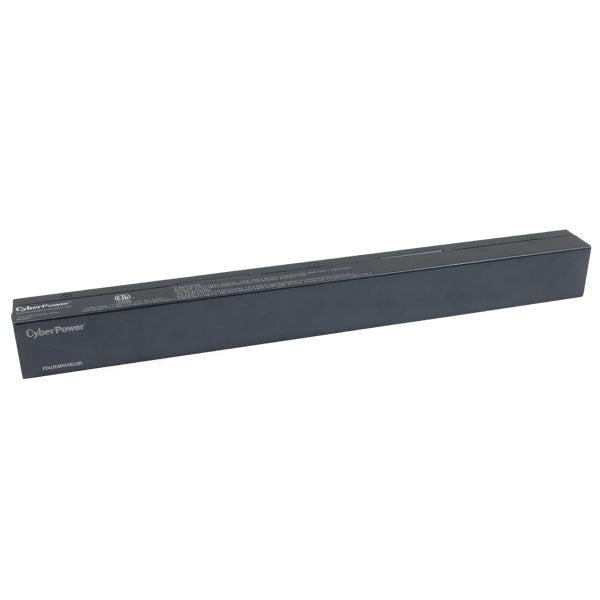

The CyberPower 8-outlet (8 Rear) rack mount basic power distribution unit (PDU20BHVIEC8R) provides 208V/230V 20A output. It distributes power to 8 IEC-320 C13 receptacles from a single IEC-320 C20 plug, with unfiltered electrical pass-through. Designed for datacenters and other electrically demanding applications, this unit has a rugged, industrial-grade metal housing and a 10-foot AC power cord. It can be mounted either horizontally or vertically, includes a cord retention tray and is ETL/RoHS certified. A lifetime warranty ensures that this PDU is free of defects in design, assembly, material or workmanship.
- 8 IEC-320 C13 output receptacles - Single IEC-320 C20 plug - 20-amp electrical capacity with circuit breaker - 208/230V - 50/60Hz - 1U rack mount - 10-ft. power cord
