Description :
Extended Battery Modules, 4h recharge, 30A, 240V, 3U, 433 x 132 x 660mm, 76kgCyberPower BP240VL3U01. Battery technology: Sealed Lead Acid (VRLA), Battery voltage: 12 V, Number of batteries included: 20 pc(s). Weight: 76 kg, Width: 433 mm, Height: 132 mm

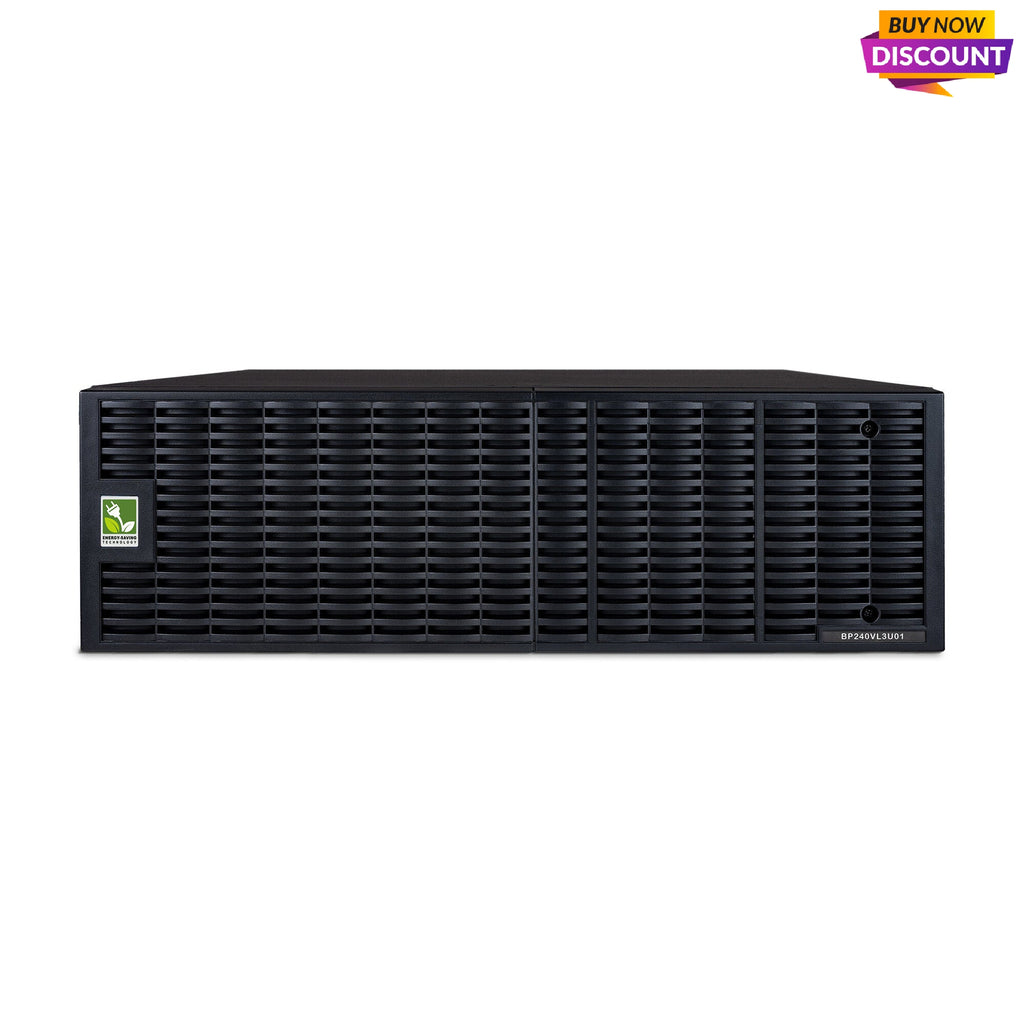

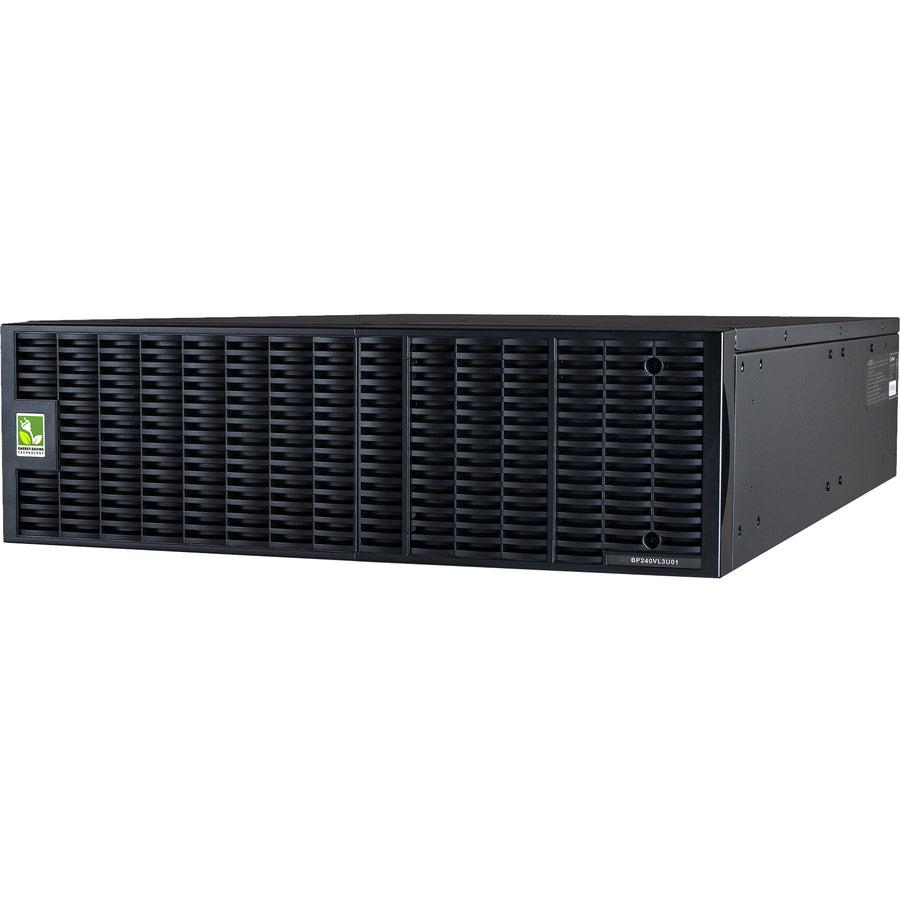

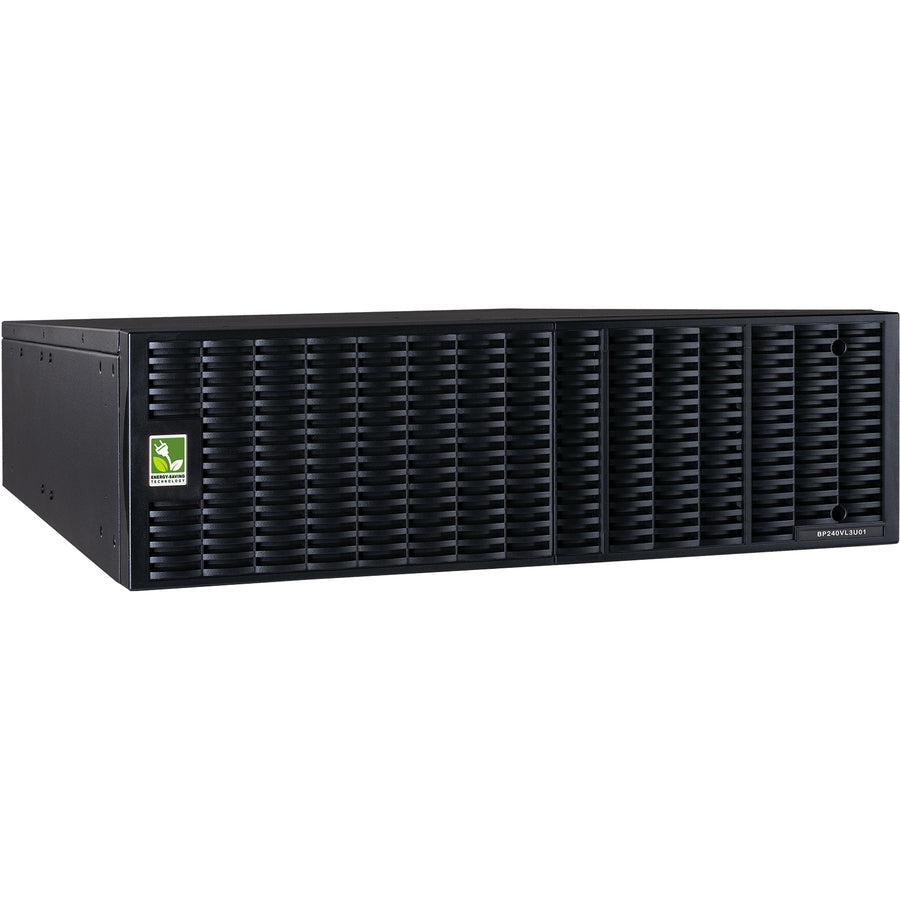

The CyberPower BP240VL3U01 rack/tower convertible Extended Battery Module (EBM) extends UPS runtimes during power outages. Designed for select Smart App Online UPS systems, this EBM takes 3U of rack space and can be installed in a rack or tower configuration to match the UPS form factor. It also has a built-in battery charger, providing Fast Charge Technology to quickly restore the backup power supply from 0-90% in four hours. Up to ten EBMs can be connected in a daisy-chain to the UPS. The BP240VL3U01 typically has a UPS charging time of four hours regardless of whether one or ten EBMs are installed when Fast Charge is connected. The BP240VL3U01 is compatible with OL6KRT, OL6KRTF, OL8KRT, OL8KRTF, OL10KRT, OL10KRTF, and OL10KRTHW. With a three-year warranty, you can trust CyberPower’s commitment to the quality of the BP240VL3U01.
Extended Battery Module
Extends runtime and restores full backup power quickly with Fast Charge Technology.
Hot-Swappable Batteries
Can be replaced without powering down vital equipment.
Fast Charge Technology
Uses a built-in battery charger in each EBM for quick charging, regardless of the number of EBMs attached to a UPS.
Smart Battery Management
Uses the UPS three-cycle charging mode that improves battery life and reduces generated heat.

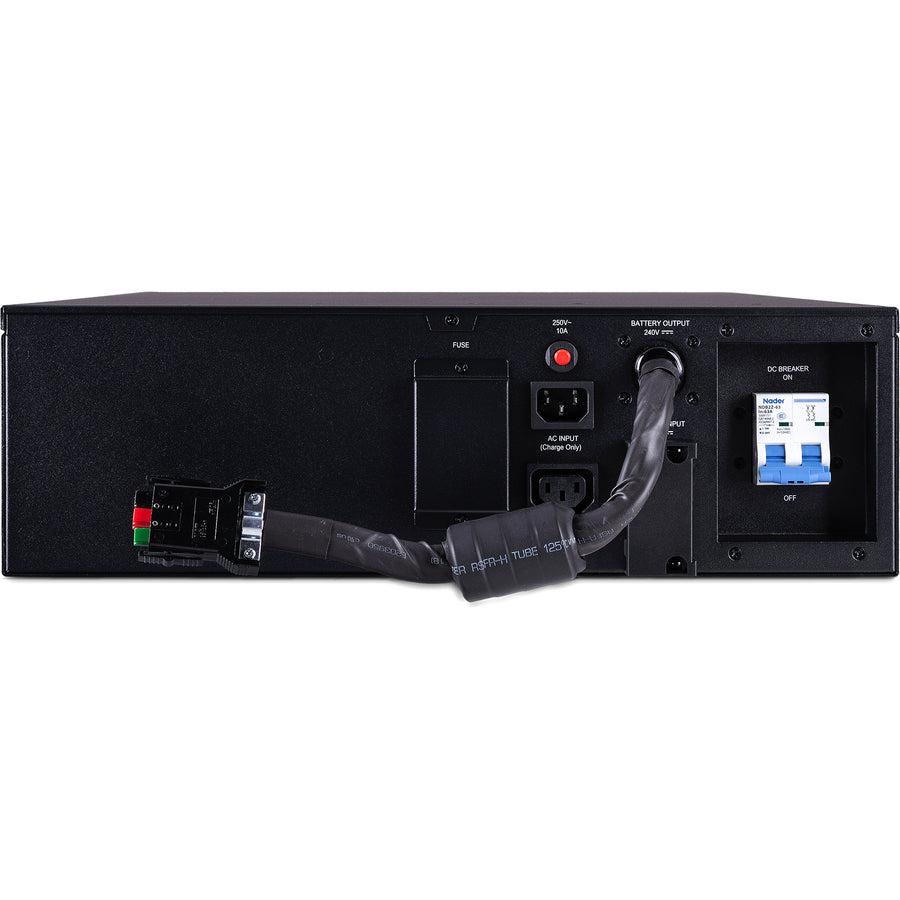

Plug-and-Play DC Connectors
Allows for daisy-chaining additional EBMs to a UPS system.
Resettable AC Fast Charge Circuit Breaker
Resets the EBM swiftly in case of an overload.
Rack/Tower Configuration
Allows for horizontal rackmount or vertical tower installation.
Specifications :
General Information
Manufacturer | CyberPower Systems, Inc |
---|---|
Manufacturer Part Number | BP240VL3U01 |
Manufacturer Website Address | https://www.cyberpowersystems.com/ |
Brand Name | CyberPower |
Product Series | Extended Battery Modules |
Product Model | BP240VL3U01 |
Product Name | Smart App Online BP240VL3U01 6-10kVA UPS Extended Battery Module |
Product Type | Battery Unit |
UPC | 649532620128 |
Battery Chemistry | Lead Acid |
---|
Height | 5.2" |
---|---|
Width | 17.1" |
Depth | 26" |
Weight (Approximate) | 167.55 lb |
Package Contents |
|
---|---|
Environmentally Friendly | Yes |
Limited Warranty | 3 Year |
---|
