Description :

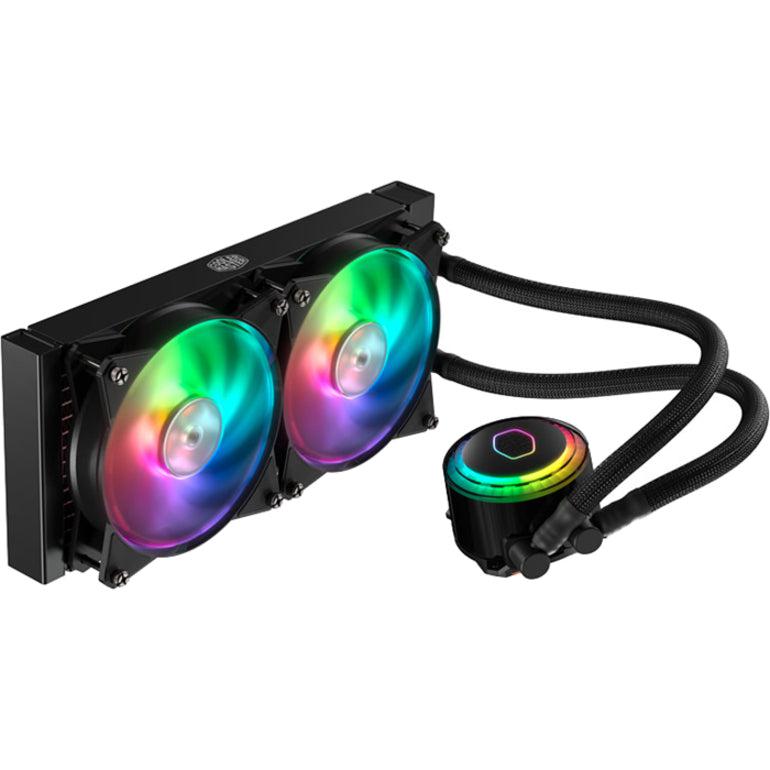

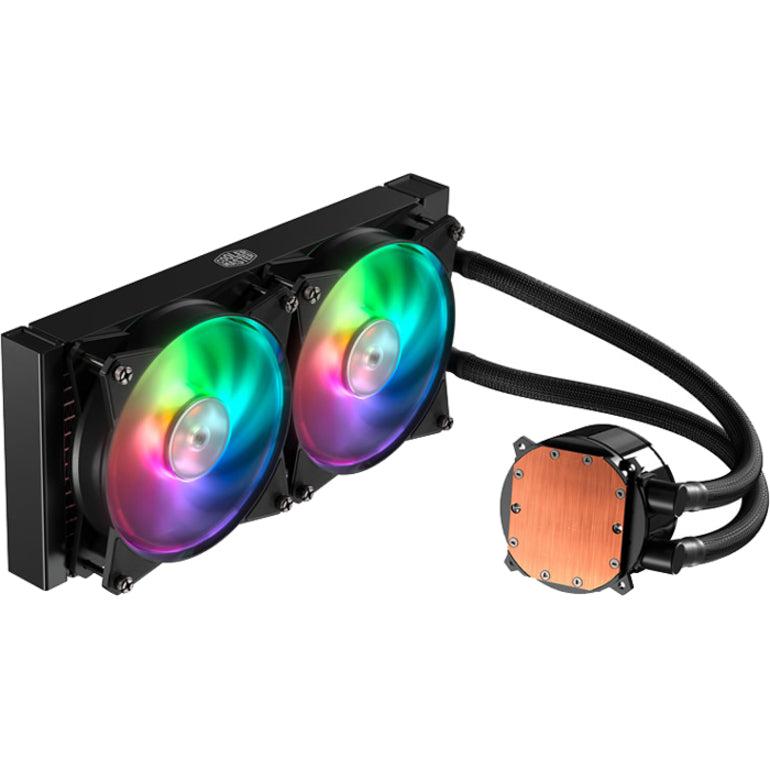

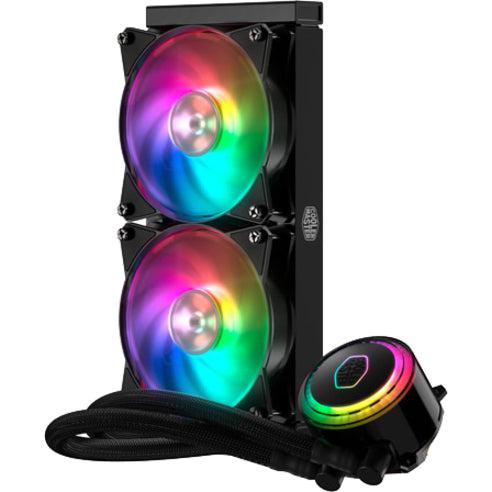

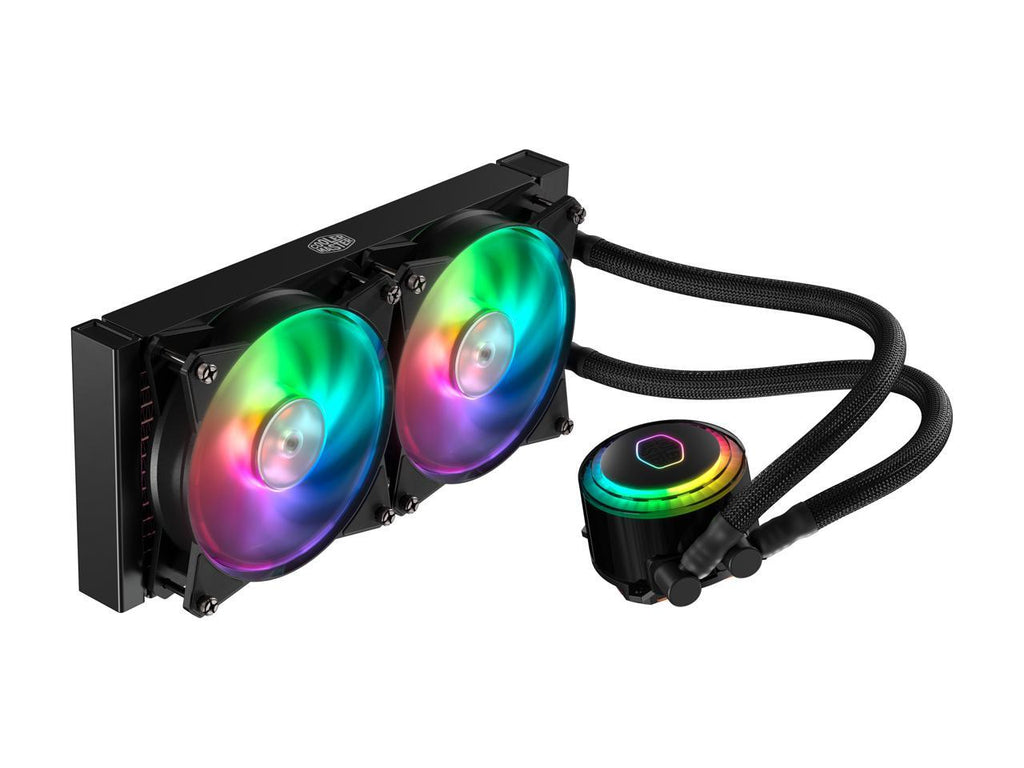

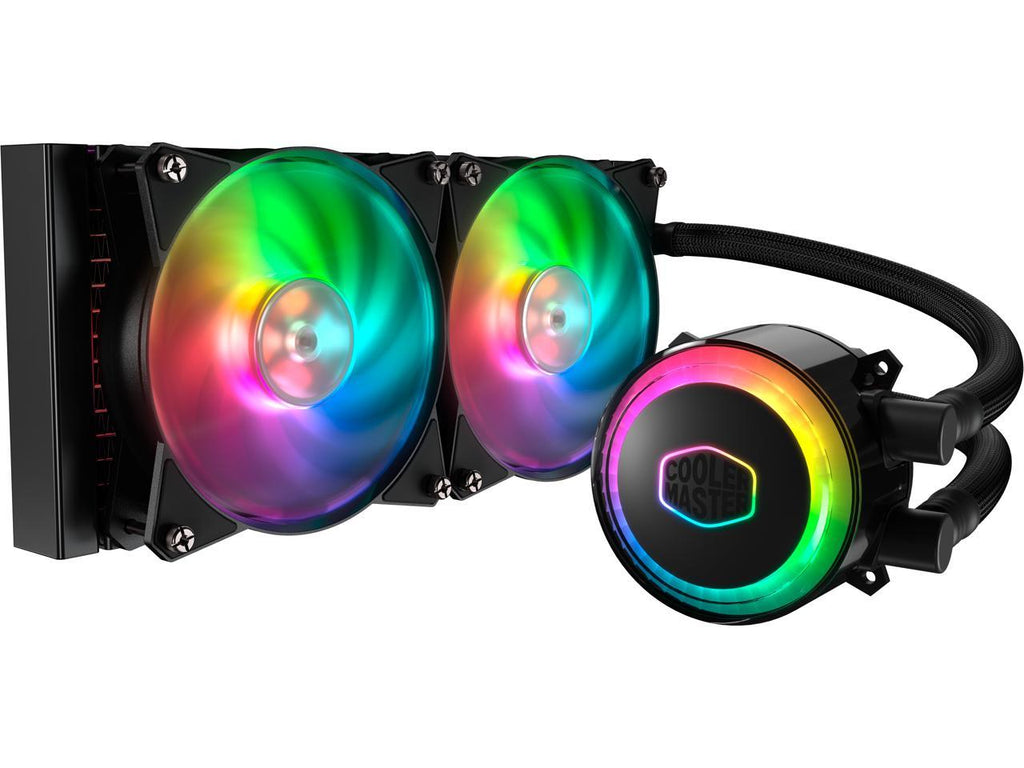

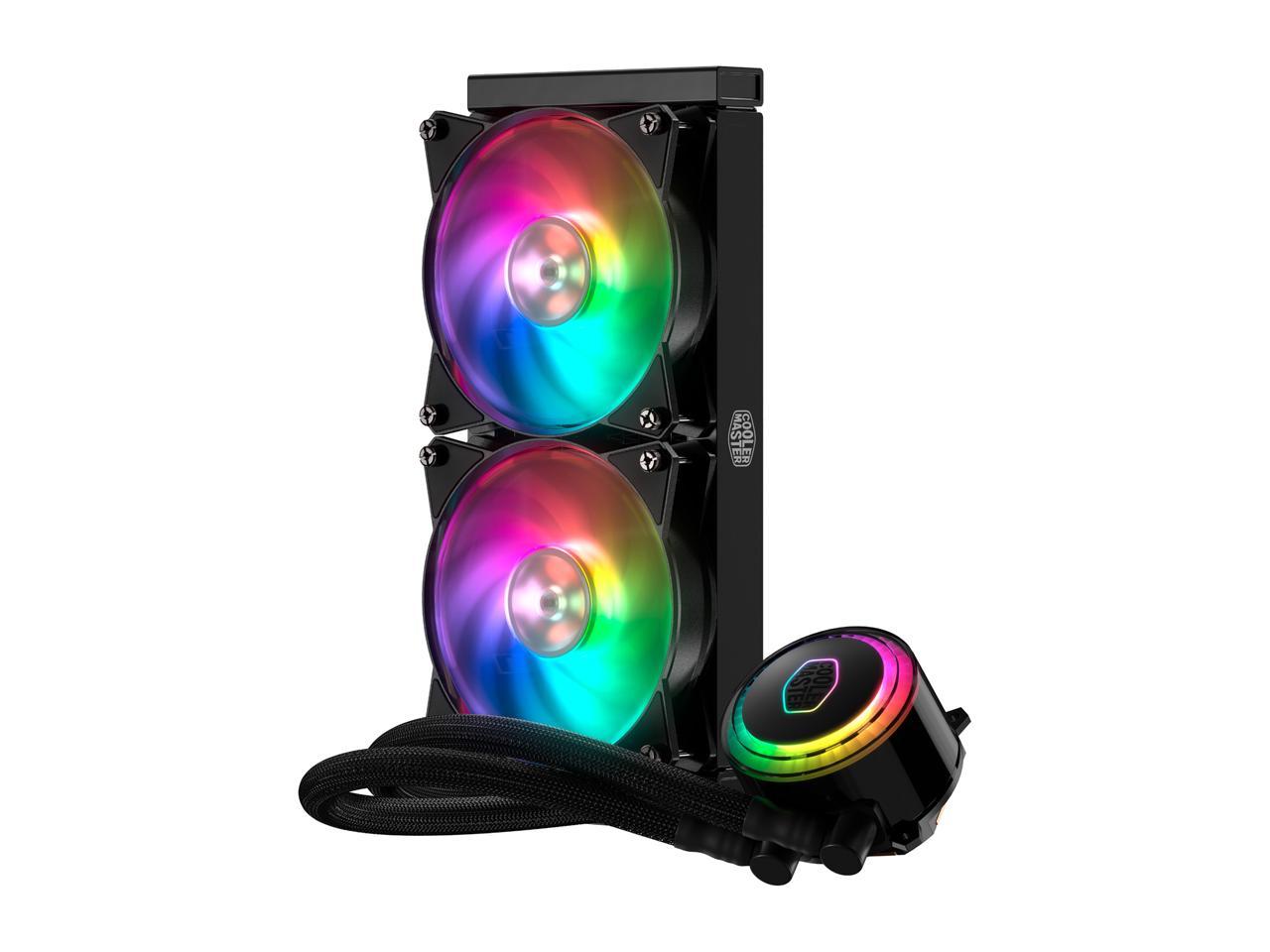

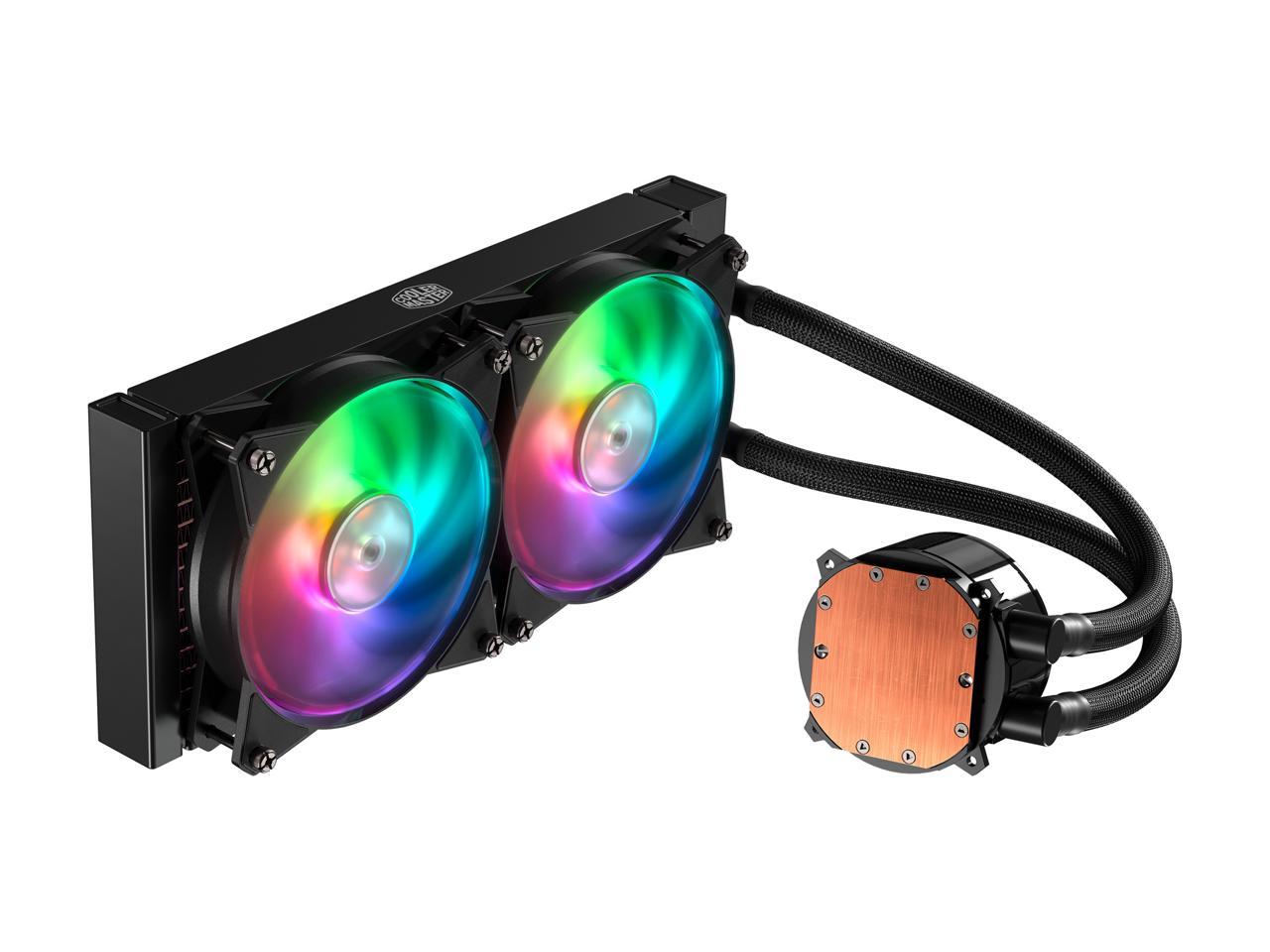

- 240mm Radiator Low: Profile Dual Chamber Addressable RGB pump with Dual Addressable RGB Fans for Push and Pull Air Flow
- Addressable RGB Fans and Pump - Color option can be controlled through Cooler Master software CM Plus
- Includes 1-to-3 Addressable RGB Splitter cable for multiple ARGB Fans
- Includes: Wired Addressable RGB Controller for non RGB Motherboards for customize colors
- Sleeved FEP Tubing's - Sleek Black Outer Sleeves with FEP Tubing's inside for Durable Lasting and Flexibility
Addressable-RGB LEDs
Independently-controlled RGB LEDs on the pump and fan offer full color customization, controllable through our software, MasterPlus+.
![Cooler Master](https://images10.newegg.com/BizIntell/item/35/103/35-103-264/a2_042818.png)

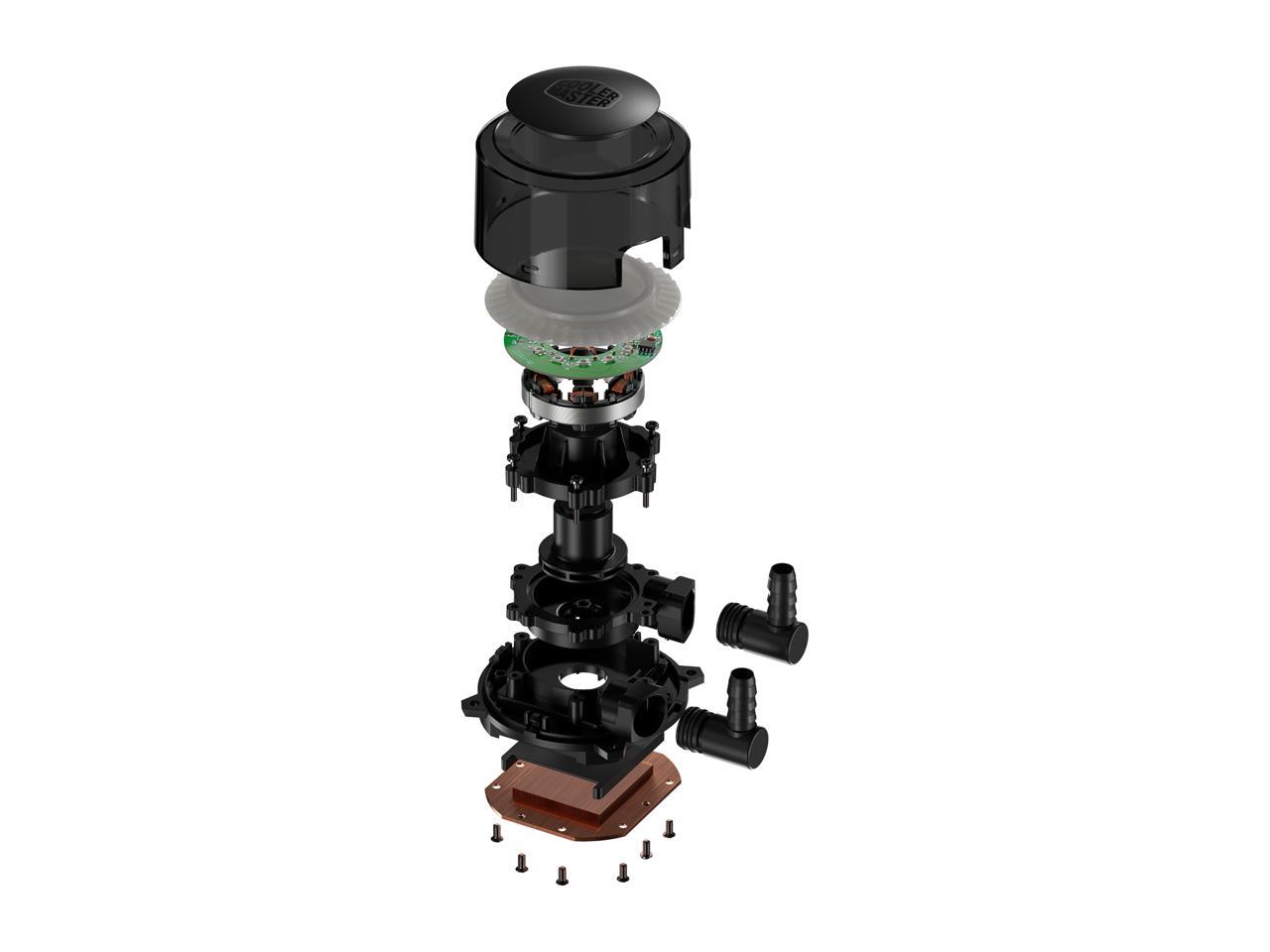

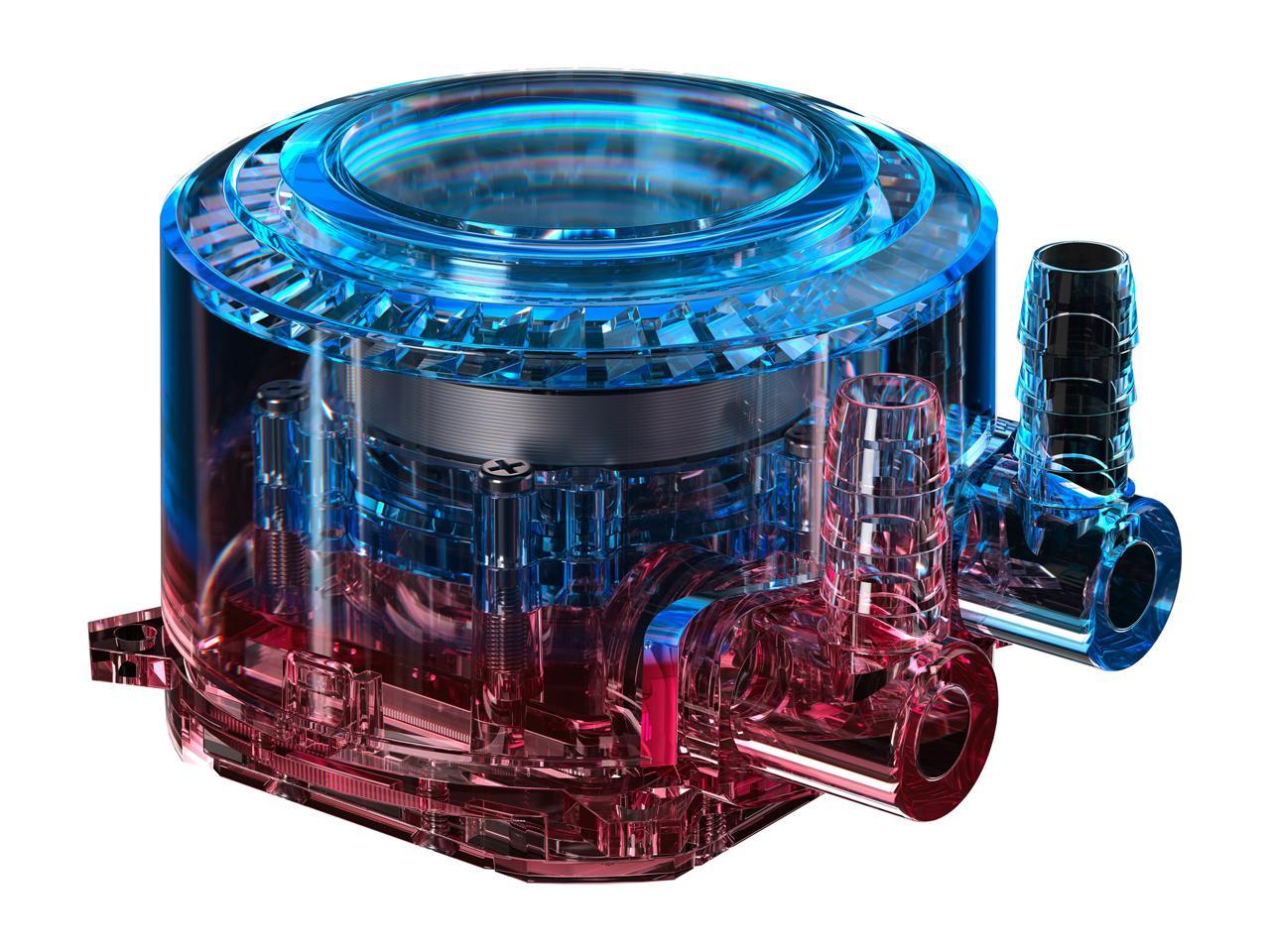

Dual-Dissipation
Our low-profile, dual-chamber pump enhances performance and durability over our last gen single-chamber designs.
![Cooler Master](https://images10.newegg.com/BizIntell/item/35/103/35-103-264/a3_042818.png)

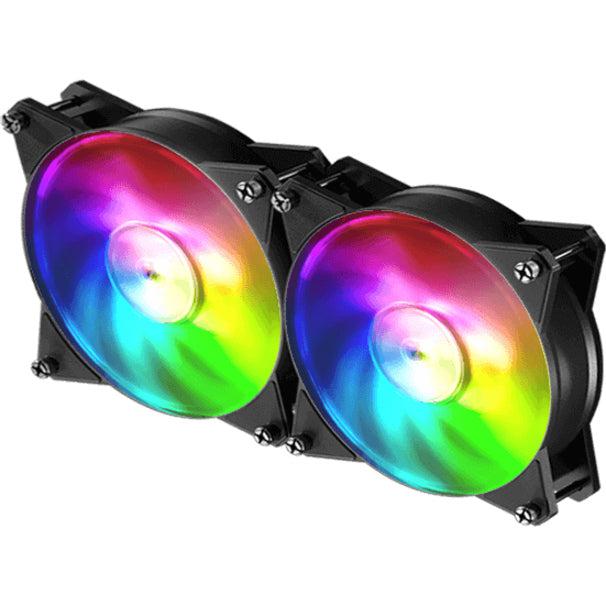

Dual MasterFans
Avoid dynamic losses—dual MasterFans maximize your build's air intake.
![Cooler Master](https://images10.newegg.com/BizIntell/item/35/103/35-103-264/a4_042818.png)

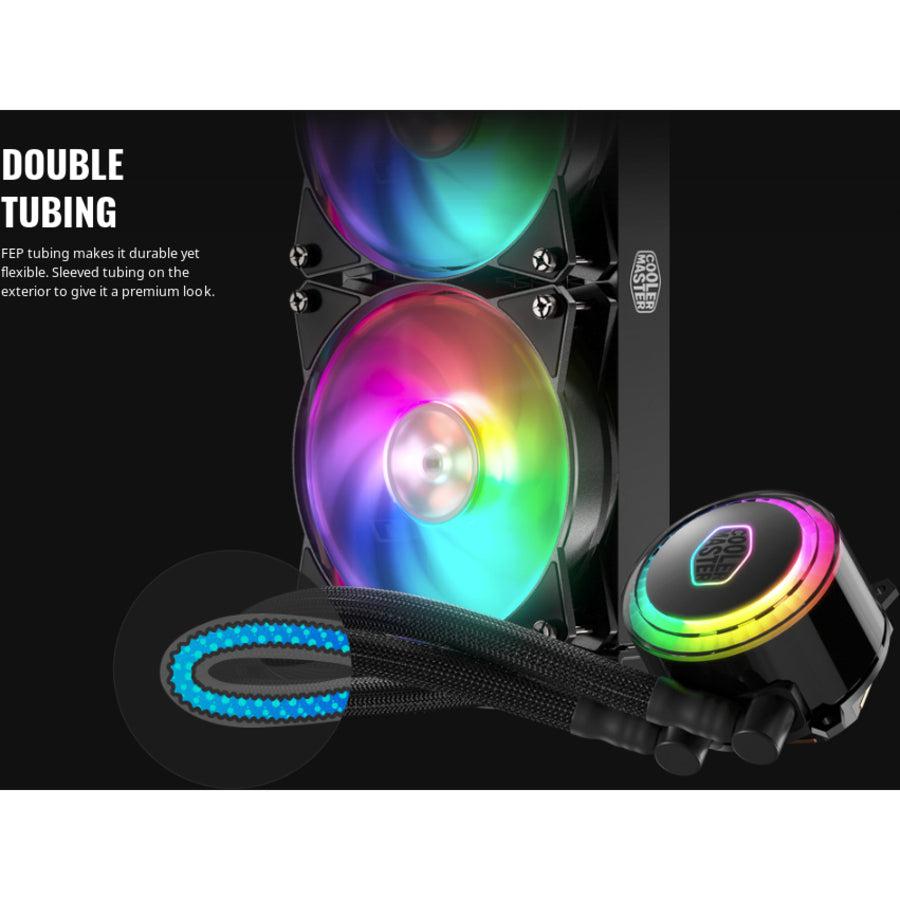

Sleeved FEP Tubing
Underneath sleek black sleeves, FEP material beats rubber tubing in keeping liquid where it belongs – inside the cooler.
![Cooler Master](https://images10.newegg.com/BizIntell/item/35/103/35-103-264/a5_042818.png)

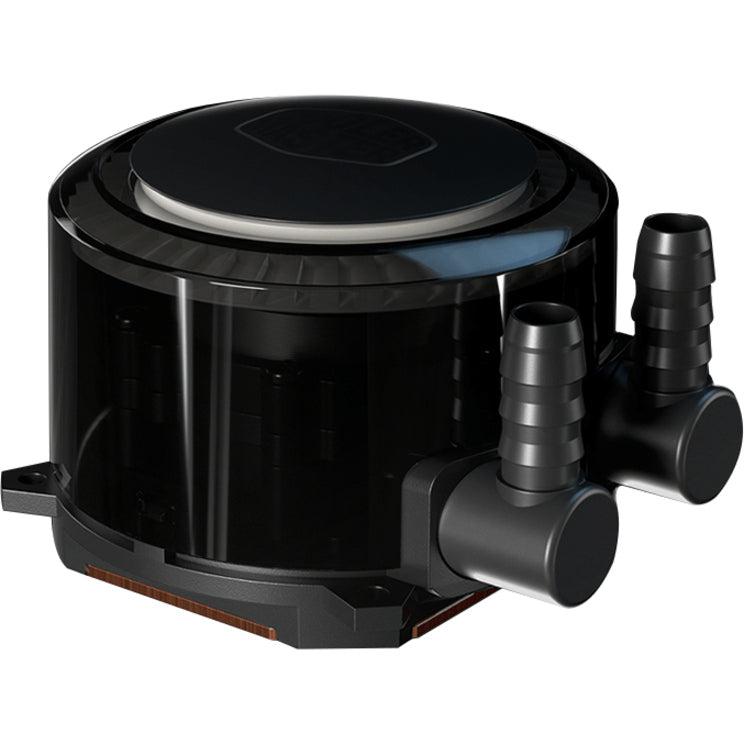

Adjustable Pump Cap
Remove and adjust the pump's cap to compliment your build's orientation.
![Cooler Master](https://images10.newegg.com/BizIntell/item/35/103/35-103-264/a6_042818.png)
Addressable-RGB Ready
1-to-3 A-RGB splitter and proprietary wired A-RGB controller included, allowing you to customize your colors even without an RGB motherboard.
Compare
 |
![]() MasterLiquid ML240R RGB |
![]() MasterLiquid ML120R RGB |
|
Product Number | MLX-D24M-A20PC-R1 | MLX-D12M-A20PC-R1 | |
CPU Socket |
Intel LGAÂ 2066, 2011-v3, 2011, 1151, 1150, 1155, 1156, 1366, 775 AMDÂ AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1 |
Intel LGAÂ 2066, 2011-v3, 2011, 1151, 1150, 1155, 1156, 1366, 775 AMDÂ AM4, AM3+, AM3, AM2+, AM2, FM2+, FM2, FM1 |
|
Radiator | |||
Material | Aluminum | Aluminum | |
Dimensions | 277 x 119.6 x 27 mm | 157 x 119.6 x 27 mm | |
Fan | |||
Dimensions | 120 x 120 x 25 mm | 120 x 120 x 25 mm | |
Quantity | 2 | 2 | |
Speed | 650–2000 RPM (PWM) ±10% | 650–2000 RPM (PWM) ±10% | |
Air Flow | 66.7 CFM, max | 66.7 CFM, max | |
Air Pressure | 2.34 mmH2O | 2.34 mmH2O | |
MTTF | 160,000 hours | 160,000 hours | |
Noise Level | 6–30 dBa | 6–30 dBa | |
Connector | 4-Pin (PWM) | 4-Pin (PWM) | |
Rated Voltage | 12 VDC | 12 VDC | |
Pump | |||
Dimensions | 83.6 x 71.8 x 52.7 mm | 83.6 x 71.8 x 52.7 mm | |
MTTF | 70,000 hours | 70,000 hours | |
Noise Level | < 15 dBA | < 15 dBA | |
Connector | 3-Pin | 3-Pin | |
Rated Voltage | 12 VDC | 12 VDC | |
Warranty | 2 Years | 2 Years | |
Compatible Motherboards | |||
ASUS AURA SYNC Motherboards |
ROG Maximus X Formula, Code, Hero (Wi-Fi AC), Hero ROG Strix Z370-E Gaming, Z370-F Gaming, Z370-I Gaming, X299-XE Gaming, X299-E Gaming, X399-E Gaming, X370-I Gaming ROG Zenith Extreme, Crosshair VI Extreme Rampage VI Extreme, Prime X299-Deluxe |
||
MSI Motherboards |
Z370Â Godlike Gaming, Gaming Pro Carbon AC, Gaming Pro Carbon Z370IÂ Gaming Pro Carbon AC |
||
ASRock | Launching in May. |
Specifications :
General Information
Manufacturer | Cooler Master Co., Ltd |
---|---|
Manufacturer Part Number | MLX-D24M-A20PC-R1 |
Manufacturer Website Address | http://www.coolermaster-usa.com |
Brand Name | Cooler Master |
Product Line | MasterLiquid ML240R |
Product Model | MLX-D24M-A20PC-R1 |
Product Name | MasterLiquid ML240R RGB |
Product Type | Cooling Fan/Radiator |
UPC | 884102037498 |
Limited Warranty | 2 Year |
---|
![Cooler Master Masterliquid Ml240R Argb Close-Loop Aio Cpu Liquid Cooler, 240 Radiator, Dual](http://tecisoft.com/cdn/shop/products/Cooler-Master-MasterLiquid-ML240R-ARGB-Close-Loop-AIO-CPU-Liquid-Cooler-240-Radiator-Dual.jpg?v=1663917122&width=1445)
![Cooler Master Masterliquid Ml240R Argb Close-Loop Aio Cpu Liquid Cooler, 240 Radiator, Dual](http://tecisoft.com/cdn/shop/products/Cooler-Master-MasterLiquid-ML240R-ARGB-Close-Loop-AIO-CPU-Liquid-Cooler-240-Radiator-Dual-2.jpg?v=1663917123&width=1445)
![Cooler Master Masterliquid Ml240R Argb Close-Loop Aio Cpu Liquid Cooler, 240 Radiator, Dual](http://tecisoft.com/cdn/shop/products/Cooler-Master-MasterLiquid-ML240R-ARGB-Close-Loop-AIO-CPU-Liquid-Cooler-240-Radiator-Dual-3.jpg?v=1663917124&width=1445)
![Cooler Master Masterliquid Ml240R Argb Close-Loop Aio Cpu Liquid Cooler, 240 Radiator, Dual](http://tecisoft.com/cdn/shop/products/Cooler-Master-MasterLiquid-ML240R-ARGB-Close-Loop-AIO-CPU-Liquid-Cooler-240-Radiator-Dual-4.jpg?v=1663917125&width=1445)
![Cooler Master Masterliquid Ml240R Argb Close-Loop Aio Cpu Liquid Cooler, 240 Radiator, Dual](http://tecisoft.com/cdn/shop/products/Cooler-Master-MasterLiquid-ML240R-ARGB-Close-Loop-AIO-CPU-Liquid-Cooler-240-Radiator-Dual-5.jpg?v=1663917126&width=1445)
![Cooler Master Masterliquid Ml240R Argb Close-Loop Aio Cpu Liquid Cooler, 240 Radiator, Dual](http://tecisoft.com/cdn/shop/products/Cooler-Master-MasterLiquid-ML240R-ARGB-Close-Loop-AIO-CPU-Liquid-Cooler-240-Radiator-Dual-6.jpg?v=1663917127&width=1445)
![Cooler Master Masterliquid Ml240R Argb Close-Loop Aio Cpu Liquid Cooler, 240 Radiator, Dual](http://tecisoft.com/cdn/shop/products/Cooler-Master-MasterLiquid-ML240R-ARGB-Close-Loop-AIO-CPU-Liquid-Cooler-240-Radiator-Dual-7.jpg?v=1663917128&width=1445)
![Cooler Master Masterliquid Ml240R Argb Close-Loop Aio Cpu Liquid Cooler, 240 Radiator, Dual](http://tecisoft.com/cdn/shop/products/Cooler-Master-Masterliquid-Ml240R-Argb-Close-Loop-Aio-Cpu-Liquid-Cooler-240-Radiator-Dual-8.jpg?v=1681827638&width=1445)
![Cooler Master Masterliquid Ml240R Argb Close-Loop Aio Cpu Liquid Cooler, 240 Radiator, Dual](http://tecisoft.com/cdn/shop/products/Cooler-Master-Masterliquid-Ml240R-Argb-Close-Loop-Aio-Cpu-Liquid-Cooler-240-Radiator-Dual-9.jpg?v=1681827643&width=1445)
![Cooler Master Masterliquid Ml240R Argb Close-Loop Aio Cpu Liquid Cooler, 240 Radiator, Dual](http://tecisoft.com/cdn/shop/products/Cooler-Master-Masterliquid-Ml240R-Argb-Close-Loop-Aio-Cpu-Liquid-Cooler-240-Radiator-Dual-10.jpg?v=1681827648&width=1445)
![Cooler Master Masterliquid Ml240R Argb Close-Loop Aio Cpu Liquid Cooler, 240 Radiator, Dual](http://tecisoft.com/cdn/shop/products/Cooler-Master-Masterliquid-Ml240R-Argb-Close-Loop-Aio-Cpu-Liquid-Cooler-240-Radiator-Dual-11.jpg?v=1681827653&width=1445)
![Cooler Master Masterliquid Ml240R Argb Close-Loop Aio Cpu Liquid Cooler, 240 Radiator, Dual](http://tecisoft.com/cdn/shop/files/Cooler-Master-Masterliquid-Ml240R-Argb-Close-Loop-Aio-Cpu-Liquid-Cooler-240-Radiator-Dual-12.jpg?v=1705861016&width=1445)
![Cooler Master Masterliquid Ml240R Argb Close-Loop Aio Cpu Liquid Cooler, 240 Radiator, Dual](http://tecisoft.com/cdn/shop/files/Cooler-Master-Masterliquid-Ml240R-Argb-Close-Loop-Aio-Cpu-Liquid-Cooler-240-Radiator-Dual-13.jpg?v=1705861021&width=1445)
