Constant-Directivity 40W Paging,Speaker W Rotating Bell

Description :

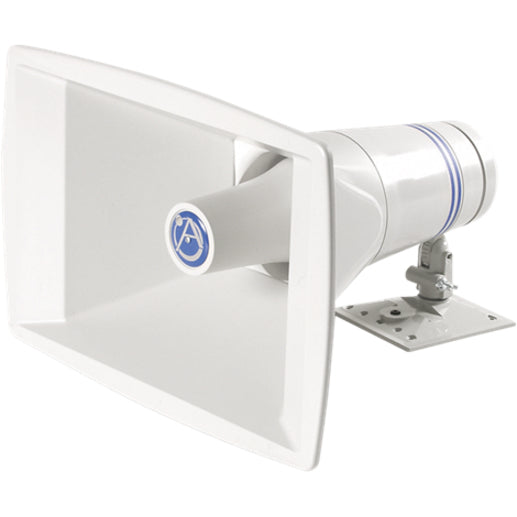

AtlasIED APX40TN Indoor/Outdoor Pole Mount Speaker - 40 W RMS - Gray
Model APX40TN is a conservatively-rated, 40 watt constant-directivity paging loudspeaker for use in public address or paging applications. It combines constant-directivity with superior engineering design, achieving extraordinary performance with quick and easy installation.

This constant-directivity loudspeaker offer exact positioning flexibility with a simple twist of the wrist. The APX loudspeaker is well-suited for indoor applications including commercial, light industrial, and large retail/distribution applications where clear and pleasant indoor paging/communications and security are required. The speaker is also appropriate for installation in outdoor retail, commercial, recreational, and public use areas where dependable weatherproof performance is needed for communications and security.

The neutral-grey finish compliments most interior or exterior surroundings. It may also be painted to match installation guidelines or cosmetics.

• Zinc die cast mounting bracket may be mounted to standard E.O. boxes banded to poles or removed for easy retrofit of existing AP Series loudspeakers.


• Universal 25/70/100V Transformer Includes a Rotary-Dial Selector for Easy Tap Identification


• Rotating Bell Pivots in 15° Increments for Exact On-Site Positioning of Projection Angles Detailed in Acoustic Simulation Programs


• Loudspeaker is Molded of High-Impact, Neutral-Grey Polycarbonate Resin with UV Light Inhibitor


• Coverage of 60° x 40° Across a Wide Frequency Range for Predictable Beamwidth Control


• Built-in Screen Protects Against Bug Nesting


• 40 Watt Model Provides Better Output Over Competitive 15 and 30-Watt Standards

Product Type: Speaker
Speaker Installation: Indoor/Outdoor
Product Color: Gray
Country Of Origin: Taiwan
Product Series: APX
Brand Name: AtlasIED
Form Factor: Pole Mount
Manufacturer: Atlas Sound LP.
Product Model: APX40TN
Product Name: Constant-Directivity 40W Paging Loudspeaker With Rotating Bell
Manufacturer Part Number: APX40TN
Manufacturer Website Address: http://www.atlassound.com
Package Contents:

• Constant-Directivity 40W Paging Loudspeaker With Rotating Bell


• 1/4" Knockouts
