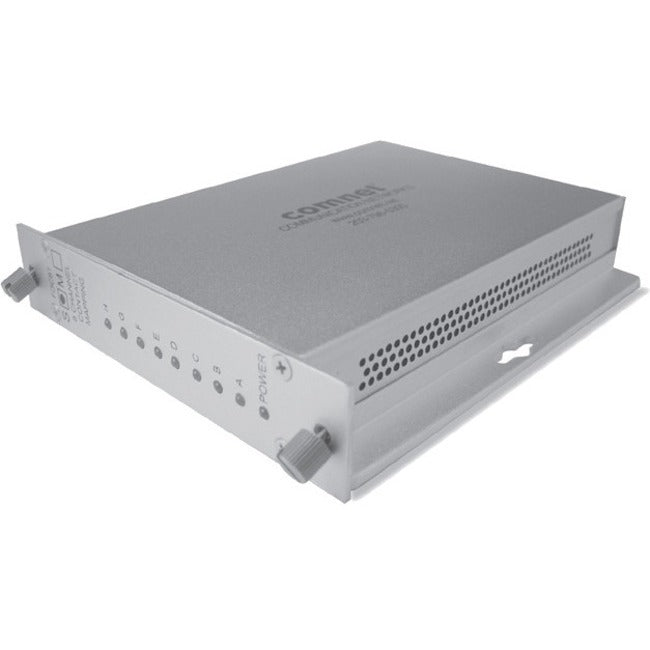

Comnet 8-Channel Contact Closure Receiver

Description :

ComNet 8-Channel Contact Closure Receiver

The ComNet FDC8 Series contact closure transmitter and receiver provides transmission of up to eight independent contact closures over one RS232 link or optical fiber. Microprocessor-based logic sends the contact information in packets that are ordered and encoded, ensuring extremely robust transmission. Packets that are garbled, packets out of sequence, and transmission bit errors will not cause random changes of state on the contact relays. Also, the mechanical latching relays maintain their state even when the unit loses power. Each module incorporates power and individual status indicating LEDs for monitoring confirmation of contact closure of each of the eight channels. These units are interchangeable between stand-alone or card mount configurations.

Features for FDC8 Series

• Point-to-Point architecture
• Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/low-line voltage conditions, and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Control Equipment.
• SPST latching relays
• Microprocessor-based logic and latching relays in receiver unit eliminate random contact closure status in the event of loss of link or loss of prime operating power.

Applications

• Alarm Event Triggering
• Building Automation and Environmental Control Systems
• Fire and Alarm Systems
• Gate Control
• PIR Signal Transmission

Product Type: Video Extender Receiver
Environmentally Friendly: Yes
Environmental Certification: RoHS
Country Of Origin: United States
Brand Name: ComNet
Form Factor: Rack-mountable
Manufacturer: ACRE
Product Model: FDC8RM1
Product Name: 8-Channel Contact Closure Receiver
Manufacturer Part Number: FDC8RM1
Manufacturer Website Address: http://www.acre-co.com
Package Contents:

• 8-Channel Contact Closure Receiver
• DC Plug-in Power Supply, 90-264 VAC, 50/60 Hz
