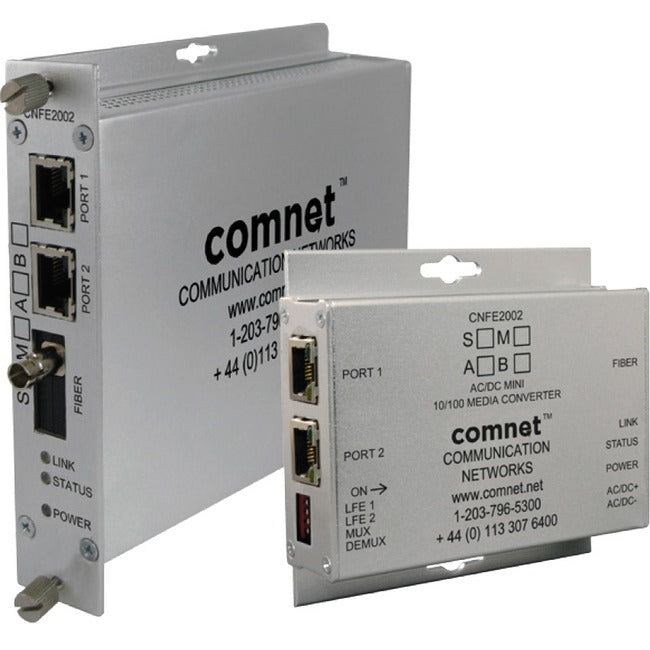

Comnet 2 Channel 10/100 Mbps Ethernet 1310Nm Cnfe2003S2

Description :

ComNet 2 Channel 10/100 Mbps Ethernet 1310nm

The ComNet Ethernet CNFE200X media converter series are two-channel Ethernet electrical to optical media converters with optional PoE+. These auto-negotiating devices accept two 10/100 Mbps electrical inputs and convert this to a single 100 Mbps optical output. This series of media converters are available as multimode or single-mode and one and two fiber SC and ST optical connectors. The ComNet exclusive Demux feature allows for port isolation, replicating two media converters over one fiber. The ComNet exclusive Mux feature prevents network video flooding of multicast traffic with DIP switch selection of the fiber port as a dedicated uplink path. The CNFE200(X) series can be powered by wide range AC or DC input while the CNFE200(X)POE units meet the 802.3at standard and provide 30 watts of PoE+ power, with an option for a 60 watt CNFE200(X)POEHO model. The PoE models can be powered by a sold seperately 48 to 57 volt DC power supply.

• Expand your network capacity and fulfill requirement with this 3 transceiver/media converter


• With Optical Fiber cable, get the desired data transfer rate up to a required distance


• With 10/100Base-TX technology get up to 100Mbps data transfer rate over twisted pair cable


• The Mountable provides convenient installation

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Country Of Origin: United States
Product Series: CNFE200(X)POE(M,S)(1,2)[HO][/M]
Brand Name: ComNet
Form Factor: Rack-mountable
Manufacturer: ACRE
Product Name: 2 Channel 10/100 Mbps Ethernet 1310nm
Manufacturer Part Number: CNFE2003S2
Manufacturer Website Address: http://www.acre-co.com
Package Contents:
