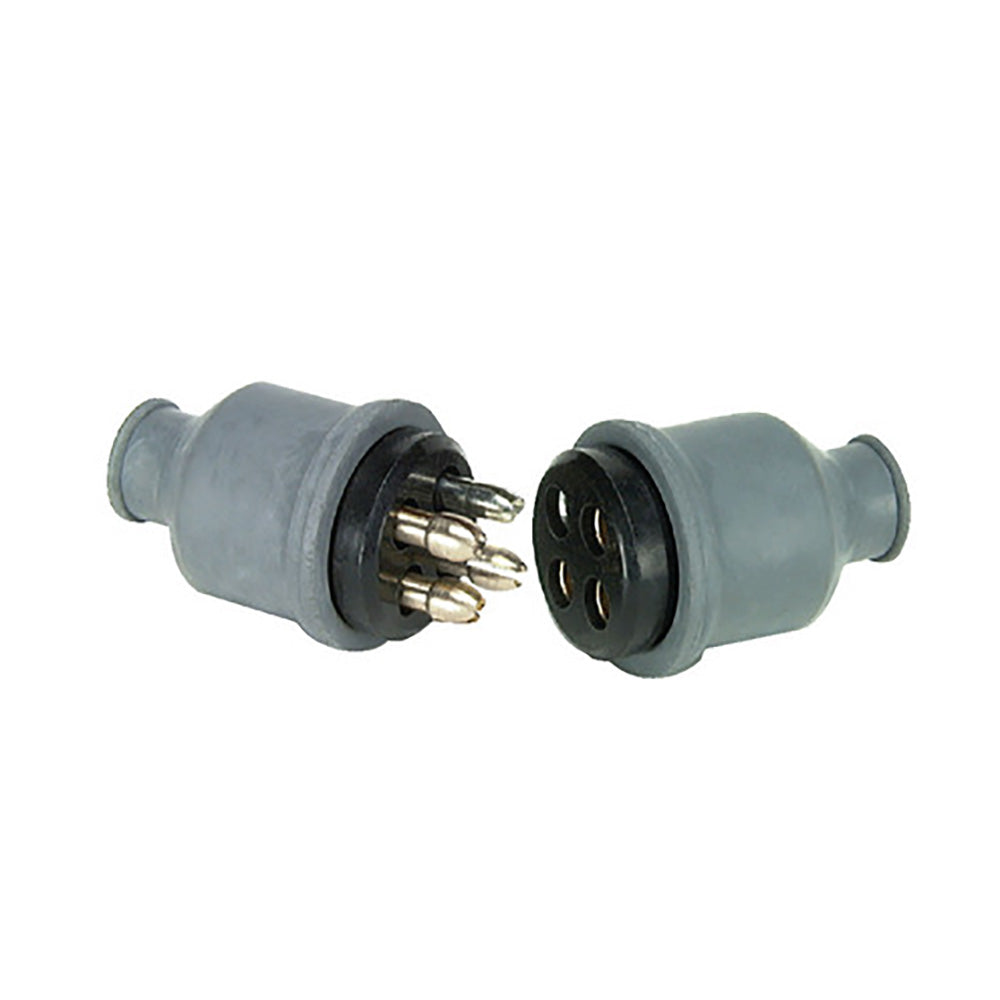

Cole Hersee 4 Pole Plug & Socket Connector w/Rubber Cap

Description :

4 Pole Plug & Socket Connector with Rubber Cap

Normally used with a trailer where only limited functionality (taillights. brake lights) is needed. Ideal for boat trailers or RVs towing a car on a flatbed trailer.

Features:

• Diecast metal housings
• Screw terminals accept up to 12 AWG wire.
• Replaceable interiors
• Brass split-pin contacts are aligned to assure proper contact and minimal voltage drop
• Spring-loaded socket doors (the plug locks securely into the opening)
• Wiring codes are identified on the insulator
• Two mounting holes on the flange are 17/64" (6.7 mm) in diameter. 2-15/16" (74.6 mm) in centers.
• Mount through a 1 3/8" (34.9 mm) diameter hole.
• With special housing that protects terminals from road splash

Specifications:

• Housing: Plated steel
• Circuitry: 4
• Input Terminals: Brass
• Contact Material: Screw
