Description
Specifications
Description :
Product Type: A/V Adapter |
Environmentally Friendly: Yes |
Environmental Certification: RoHS |
Brand Name: Club 3D |
Length: 3.5" |
Manufacturer: Club 3D |
Product Name: USB Gen1 Type-C/-A to Dual HDMI (4K/30Hz) / VGA (1080/60Hz) |
Manufacturer Part Number: CSV-1611 |
Manufacturer Website Address: http://www.club-3d.nl |
Weight (Approximate): 4.59 oz |

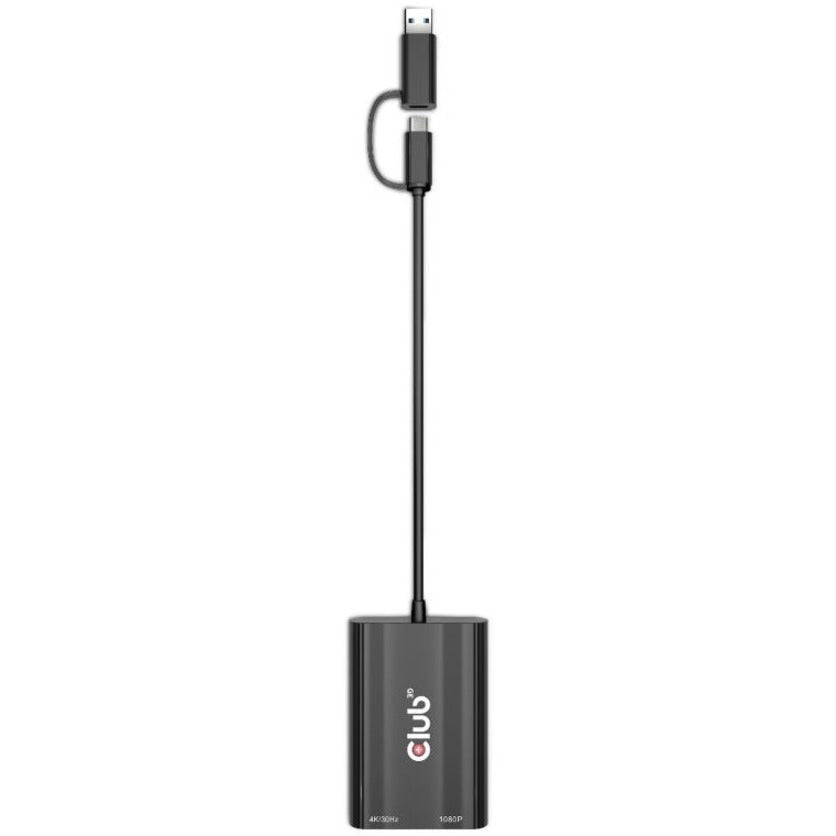

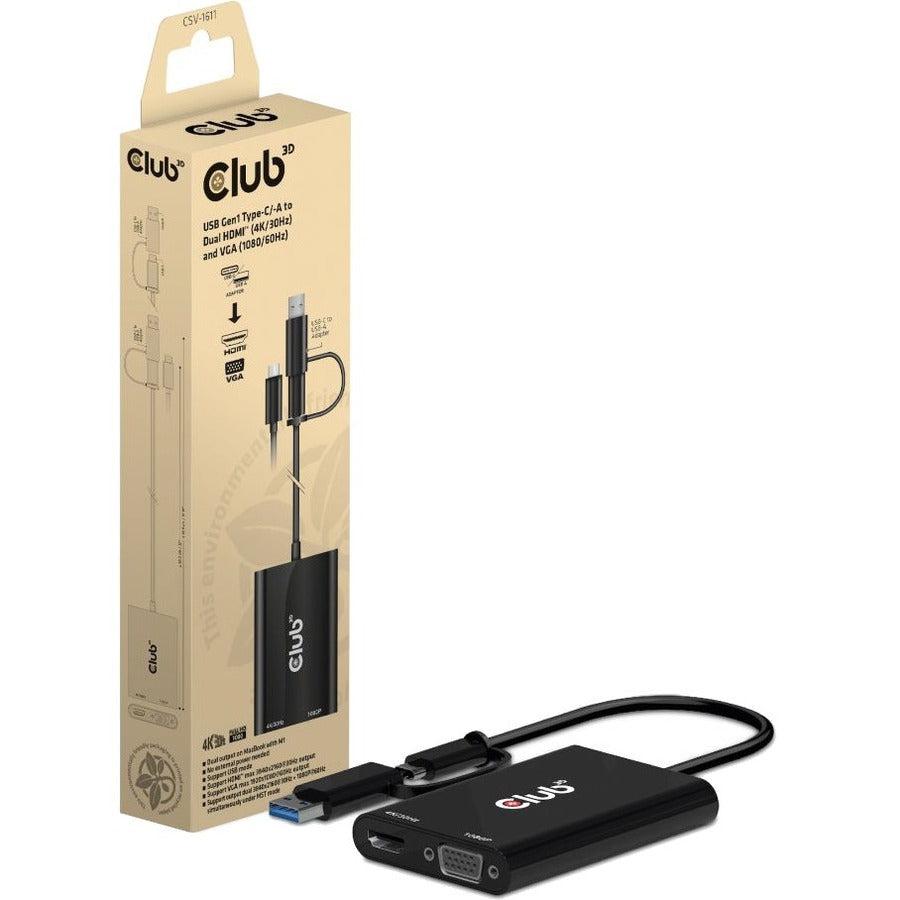

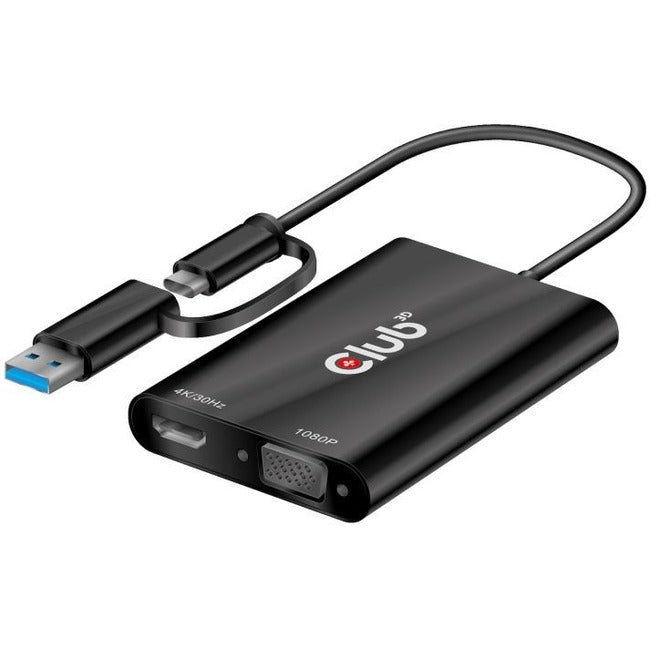

Club 3D USB Gen1 Type-C/-A to Dual HDMI (4K/30Hz) / VGA (1080/60Hz)
The Club 3D CSV-1611 USB Gen1 Type-C/-A to Dual HDMIâ„¢ (4K/30Hz) and VGA (1080/60Hz) adapter is a Dual Display adapter which provides most advanced, efficient solution to extend a single USB Type-C or Type-A port to HDMIâ„¢ and VGA displays. It supports single HDMIâ„¢ 4K/30Hz and VGA 1080P/60Hz or dual 4K/30Hz + VGA 1080P/60Hz simultaneous output of different videos. It can work on USB Mode and DP Alt mode supported Type-C and USB-A host. Dual Video output on MacBook with M1. Support USB Gen1 with max 5Gbps data transmission. The unit is powered thru the USB Type-A or Type-C host connection. No external power needed.
- Works with both USB Gen1 Type-A or Type-C input
- No external power needed
- Support USB mode
- Support USB Gen1 with max 5Gbps data transmission
- Dual output on MacBook with M1
- Support HDMIâ„¢ max 3840x2160@30Hz output
- Support output pixel format RGB/YCbCr4:2:2/YCbCr4:2:0
- Support VGA max 1920x1080@60Hz output
- Support output dual 3840x2160@30Hz + 1080P@60Hz simultaneously under MST mode
- Support 8bit color depth output
Specifications :
General Information
Manufacturer | Club 3D |
---|---|
Manufacturer Part Number | CSV-1611 |
Manufacturer Website Address | http://www.club-3d.nl |
Brand Name | Club 3D |
Product Name | USB Gen1 Type-C/-A to Dual HDMI (4K/30Hz) / VGA (1080/60Hz) |
Product Type | A/V Adapter |
UPC | 0841615102686 |
Height | 0.6" |
---|---|
Width | 2.4" |
Weight (Approximate) | 4.59 oz |
Features | Display Stream Compression (DSC) 1.2 |
---|---|
Environmentally Friendly | Yes |
