Club 3D Csv-1568 Docking Station

Description :

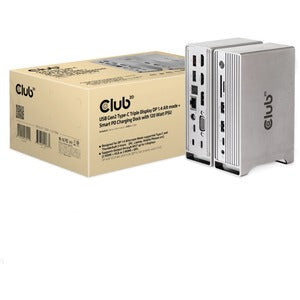

Club 3D CSV-1568 Docking Station

The Club 3D CSV-1568 USB Gen2 Type-C Triple Display DP™ Alt mode + Smart PD Charging Dock with 120 Watt PSU, is an integrated solution combining Video, Data, Power, Ethernet and Audio. It has 4 videos (output 3 videos simultaneously under MST mode) for video transmission, 4 USB data ports (2 USB-A 10G, 1 Type-C 10G, 1 USB-A 5G)for data transmission, 1 USB-A smart charging port for quick charging, 1 Gigabit Ethernet for super fast Ethernet, 2 audio ports (3.5mm audio, Toslink) for enjoying music. Besides, this dock is equipped with dual power jack (Type-C PD Charging or 120W DC power supply). It supports all DP Alt mode1.4/1.2 supported Type-C and ThunderboltT™ 3 host (PC, Laptop, Mobile phone, etc.) under Windows and under MacOSX based on Intel you will only get limited SST Function or Single display Only.

Features:

• Designed for DP 1.4 Alternate Mode supported Type C and Thunderbolt 3 Hosts (PC, Laptop, Mobile Phones etc)
• Supports Output through MST up to 3 displays (2 HDMI + VGA or 2 HDMI + DP). DP and VGA are alternate (DP is has priority over VGA)
• When 3 Displays are connected - 16.2Gbps bandwidth will be shared
• Single Display Support - HDMI max 4K60Hz, DP Max 4K60Hz, VGA max 1920*1200 60Hz
• DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2
• DP and HDMI support RGB 4:4:4/ YCbCr 4:4:4/ YCbCr 4:2:2
• DP and HDMI support deep color 8/10 bit
• DP and HDMI support HDR
• DP and HDMI support HDCP2.2&1.4
• DisplayPort supports DP++ which enables to connect a passive DP to HDMI port to connect HDMI display
• Support Gigabit Ethernet 10/100/1000M
• Support USB3.2 Gen2 with max 10Gbps data transfer
• Support smart charging
• Support Digital audio with max 96KHz/24bit sampling rate
• Support dual power supplies: Type-C PD charging or DC Jack
• Type-C female supports max 100W PD Charging with fast role swap of PD3.0, support smart power which allows to distribute power according to actual consumption of the connected devices
• Max 120W power supply from DC Adapter, support smart power according to actual consumption of the connected devices, the host can get power ranging from 60W to 100W

Product Type: Docking Station
Environmentally Friendly: Yes
Environmental Certification: RoHS
Kensington Security Slot: Yes
Brand Name: Club 3D
Manufacturer: Club 3D
Product Model: CSV-1568
Product Name: CSV-1568 Docking Station
Manufacturer Part Number: CSV-1568
Manufacturer Website Address: http://www.club-3d.nl
Package Contents:

• CSV-1568 Docking Station
• PowerSupply
• USB Gen2 Type-C Cable 10G, 20V5A M/M, 1 m / 3.28 ft
• Detachable Stand
• Quick Install Guide
