Planar Clarity Matrix G3 MX LCD Video Wall System 998-0159-00

Description :

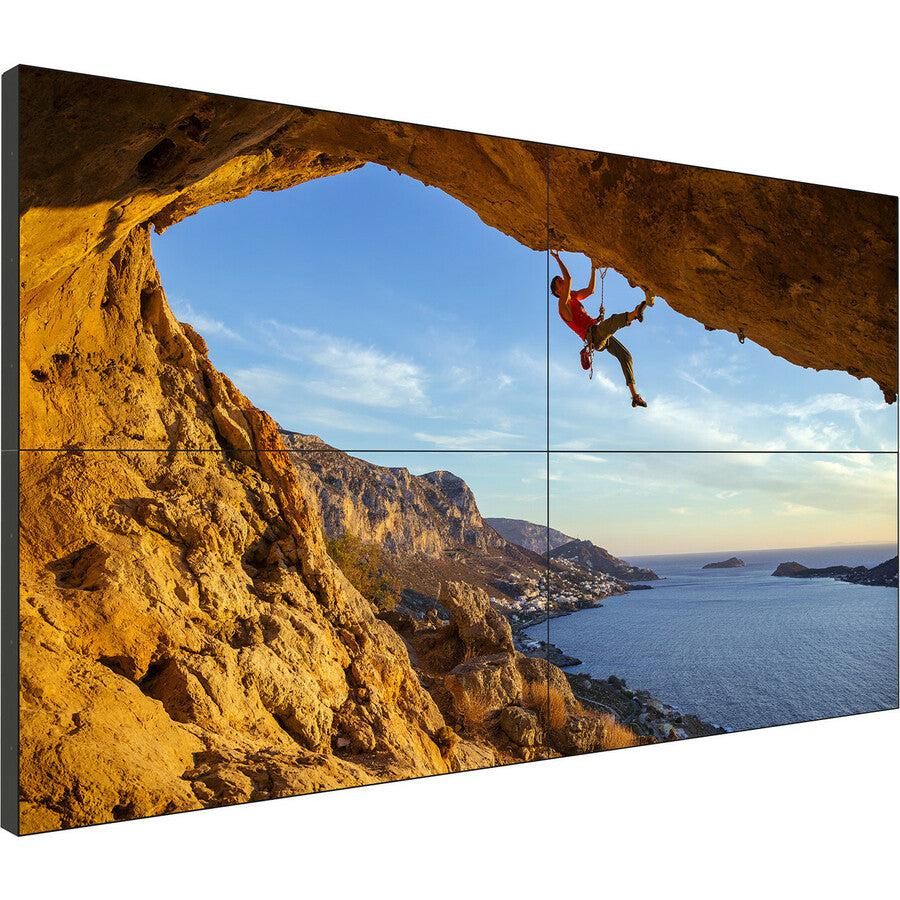

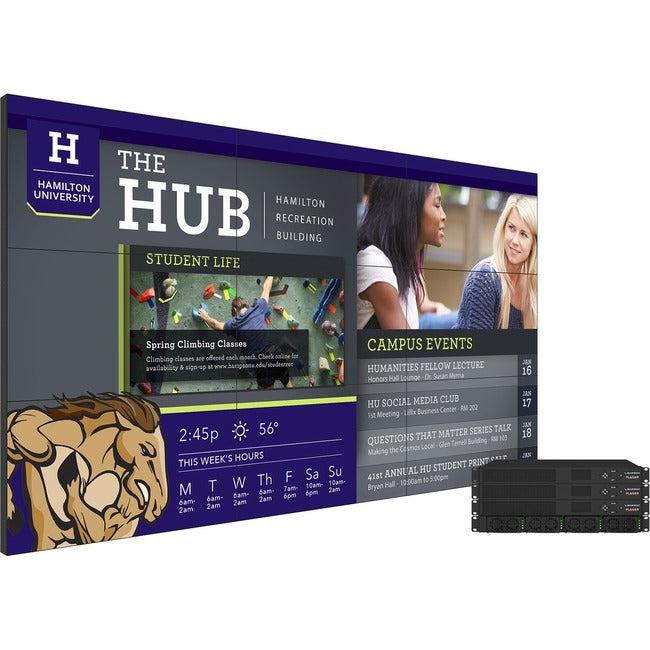

Planar Clarity Matrix G3 MX LCD Video Wall System

Designed for Demanding, High Ambient Light Applications

The Clarity® Matrix® G3 MX LCD Video Wall System meets the demands, mission-critical applications with higher ambient light conditions. Clarity Matrix G3 MX combines high 800-nit brightness and ultra-narrow bezel LCDs with next-generation improvements to video processing, installation, management and off-board electronics design, delivering an industry-leading video wall solution for improved visibility in bright ambient light environments.

Ultimate Visual Performance

Clarity Matrix G3 MX boasts the industry's narrowest bezels, with tiled bezel widths as small as 1.7mm between adjacent LCD displays, for a nearly seamless video wall solution. Clarity Matrix G3 MX delivers no-compromise visual performance with superb image quality, perfectly aligned panels and ultra high resolution. It also includes the Planar® EasyAxis™ Mounting System, which provides an installed depth of just 3.6" (91mm) -the thinnest in the industry-for perfect panel-to-panel alignment. Clarity Matrix G3 MX is available with Planar ERO (Extended Ruggedness and Optics), an optically-bonded glass front that provides increased ruggedness and optical performance for public space or interactive touch applications.

Simplifying Installation, Service and Monitoring

With simplified installation and service, Clarity Matrix G3 MX ensures a high performance, cutting-edge video wall system at a lower total cost of ownership. New Leyard® WallDirector™ Software is designed to significantly reduce time spent configuring, operating and monitoring complex video walls. This intuitive web-based software tool features simple, one button presets for set-up and configuration, recalling windowing layouts, dragging and dropping sources on the video wall canvas and easy manipulation of the window size and position. Additionally, Leyard WallDirector software can capture the health status of all video wall components in a centralized, convenient location.

Advanced Video Wall Processing

Clarity Matrix G3 MX takes built-in video wall processing to a new level with the off-board Video Controller (VC), making it the first LCD video wall solution on the market to embed advanced video processing directly into the product. Improved Planar® Big Picture Plus™ Video Wall Processing delivers more extensive on-display and off-board video wall processing, and can scale sources across the entire video wall or any section of the video wall, including multiple 4K @ 60Hz signals. Using 4K quadview, combine content from a higher number of independent sources, superimpose a smaller image over a larger one with Picture-in-Picture (PiP) and incorporate up to four unique image sources within a single display. Clarity Matrix G3 MX supports the latest 4K connectivity standards, including both HDMI 2.0 and DisplayPort 1.2, offering customers flexibility when building their video infrastructure.

Designed for Mission-Critical Operations

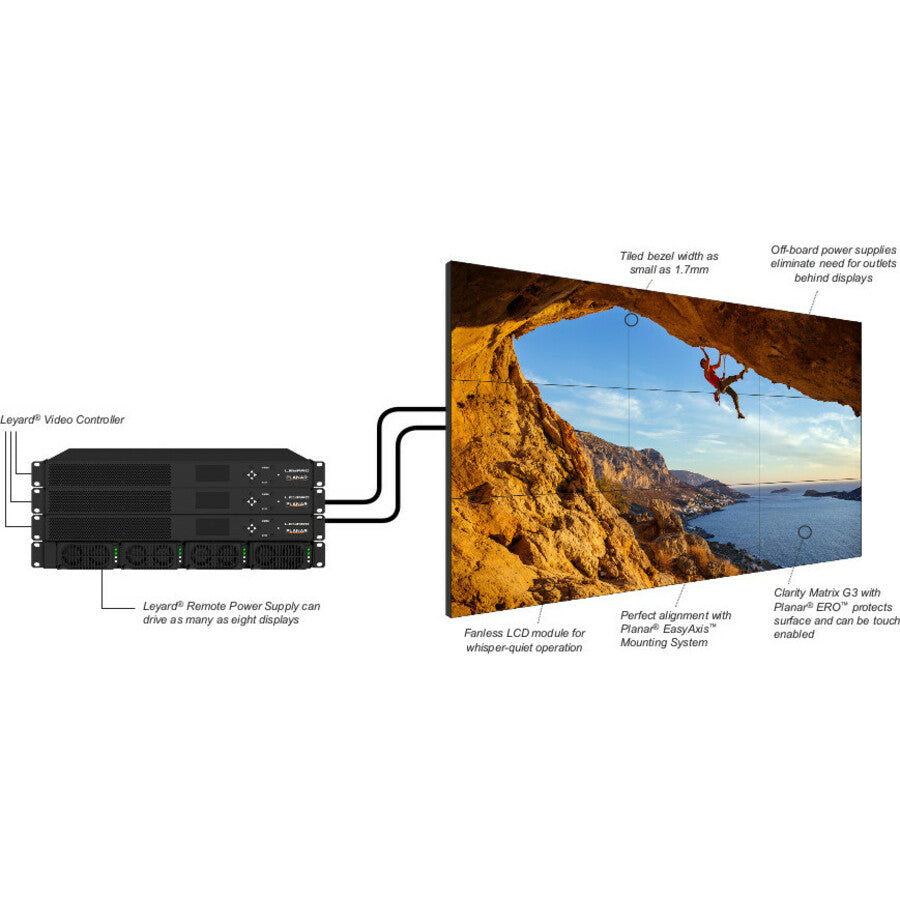

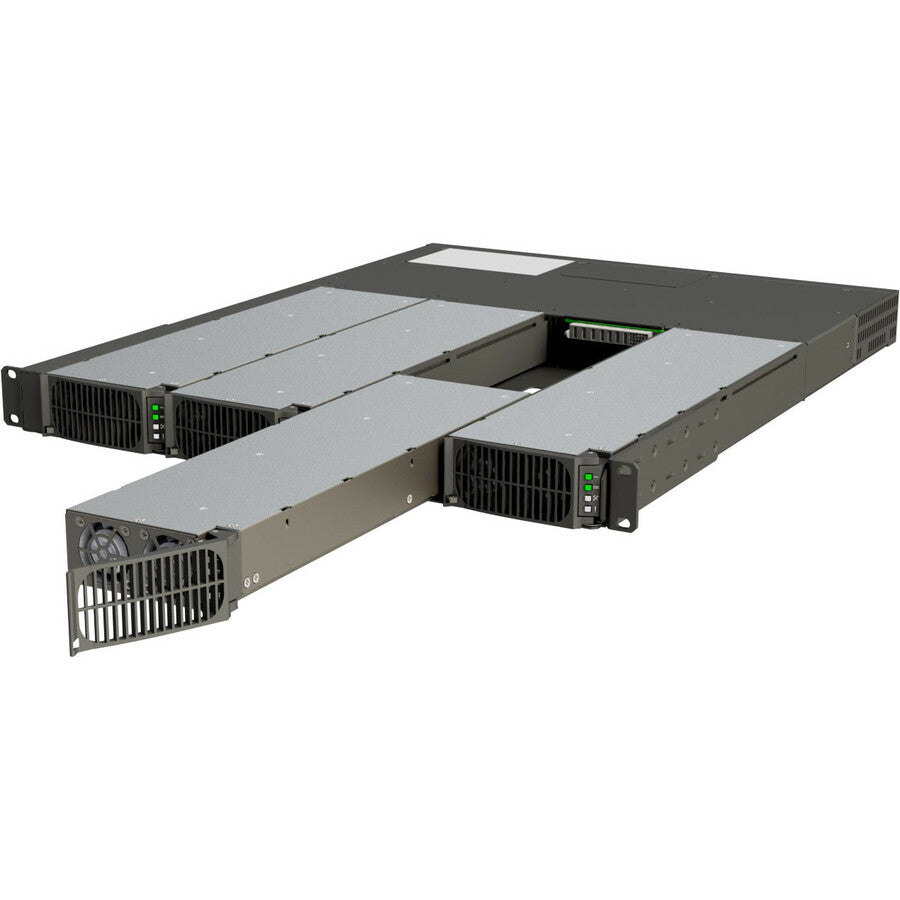

Clarity Matrix G3 MX features a unique off-board electronics design for maximum reliability and minimal downtime. With the Remote Power Supply (RPS), Clarity Matrix G3 MX takes its unique architecture and mission-critical design to a new level. The RPS features n+1 hot-swappable redundant power supplies, redundant AC input circuitry, reduced thermal stress and health as well as status monitoring capabilities.

In the event of failure, the video wall remains operational without disruption. For customers delivering highly sensitive information, the Clarity® Matrix® Fiber Video Extension option provides a more secure and longer distance option for extending video signals from Clarity Matrix electronics to displays.

• Extreme narrow bezel LCD video wall - 3.7 to 1.7mm tiled bezel width, available in 46" and 55"


• High brightness of 800-nits


• Features Leyard WallDirector Software for simplified installation, monitoring and management


• Built-in Planar Big Picture Plus Processing supports 4K at up to 60Hz and scaling across video wall or sections of video wall


• Mission-critical off-board electronics and hot-swappable redundant power supplies for 24x7 reliability


• Includes Planar EasyAxis Mounting System for precise alignment and thinnest profile


• Available with Planar ERO protective glass

Product Type: Digital Signage Display
Environmentally Friendly: Yes
Environmental Certification: EU RoHS
Product Series: MX
Brand Name: Planar
Manufacturer: Leyard
Product Model: MX55X-V
Product Name: Clarity Matrix G3 MX LCD Video Wall System
Product Line: Clarity Matrix
Manufacturer Part Number: 998-0159-00
Manufacturer Website Address: http://www.planar.com
Package Contents:

• Clarity Matrix G3 MX LCD Video Wall System
• Planar EasyAxis Mounting System
