Cisco Ir509 Wireless Router

Description :

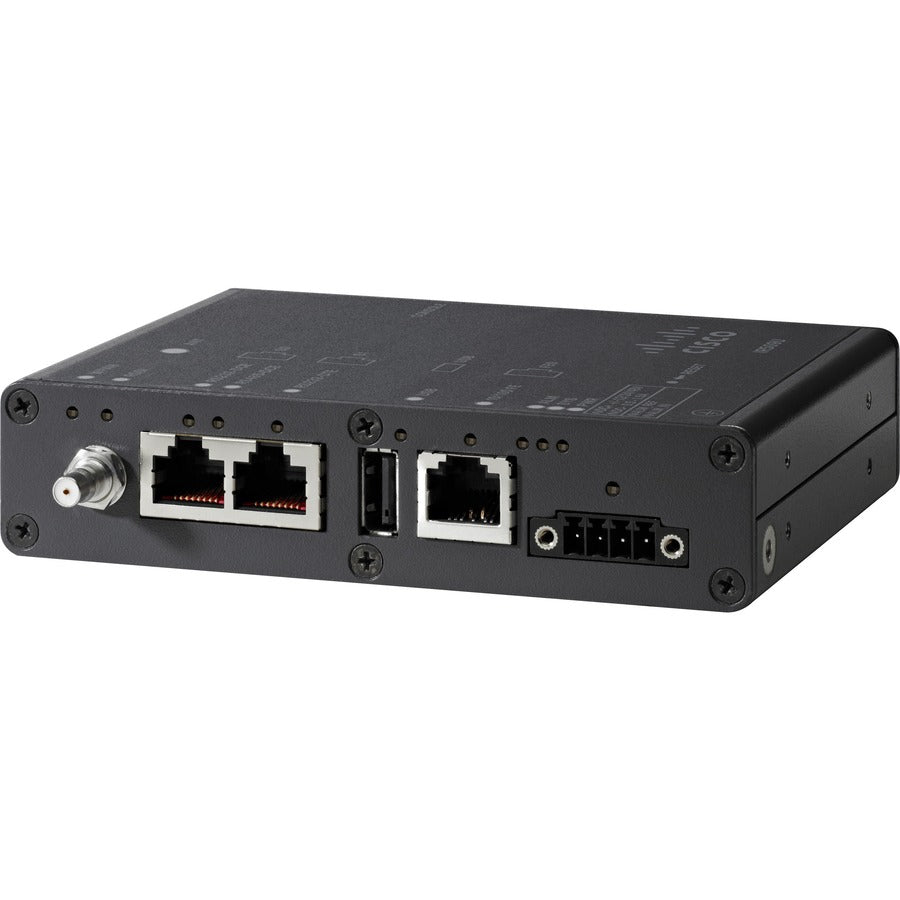

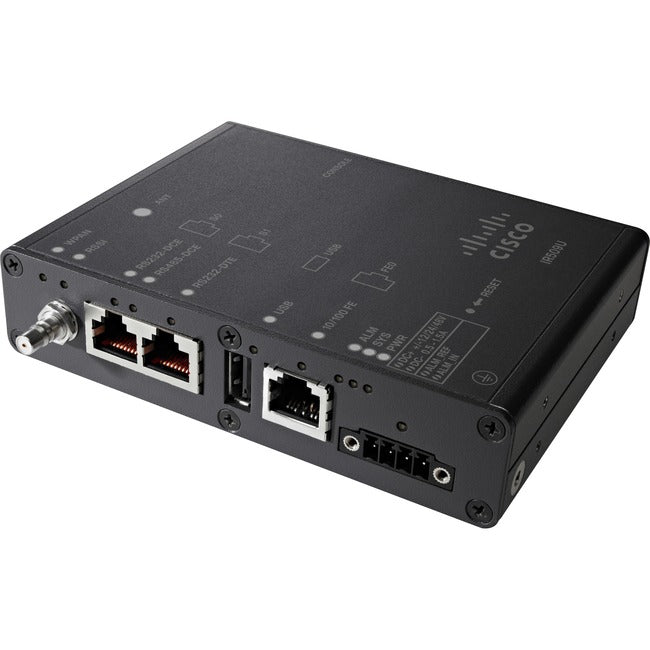

Cisco IR509 Wireless Router

The Cisco® 500 WPAN Industrial Router (IR500) provides unlicensed 915-MHz, ISM-band wireless personal-area network (WPAN) communications to diverse Internet of things (IoT) applications. Among the IoT apps supported are smart grid, distribution automation (DA), and supervisory control and data acquisition (SCADA). The router supplies enterprise-class RF mesh connecitivity to IPv4 and serial IoT devices, including recloser control, cap bank control, voltage regulator controls, and other remote terminal units (RTUs). Purpose-built to withstand harsh environments, the IR500 is ideal for installations in pad-mount and pole-mount cabinets and in other demanding locations.

The IR500 provides an open RF mesh solution based on the following standards: IEEE 802.15.4 g/e, IETF 6LoWPAN, IETF Routing Protocol for Low Power and Lossy Networks (RPL), IETF Mapping of Address and Port-Translation (MAP-T), and IETF Constrained Application Protocol (CoAP). It takes full advantage of worldclass Cisco networking capabilities in IPv6, security, legacy (serial) protocol transport, and network management.

• Offers high performance and reliable connectivity to the Internet and other offices


• With 10/100Base-TX technology, get up to 100 mbps data transfer rate over twisted pair cable


• Management capability provides control over the router's setup and configuration


• Featuring Fast Ethernet port to speed up the transfer rate up to 100 Mb/sec to connect your wired network


• Can be placed on desktop surfaces for standalone installation

Product Type: Router
Product Series: 500
Brand Name: Cisco
Form Factor: Desktop
Manufacturer: Cisco Systems, Inc
Product Model: IR509
Product Name: IR509 Wireless Router
Manufacturer Part Number: IR509UWP-915/K9
Manufacturer Website Address: http://www.cisco.com
Limited Warranty: 5 Year
Weight (Approximate): 13.60 oz
