Cisco Asr 1009-X Chassis

Description :

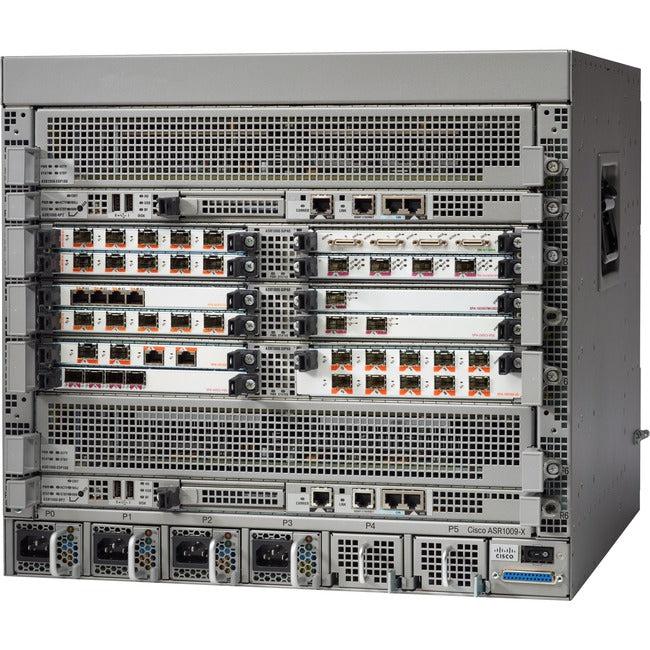

Cisco ASR 1009-X Chassis

Cisco® ASR 1000 Series Aggregation Services Routers aggregate multiple WAN connections and network services including encryption and traffic management, and forward them across WAN connections at line speeds from 2.5 to 200 Gbps. The routers contain both hardware and software redundancy in an industry-leading high-availability design.

The latest additions to the Cisco ASR 1000 Series are the Cisco ASR 1006-X chassis, ASR 1009-X chassis, 100-Gbps Modular Interface Processor (MIP), 40 Gigabit Ethernet port adapter, and 100 Gigabit Ethernet port adapter. The new chassis support 100-Gbps-per-slot bandwidth and are ready for future higher system capacity. The 100-Gbps Modular Interface Processor is an Ethernet line card that is capable of hosting up to two Ethernet port adapters.

The Cisco ASR 1000 Series supports Cisco IOS® XE Software, a modular operating system with modular packaging, feature velocity, and powerful resiliency. The Cisco ASR 1000 Series Embedded Services Processors (ESPs), which are based on Cisco Flow Processor™ technology, accelerate many advanced features such as crypto-based access security; Network Address Translation (NAT), thread defense with Cisco Zone-Based Firewall (ZBFW), deep packet inspection (DPI), Cisco Unified Border Element (CUBE), and a diverse set of data-center-interconnect (DCI) features. These services are implemented in Cisco IOS XE Software without the need for additional hardware support.

Cisco ASR 1000 Routers sit at the edge of your enterprise data center or large office connecting to the WAN, as well as in service provider points of presence (POPs). The Cisco ASR 1000 Series will benefit the following types of customers:

• Enterprises experiencing explosive network traffic as mobility, cloud networking, and video and collaboration usage increase: Cisco ASRs consolidate these various traffic streams and apply traffic management and redundancy properties to them to maintain consistent performance among enterprise sites and cloud locations.
• Network service providers needing to deliver high-performance services, such as DCI and branch-office server aggregation, to business customers: Service providers can also use the multiservice routers to deploy hosted and managed services to business and multimedia services to residential customers.
• Existing Cisco 7200 Series Router (end-of-sale) customers looking for simple migration to a new multiservice platform that delivers greater performance with the same design

• With the versatile chassis, build a network that suits your needs by installing multiple modules and have more flexibility in expanding your router when required


• The unmanaged router provides a quick, easy and cost-saving way to connect with the wired network; no intervention needed

Product Type: Router Chassis
Product Series: ASR 1000
Brand Name: Cisco
Form Factor: Rack-mountable
Manufacturer: Cisco Systems, Inc
Product Model: ASR 1009-X
Product Name: ASR 1009-X Chassis
Manufacturer Part Number: ASR1009-X
Manufacturer Website Address: http://www.cisco.com
Limited Warranty: 90 Day
Weight (Approximate): 50 lb
