Description :

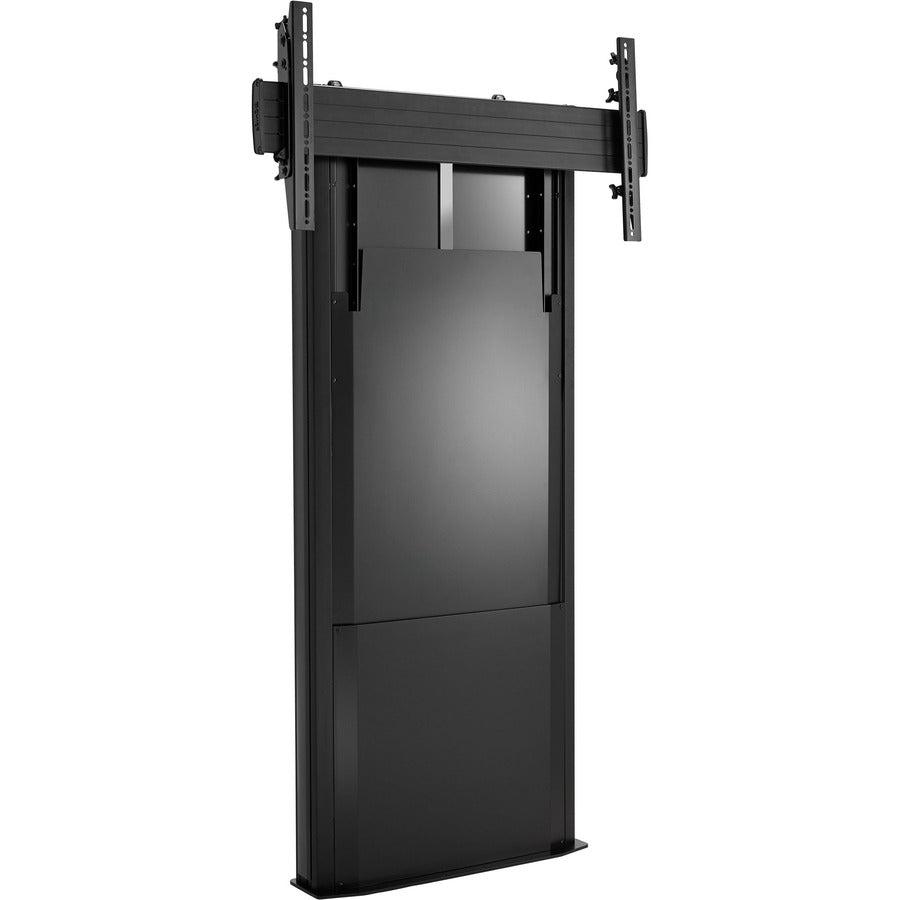

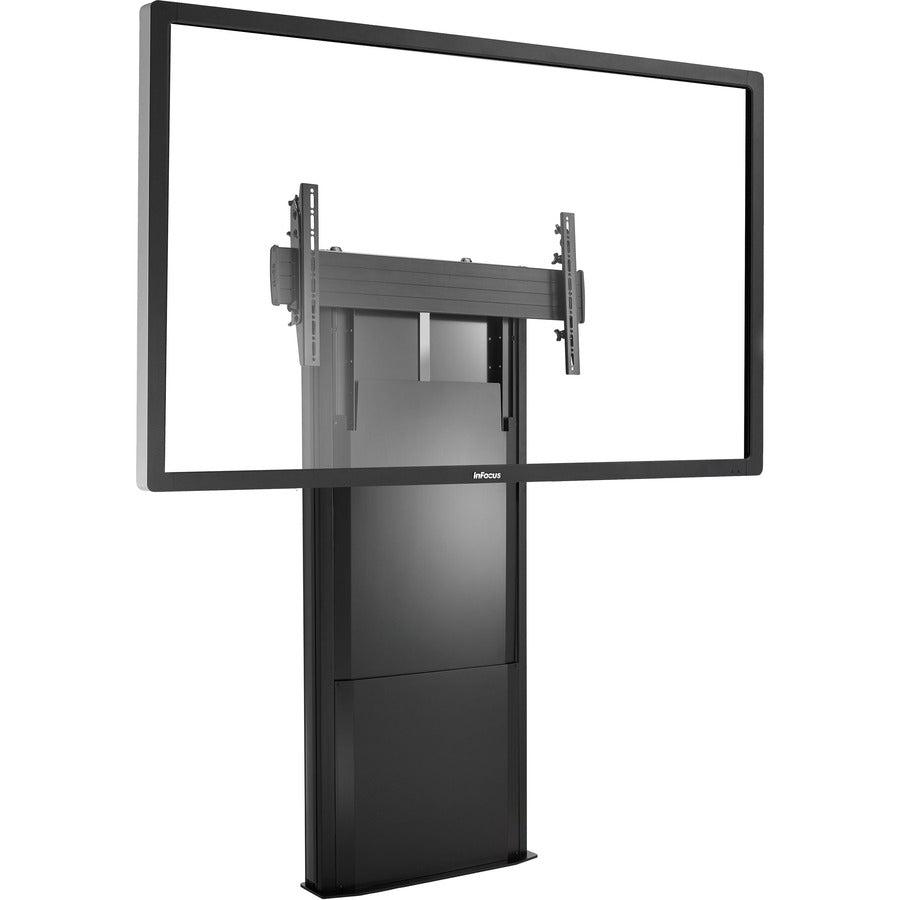

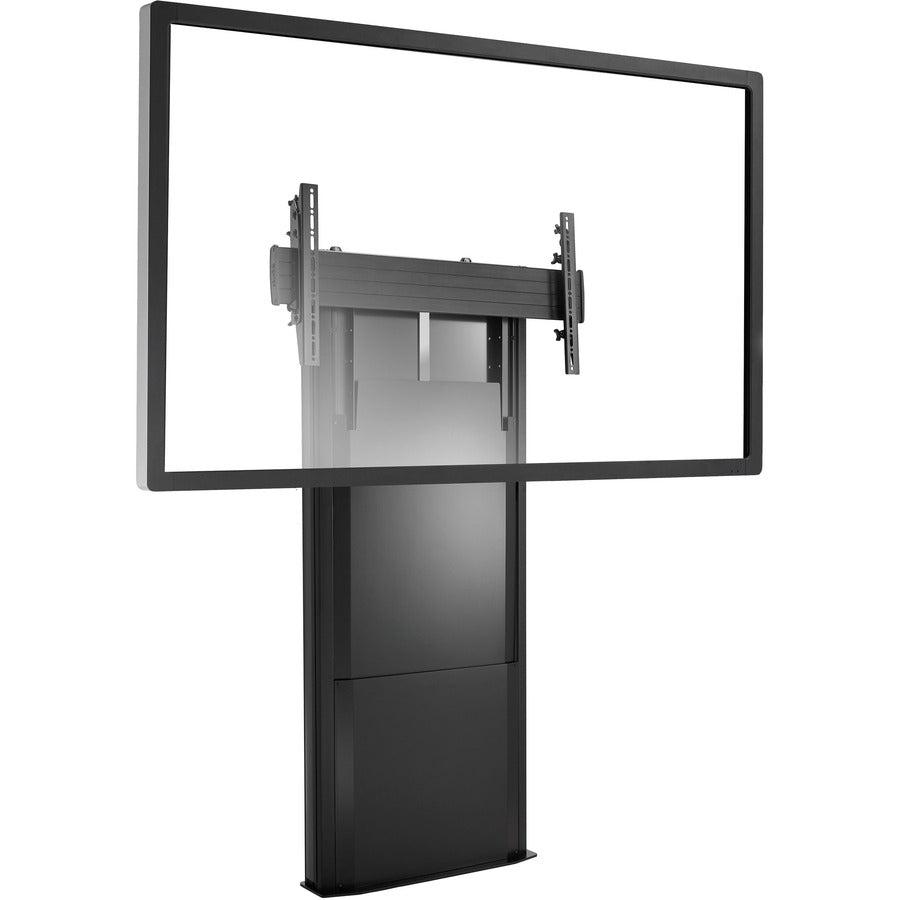

5.75” (400 mm), 200 x 200 - 800 x 400 mmChief Medium Fusion Dynamic Height Adjustable Floor Support. Maximum weight capacity: 59 kg, Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 800 x 400 mm. Height adjustment range: 0 - 400 mm. Product colour: Black
Ideal for interactive applications, Fusion mounts with dynamic height adjust capability create better accessibility to technology in the boardroom and the classroom. The height adjustable box provides ultra-smooth and fast vertical travel with almost no effort.
Easy to install. Easy to adjust.
This solution is especially helpful for applications where the wall structure can't carry the weight.
- Height adjustable box allows up to 15.75” (400 mm) of vertical adjustment instantly
- Starting height can be set at 3” (76 mm) intervals over a span of 12” (305 mm)
- ControlZone for post-installation fine-tuning of height and leveling
- ClickConnect offers an audible click when the screen safely engages with the mount
- A full line of accessories can be installed with the mount and the entire unit can be adjusted together
- Integrated security flag
Specifications :
General Information
Manufacturer | Legrand Group |
---|---|
Manufacturer Part Number | MFD1U |
Manufacturer Website Address | http://www.legrand.us |
Brand Name | Chief |
Product Line | Fusion |
Product Model | MFD1U |
Product Name | Medium Fusion Dynamic Height Adjustable Floor Support |
Product Type | Mounting Base |
UPC | 841872168173 |
Product Color | Black |
---|---|
Height | 64.4" |
Width | 36.8" |
Depth | 6.3" |
Weight (Approximate) | 210 lb |
Limited Warranty | 10 Year |
---|
