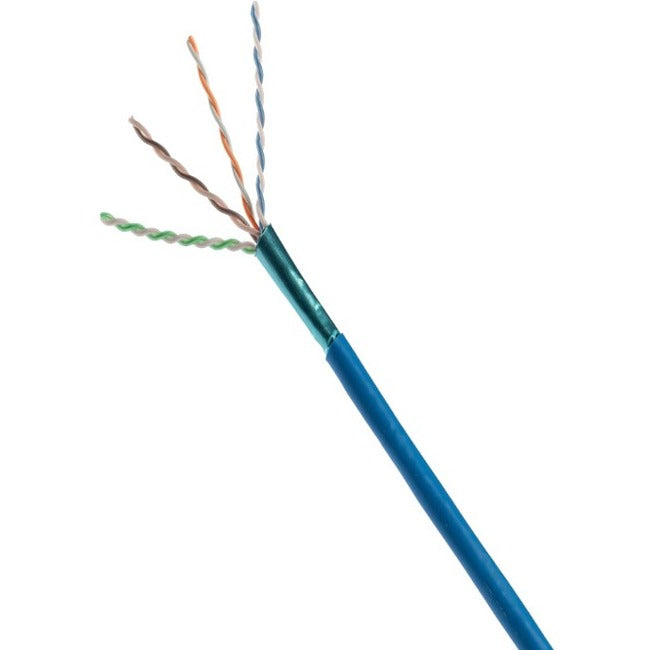

PanNet Pan-Net Copper Cable PUP6AHD04BL-G

Description :

PanNet Pan-Net Copper Cable

The Vari-MaTriX HD copper cable is the smallest Category 6A copper cable on the market. With a 0.230" diameter, the Category 6A Vari-MaTriX HD is equivalent in size to a Category 6 cable. Upgrading from Category 6 to 6A is simplified as the Vari-Matrix HD increases cable fill up to 35% and can utilize existing Category 6-sized pathways. The Vari-MaTriX tape shall minimize the cable diameter and suppress the effects of alien crosstalk while retaining UTP electromagnetic interference immunity. The small cable diameter shall maximize cable density such that existing pathways can be utilized when upgrading from Category 6 cabling.

• Vari-MaTriX HD Technology Best-in-class cable diameter delivers superior PSANEXT and PSAACRF suppression while retaining UTP EMI immunity


• Superior headroom warranty Provides the highest worst-case margins above the industry standard for both electrical and alien crosstalk performance


• High density cable design Improves fill capacity, cable management, reduces required bend radius and allows efficient use of pathways and spaces


• Extended temperature range Allows operation in 105°C (221°F) ambient environment providing error-free performance in high-density cabinets and large cable bundles running PoE+ or PoE++ applications


• Highest port density All testing and headroom based on 48-port/1RU panels


• Descending length cable markings Easy identification of remaining cable to reduce installation time and cable scrap

Product Type: Network Cable
Jacket Material: Polyvinyl Chloride (PVC)
Product Color: Black
Brand Name: PanNet
Manufacturer: PANDUIT CORP
Product Name: Pan-Net Copper Cable
Product Line: TX6A
Manufacturer Part Number: PUP6AHD04BL-G
Manufacturer Website Address: http://www.panduit.com
Packaged Quantity: 1000
Limited Warranty: 1 Year
Weight (Approximate): 29.98 lb
