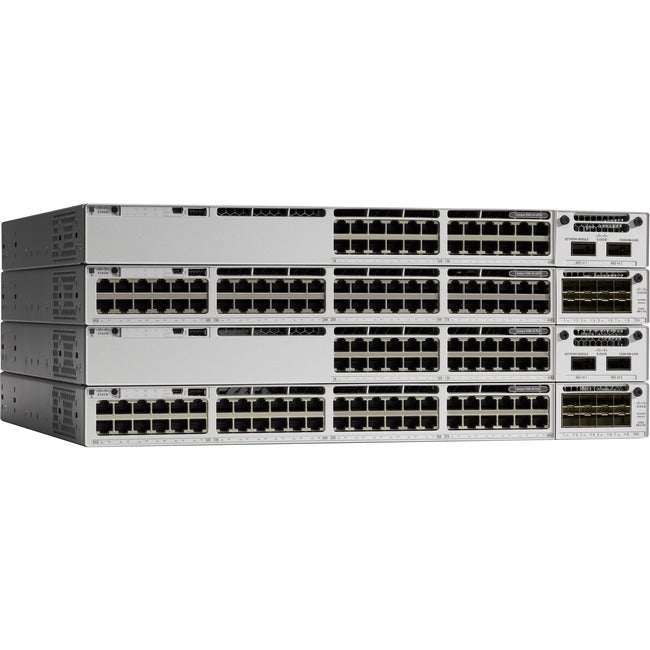

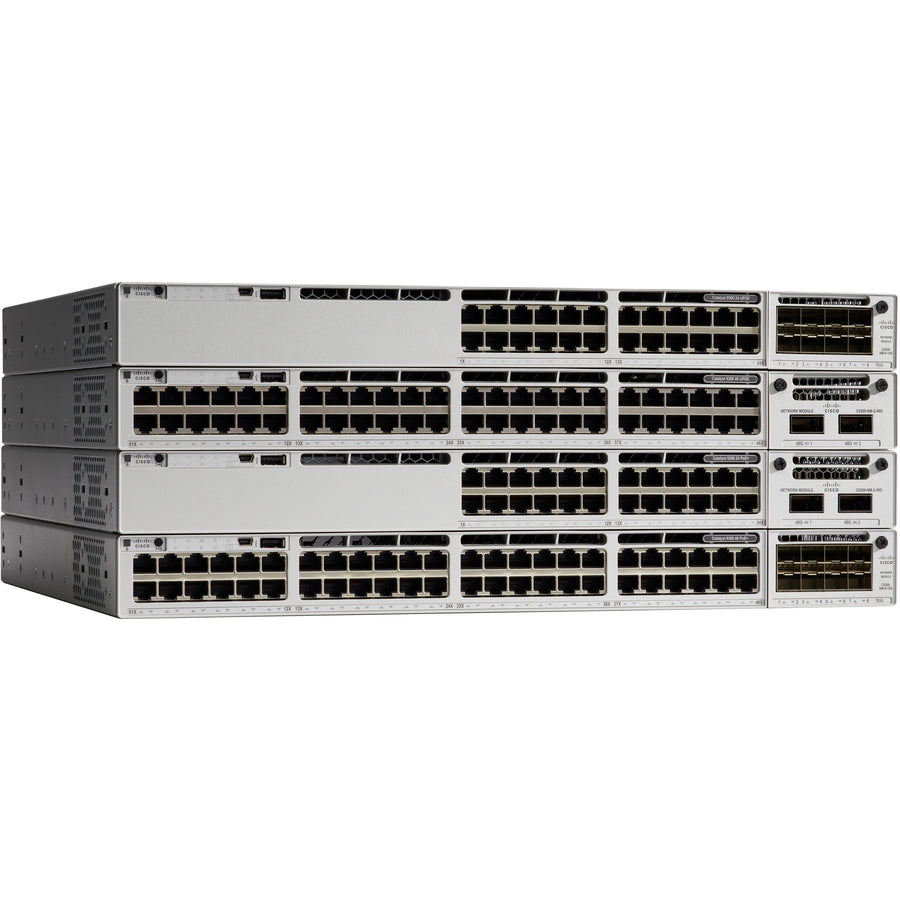

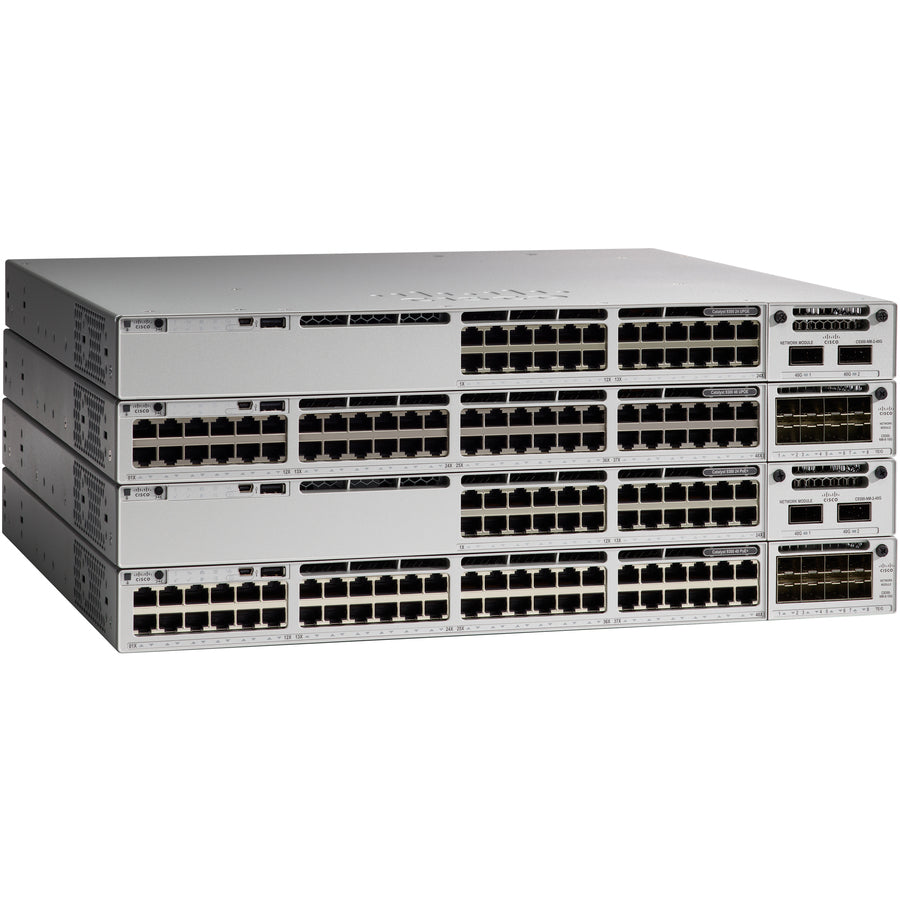

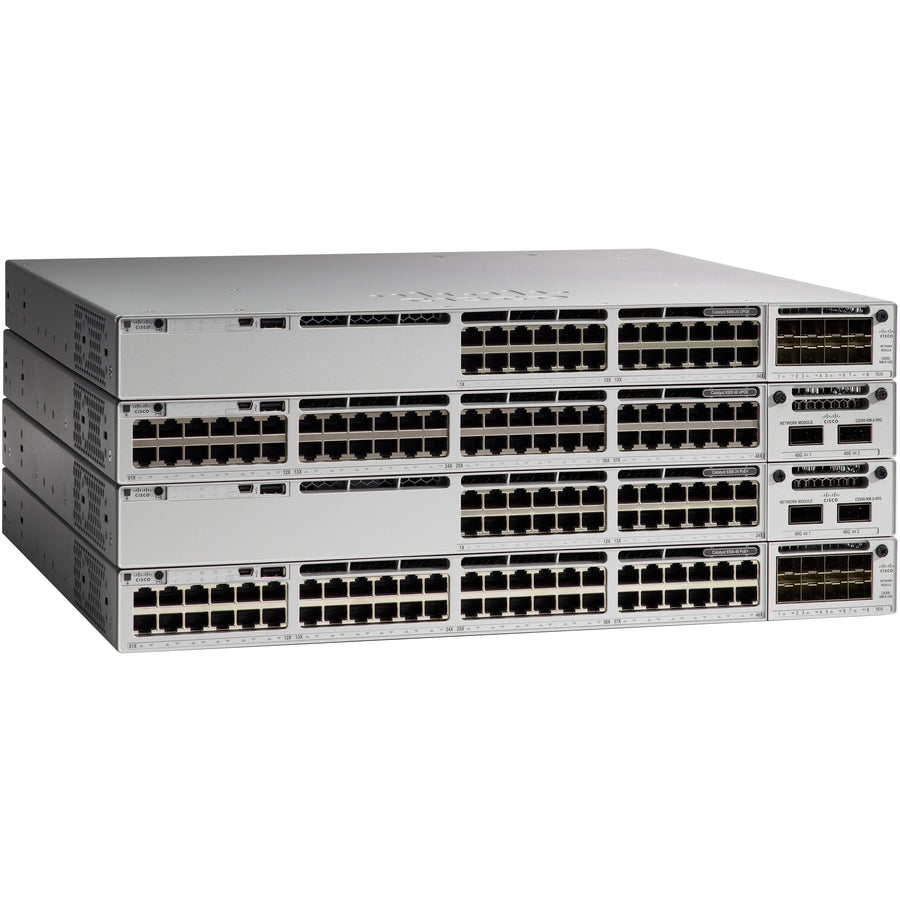

Cisco Catalyst C9300-24UX Ethernet Switch C9300-24UX-E

Description :

Cisco Catalyst C9300-24UX Ethernet Switch

Built for Security, IoT, Mobility, and Cloud

The Cisco^® Catalyst^® 9300 Series Switches are Cisco's lead stackable enterprise switching platform built for security, IoT, mobility, and cloud. They are the next generation of the industry's most widely deployed switching platform. The Catalyst 9300 Series switches form the foundational building block for Software-Defined Access (SD-Access), Cisco's lead enterprise architecture. At 480 Gbps, they are the industry's highest-density stacking bandwidth solution with the most flexible uplink architecture. The Catalyst 9300 Series is the first optimized platform for high-density 802.11ac Wave2. It sets new maximums for network scale. These switches are also ready for the future, with an x86 CPU architecture and more memory, enabling them to host containers and run third-party applications and scripts natively within the switch.

The Catalyst 9300 Series is designed for Cisco StackWise^® virtual technology, providing flexible deployment with support for nonstop forwarding with stateful switchover (NSF/SSO), for the most resilient architecture in a stackable sub-50-ms solution. The highly resilient and efficient power architecture features Cisco StackPower^®, which delivers high-density Cisco Universal Power Over Ethernet (Cisco UPOE^®) and Power over Ethernet Plus (PoE+) ports. The switches are based on the Cisco Unified Access^™ Data Plane 2.0 (UADP) 2.0 architecture which not only protects your investment but also allows a larger scale and higher throughput. A modern operating system, open Cisco IOS XE with programmability offers advanced security capabilities and Internet of Things (IoT) convergence.

The foundation of Software-Defined Access

Advanced persistent security threats. The exponential growth of Internet of Things (IoT) devices. Mobility everywhere. Cloud adoption. All of these require a network fabric that integrates advanced hardware and software innovations to automate, secure, and simplify customer networks. The goal of this network fabric is to enable customer revenue growth by accelerating the rollout of business services.

The Cisco Digital Network Architecture (Cisco DNA^™) with SD-Access is the network fabric that powers business. It is an open and extensible, software-driven architecture that accelerates and simplifies your enterprise network operations. The programmable architecture frees your IT staff from time-consuming, repetitive network configuration tasks so they can focus instead on innovation that positively transforms your business. SD-Access enables policy-based automation from edge to cloud with foundational capabilities. These include:

? Simplified device deployment

? Unified management of wired and wireless networks

? Network virtualization and segmentation

? Group-based policies

? Context-based analytics

• Highest wireless scale with Wave 2 access points supported on a single switch with select models


• UADP 2.0 Application-Specific Integrated Circuit (ASIC) with programmable pipeline and microengine capabilities, along with template-based, configurable allocation of Layer 2 and Layer 3 forwarding, Access Control Lists (ACLs), and Quality of Service (QoS) entries


• Intel® x86 CPU complex with 8-GB memory, and 16 GB of flash and external USB 3.0 SSD pluggable storage slot to host containers


• USB 2.0 slot to load system images and set configurations


• Up to 480 Gbps of local stackable switching bandwidth


• Flexible and dense uplink offerings with 1G, Multigigabit, 10G, and 40G, with platform readiness for 25G


• Flexible downlink options with 1G and Multigigabit links


• Leading PoE capabilities with up to 384 ports of PoE per stack, 60W Cisco UPOE, and PoE+


• Intelligent Power Management with Cisco StackPower technology, providing power stacking among members for power redundancy


• Line-rate, hardware-based Flexible NetFlow (FNF), delivering flow collection of up to 64,000 flows

Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: RoHS-5
Product Series: 9300
Brand Name: Cisco
Form Factor: Rack-mountable
Manufacturer: Cisco Systems, Inc
Product Model: C9300-24UX
Product Name: Catalyst C9300-24UX Ethernet Switch
Product Line: Catalyst
Manufacturer Part Number: C9300-24UX-E
Manufacturer Website Address: http://www.cisco.com
Limited Warranty: Lifetime
