Black Box Vertical Metered PDU - 15-Amp Single Circuit, 120V, 24-Outlet, 5-15R, 5-15P PDUMV24-S15-120V

Description :

Black Box Vertical Metered PDU - 15-Amp Single Circuit, 120V, 24-Outlet, 5-15R, 5-15P

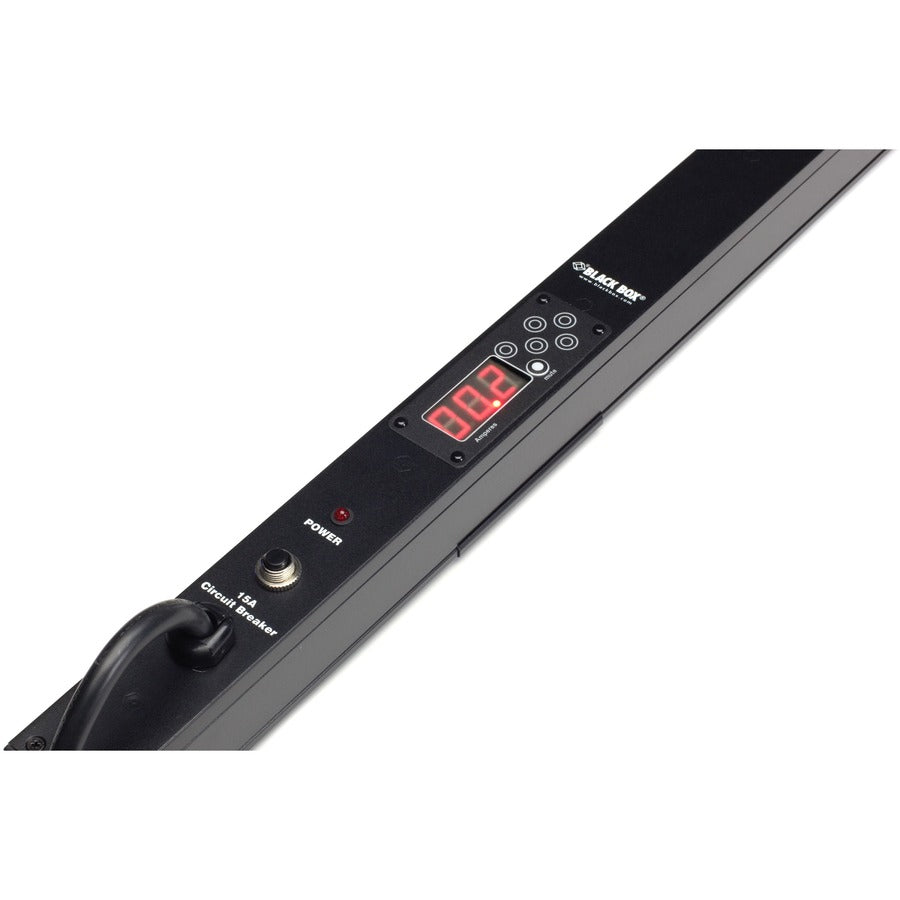

The metered PDU LCD display shows the current power draw in amps. The metered PDU only has one function button, MUTE, located next to the display. The metered PDU's alarm sounds when the current draw reaches 80% of capacity. The alarm can be turned off by pressing the MUTE button. When the current draw exceeds 90% of the maximum current rating, the alarm cannot be muted, and the PDU alarms until the current draw is reduced.

• Provides 24 outlets across 60 vertical inches.


• LCD display shows the current power draw in amps.


• An alarm sounds when current draw reaches 80% of capacity.


• The alarm can be turned off by pressing a mute button until the current draw reaches 90%, at which point the alarm can only be disabled by reducing the current draw.

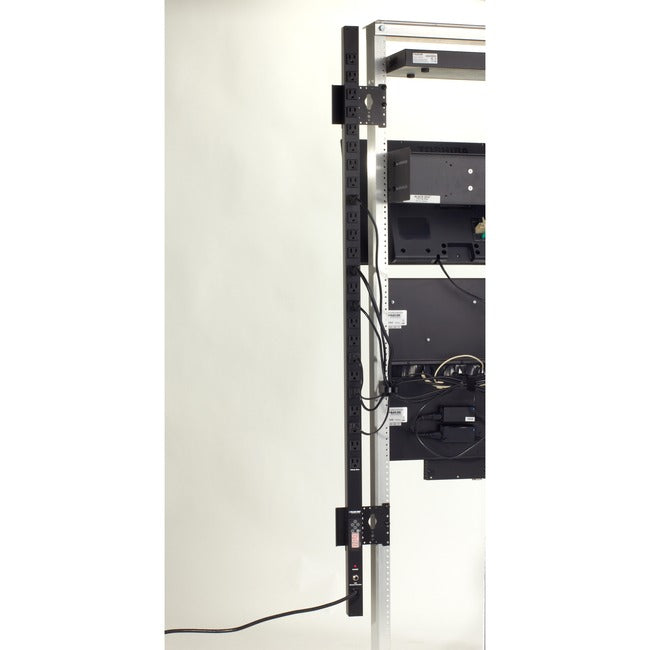

• Mounts vertically in any standard cabinet or rack.

Product Type: PDU
Environmentally Friendly: Yes
Environmental Certification: WEEE
Product Condition: Refurbished
Mounting Orientation: Vertical
Brand Name: Black Box
Length: 60"
Manufacturer: Black Box Corporation
Product Name: Vertical Metered PDU - 15-Amp Single Circuit, 120V, 24-Outlet, 5-15R, 5-15P
Mount Type: Rack-mountable
Manufacturer Part Number: PDUMV24-S15-120V
Manufacturer Website Address: http://www.blackbox.com
Packaged Quantity: 1
Package Contents:

• Vertical Metered PDU - 15-Amp Single Circuit, 120V, 24-Outlet, 5-15R, 5-15P
• 2 x Mounting Brackets
• 4 x Mounting Screws
• Specification Sheet
