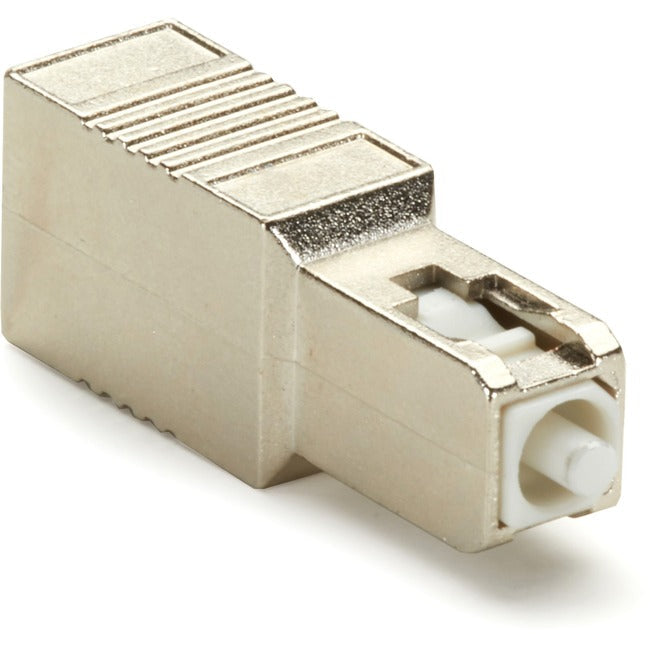

Black Box Fiber Optic In-Line Attenuator - Singlemode, 10 Db, Sc/Upc

Description :

Black Box Fiber Optic In-Line Attenuator - Singlemode, 10 DB, SC/UPC

Fiber equipment located too close to other fiber equipment? Having problems with transmissions? Data being corrupted? Getting system failures? The problem is easier to fix than you may think.

When a fiber device is very close to another one-for example, as little as 3 feet (0.9 m)-the signal is extremely strong. The light signal doesn't have time to attenuate or lose strength as it travels down the fiber. This is called receive saturation. The energy level of the fiber optic signal is too high and exceeds the operating range of the receiving equipment. So when the light reaches the other end, it reflects back along the cable. This reflection distorts the signal and disrupts data.

Solve the problem with Black Box attenuators. They feature guaranteed return-loss measures to attenuate the signal. To achieve the fixed return loss, the attenuators use a doped single-mode fiber with a wavelength of 1310-1550 nm.

Use the attenuators in CATV, LAN, WAN, and telecommunications applications. When you have multiple fiber runs, use the attenuators to make sure all are operating at the same optical level. You can also use the attenuators as part of your test kits to verify optical levels.

• Guaranteed for life!


• GR-910 compliant.


• Ceramic ferrules.


• Ideal for use when equipment is too close to each other.


• Provides loss to a fiber cable if the dB power is too great.

Product Type: Network Adapter
Environmentally Friendly: Yes
Environmental Certification: WEEE
Ferrule Material: Ceramic
Country Of Origin: Philippines
Brand Name: Black Box
Manufacturer: Black Box Corporation
Product Name: Fiber Optic In-Line Attenuator - Singlemode, 10 DB, SC/UPC
Manufacturer Part Number: FOAT50S1-SC-10DB
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: Lifetime
