Description :
Black Box DKM FX ACX2MT-DPHS-SM KVM Extender Transmitter - 1 Computer(s) - 32800 ft Range - 4K - 4096 x 2160 Maximum Video Resolution - 2 x USB - DisplayPort - For PC, Sun, Mac, Unix, Linux - TAA Compliant-
Compatible with other endpoints, such as HDMI and DVI cards.
For example, a DisplayPort transmitter can be connected to an HDMI receiver; the signal will translate to the correct signal type. - Supports integrated DisplayPort digital audio.
-

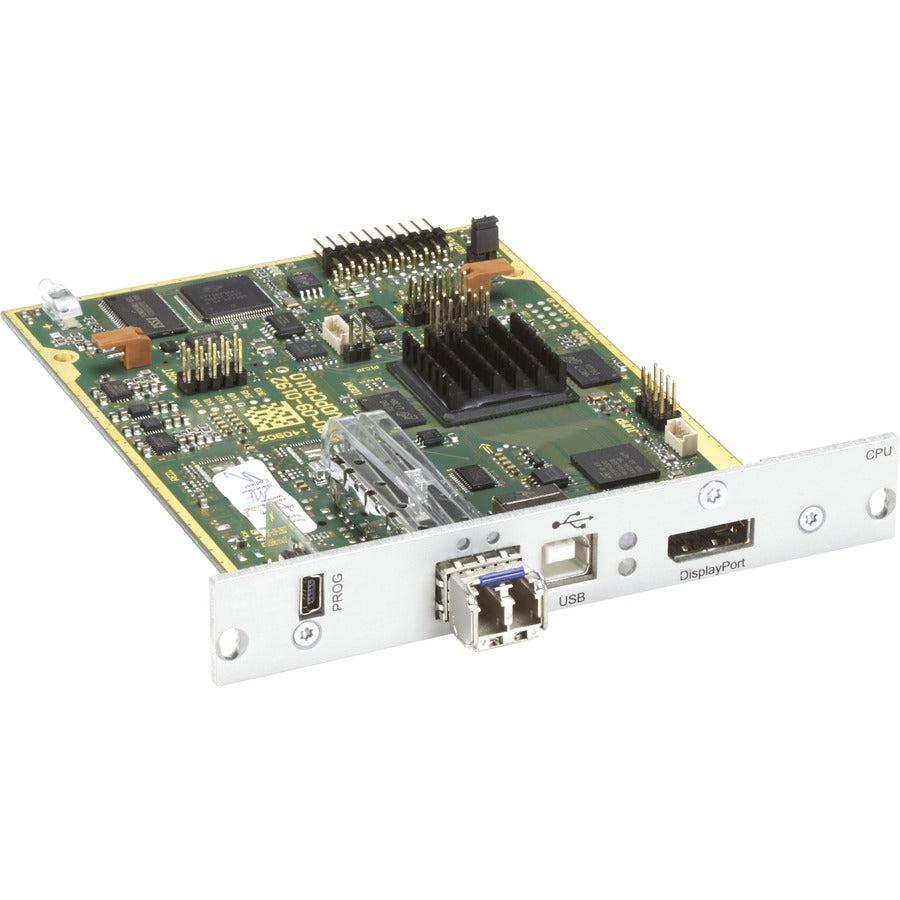

High-speed fiber module card.
This is the high-speed fiber interface card, which uses 2.5Gbps. This reduces latency on the USB HID stack.
The DKM FX HD Video and Peripheral Matrix Switching System is comprised of modular housing chassis with 2, 4, 6, or 21 slots and transmitter and receiver interface cards. The DKM extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application.
The DKM FX components are part of a modular system. You will need to contact Black Box to have them assembled to fit your application. To configure your DKM HD Video and Peripheral Matrix Switch setup,
Specifications :
General Information
Manufacturer | Black Box Corporation |
---|---|
Manufacturer Part Number | ACX2MT-DPHS-SM |
Manufacturer Website Address | http://www.blackbox.com |
Brand Name | Black Box |
Product Model | ACX2MT-DPHS-SM |
Product Name | DKM FX ACX2MT-DPHS-SM KVM Extender Transmitter |
Product Type | KVM Extender Transmitter |
UPC | 0822088002659 |
Environmentally Friendly | Yes |
---|
