Mfr Part Number: BN617
-
Features:
- Virtually inaudible SilentWings 3 135mm fan
- Funnel-shaped fan opening of the PSU case for high airflow intake

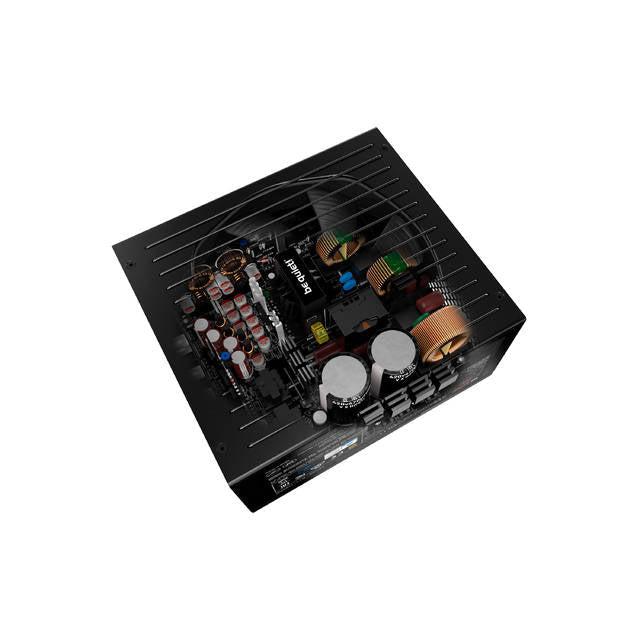

- Wire-free inside the PSU on the DC side for enhanced cooling and longevity
- Full cable management for maximum build flexibility
- 80PLUS Gold efficiency (up to 93%)
- Powerful multi-GPU support with two PCI-Express connectors
- Japanese 105C-rated capacitors ensure stability and reliability
- ErP and Energy Star 6.1 ready
- 5-year manufacturer's warranty
-
Power:
-
Continuous Power: 550W
-
Peak Power: 600W
-
Input:
-
Voltage: 100 ~ 240 VAC
-
Current: 8/4 A
-
Frequency Range: 50 ~ 60 Hz
-
Type: ATX12V v2.4 / EPS 12V v2.92
-
Power Factor Correction: Active PFC
-
Efficiency: 80 Plus Gold, up to 93% efficiency @ 20~100% load
-
Fan: 135mm SilentWings 3 FDB Fan
-
Output: +3.3V @ 24A, +5V @ 24A, +12V1 @ 18A, +12V2 @ 18A, +12V3 @ 20A, +12V4 @ 20A, -12V @ 0.3A, +5VSB @ 3A
-

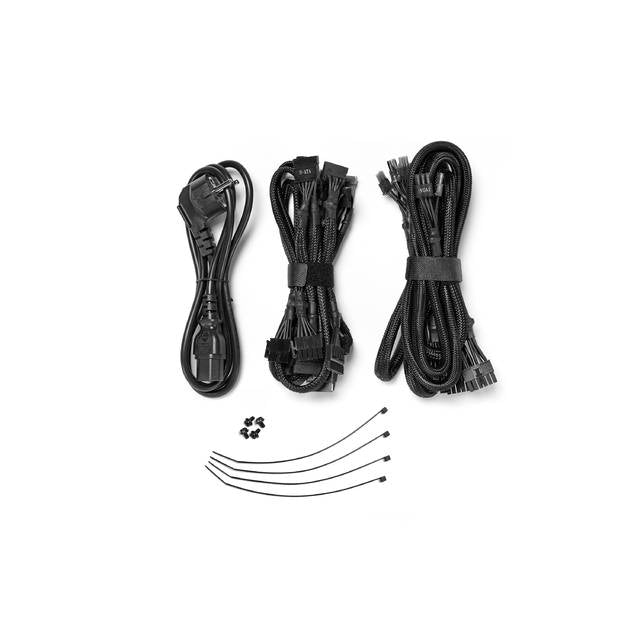

Connectors: 1x 20+4-pin ATX Main Connector, 1x P4+4 CPU Connector, 2x 6+2pin GPU PCI-Express Connectors, 9x 15-pin SATA Connectors, 3x 4-pin PATA Connectors, 1x Floppy Connector
-
Protection: OCP/ OVP/ UVP/ SCP/ OTP/ OPP
-
Approvals: CE, CB, TUV, FCC, cTUVus, RCM, BSMI, CU, CCC, ErP, WEEE, RoHS
-
Color: Black
-
Dimensions (WxLxD): 150.0 x 160.0 x 86.0 mm (without cable)
-
Weight: 1.51 kg
