Description :
-

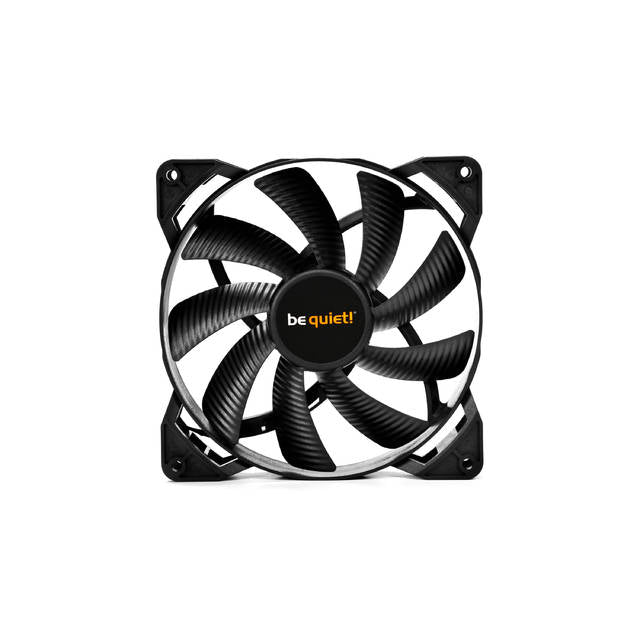

Mfr Part Number: BL081
-
Features:

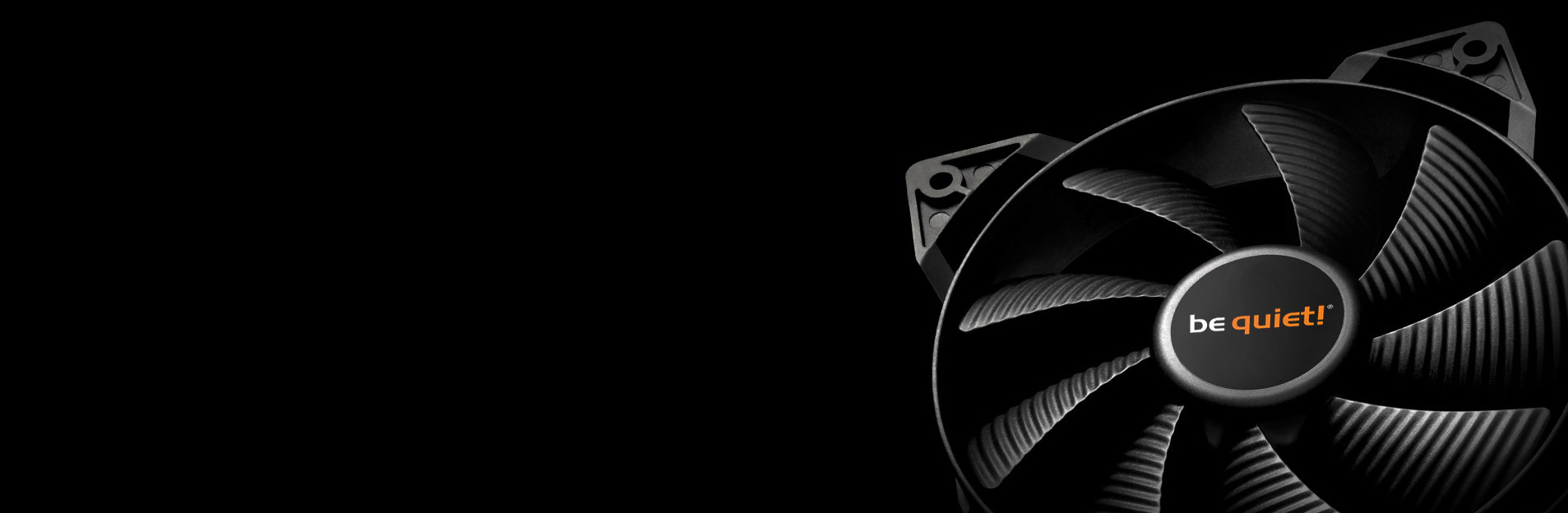

- Nine airflow-optimized fan blades that reduce noise-generating turbulence
- Long life rifle bearing gives an operating lifetime of 80,000 hours
- A fan speed of 2,000 rpm for extremely high air pressure
- Even at maximum speed, operates at only 36.9 dB(A)
- Product conception, design and quality control in Germany
- Nine airflow-optimized fan blades that reduce noise-generating turbulence
-
Fan Speed: 2000 RPM
-
Air Flow: 65.51CFM / 111.3 m3/h
-
Air Pressure: 2.23 mmH2O
-
Noise Level: 36.9 dBA
-
Voltage: Rated - 12 VDC, Operating - 5 ~ 12 VDC
-
Current: 0.18 A (consumption), 0.3 A (safety)
-
Input Power: 3.6 W
-
Bearing: Rifle
-
Motor: 4 - pole Fan Motor
-

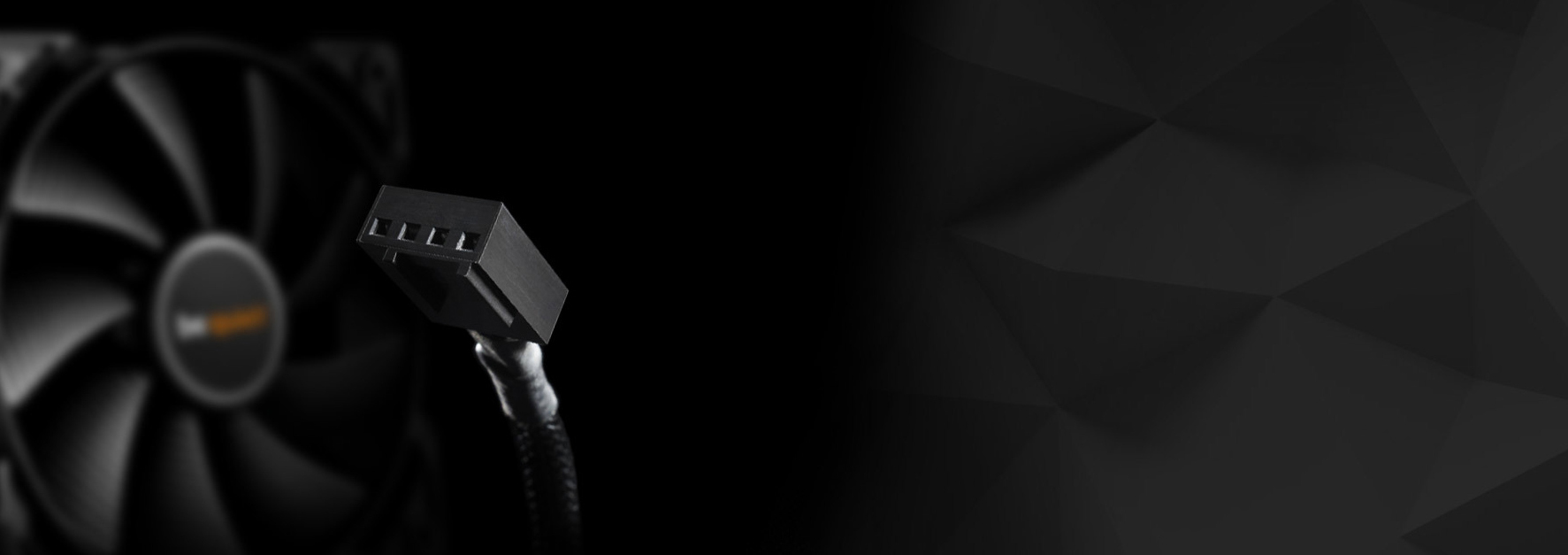

Connector: 4 Pin PWM
-
Cable Length: 460 mm
-
Approvals: CE, TV, UL
-
Dimensions (WxLxH): 120.0 x 120.0 x 25.0 mm
- Gross weight: 0.158 kg
