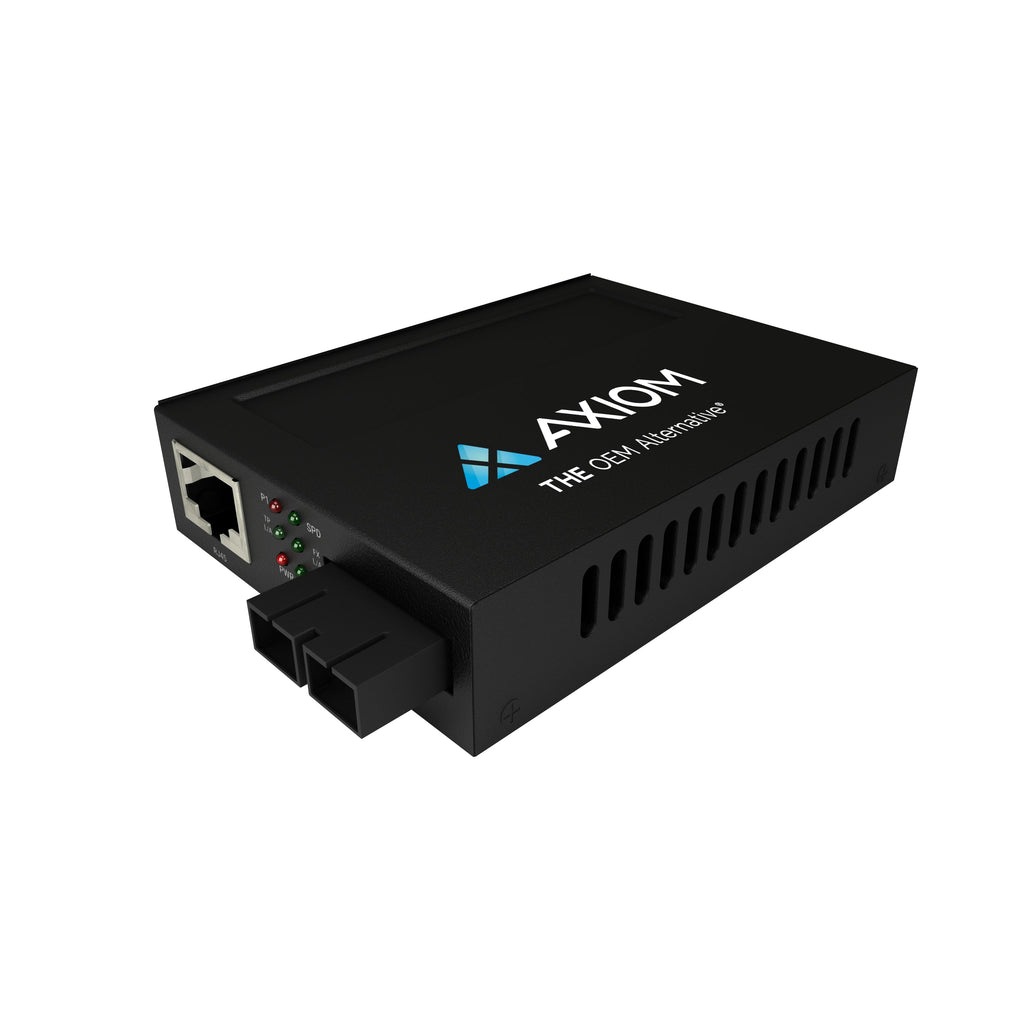

Axiom Mcp32-T2-M8S05-Ax Network Media Converter 1000 Mbit/S 850 Nm Multi-Mode Black

Description :

1Gbs POE+ RJ45 to 1000BASE-SX Fiber Media Converter - MMF, SC, 550m, 850nm

Axiom MCP32-T2-M8S05-AX. Maximum data transfer rate: 1000 Mbit/s, Converter input interface: 1000Base-TX, Converter output interface: 1000Base-FX. Fiber optic connector: SC, Connectivity technology: Wired. Maximum transfer distance: 550 m, Wavelength: 850 nm, Fiber mode structure: Multi-mode. LED indicators: Status, Product colour: Black, Housing material: Metal. Input voltage: 100 - 240 V, Input current: 0.45/0.2 A, Power consumption (max): 60 W

The Axiom POE+ (PSE) Series are a 10/100/1000Base-TX to 1000Base-FX (also can be forced to 100Base-FX) media converter, which allows two types of network segment to be connected easily. Compliant with IEEE802.3at standard, the AC/DC powered PoE media converter is a Power Sourcing Equipment (PSE) which combines data transferred over a fiber optic link with 48V (or other voltage) power supply, providing power to or IEEE802.3at powered device (PD) over CAT5e/CAT6 UTP cable (cable length up to 100meters / 330feet).
