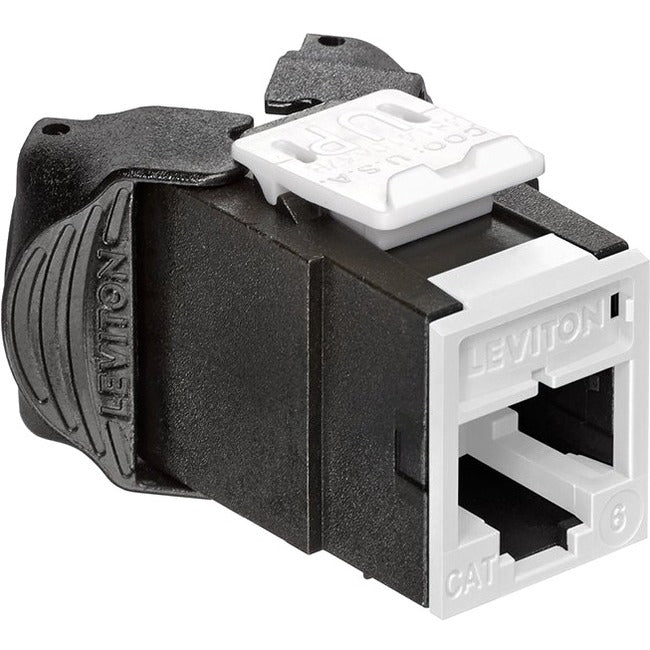

Leviton Atlas-X1 Cat 6 Component-Rated UTP QuickPort Jack 61UJK-RW6

Description :

Leviton Atlas-X1 Cat 6 Component-Rated UTP QuickPort Jack

Atlas-X1 Cat 6 UTP QuickPort Jack, White

Atlas-X1 Cat 6 Component-Rated UTP QuickPort Jacks support 1000BASE-T networks. The jack is part of a complete Atlas-X1 Cat 6 UTP system, ideal for the most demanding mission-critical network applications. The jack supports emerging technologies and will easily adapt to network trends.

• Jack with internal shutter protects against dust and debris


• Select jacks available with interchangeable icons (voice, data, A/V, and blank, color coded to match the jack face), for easy identification and tracking of data, voice, or other functions


• Available in 13 ANSI/TIA-606-C compatible colors


• Robust IDCs can withstand 20 re-termination cycles and jack contacts are tested for 750 plug-mating cycles to ensure system longevity


• Terminates from 26 to 22-gauge solid or stranded conductors for use on various cable types


• Short jack design supports a wider range of applications (e.g. shallow boxes, enclosures, bend radius, etc.)


• Unique design supports tool-free termination/re-termination and requires no specialized termination tool


• For Power over Ethernet, RFT maintains contact force between plug and jack, preventing arcing from intermittent disconnects


• Patented Retention Force Technology™ (RFT) protects against tine damage and increases system longevity


• Independently tested and guaranteed to exceed all component, permanent link, and channel margins

Product Type: Network Connector
Environmentally Friendly: Yes
Environmental Certification: RoHS 3
Contact Material: Copper Alloy
Product Color: White
Product Material: Die-cast Zinc
Country Of Origin: United States
Brand Name: Leviton
Manufacturer: Leviton Mfg. Company, Inc
Product Name: Atlas-X1 Cat 6 Component-Rated UTP QuickPort Jack
Product Line: Atlas-X1
Manufacturer Part Number: 61UJK-RW6
Manufacturer Website Address: http://www.leviton.com
