ATEN Technology Inc
Aten Vm7104 4-Port Vga Input Board
Aten Vm7104 4-Port Vga Input Board
SKU:VM7104
Couldn't load pickup availability
Description :

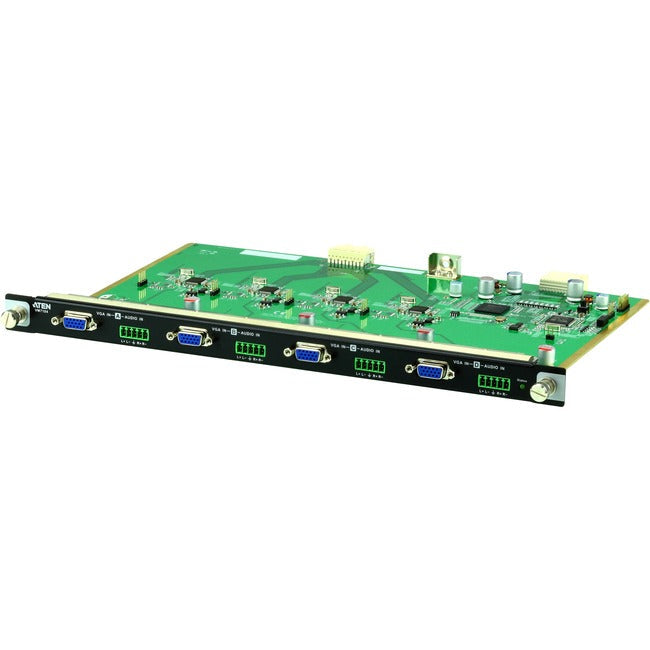

ATEN VM7104 4-Port VGA Input Board
The VM7104 4-Port VGA Input Board offers an easy way to route 4 VGA video and audio sources up to 16 displays, when used in combination with the ATEN Modular Matrix Switch. The VM7104 supports RGBHV / RGBS/ Y CbCr/ YPbPr input signals; stereo audio that can be embedded into HDMI Audio output. The board is built with a hot-swappable design that is compatible with the VM1600, so that the unit doesn't need to be powered off when the board is changed.
- Hot-swappable design for easy integration of I/O boards
- Supports RGBHV / RGBS/ YCbCr/ YPbPr input signals
- Compatible with the VM1600 and can be mixed with any modular output boards for optimum flexibility
- Connects up to 4 VGA or Component inputs
Product Type: Audio/Video Switchbox
Brand Name: ATEN
Manufacturer: ATEN Technology Inc
Product Model: VM7104
Product Name: 4-Port VGA Input Board
Manufacturer Part Number: VM7104
Manufacturer Website Address: http://www.aten.com/us/en/
Packaged Quantity: 1
Package Contents:
- 4-Port VGA Input Board
- 4 x Terminal Block Connectors
- 1 x User Instructions
Limited Warranty: 3 Year
Weight (Approximate): 1.23 lb
Specifications :
General Information
| Manufacturer | ATEN Technology, Inc |
|---|---|
| Manufacturer Part Number | VM7104 |
| Manufacturer Website Address | http://www.aten.com/us/en/ |
| Brand Name | ATEN |
| Product Model | VM7104 |
| Product Name | 4-Port VGA Input Board |
| Product Type | Audio/Video Switchbox |
| UPC | 672792006227 |
| Height | 0.9" |
|---|---|
| Width | 9.4" |
| Depth | 13.9" |
| Weight (Approximate) | 1.23 lb |
| Package Contents |
|
|---|
| Limited Warranty | 3 Year |
|---|
