Async Rs-232/422/485 Extender Over Fiber - Terminal Block To Single-Mode Sc, Gsa

Description :

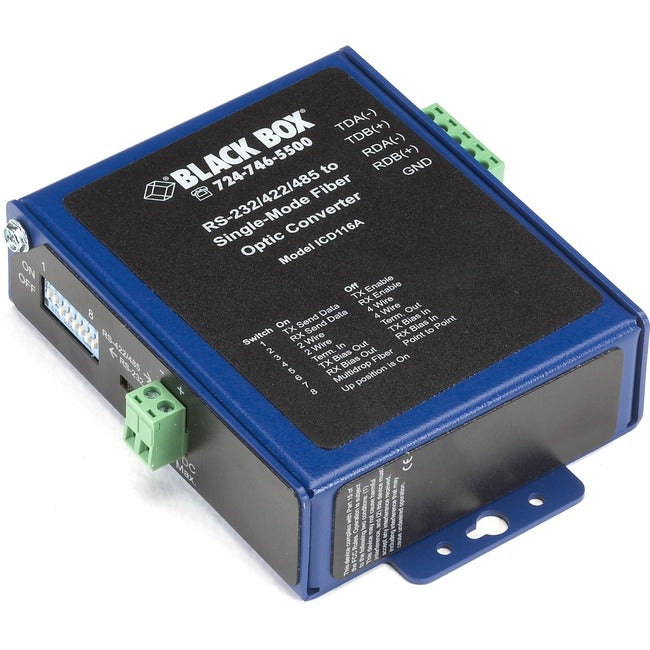

Black Box Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter
Meets stringent IEC and IEEE specs.
Encased in an IP30-rated enclosure, the converter's been put through some of the most exacting tests in the industry. The high-grade converter meets the requirements of two standards that make it suitable for electrical substation installations-IEC 61850-3 and IEEE 1613-specifications that are more stringent than NEMA TS1/TS2 requirements for transportation applications.

Plus, as a fiber-based conversion and extension device, it's inherently immune to electromagnetic and radio-frequency interference (EMI/RFI) as it uses the optical cable to extend RS-232, RS-422, and RS-485 serial data as far as 15 kilometers (9.3 mi.).

• Supports fiber ring communications with 31 other units


• Designed to withstand both shock and vibration


• Boasts 2-kV triple isolation for safeguarding data and equipment


• Tolerates temperatures ranging from -30 to +185 F (-40 to +85 C).


• Rugged, IP30-rated metal case for panel mounting.


• Converts serial signals for single mode fiber transmission up to 15 kilometers (9.3 mi.)


• A heavy-duty, industrial-strength serial-to-fiber converter

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Taa Compliant: Yes
Country Of Origin: United States
Brand Name: Black Box
Form Factor: Rail-mountable
Manufacturer: Black Box Corporation
Product Name: Industrial Opto-Isolated Serial to Fiber Single-Mode SC Converter
Manufacturer Part Number: ICD116A
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 5 Year
Weight (Approximate): 8 oz
