Async Rs-232/422/485 Extender Over Fiber - Terminal Block To Multimode St, Gsa,

Description :

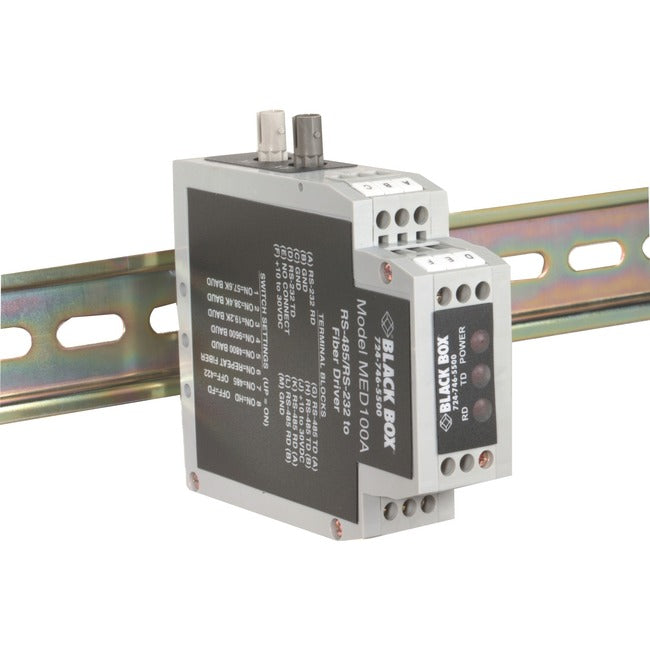

Black Box DIN Rail RS-232/RS-485 To Fiber Driver

Extend RS232, RS422 or RS485 protocols over multimode fiber so different types of equipment can talk to one another in point to point or multipoint environments. Serial extenders work well in factory automation, building automation, and process automation where PLC's with RS232, RS422 or RS485 interfaces are used to control devices. The ability to extend the distance to their devices over fiber while also adding protection from electrical interference which can be caused by large motors which are prevalent in these environments is very beneficial.

• Indicator LEDS monitor signal and power


• Data-derived or RTS transmit/receive switching (RS-485)


• Extended ambient operating range -40 to +176° F (-40 to +80° C)


• Ideal for fiber applications that use different interface protocols.


• Communicate signals in a point-to-point or ring topology.

Product Type: Transceiver/Media Converter
Environmentally Friendly: Yes
Environmental Certification: RoHS
Product Condition: New
Taa Compliant: Yes
Country Of Origin: United States
Brand Name: Black Box
Form Factor: Rail-mountable
Manufacturer: Black Box Corporation
Product Name: DIN Rail RS-232/RS-485 To Fiber Driver
Manufacturer Part Number: MED100A
Manufacturer Website Address: http://www.blackbox.com
Limited Warranty: 1 Year
