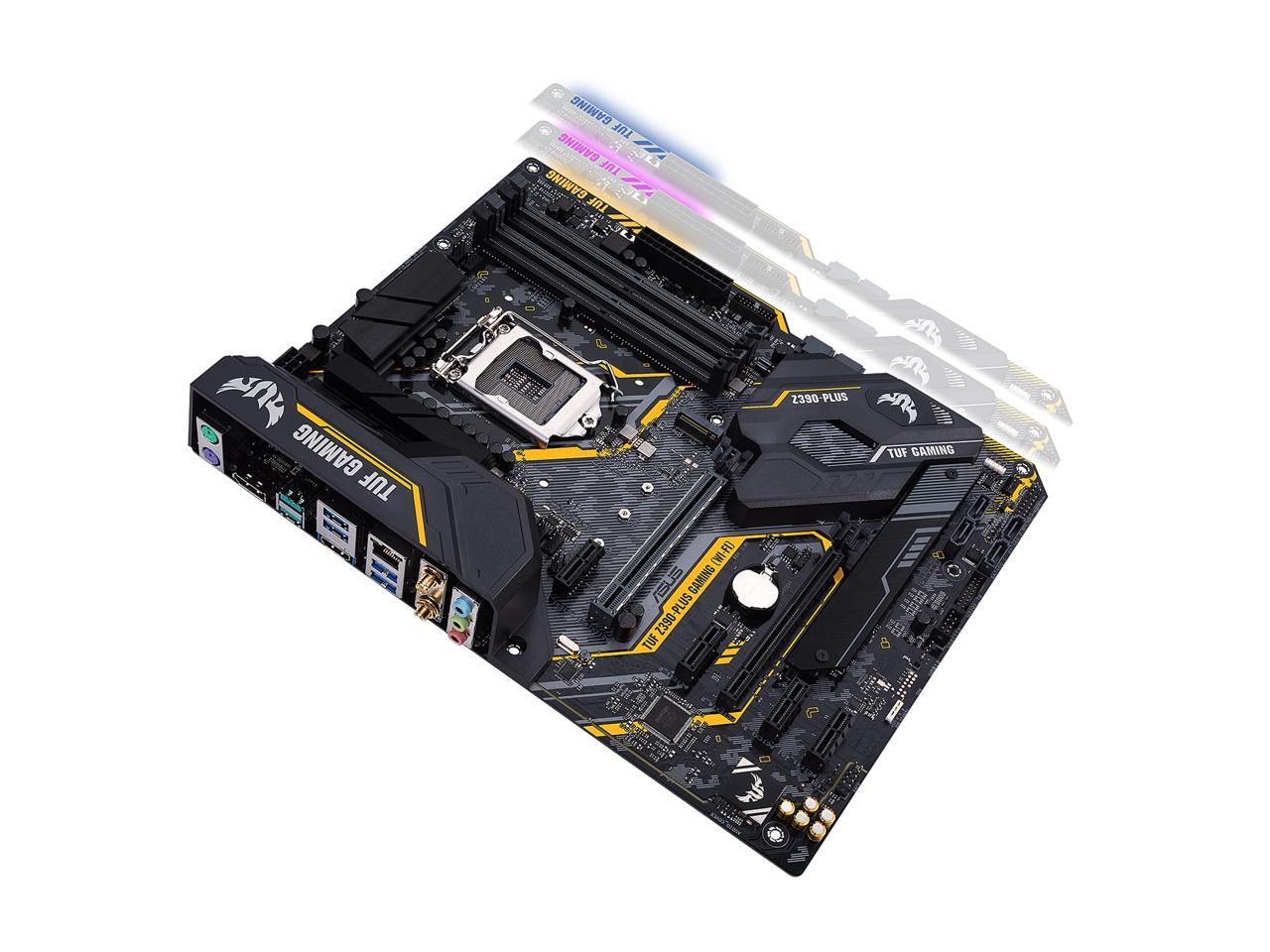

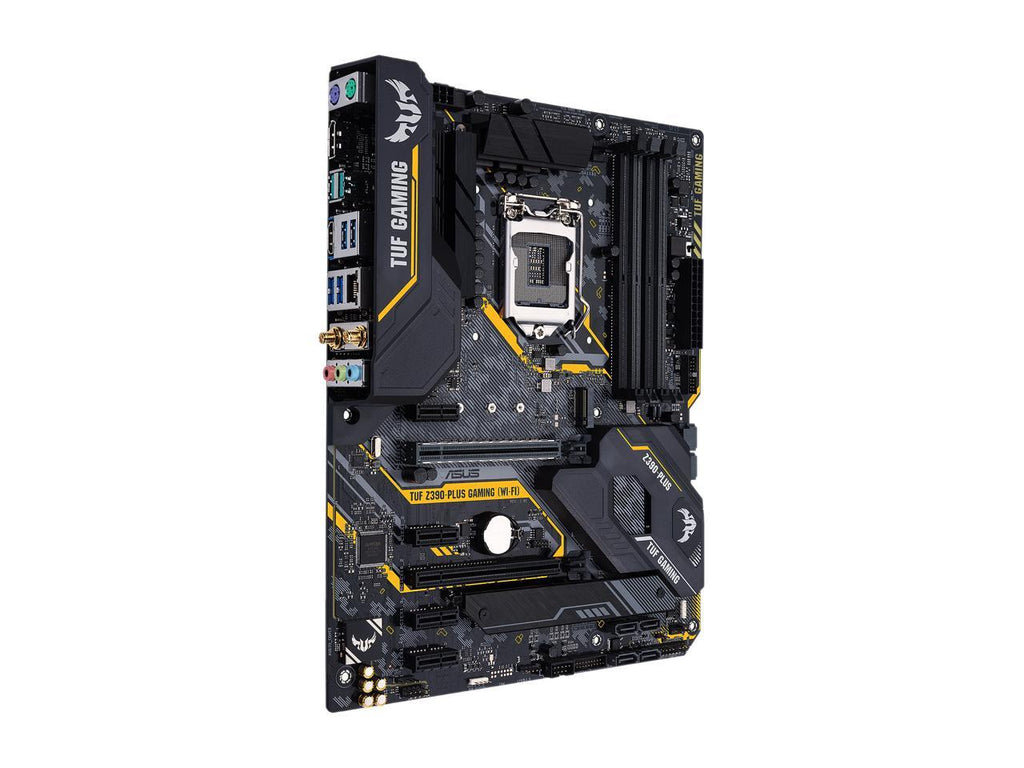

Asus Tuf Z390-Plus Gaming (Wi-Fi) Lga 1151 (300 Series) Intel Z390 Sata 6Gb/S Atx Intel Motherboard

Asus Tuf Z390-Plus Gaming (Wi-Fi) Lga 1151 (300 Series) Intel Z390 Sata 6Gb/S Atx Intel Motherboard

SKU:TUF Z390-Plus Gaming (Wi-Fi)

Regular price $239.99
Regular price Sale price $239.99
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Reviews, Que. & Ans.

        Description :

        • Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with dual M.2, Gigabit LAN, USB 3.2 Gen2
        • Military-Grade TUF Components like TUF LANGuard, TUF Chokes, TUF Capacitors, and TUF MOSFETs maximize system durability
        • Gamer's Guardian with SafeSlot and FanXpert 4 provides hardware-level safeguards for maximum performance with dynamic system cooling
        • 8-channel HD Gaming Audio with TUF Gaming Headphone featuring Realtek S1200A high definition audio codec driven by Japanese capacitors for warm, immersive sound
        • ASUS OptiMem II improves memory stability and performance by improving trace isolation between PCB layers to maintain signal integrity even at higher frequencies



        Model
        Brand ASUS
        Series TUF
        Model Z390-Plus Gaming (Wi-Fi)

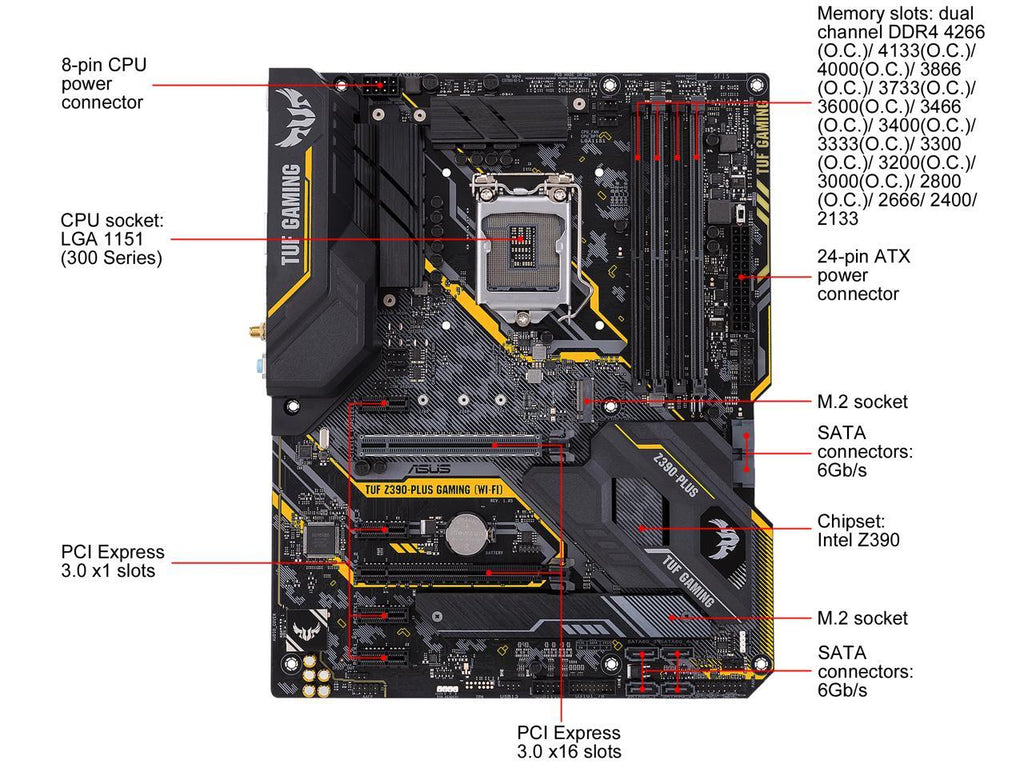

        Supported CPU
        CPU Socket Type  LGA 1151 (300 Series)
        CPU Type Supports 9th / 8th Gen Intel Core Processors*
        Supports Intel Pentium Gold and Celeron Processors *

        * Not backward compatible with older generation of LGA 1151 CPUs.
        * Refer to www.asus.com for Intel CPU support list.
        Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0*

        * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
        Chipsets
        Chipset  Intel Z390
        Onboard Video
        Onboard Video Chipset  Supported only by CPU with integrated graphic
        Memory
        Number of Memory Slots 4x288pin (DDR4)
        Memory Standard DDR4 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3300(OC) / 3200(OC) / 3000(OC) / 2800(OC) / 2666 / 2400 / 2133*

        * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
        * The maximum memory frequency supported varies by processor.
        Maximum Memory Supported 128GB
        Channel Supported  Dual Channel
        Expansion Slots
        PCI Express 3.0 x16 2 x PCI Express 3.0 x16*

        * For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
        PCI Express x1 4 x PCIe 3.0 x1*

        * The PCIe x1_3, PCIe x1_4 slots share bandwidth with PCIe x16_2. The PCIe x16_2 slot runs at x2 mode as default. Please check BIOS for more configuration.
        Storage Devices
        SATA 6Gb/s  6 x SATA 6Gb/s
        M.2 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x4 mode)*
        1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)**

        * When a device in SATA mode is installed on the M.2_1 socket, SATA_2 port cannot be used.
        ** When a device is installed on the M.2_2 socket, SATA_5/6 port cannot be used.
        Intel Optane Ready Yes
        SATA RAID 0/1/5/10
        Onboard Audio
        Audio Chipset  Realtek ALC S1200A High Definition Audio CODEC
        Audio Channels  8 Channels*

        * Choose the chassis with HD audio module in front panel to support 8-channel audio output.
        Onboard LAN
        LAN Chipset Intel I219-V
        Max LAN Speed 10/100/1000Mbps
        Wireless LAN Intel Wireless-AC 9560
        Wi-Fi802.11a/b/g/n/ac
        Bluetooth Bluetooth 5.0

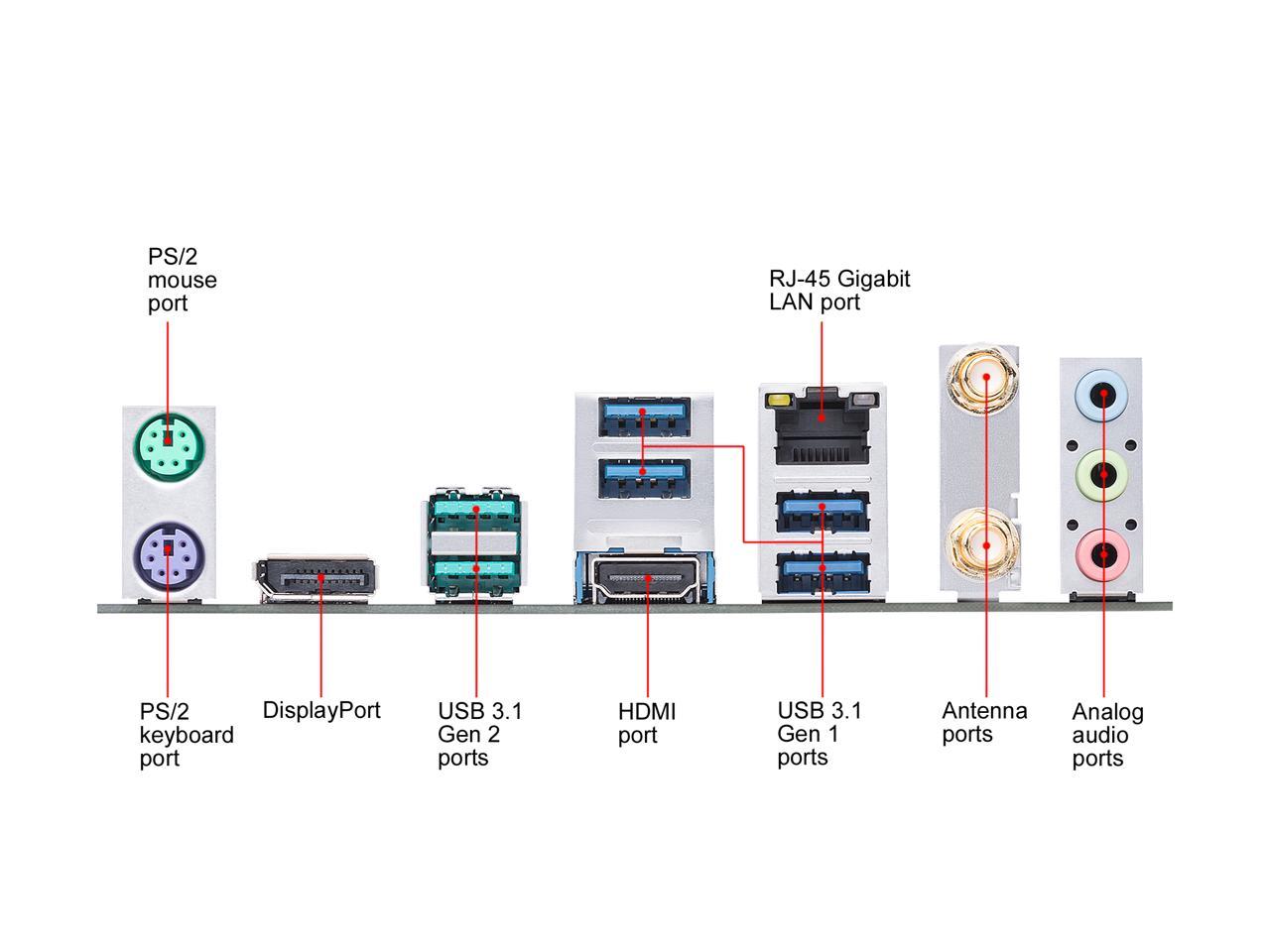

        Rear Panel Ports
        Back I/O Ports 1 x PS/2 keyboard (purple)
        1 x PS/2 mouse (green)
        1 x DisplayPort
        1 x HDMI
        1 x LAN (RJ45) port(s)
        2 x USB 3.2 Gen 2 Type-A
        4 x USB 3.2 Gen 1 Type-A
        2 x Wi-Fi antenna port(s)
        3 x 8-channel Audio I/O
        Internal I/O Connectors
        Onboard USB 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
        1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s)
        1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
        Other Connectors 2 x Aura RGB Strip Header(s)
        1 x CPU Fan connector(s) (4-pin)
        1 x CPU OPT Fan connector(s) (4-pin)
        2 x Chassis Fan connector(s) (4-pin)
        1 x AIO_PUMP connector
        1 x S/PDIF out header(s)
        1 x Front panel audio connector(s) (AAFP)
        1 x MemOK! II switch(es)
        1 x Clear CMOS jumper(s)
        1 x System panel connector
        Physical Spec
        Form Factor ATX
        LED Lighting RGB
        Dimensions (W x L) 304.80 mm x 243.84 mm
        Power Pin 1 x 24-pin EATX Power connector
        1 x 8-pin EATX 12V Power connector
        Features
        Features Multi-GPU Support:
        Supports AMD CrossFireX Technology

        Special Features:
        Fan Xpert4
        - Advanced fan and liquid controls for ultimate cooling and quietness
        ASUS TUF PROTECTION
        - ASUS DIGI+ VRM: Precision control for stable power
        - ASUS SafeSlot: Protect your graphics card Investment
        - ASUS ESD Guard: Enhanced ESD protection
        - ASUS Overvoltage Protection: World-class circuit-protecting power design
        - ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
        - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
        ASUS Optimem II:
        - Optimem (Improved DDR4 stability)
        ASUS EPU:
        - EPU
        TUF ENGINE! Power Design:
        - TUF Components (Choke, Cap. & MOSFET; certified by military-standard)

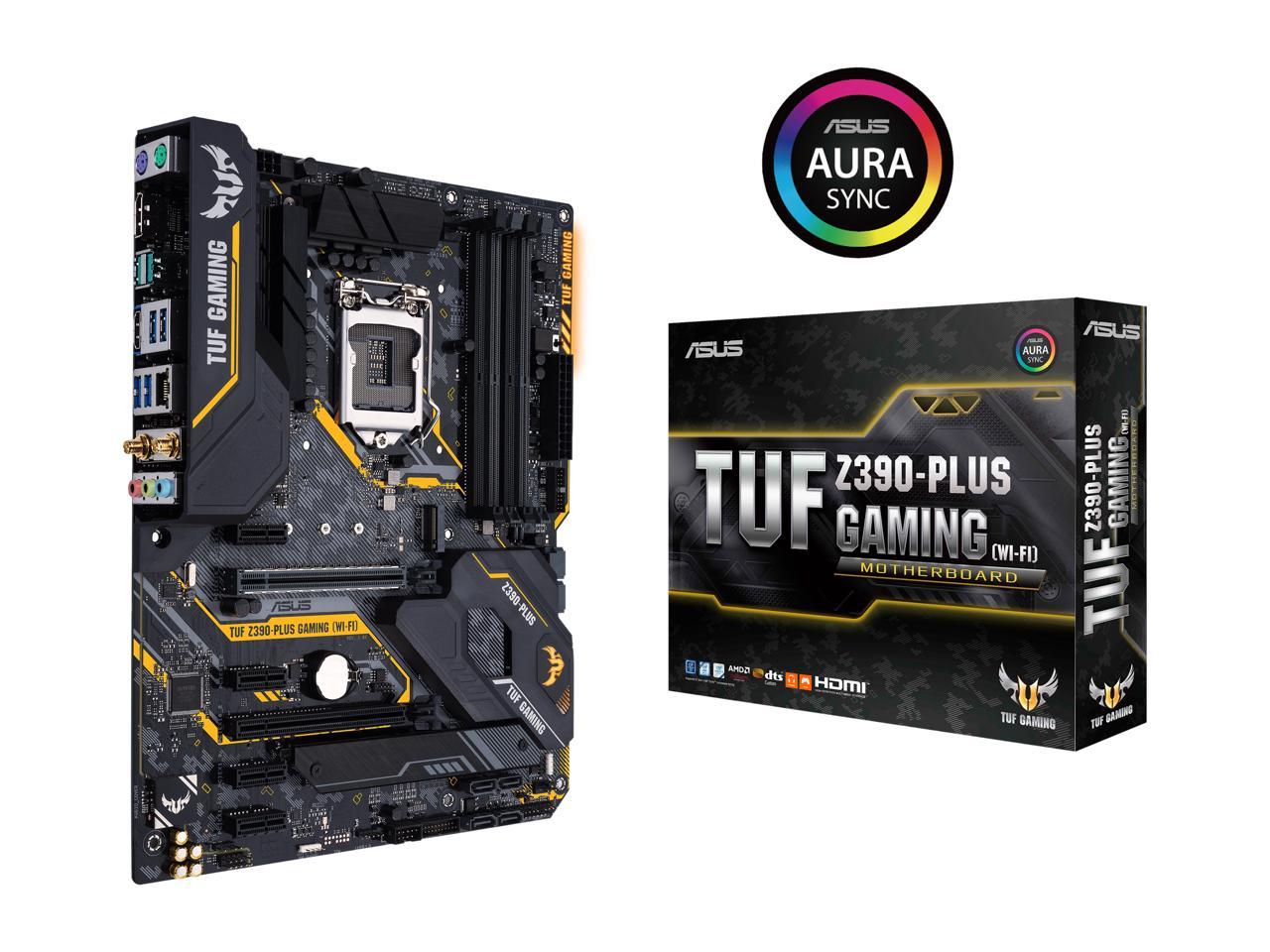

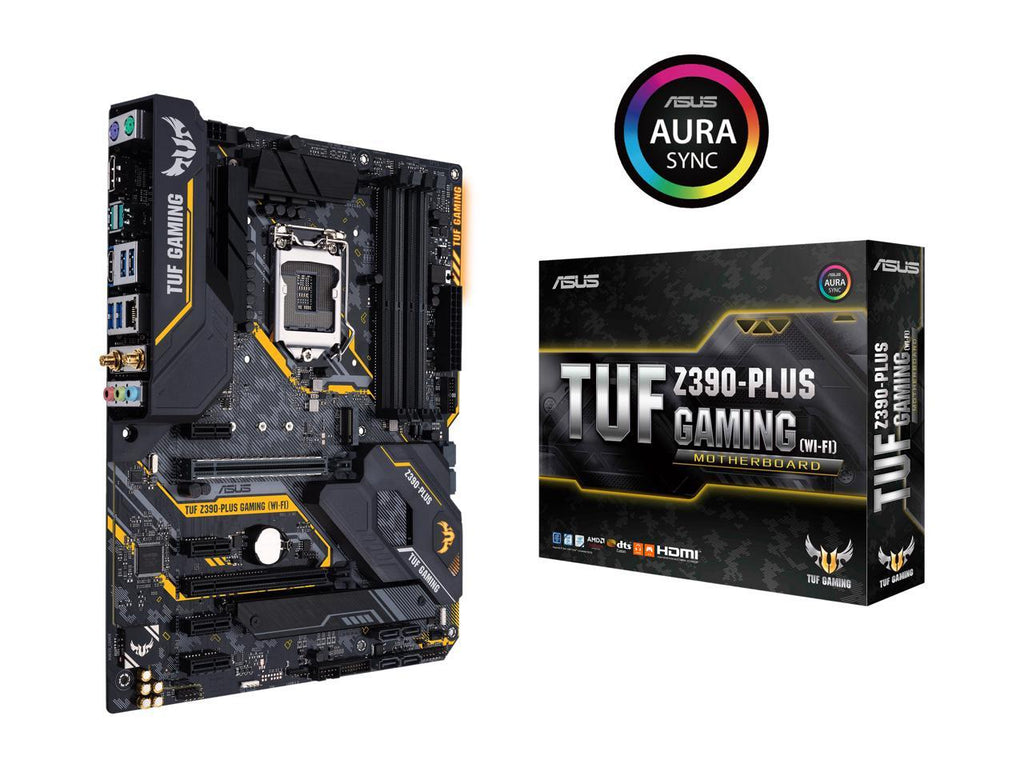

        AURA:
        - Aura Lighting Control
        - Aura RGB Strip Headers
        ASUS Exclusive Features:
        - AI Suite 3
        - Ai Charger
        - Turbo LAN
        - PC Cleaner
        - File Transfer
        - ASUS C.P.R. (CPU Parameter Recall)
        ASUS Quiet Thermal Solution:
        - Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution
        - ASUS Fan Xpert 4
        ASUS EZ DIY:
        - ASUS O.C. Tuner
        - ASUS CrashFree BIOS 3
        - ASUS EZ Flash 3
        - ASUS UEFI BIOS EZ Mode
        ASUS Q-Design:
        - ASUS Q-Slot
        - ASUS Q-DIMM
        M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds)
        MemOK! II
        - Enhance memory compatibility. More smart and convenient. Keep high performance (Shorten the PC starting time)
        Q-Installer
        - Auto download driver and software. Friendly for first PC builder

        BIOS:
        128MB Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information

        Support Disc:
        Drivers
        ASUS Utilities
        ASUS EZ Update
        Anti-virus software (OEM version)

        Operating System:
        Windows 10 64-bit

        Management Solution:
        WOL by PME, PXE

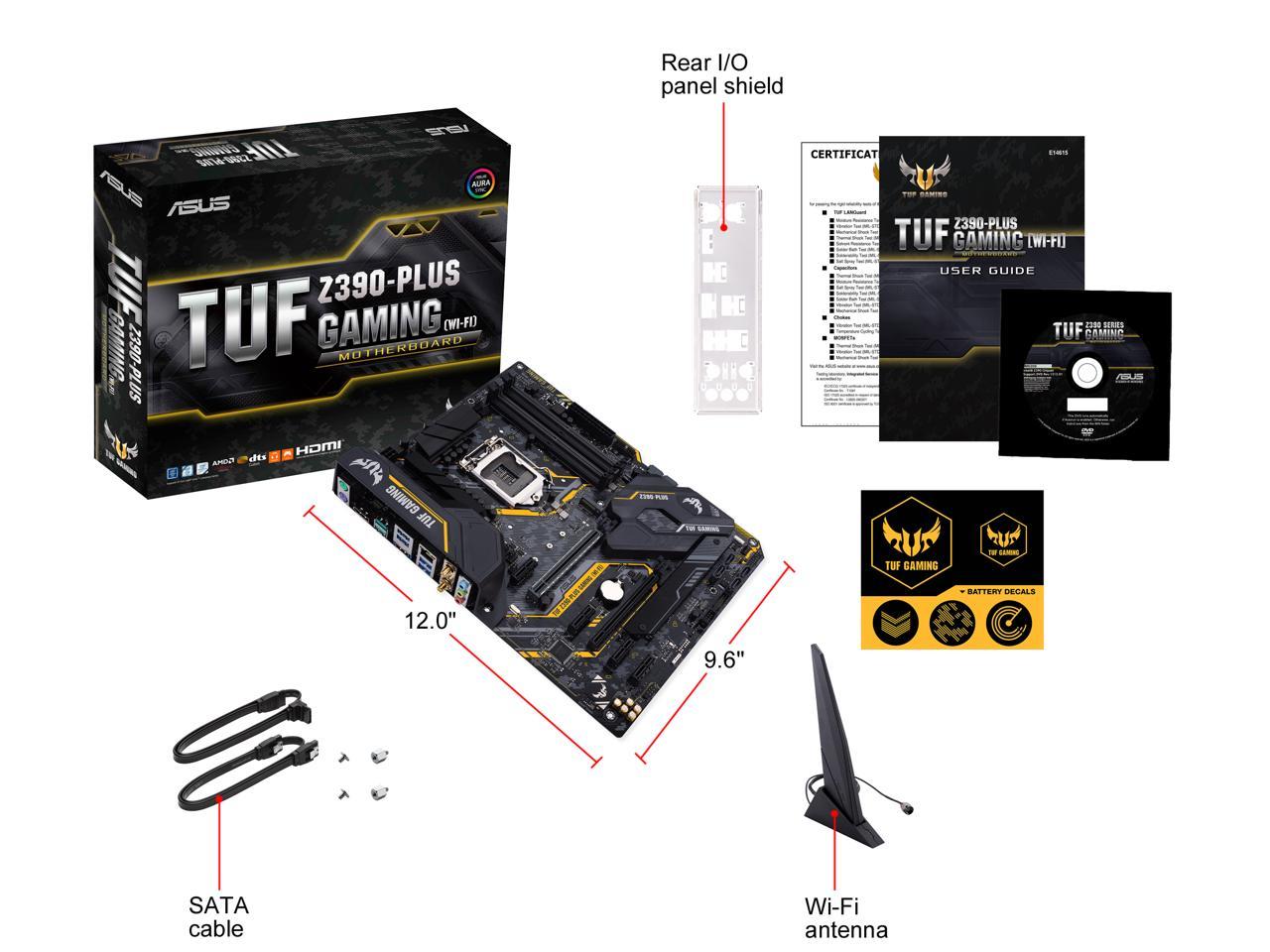

        Packaging
        Package Contents Accessories:
        User's manual
        I/O Shield
        2 x SATA 6Gb/s cable(s)
        1 x M.2 Screw Package
        1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11 a/b/g/n/ac compliant)
        1 x TUF Gaming Sticker
        1 x TUF Certification card(s)
        1 x SCD (by region)
