Description
Specifications
Description :

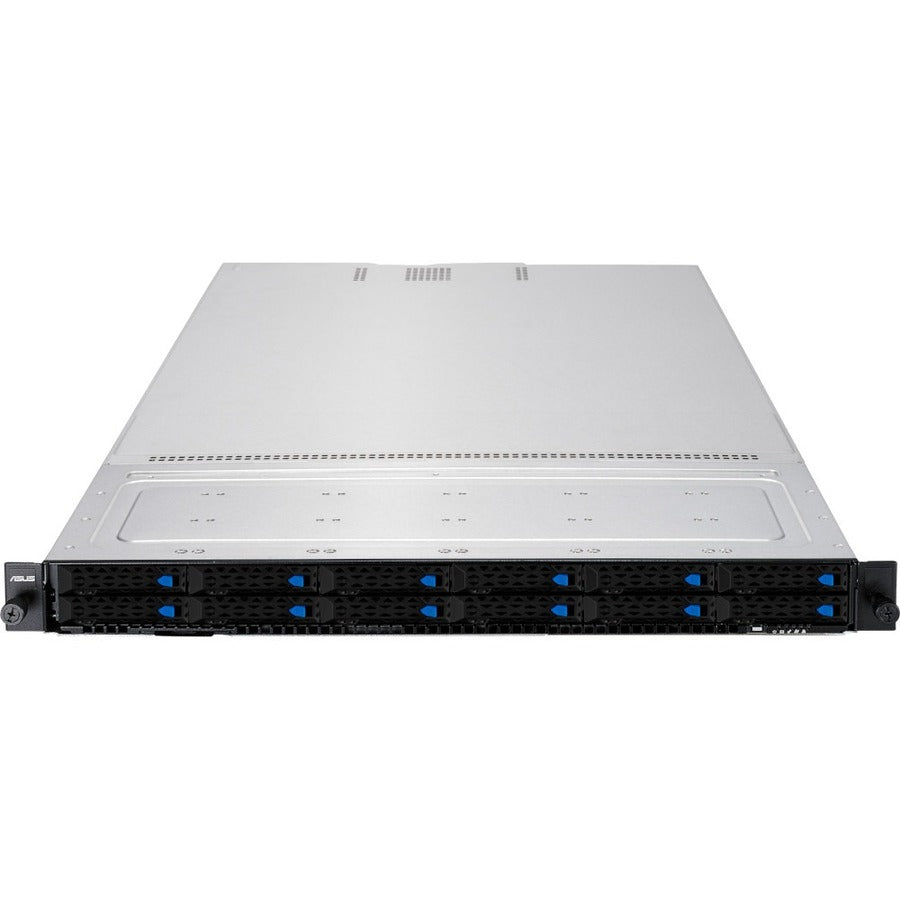

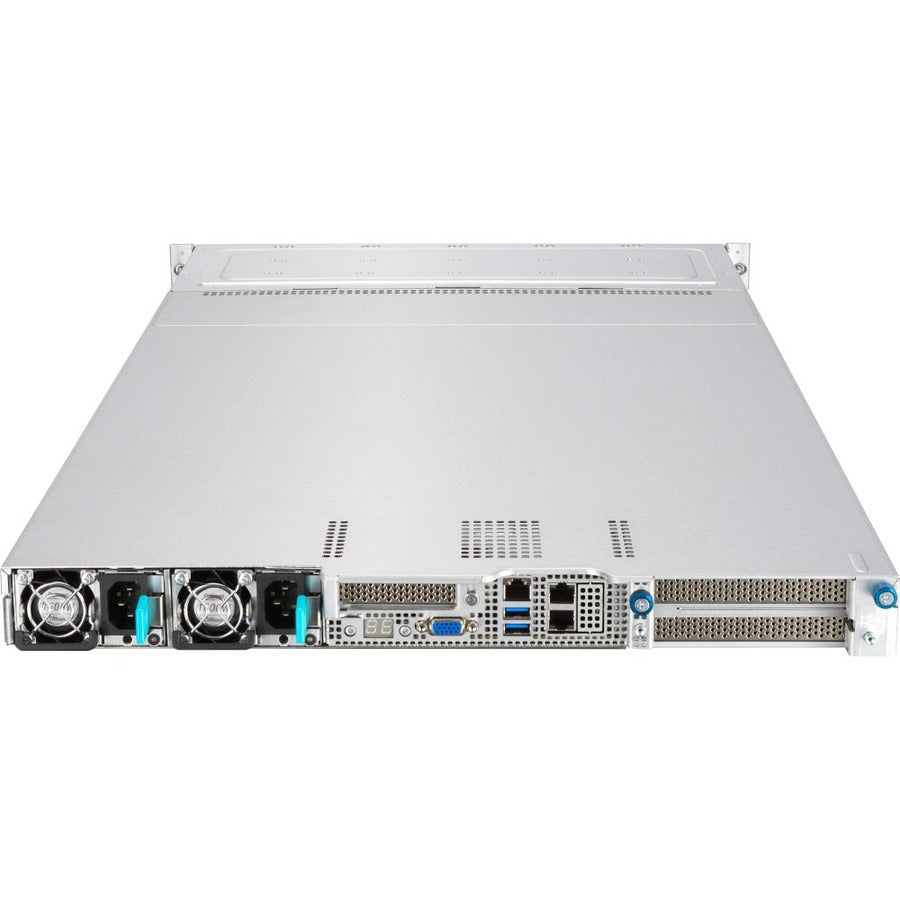

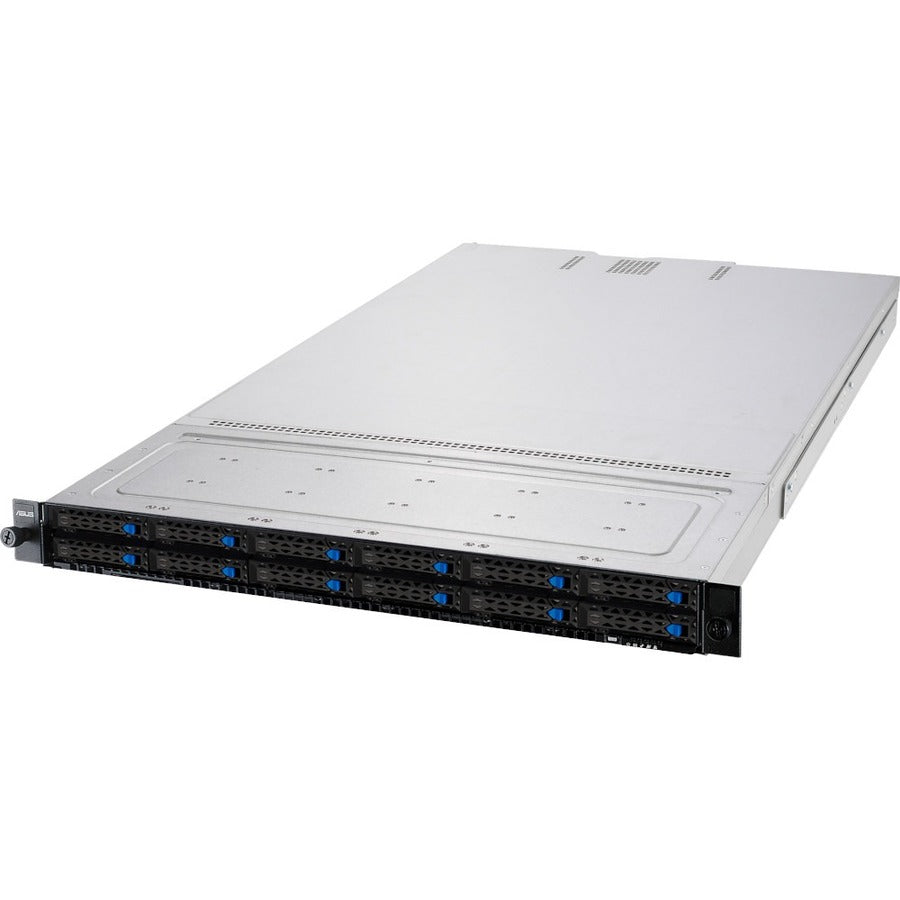

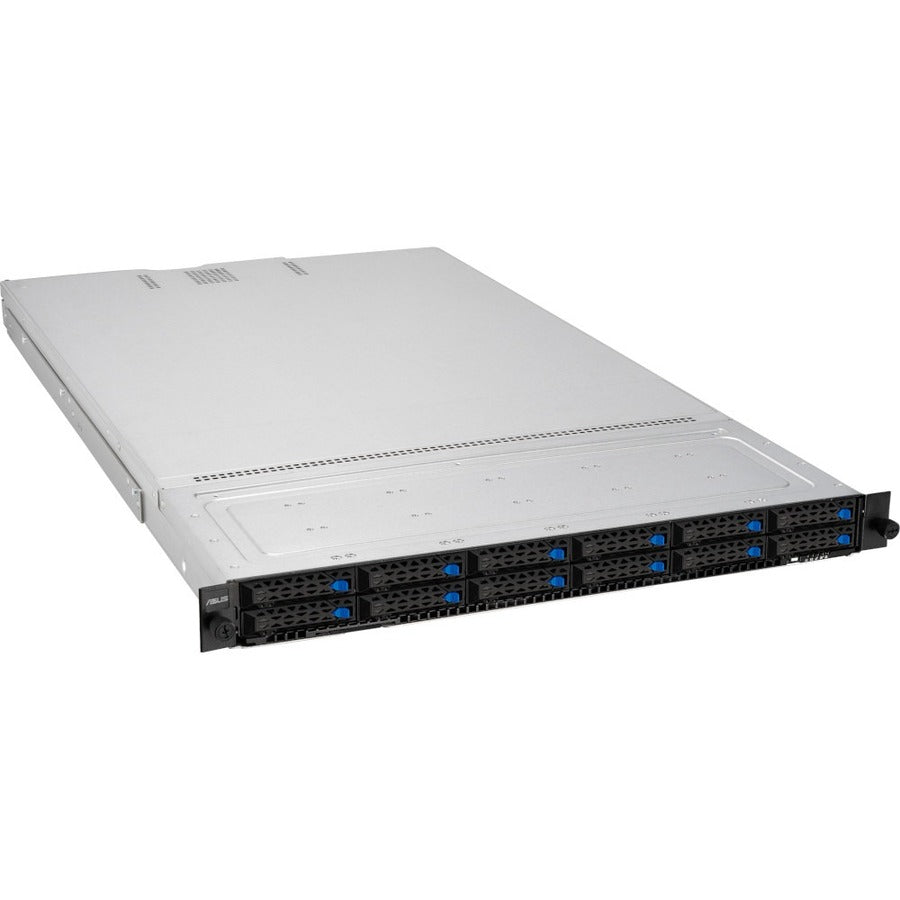

Asus RS700-E10-RS12U Barebone System - 1U Rack-mountable - Socket LGA-4189 - 2 x Processor Support
1U dual-socket server powered 3rd Gen Intel Xeon Scalable processors that supports up to 32 DIMMs, one dual-slot GPU, 12 NVMe, four PCIe lots, one OPC 3.0, one M.2 and ASUS ASMB10-iKVM.
- Powered by dual-socket 3rd Gen Intel Scalable processors, with 32 DIMMs and support for a maximum TDP of up to 270 W per socket
- GPU-optimized design allows one dual-slot GPU for AI workloads
- Up to 12 all-flash NVMe drives on front panel to enable extensive storage and high-throughput performance
- Up to three PCIe® 4.0 slots to enable higher bandwidth and improved data-transfer rates
- Flexible onboard LAN-module design to enable four 1 Gb LAN or two 10 Gb LAN options
- Flexible air- and liquid-cooling solution to achieve lower power-usage effectiveness (PUE) and optimized TCO for data centers
- Onboard ASUS ASMB10-iKVM for out-of-band management with ASPEED AST2600 controller
- Integrated PFR FPGA as the platform Root-of-Trust solution for firmware resiliency
- High power efficiency with redundant 1600 W or 1200 W 80 Plus® Titanium/Platinum power supplies
- Compatible Xeon Bronze processor lets you perform all your computational tasks at a swift pace
- DDR4 SDRAM compatible slot - Install memory that synchronizes electrical and clock signals for an efficient data throughput
- Optimize business network's performance with 10 Gigabit Ethernet connectivity
- Can connect up to 4 USB peripherals
- With Serial ATA/600 interface get superb reliability and high-speed data transfer
Product Type: Barebone System
Environmentally Friendly: Yes
Environmental Certification: RoHS
Rack Height: 1U
Brand Name: Asus
Form Factor: Rack-mountable
Manufacturer: ASUS Computer International
Product Model: RS700-E10-RS12U
Product Name: RS700-E10-RS12U Barebone System
Manufacturer Part Number: RS700-E10-RS12U-WOCPU005Z
Manufacturer Website Address: http://usa.asus.com
Limited Warranty: 3 Year
Weight (Approximate): 30.20 lb
Specifications :
General Information
Manufacturer | ASUS Computer International |
---|---|
Manufacturer Part Number | RS700-E10-RS12U-WOCPU005Z |
Manufacturer Website Address | http://usa.asus.com |
Brand Name | Asus |
Product Model | RS700-E10-RS12U |
Product Name | RS700-E10-RS12U Barebone System |
Product Type | Barebone System |
UPC | 0195553217422 |
Chipset Manufacturer | Intel |
---|
Graphics Controller Manufacturer | ASPEED |
---|---|
Graphics Controller Model | AST2600 |
Ethernet Technology | 10 Gigabit Ethernet |
---|
Total Number of USB Ports | 4 |
---|
Height | 1.7" |
---|---|
Width | 17.3" |
Depth | 33.2" |
Weight (Approximate) | 30.20 lb |
Environmentally Friendly | Yes |
---|
Limited Warranty | 3 Year |
---|
