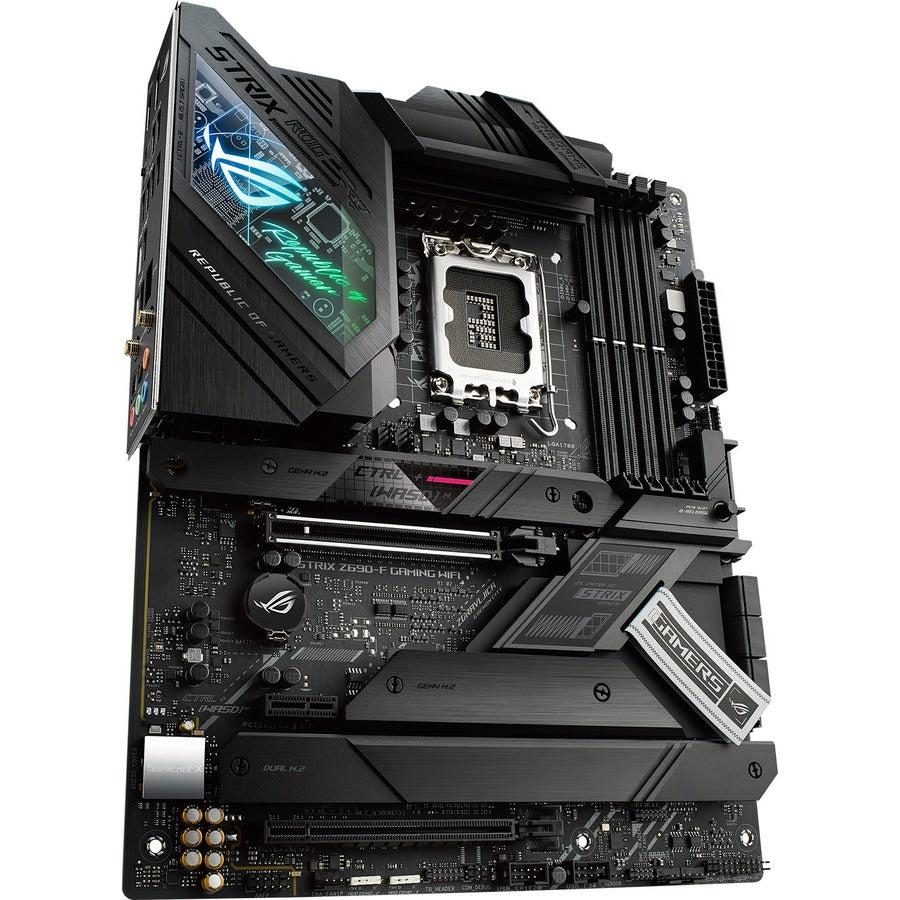

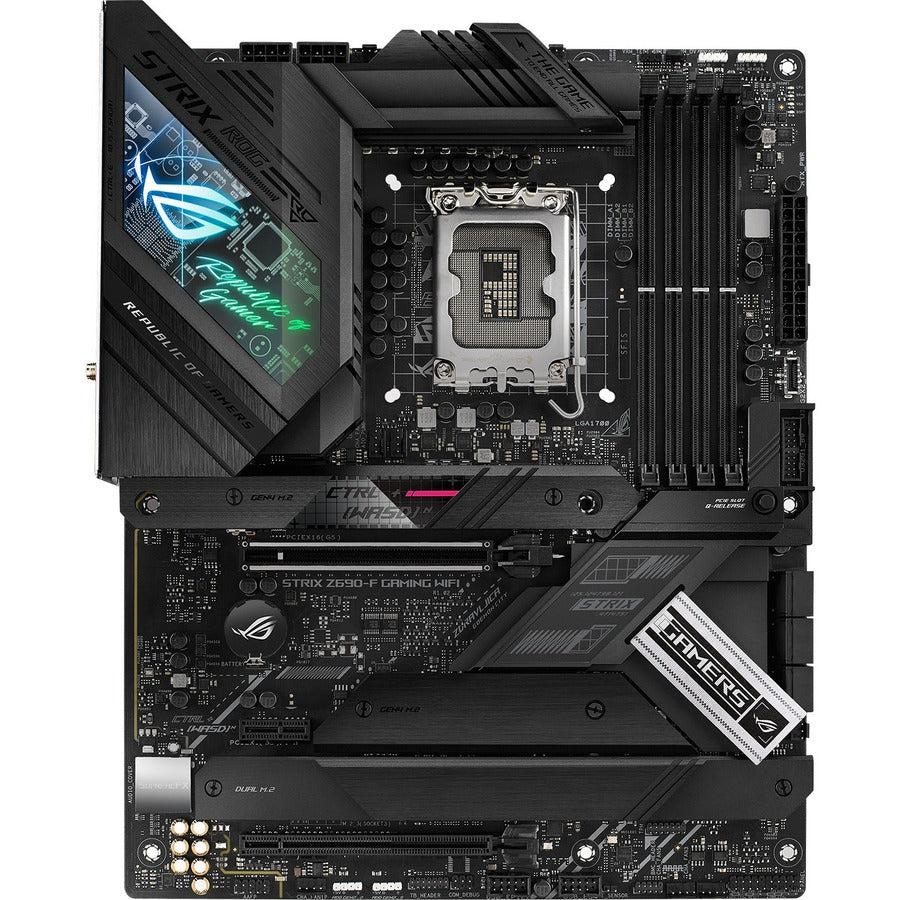

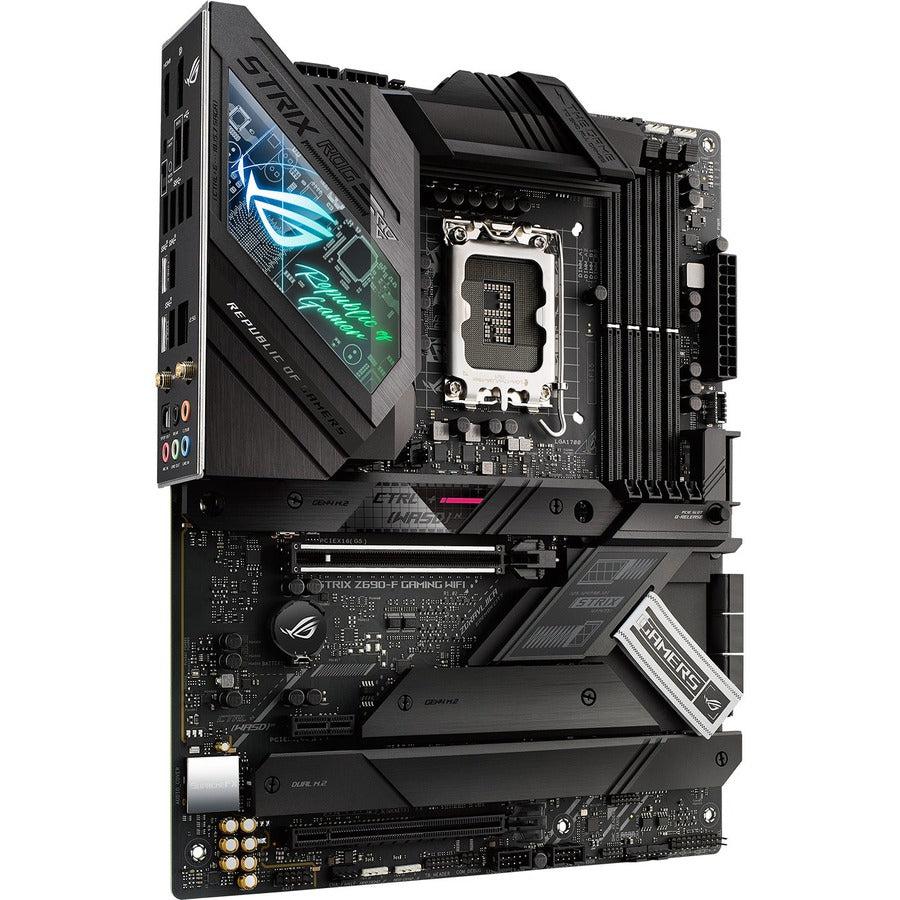

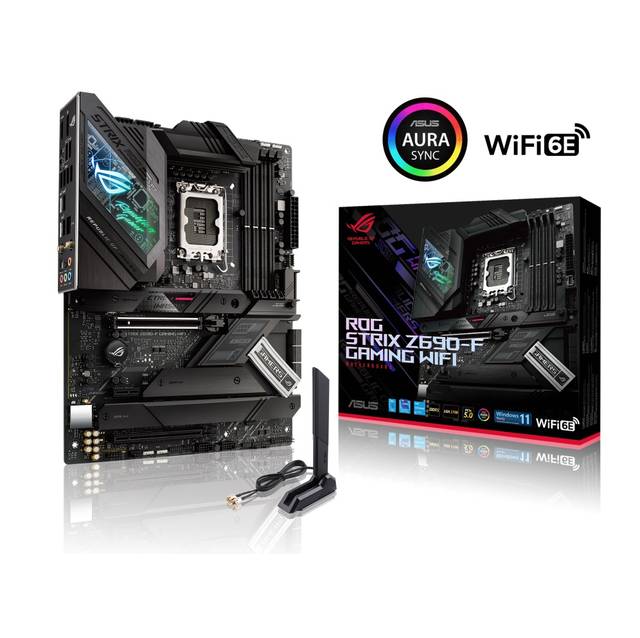

Name: Asus Rog Strix Z690-F Gaming Wifi Lga1700/ Intel Z690/ Ddr5/ Wifi & Bluetooth/ Sata3&Usb3.2/ M.2/ Atx Motherboard
Brand: ASUS
SKU: ROG STRIX Z690-F GAMING WIFI
Price: 274.95 USD
Availability: OutOfStock

ROG Strix Z690-F Gaming Wi-Fi offers premium-grade power delivery and cooling to unleash the full force of 12th Gen Intel® Core™ processors. Framerates and load times can be boosted even further by all-new support for DDR5 memory and PCIe® 5.0 video cards. Plus, ASUS-exclusive intelligent controls help optimize PC settings, while onboard Wi-Fi 6E can bring lightning-fast data transfers to an endless variety of scenarios. On top of all that, DIY-friendly innovations help simplify the PC building process to get to you up and running smoothly.

PERFORMANCE

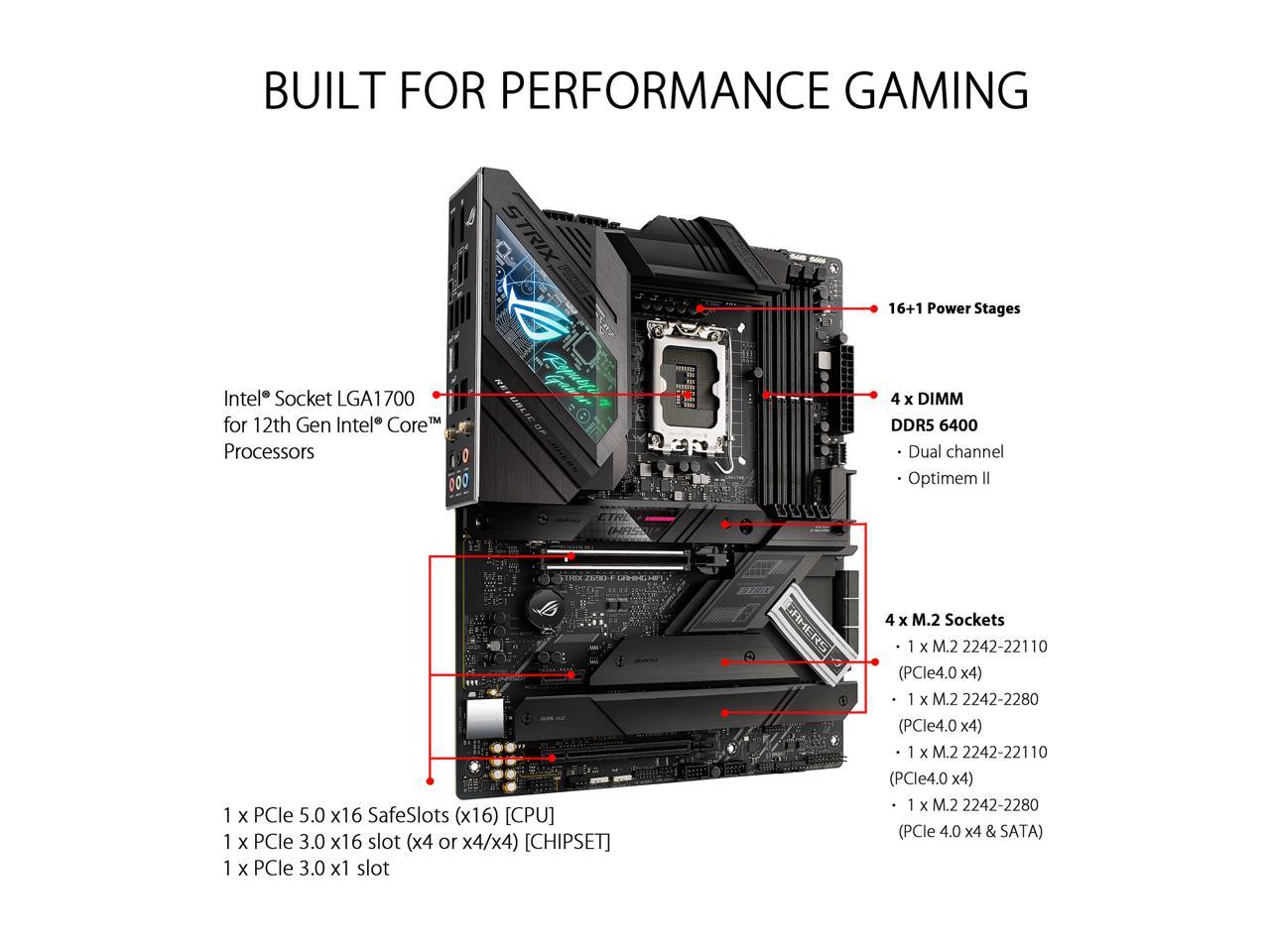

BUILT FOR PERFORMANCE GAMING

Intel® Socket LGA1700 for 12th Gen Intel® Core™,
Pentium® Gold and Celeron® Processors
- 1 x PCIe 5.0 x16 SafeSlot (x16) [CPU]
- 1 x PCIe 3.0 x16 slot (x4 or x4/x4) [CHIPSET]
- 1 x PCIe 3.0 x1 slot [CHIPSET]
16+1 Power Stages
4 x DIMM
- DDR5 6400 (O.C.) +
- Dual channel

4 x M.2 Slots
- 1 x M.2 2242-22110 (PCIe4.0 x4)
- 1 x M.2 2242-2280 (PCIe4.0 x4)
- 1 x M.2 2242-22110 (PCIe4.0 x4)
- 1 x M.2 2242-2280 (PCIe 4.0 x4 & SATA)

COOLING

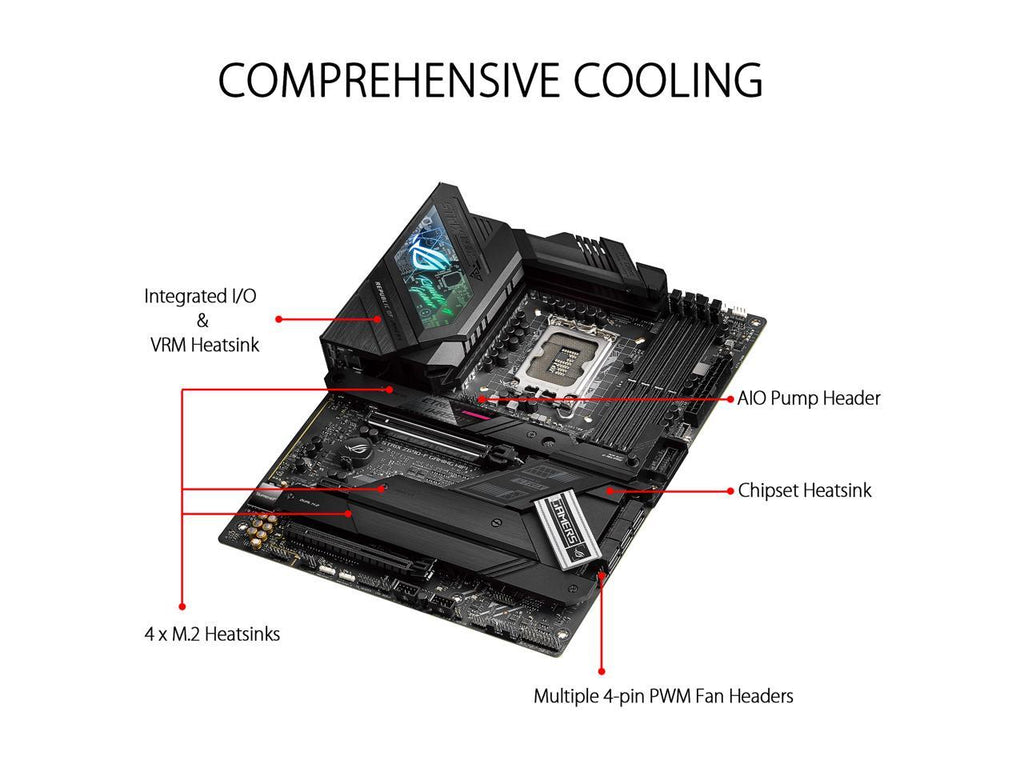

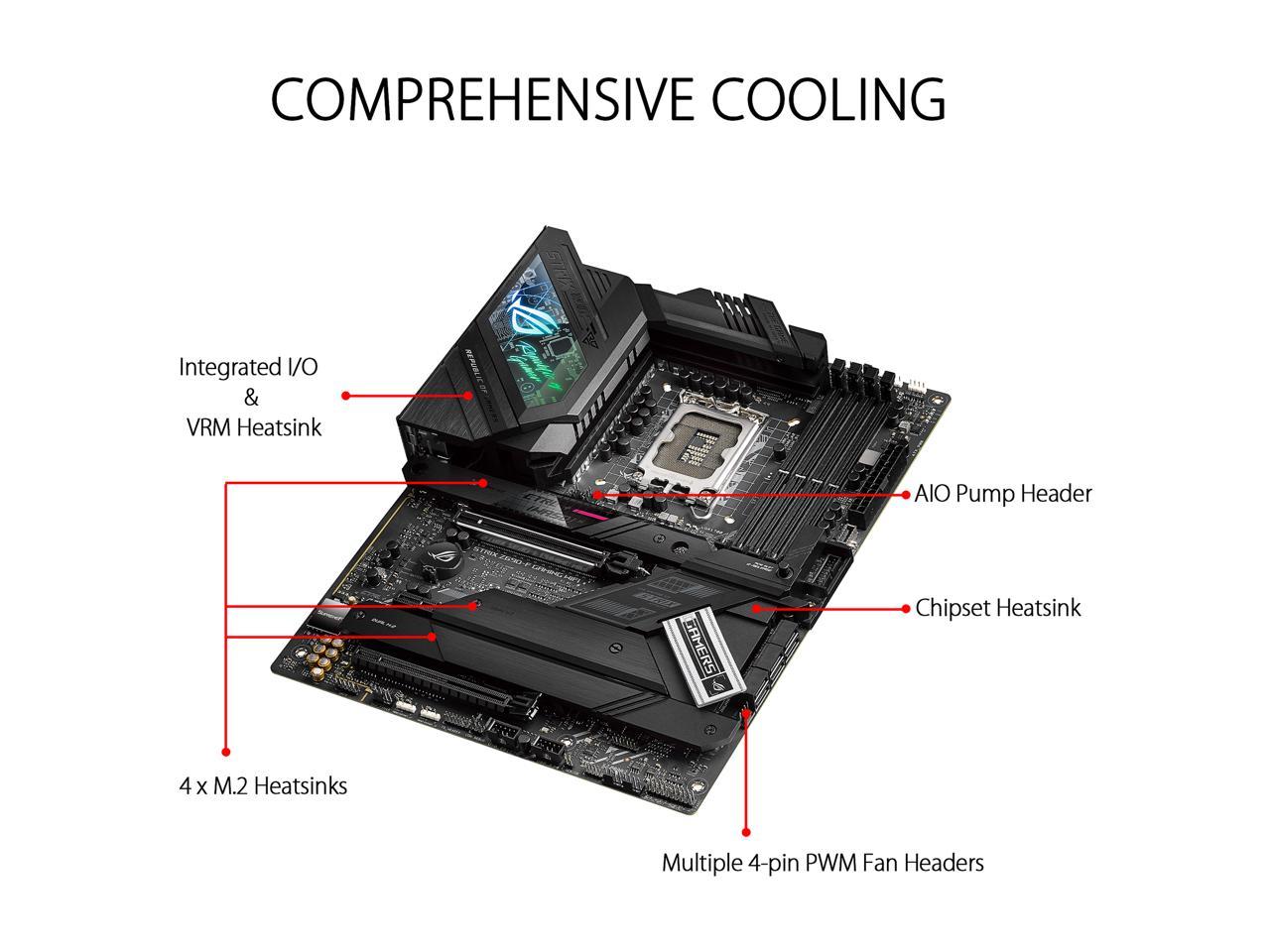

COMPREHENSIVE COOLING

Integrated I/O & VRM Heatsink
4 x M.2 Heatsinks
AIO Pump Header

Chipset Heatsink
Multiple 4-pin PWM Fan Headers

GAMING IMMERSION

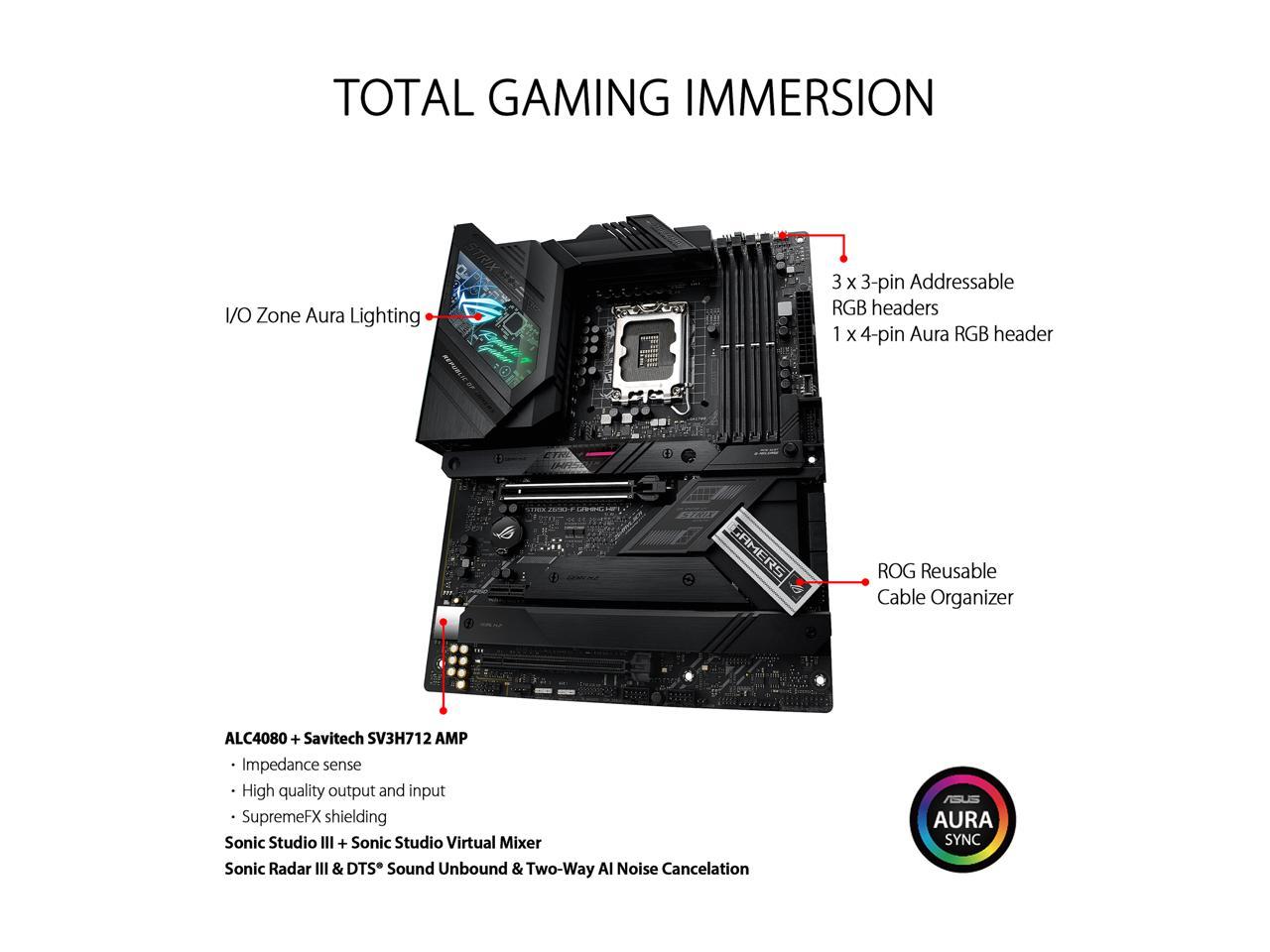

TOTAL GAMING IMMERSION

I/O Zone Aura Lighting
ALC4080 + Savitech SV3H712 AMP
- Impedance sense
- High quality output and input
- SupremeFX shielding
Sonic Studio III + Sonic Studio Virtual Mixer
Sonic Radar III
DTS® Sound Unbound
Two-Way AI Noise Cancelation

3 x 3-pin Addressable RGB headers
1 x 4-pin Aura RGB header
ROG Reusable Cable Organizer

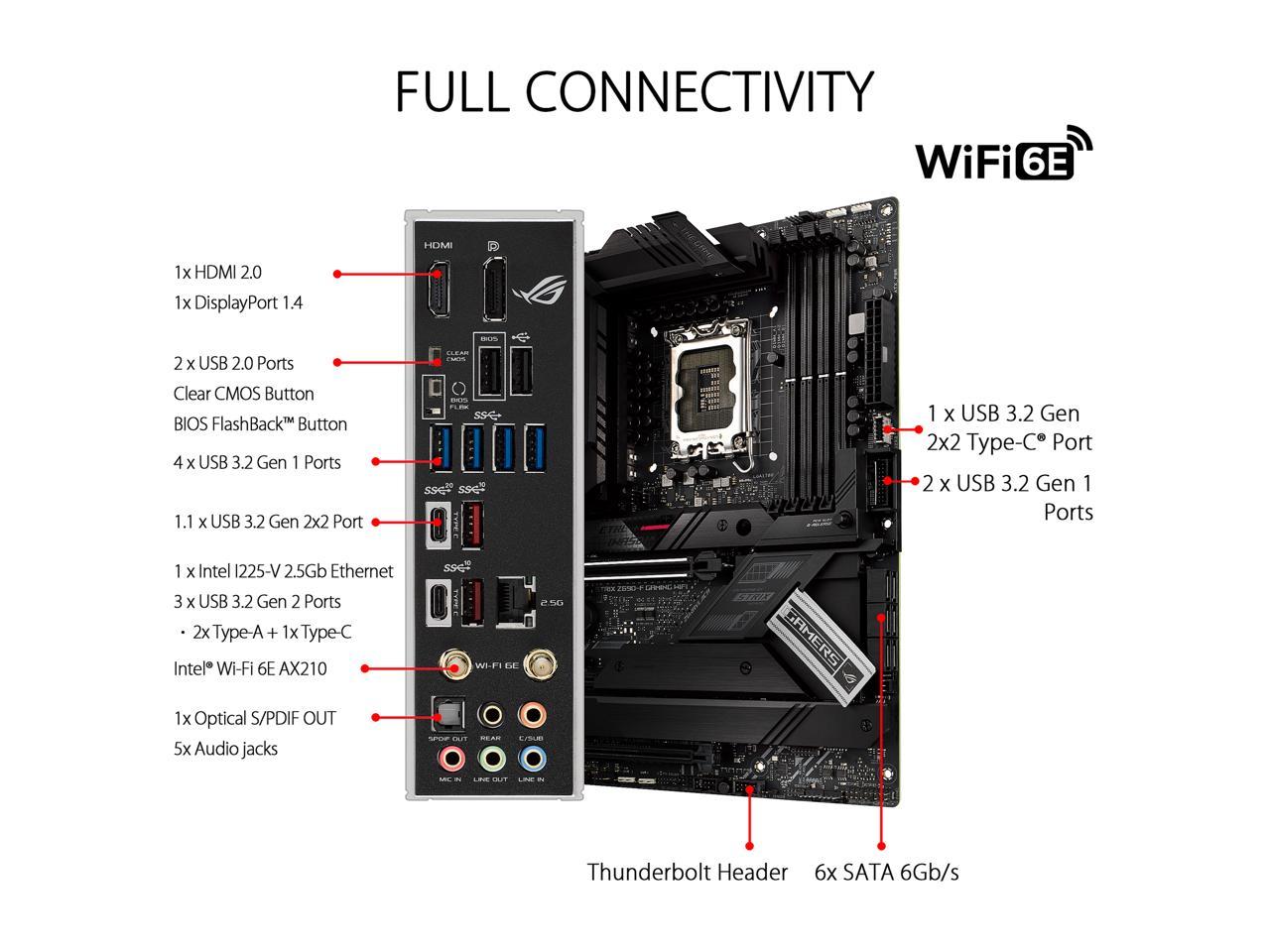

CONNECTIVITY

FULL CONNECTIVITY

1 x HDMI® Port
1 x DisplayPort
2 x USB 2.0 Ports
Clear CMOS Button
BIOS FlashBack™ Button
4 x USB 3.2 Gen 1 Ports

1 x USB 3.2 Gen 2x2 Port
1 x Intel I225-V 2.5 Gb Ethernet
3 x USB 3.2 Gen 2 Ports
- 2 x Type-A + 1 x Type-C
Intel® Wi-Fi 6E
1 x Optical S/PDIF OUT

Gold-Plated Audio Jacks
1 x USB 3.2 Gen 2x2 Type-C® Port
2 x USB 3.2 Gen 1 Ports
6 x SATA 6 Gb/s
Thunderbolt Header

ALL-ROUND PERFORMANCE

ROG Strix Z690-F Gaming Wi-Fi is armed with all the essentials you need to create a gaming PC with top-tier performance. Heavy-duty power delivery and optimized cooling provide the weapons you need to push any gaming build to its limits. Intelligent controls enable easy management of overclocking, cooling and networking settings. And Two-Way AI Noise Cancelation helps ensure crystal-clear in-game communication.

Power Design

Digital power control and an array of power stages provide the muscle needed to control the latest Intel CPUs.

ALLOY CHOKES AND DURABLE CAPACITORS

High-end chokes and durable capacitors are engineered to resist extreme temperatures, enabling performance that exceeds industry standards.

Cooling

COOLING INNOVATION

Integrated I/O Cover & VRM Heatsinks

Two thick VRM heatsinks connected by a heat pipe and bonded to a pre-mounted metal I/O shield provide ample surface area and mass to handle the power needs of high-performance 12th Gen Intel processors.
Thermal Pads

Specially engineered thermal pads efficiently transfer heat from the inductor and phase array to the heatsink.

Four M.2 Heatsinks

Multiple M.2 heatsinks help maintain onboard M.2 NVME SSDs at optimal temperatures for consistent performance and reliability.
M.2 Backplate

An integrated M.2 backplate helps ensure that high-performance drives deliver peak performance, even when airflow is restricted.

COOLER BY DESIGN

ROG Strix Z690 motherboards feature comprehensive cooling options that are configurable via the Fan Xpert 4 tool in Armoury Crate or within the UEFI BIOS.

CPU

CPU fan headers

A dedicated pair of PWM/DC fan headers for CPU coolers.

AIO pump fan header

A dedicated PWM/DC header for self-contained water-cooling setups.

M.2

M.2 heatsink

Keeps a mounted M.2 SSD at the optimum operating temperature for consistent performance and reliability.

M.2 backplate

Provides additional heat dissipation to deal with the thermal load of high-performance M.2 NVME SSDs.

CHASSIS

4-pin PWM/DC fan headers

Headers that supports auto-detection of PWM or DC fans.

Intelligent Control

TWO-WAY AI NOISE CANCELATION

This powerful ASUS-exclusive utility leverages a massive deep-learning database to reduce background noise from the microphone* and incoming audio while preserving voices. Distracting keyboard clatter, mouse clicks and other ambient noises are removed, so you can hear and be heard with perfect clarity while gaming or during calls.

* A splitter cable is necessary when using a 3.5 mm headset.

500 M
Deep-learning Database

Audio
Input/output

High
Fidelity

Minimal
Performance Impact

COD: MW - FPS (2560 X 1440)

* Testing configuration: CPU: 11th Gen Intel Core Processor; Motherboard: ROG MAXIMUS XIII HERO; Graphics card: NVIDIA RTX 3070; DRAM: G.SKILL F4-3200C16Q-32GVK; Power: SUPER FLOWER 550 W; HDD: ADATA SX910 SSD 128 G; Cooling: Enermax T.B.APOLLISH; Game: CALL OF DUTY: MODERN WARFARE; Voice Communication App: Discord (In-app noise canceling effects disabled); Background noise: Keyboard typing, mouse clicking, people talking, and music playing.
* Actual performance varies by configuration.

HEAR THE DIFFERENCE

0:17

AI OFF

AI ON

Background noise

Other human voice

Human speech

AI OVERCLOCKING

ROG AI Overclocking is an intelligent utility that helps you get the most out of your build by automatically profiling your CPU and cooling system to predict optimal voltage and frequency settings.

Accessible via the AI Suite software in Windows or directly through the UEFI, the intuitive AI Overclocking user interface enables users of all levels. A range of customizable settings are available for seasoned overclockers, and an auto-tuning option is available for beginners.

AI OVERCLOCKING AT A GLANCE

Designed by experts

At the heart of AI Overclocking is a proprietary algorithm developed by ROG R&D engineers who worked with world-renowned overclockers to create a tool for users of all levels.

Predictive edge

An algorithm analyzes your CPU and cooling system, then it leverages that data to intelligently predict optimal settings. Custom-tailored frequencies and voltages are automatically applied to perfect the clock-speed optimization process.

Real-time adjustments

Workload, system temperature, fan speed and power draw are automatically monitored by the software, and the information is used to make real-time adjustments to ensure ongoing optimal performance.

AI OVERCLOCKING GUIDE

The AI Overclocking Guide provides detailed information and instructions about how to tune your system manually. It can be accessed by hitting the F11 hotkey.

AI COOLING

ASUS AI Cooling technology automatically manages and controls motherboard-connected fans to ensure optimal settings based on current system load and temperature.

SELF-ADAPTIVE FAN TUNING

CPU temperature detection

AI Cooling detects CPU temperatures and uses a proprietary algorithm to calculate the lowest fan speed required to effectively cool the system and keep fan noise down.

Automated optimization

Under stable system loads, the software then automatically lowers fan* speed to the optimal setting, decreasing fan noise without compromising performance.

* Fans need to be connected to the following headers for AI Cooling control: CPU_FAN / CPU_OPT / CHA_FAN / M.2_FAN / H_AMP / RAD_FAN.

Ongoing monitoring

AI Cooling continues to monitor the system and adjust fan speed based on current load.

AUTOMATIC TUNING

AI Cooling can easily be activated via the Fan Xpert 4 dashboard in ASUS AI Suite 3. Once activated, it will override all manual controls.

AI NETWORKING

The proprietary ROG GameFirst VI utility is designed to help all users — beginners, experts, and everyone in between — optimize network settings to ensure smooth online gameplay. New to this generation, GameFirst VI features AI-enhanced identification and boost technologies to ensure faster and smarter network optimization.

HOW IT WORKS

Identification

GameFirst VI analyzes usage patterns and the digital signatures of your applications and compares them to a database of over 200,000 apps.

Boost

GameFirst VI intelligently switches application priority and adjusts bandwidth, depending on the situation. When gaming, it accelerates and prioritizes game packets to give you supersmooth online gameplay ― even when you're streaming high-quality video or transferring large files.

Visualization

An intuitive graph provides an overview of real-time network status. Simply click on the tab to view the current bandwidth usage of each application, geolocation status of each network connection, or an analysis of the Wi-Fi channels.

WHAT IT DOES

ADAPTIVE INTELLIGENCE

GameFirst VI notes what you're currently doing and adjusts bandwidth accordingly to ensure smooth online experiences, even when multitasking.

LEADING CONNECTIVITY

ROG Strix Z690-A Gaming Wi-Fi D4 delivers wickedly fast connectivity for supersmooth online experiences and ultrafast data transfers. Add alongside those perks, Asus has managed to cram in an advanced audio solution that allows you to pick out the smallest cues and home in on your opponents.

DDR5 Overclocking Strength - ASUS Enhanced Memory Profile

Comprehensive memory tuning options are the cornerstone of ROG motherboards. For DDR5, the Strix Z690 lineup breaks performance limits by providing a stacked suite of overclocking parameters for not only high-speed kits, but even entry-level memory modules that have a locked power management IC (PMIC).

A dedicated circuit on the motherboard safely circumvents DDR5 memory PMIC restrictions, allowing you to step past the default 1.1-volt limit and push frequency and timings to the max.
Ordinarily, a restricted PMIC that has been unlocked requires the system to be fully power-cycled each time memory voltage is adjusted. ROG motherboards leverage onboard hardware and firmware to cleverly work around this irksome limitation, enabling voltage adjustments to be applied through the same soft system-reset process employed for previous generations of DDR memory.

ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can effortlessly apply to unleash performance.

PCIe Performance

With four strategically placed M.2 slots, ROG Strix Z690-F Gaming Wi-Fi leverages mighty CPU and chipset bandwidth to deliver lightning-fast PCIe 4.0 data transfers, Intel NVM Express® RAID, and high-capacity drive options that blaze past traditional SATA-based SSDs.

WI-FI 6E (802.11 AX)

Onboard Wi-Fi 6E technology takes advantage of the newly available radio spectrum in the 6 GHz band. It provides up to three times the bandwidth of the 5 GHz band and up to seven 160 MHz bands to deliver ultrafast wireless networking speeds and improved capacity as well as better performance in dense wireless environments.

* Wi-Fi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz Wi-Fi.

Intel 2.5 Gb Ethernet

Onboard 2.5 Gb Ethernet gives your wired connection a boost, delivering up to 2.5X the speed of standard Ethernet connections for faster file transfers, low-lag gaming and high-resolution video streaming.

WI-FI 6E ANTENNA
The antenna has two built-in transmitters and receivers to enable faster transmission speeds, and it supports the 2.4, 5 and 6 GHz bands.
ADJUSTABLE DESIGN
Four-way positioning enables better signal reception.
MAGNETIC BASE
A powerful magnetic base secures the antenna on the top or side of the PC case.

Audio

SUPREMEFX

ROG SupremeFX is a unique blend of hardware and software that provides superior audio. In ROG Strix Z690-F Gaming Wi-Fi, SupremeFX features the ALC4080 codec to increase playback resolution from 192 kHz to 384 kHz across all channels. The front-panel output is streamed through a highly integrated Savitech amplifier that’s capable of driving of a wide variety of gaming headsets and high-fidelity headphones.

SAVITECH SV3H712 AMPLIFIER

The integrated Savitech amplifier greatly improves THD+N performance from 72 to 83 dB, cleaning up distortion and noise for a clean, pristine sound.

PLAY IN STYLE

Pair ROG Strix Z690-F Gaming Wi-Fi with other products from the diverse ROG ecosystem to create a fully customized gaming setup that reflects your personal style.

Customization

ID DESIGN

UNDENIABLY ROG STRIX

A specially illuminated acrylic display on the I/O cover gives the illusion that the circuit board is visible beneath an RGB ROG logo. Meanwhile, touches of brushed metal throughout the motherboard, plus the stitched fabric of the ROG Strix Cable organizer, deliver a variety of carefully crafted surface textures. Last but not least, a special lighting pattern built into the motherboard finishes off a colorful tour of the ROG worldview.

2D

3D

AURA SYNC

OUTSHINE THE COMPETITION

ROG Strix motherboards deliver sterling performance and superior aesthetics to outshine the competition. They also feature built-in ASUS Aura technology that enables full RGB lighting control and a variety of presets for embedded RGB LEDs and third-party lighting strips that can connect to onboard RGB headers. In addition, all lighting can be easily synced with an ever-growing portfolio of Aura-capable ASUS hardware.

Static

Breathing

Strobing

Rainbow

Color cycle

Starry night

Music

Smart

Adaptive color

Dark

PCIE SLOT Q-RELEASE

A physical button unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

M.2 Q-LATCH

The innovative Q-Latch makes it easy to install or remove an M.2 SSD without the need for specific tools. The design employs a simple locking mechanism to secure the drive and neatly eliminate traditional screws.

ROG STRIX CABLE ORGANIZER

This cable management feature enhances the flexibility of PC building. And with its Velcro interior, users can keep reusing the organizer if they need to make changes later on.

CLR CMOS BUTTON

A quick press of the Clr CMOS button helps reset BIOS settings. It can also be used to reboot the PC if incorrect BIOS settings have been selected.

BIOS FLASHBACK™ BUTTON

BIOS FlashBack™ is the simplest and safest way to update BIOS. Simply drop the (UEFI) BIOS file onto a FAT32-formatted USB stick, and plug it into the USB BIOS FlashBack port and press the button. Updates can even be performed without having memory or a CPU installed.

CERTIFIED COMPATIBILITY

ROG Strix motherboards undergo an extensive certification program to ensure compatibility with the widest range of components and devices.

ASUS AIO coolers are also compatible with a wide variety of CPUs, up to and including 12th Gen Intel processors, giving you ultimate flexibility to cool the CPU that fits your needs.

ROG GIVES YOU MORE

ROG-exclusive software utilities deliver intuitive audio tuning and gaming enhancements, so you can configure your gaming build the way you want. To further aid system setup and performance tuning, the highly acclaimed AIDA64 and MemTest86 utilities have also been added to the mix.

Optimization

UEFI BIOS

The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

MEMTEST86

For added convenience, MemTest86 has been pre-installed into ROG UEFI (BIOS) Run the test to pinpoint memory issues with just one click, without the need for any USB stick or going into the OS. The memory report will also be stored in the BIOS archives for reference.

ADVANCED MODE

When you're ready for a deeper dive into the configuration of your system, delve into the UEFI's Advanced mode and take complete control. Each section is intuitively organized, and a built-in search feature makes it easy to find the options you need. Advanced functions are coded with the intelligence to adapt to your settings, and when you're ready to take charge, parameters have the granularity to dial in performance just the way you want.

MemTest86
Diagnose faulty RAM and memory problems that cause corrupted data and crashes.

Prediction
AI OC monitors system vitals like temperatures, fan speeds, and power draw to estimate overclocking performance.

My Favorites
Quickly find tuning options and add preferred tools to the list.

EZ Flash 3
Flash the latest BIOS via the internet from within the BIOS.

AI OC Guide
The AI OC Guide allows you to enable the AI Optimization or view a quick guide.

SMART
Check your storages devices' Self-Monitoring, Analysis, and Reporting Technology logs to gauge reliability and to identify potential failures.

GPU POST
Automatically detect selected ASUS graphics cards to view detailed information.

Secure Erase
Restore your SSDs to factory-fresh condition.

Last Modified Log
Track the latest changes and save preferred profiles onto a USB drive.

SATA Port Renaming
Rename SATA ports for easy identification.

Search Function
Quickly and easily find the option or setting you're looking for.

ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.

EZ MODE

Designed to simplify setup, EZ mode presents vital settings and stats on a single page. With guided wizards, drag-and-drop functionality, and one-click application of important settings, your rig will be up and running in no time.

My Favorites
Quickly find tuning options and add preferred tools to the list.

EZ Flash 3
Flash the latest BIOS from within the BIOS.

SMART
Check your storage device Self-Monitoring, Analysis, and Reporting Technology logs to gauge reliability and identify potential failures.

Secure Erase
Restore your SSDs and NVMe storage to factory settings.

Last Modified Log
Track the last change and save preferred profiles to a USB drive.

SATA Port Renaming
Rename SATA ports for easy identification.

User Profile
Port configuration settings between different BIOS versions or share them with friends.

Q-Fan Control
Configure the fan's operating speed manually or use pre-configured fan profiles to quickly select Standard, Silent, Turbo or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75 °C.

5-WAY OPTIMIZATION

The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.

EPU GUIDANCE

With the Energy Processing Unit (EPU), you’ll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode.

FAN XPERT 4

Fan Expert 4 provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. Control is also possible via the award-winning ROG UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks.

FAN XPERT 4

Fan Expert 4 provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers. Control is also possible via the award-winning ROG UEFI. Whether you're cooling with air or water, Auto-Tuning mode intelligently configures all parameters with a single click. There's also an Extreme Quiet mode, which reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks.

Audio Effect

SONIC STUDIO III

ROG Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for VR headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.

APP-SPECIFIC PROFILES

Apply customized audio settings to various applications, so that each is perfectly tuned to the way you want to listen.

* A head-related transfer function is an audio algorithm derived from sound data recorded through a dummy head. Test tones are played from a spherical grid around the dummy head to obtain subtle changes in sounds that come from different directions. The results are combined into an algorithm that allows Sonic Studio's virtual surround to process audio that's true to life.

DTS: SOUND UNBOUND

ROG Strix Z690 motherboards are pre-loaded with the DTS® Sound Unbound™ app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By leveraging Windows Sonic spatial technology, DTS Sound Unbound delivers audio in a virtual 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep or other sound in your virtual environment.

* DTS Sound Unbound requires in-game support. Check with game developers for supported titles.

STEREO SOUND

Discrete left and right audio channels enable headphone or two-speaker setup.

SURROUND SOUND

Audio is split and served over multiple speaker channels – e.g., 5.1 or 7.1 – to create an enveloping experience on a single, logical plane.

SPATIAL SOUND

A virtual audio ‘sphere’ effect creates astonishing 360° immersion – with you at the center, where sounds seem to travel in all directions.

AIDA64 EXTREME

ROG Strix Z690 motherboards include an AIDA64 Extreme 60 days free trial. This industry-leading system information tool provides detailed information about installed hardware and software, and it also provides benchmarks for measuring performance of the entire system or individual components. AIDA64 Extreme includes a monitoring and diagnostics feature to detect and prevent hardware issues. All vital system sensors can be tracked in real time, allowing voltage readings, fan speeds, and temperature information to be displayed on the desktop or sent to dedicated displays or to the OLED panels of ROG AIO liquid coolers*.

* Support available for ROG Ryujin II and selected models.

ROG X AIDA64 EXTREME

ARMOURY CRATE

Armoury Crate is a software utility designed to give you centralized control of supported gaming products, making it easy to tune the look and feel of your system. From a single intuitive interface, Armoury Crate helps you customize RGB lighting and effects for compatible devices and synchronize them with Aura Sync to create a unified lighting scheme across your system. In addition, Armoury Crate’s Fan Xpert4 tool provides comprehensive control over fans, water pumps and all-in-one (AIO) coolers.

You can also use Armoury Crate to download drivers, software and user manuals, register products, and tap into a special news feed that connects you to the global ASUS gaming community.

* Windows 10 required for full Aura Sync functionality within Armoury Crate. For Windows 8 and earlier versions, standalone Aura Sync software is available for free download from the product support site.

AURA SYNC RGB SETTINGS

Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.
*Precise specifications and features vary by model. Please refer to the specification page.
The product (electrical, electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
The use of trademark symbol (™, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.
Wi-Fi 6E availability and features are dependent on regulatory limitations and co-existence with 5 GHz Wi-Fi.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries.

Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
PCB color and bundled software versions are subject to change without notice.
Brand and product names mentioned are trademarks of their respective companies.

About ASUS

ASUS is a multinational company known for the world’s best motherboards, PCs, monitors, graphics cards and routers, and is ranked by Laptop Mag as the best laptop brand in 2020. Along with an expanding range of superior gaming, content-creation and AIoT solutions, ASUS leads the industry through cutting-edge design and innovations made to create the most ubiquitous, intelligent, heartfelt and joyful smart life for everyone. With a global workforce that includes more than 5,000 R&D professionals, ASUS is driven to become the world’s most admired innovative leading technology enterprise. Inspired by the In Search of Incredible brand spirit, ASUS won more than 11 awards every day in 2020 and ranks as one of Forbes’ World’s Best Regarded Companies and Fortune’s World’s Most Admired Companies.

About ROG

Republic of Gamers (ROG) is an ASUS sub-brand dedicated to creating the world’s best gaming hardware and software. Formed in 2006, ROG offers a complete line of innovative products known for performance and quality, including motherboards, graphics cards, laptops, desktops, monitors, audio equipment, routers and peripherals. ROG participates in and sponsors major international gaming events. ROG gear has been used to set hundreds of overclocking records and it continues to be the preferred choice of gamers and enthusiasts around the world.

© 2021 ASUS Computer International. All Rights Reserved. ASUS is a registered trademark of ASUSTeK Computer. All specifications and terms are subject to change without notice. Please check with your supplier for exact offers on selected models. Products may not be available in all markets. Product may not be exactly as shown in photos. Actual colors may differ from their appearance due to variation of monitor restrictions and color processing. All trademarks are registered to their respective companies. ASUS shall not be liable for technical or editorial errors or omissions contained herein.

Manufacturer	ASUS Computer International
Manufacturer Part Number	ROG STRIX Z690-F GAMING WIFI
Manufacturer Website Address	http://usa.asus.com
Brand Name	Asus ROG
Product Line	Strix
Product Model	Z690-F GAMING WIFI
Product Name	Strix Z690-F GAMING WIFI Desktop Motherboard
Product Type	Desktop Motherboard
UPC	195553441766

Wireless LAN Standard	IEEE 802.11 a/b/g/n/ac/ax
Bluetooth	Yes

HDMI	Yes
Total Number of USB Ports	10
Number of USB 3.2 Gen 1 Ports	4

Width	12"
Depth	9.6"

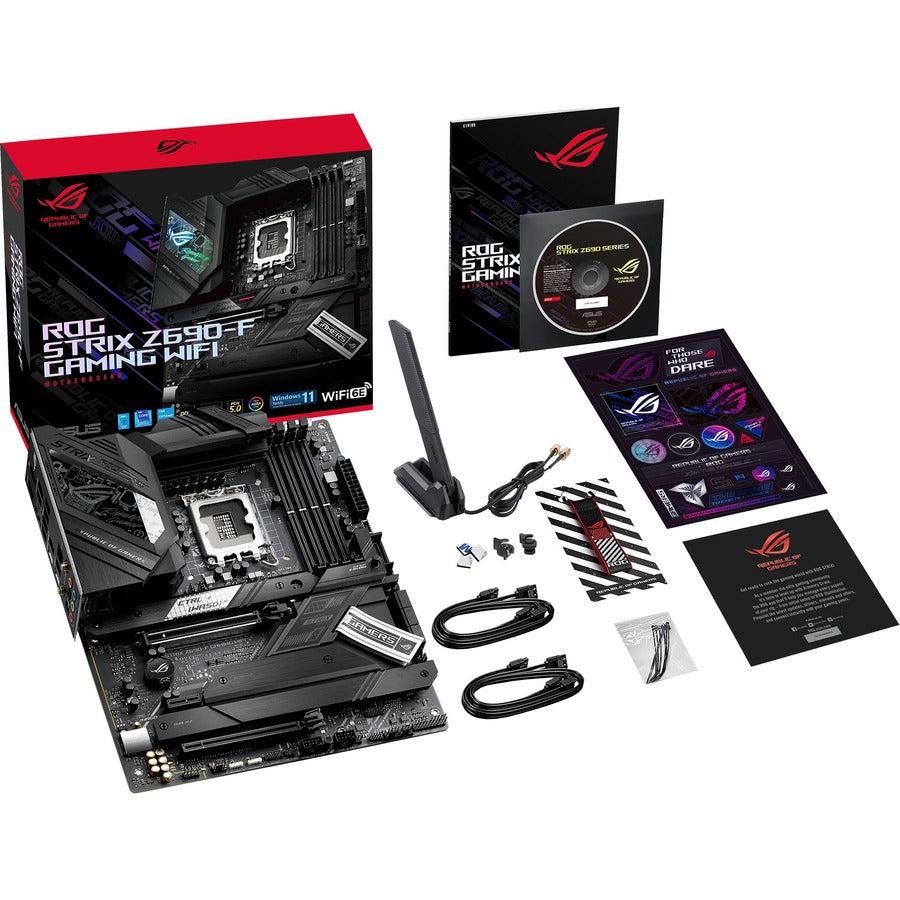

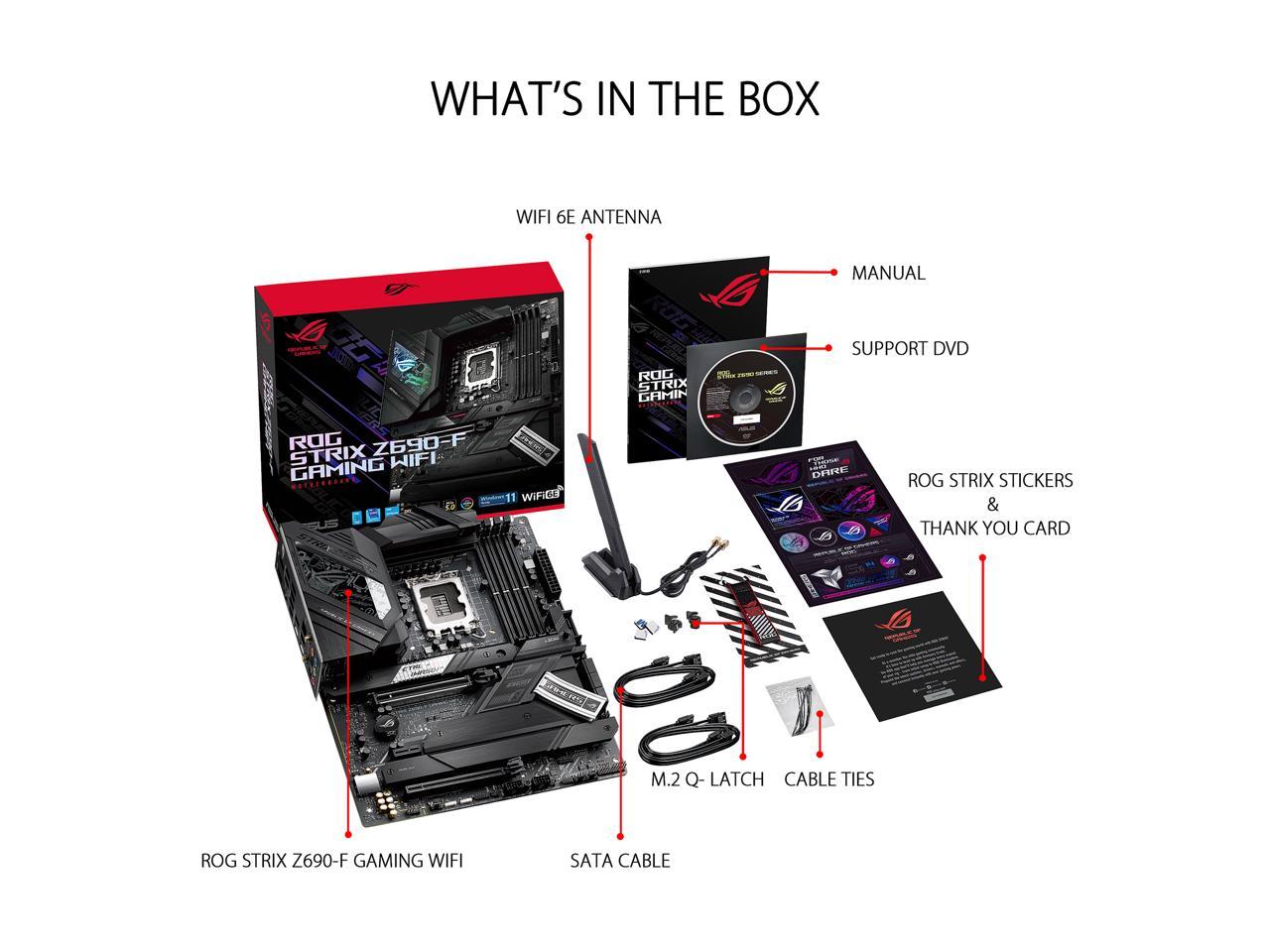

Package Contents	Strix Z690-F GAMING WIFI Desktop Motherboard 4 x SATA 6Gb/s cables 1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas 1 x M.2 Q-Latch package 1 x M.2 Q-Latch package for M.2 backplate 2 x M.2 Rubber Packages 1 x ROG key chain 1 x cable tie 1 x ROG STRIX stickers 1 x ROG STRIX thank you card 1 x Support DVD 1 x User manual
Environmentally Friendly	Yes

Asus Rog Strix Z690-F Gaming Wifi Lga1700/ Intel Z690/ Ddr5/ Wifi & Bluetooth/ Sata3&Usb3.2/ M.2/ Atx Motherboard

Description

PERFORMANCE

BUILT FOR PERFORMANCE GAMING

COOLING

COMPREHENSIVE COOLING

GAMING IMMERSION

TOTAL GAMING IMMERSION

CONNECTIVITY

FULL CONNECTIVITY

ALL-ROUND PERFORMANCE

Power Design

ALLOY CHOKES AND DURABLE CAPACITORS

Cooling

COOLING INNOVATION

COOLER BY DESIGN

CPU

CPU fan headers

AIO pump fan header

M.2

M.2 heatsink

M.2 backplate

CHASSIS

4-pin PWM/DC fan headers

Intelligent Control

TWO-WAY AI NOISE CANCELATION

COD: MW - FPS (2560 X 1440)

HEAR THE DIFFERENCE

AI OFF

AI ON

AI OVERCLOCKING

AI OVERCLOCKING AT A GLANCE

Designed by experts

Predictive edge

Real-time adjustments

AI OVERCLOCKING GUIDE

AI COOLING

SELF-ADAPTIVE FAN TUNING

CPU temperature detection

Automated optimization

Ongoing monitoring

AUTOMATIC TUNING

AI NETWORKING

HOW IT WORKS

Identification

Boost

Visualization

WHAT IT DOES

ADAPTIVE INTELLIGENCE

LEADING CONNECTIVITY

Storage & Memory

DDR5 Overclocking Strength - ASUS Enhanced Memory Profile

PCIe Performance

Networking

WI-FI 6E (802.11 AX)

Intel 2.5 Gb Ethernet

Audio

SUPREMEFX

SAVITECH SV3H712 AMPLIFIER

PLAY IN STYLE

Customization

ID DESIGN

UNDENIABLY ROG STRIX

2D

3D

AURA SYNC

OUTSHINE THE COMPETITION

Static

Breathing

Strobing

Rainbow

Color cycle

Starry night

Music

Smart

Adaptive color

Dark

DIY Friendly

PCIE SLOT Q-RELEASE

M.2 Q-LATCH
