- Intel Z590
- Supports 11th Gen / 10th Gen Intel Core Processors
- Supports Intel Pentium Gold and Celeron Processors
- DDR4 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133
Don't forget your OS, we have Windows 11 OEM, 10 OEM, Download, and USB versions available.

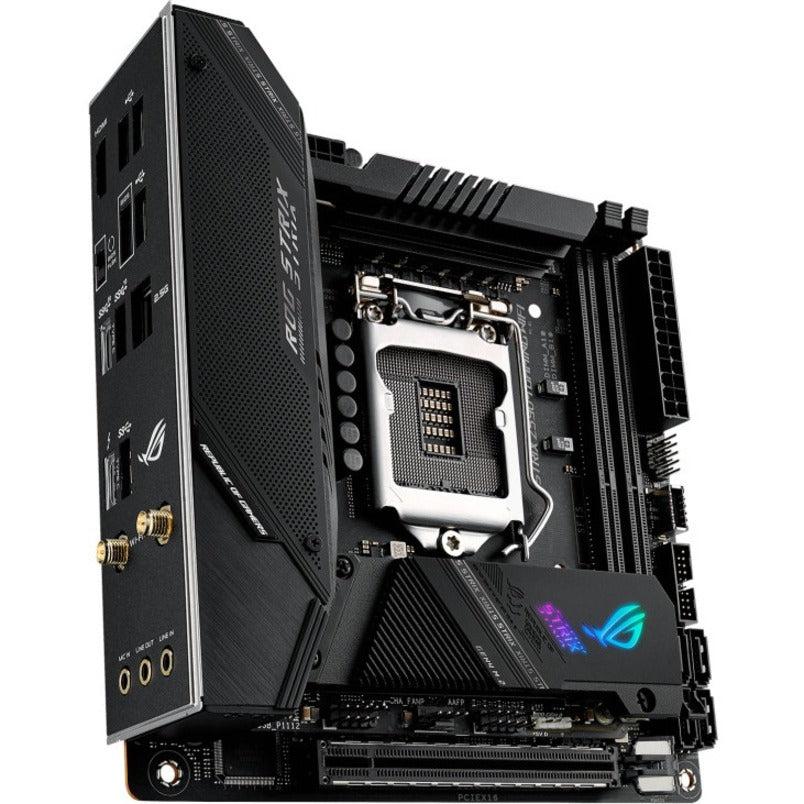

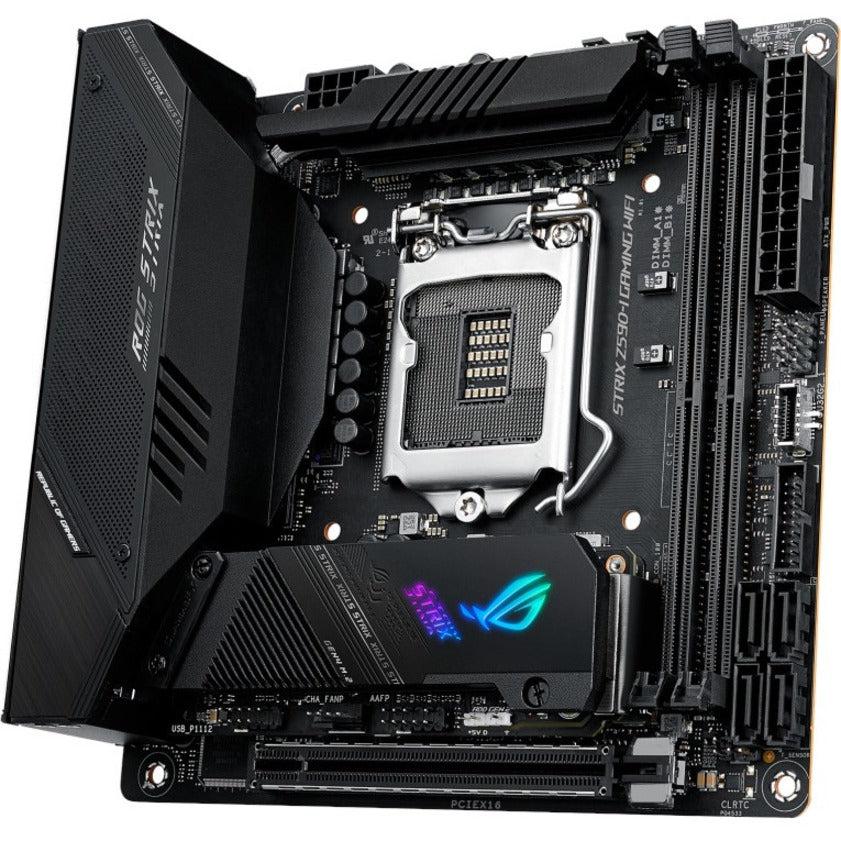

LEARN MORE ABOUT THE ASUS STRIX Z590-I GAMING WIFI
| Best Seller Ranking |
#96 in
|
Model
| Brand |
ASUS |
| Series |
ROG |
| Model |
STRIX Z590-I GAMING WIFI |
Supported CPU
| CPU Socket Type
|
LGA 1200 |
| CPU Type |
Supports 11th Gen / 10th Gen Intel Core Processors*
Supports Intel Pentium Gold and Celeron Processors*
* Refer to www.asus.com for CPU support list. |
| Supported CPU Technologies |
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0*
* Intel Turbo Boost Max Technology 3.0 support depends on the CPU types. |
Chipsets
| Chipset
|
Intel Z590 |
Onboard Video
| Onboard Video Chipset
|
Supported only by CPU with integrated graphic |
Memory
| Number of Memory Slots |
2×288pin |
| Memory Standard |
DDR4 5133(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3333(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133*
* 10th Gen Intel Core i7 / i9 processors support 2933 / 2800 / 2666 / 2400 / 2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.
* 11th Gen Intel processors support 3200 / 2933 / 2800 / 2666 / 2400 / 2133 natively.
* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types. |
| Maximum Memory Supported |
64GB |
| Channel Supported
|
Dual Channel |
Expansion Slots
| PCI Express 4.0 x16 |
1 x PCI Express 4.0 x16
* Actual support may vary by CPU |
Storage Devices
| SATA 6Gb/s
|
4 x SATA 6Gb/s |
| M.2 |
Intel 11th Gen Processors:
M.2_1 slot (Key M), type 2242/2260/2280
- Only Intel 11th Core processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs.
Intel Z590 Chipset:
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes) |
| Intel Optane Ready |
Yes |
Onboard Audio
| Audio Chipset
|
ROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080 |
| Audio Channels
|
7.1 Channels*
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output. |
Onboard LAN
| LAN Chipset |
Intel I225-V |
| Max LAN Speed |
10/100/1000/2500Mbps |
| Wireless LAN |
Intel Wi-Fi 6E
802.11a/b/g/n/ac/ax |
| Bluetooth |
Bluetooth 5.2 hardware ready*
* Bluetooth v5.2 function will be ready in Windows 10 build 21H1 or later. |
Rear Panel Ports

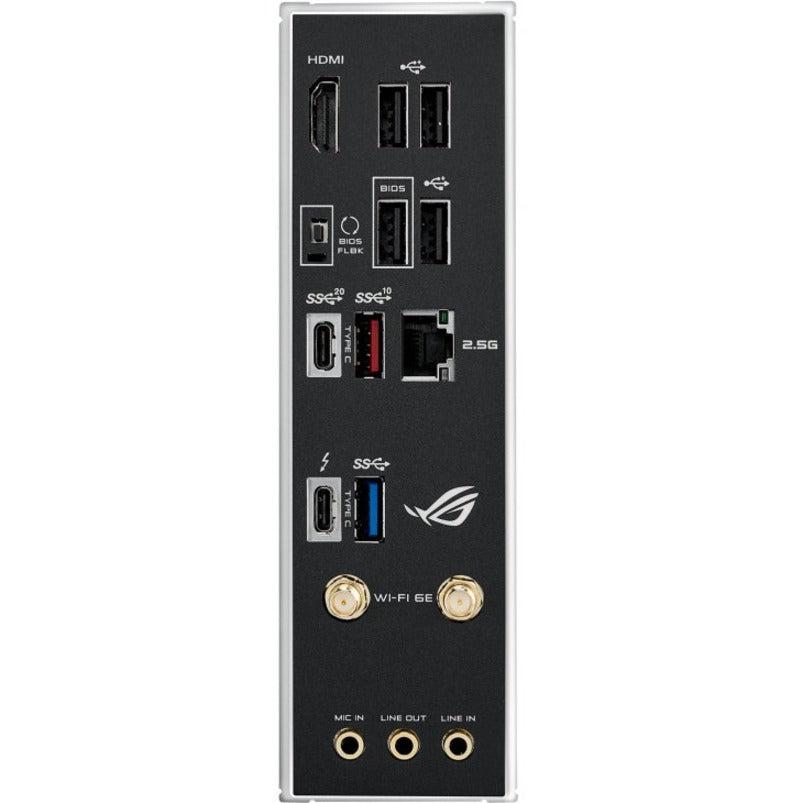

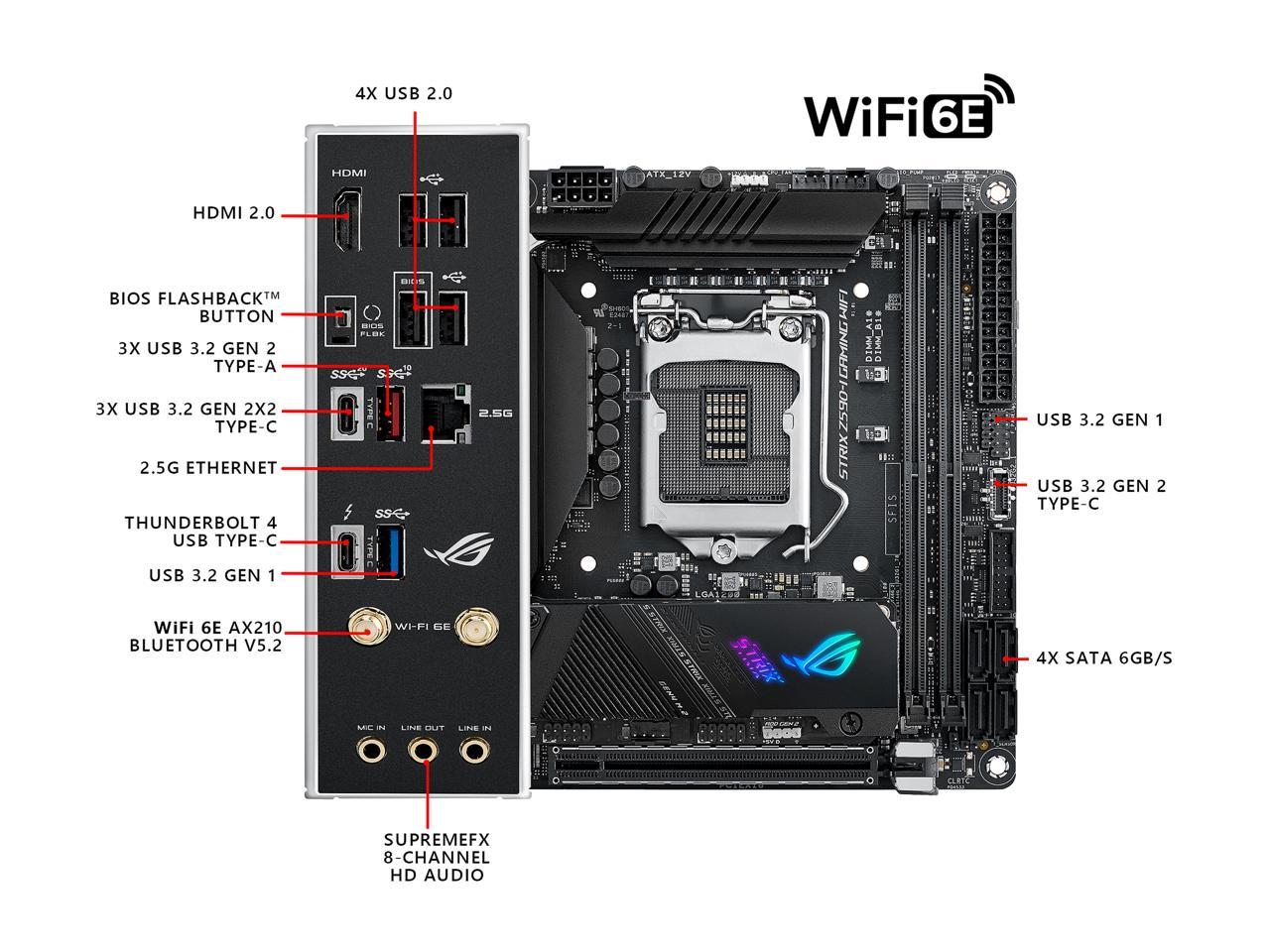

| Back I/O Ports |
1 x Thunderbolt 4 USB Type-C port(s)
1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
1 x USB 3.2 Gen 2 port(s) (1 x Type-A)
1 x USB 3.2 Gen 1 port(s) (1 x Type-A)
4 x USB 2.0 port(s) (4 x Type-A)
1 x HDMI port
1 x Intel Wi-Fi 6E
1 x Intel I225-V 2.5Gb Ethernet port
3 x LED-illuminated audio jacks
1 x BIOS FlashBack button |
Internal I/O Connectors
| Onboard USB |
1 x USB 3.2 Gen 2 connector (support(s) USB Type-C)
1 x USB 3.2 Gen 1 header(s) support(s) additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports |
| Other Connectors |

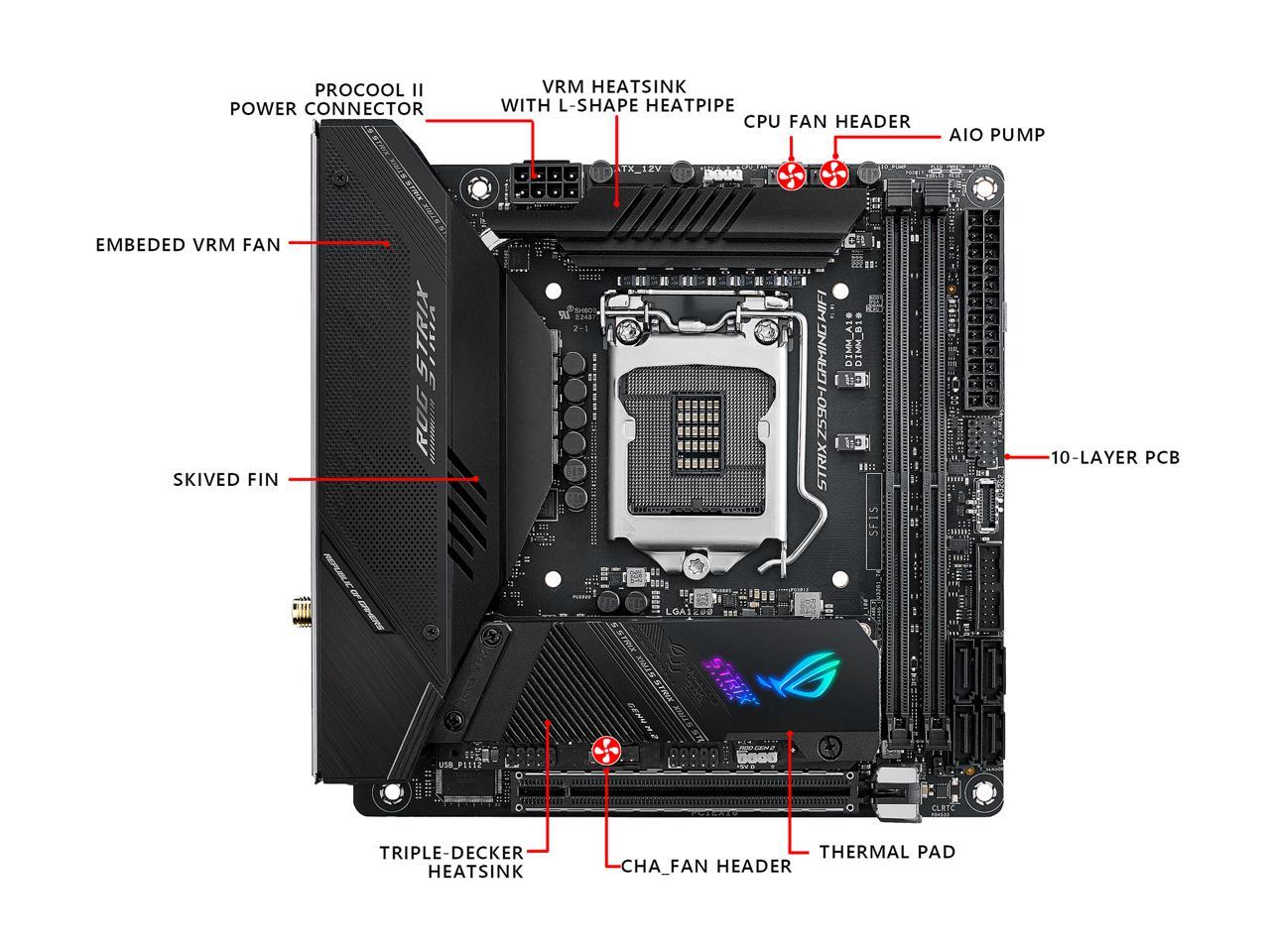

Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin AIO Pump header(s)
1 x 4-pin Chassis Fan header(s)
Miscellaneous

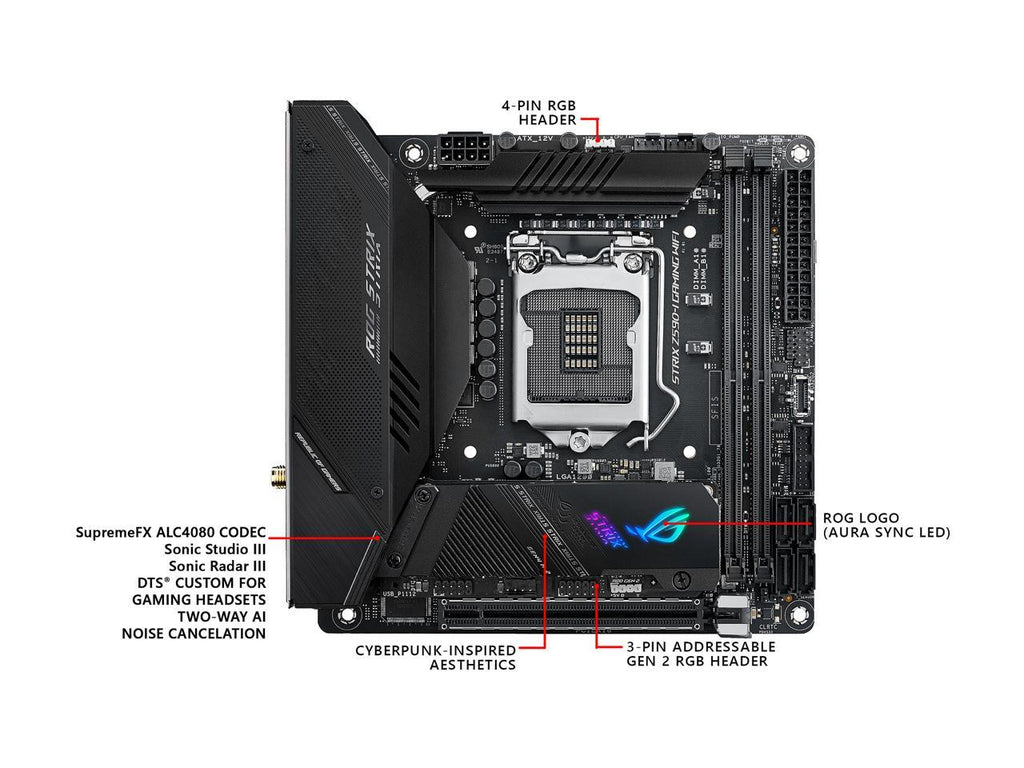

1 x AURA Addressable Gen 2 header(s)
1 x AURA RGB header(s)
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x Speaker header
1 x 10-1 pin System Panel header
1 x Thermal Sensor header |
Physical Spec
| Form Factor |
Mini ITX |
| LED Lighting |
RGB |
| Dimensions (W x L) |
6.7" x 6.7" |
| Power Pin |
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector |
Windows Compatibility
| Windows 11 |
Supported |
Features
| Features |
Special Features:
Extreme Engine Digi+
- 5K Black Metallic Capacitors
ASUS Q-Design
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
AURA Sync
- AURA RGB header(s)
- Addressable Gen 2 RGB header(s)
ASUS HYDRANODE
- 1 x Chassis fan support* (CHA_FANP)
* Visit ASUS Website for the latest compatibility list.
Software Features:
ROG Exclusive Software
- RAMCache III
- ROG CPU-Z
- GameFirst VI
- Sonic Studio III + Sonic Studio Virtual Mixer
- Sonic Radar III
- DTS Sound Unbound
- Overwolf
- Anti-virus software
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- AURA Creator
- AURA Sync
Two-Way AI Noise Cancelation
AI Suite 3
- 5-Way Optimization with AI Overclocking
TPU
EPU
DIGI+ VRM
Fan Xpert 4
Turbo app
- EZ update
MyAsus
WinRAR
UEFI BIOS
AI Overclocking Guide
MemTest86
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
FlexKey
BIOS:
256 MB Flash ROM, UEFI AMI BIOS
Manageability:
WOL by PME, PXE
Operating System:
Windows 10 64-bit |
Packaging

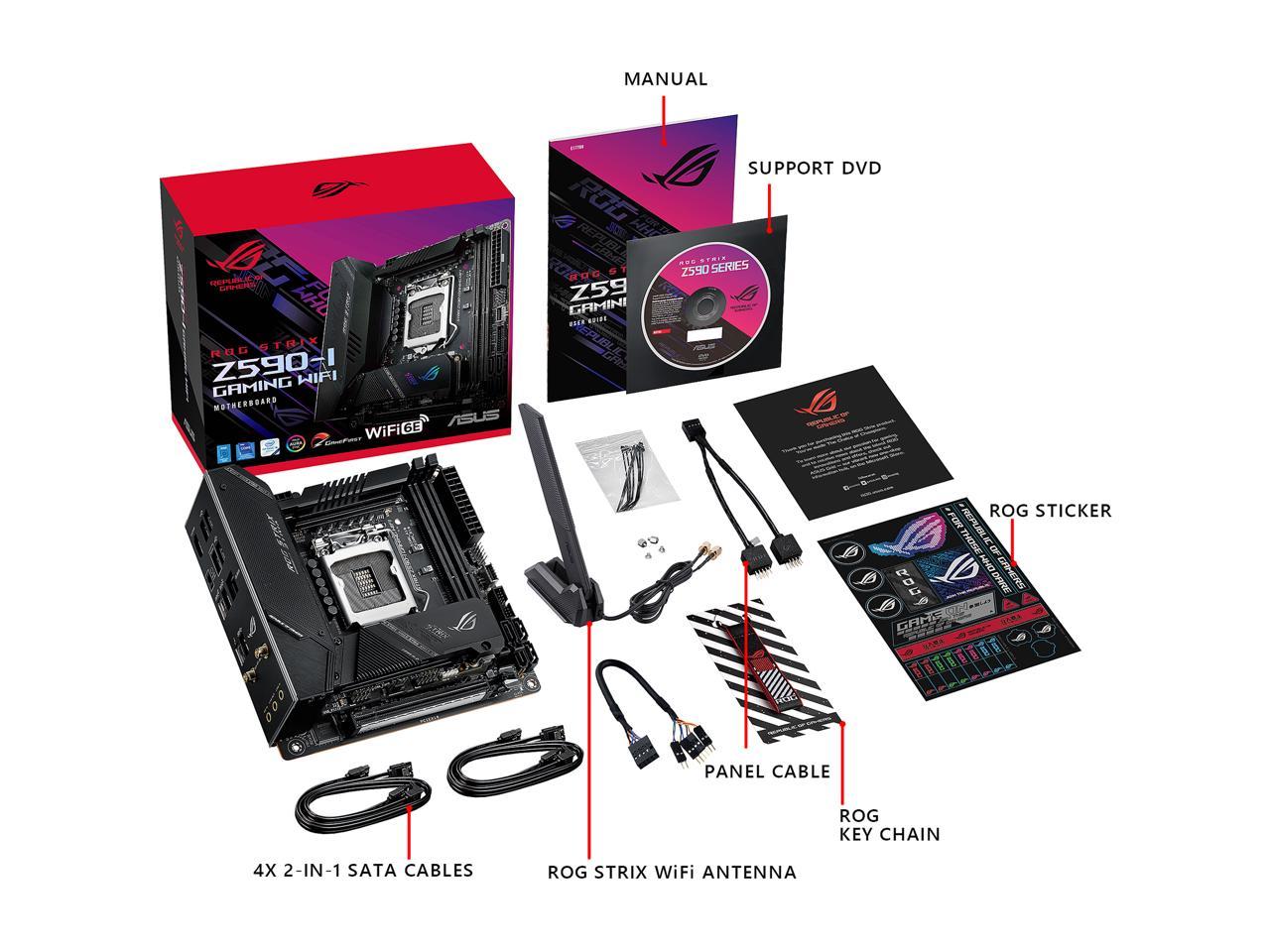

| Package Contents |
Accessories:
Cables
4 x SATA 6Gb/s cables
1 x Panel cable
1 x ROG USB2.0 splitter cable
Miscellaneous
1 x ASUS Wi-Fi moving antennas
1 x Cable ties pack
2 x M.2 SSD screw package(s)
1 x ROG key chain
1 x ROG Strix stickers
1 x ROG thank you card
Installation Media
1 x Support DVD
Documentation
1 x User manual |
