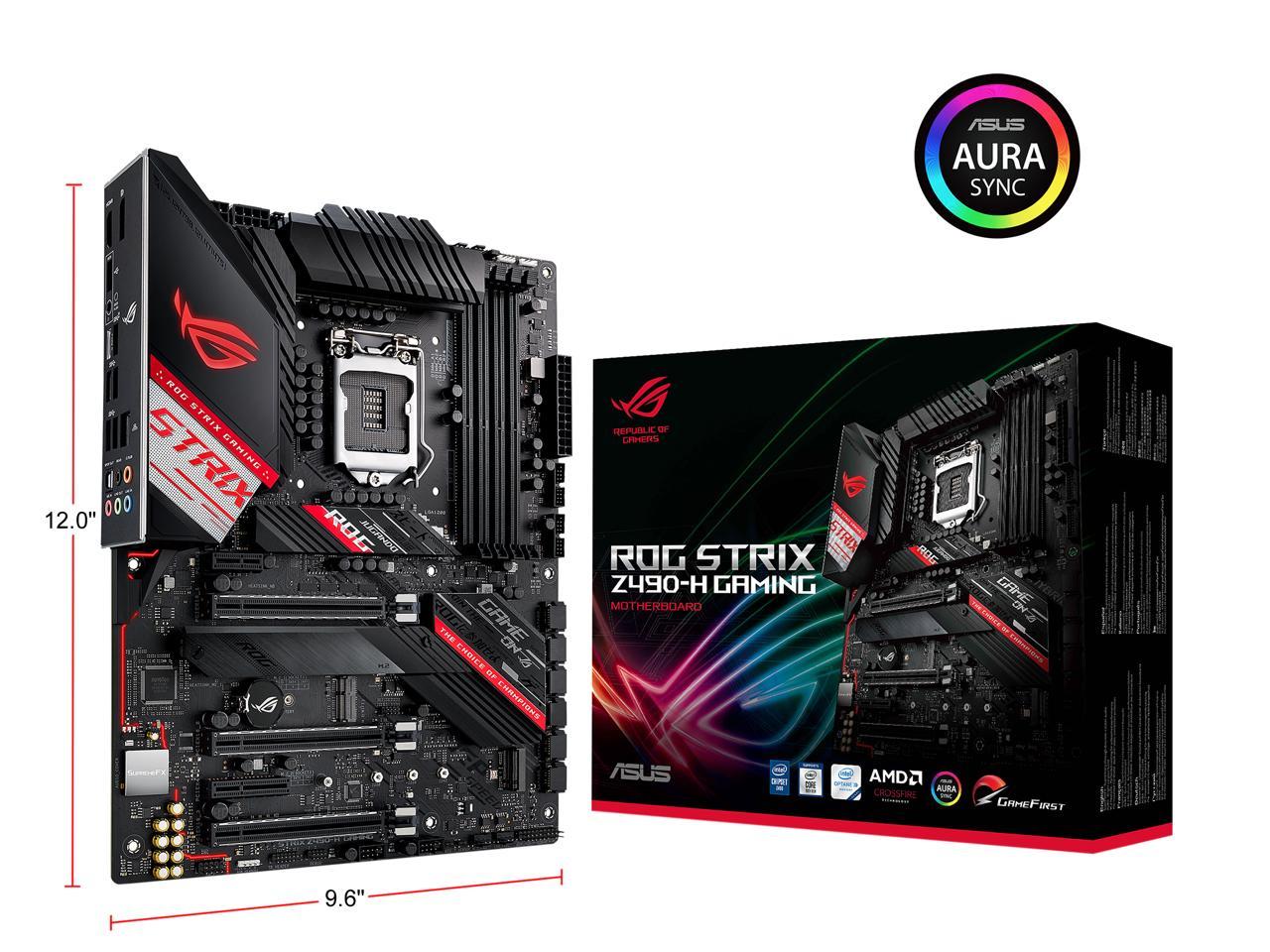

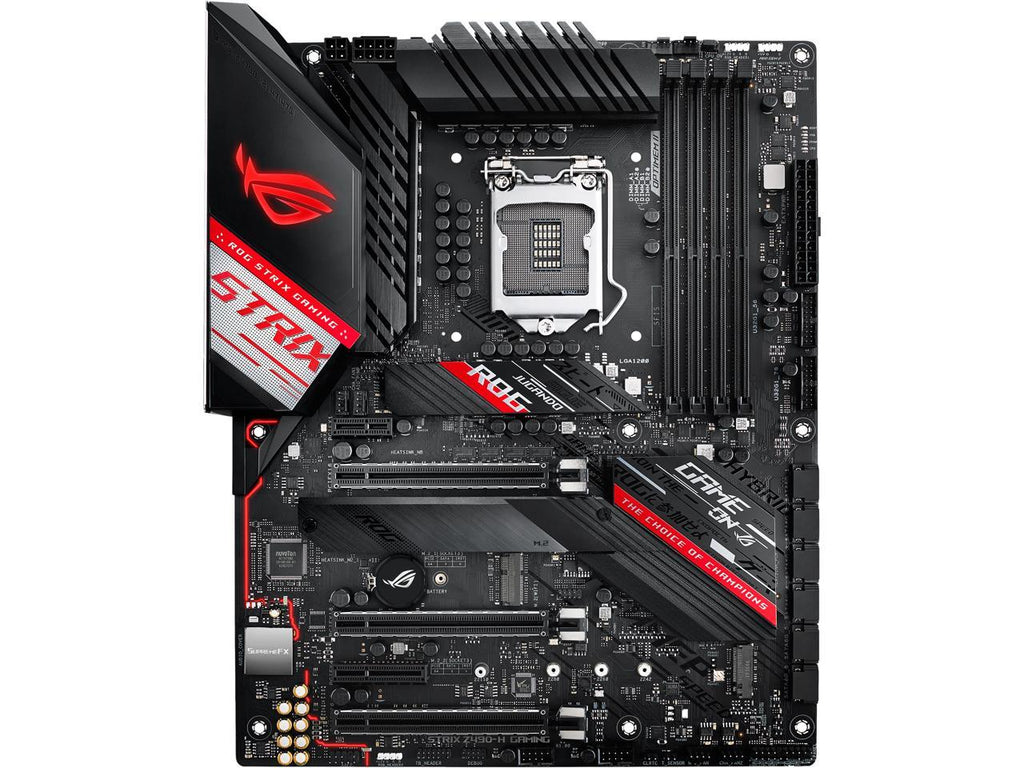

Asus Rog Strix Z490-H Gaming Lga 1200 (Intel 10Th Gen) Intel Z490 Sata 6Gb/S Atx Intel Motherboard

Asus Rog Strix Z490-H Gaming Lga 1200 (Intel 10Th Gen) Intel Z490 Sata 6Gb/S Atx Intel Motherboard

SKU:STRIX Z490-H GAMING

Regular price $377.17
Regular price Sale price $377.17
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Reviews, Que. & Ans.

        Description :

        • Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors
        • Robust Power Solution: 12+2 Dr. MOS power stages with ProCool II power connector, high-quality alloy chokes and durable capacitors to provide reliable power when pushing CPU performance to the limit

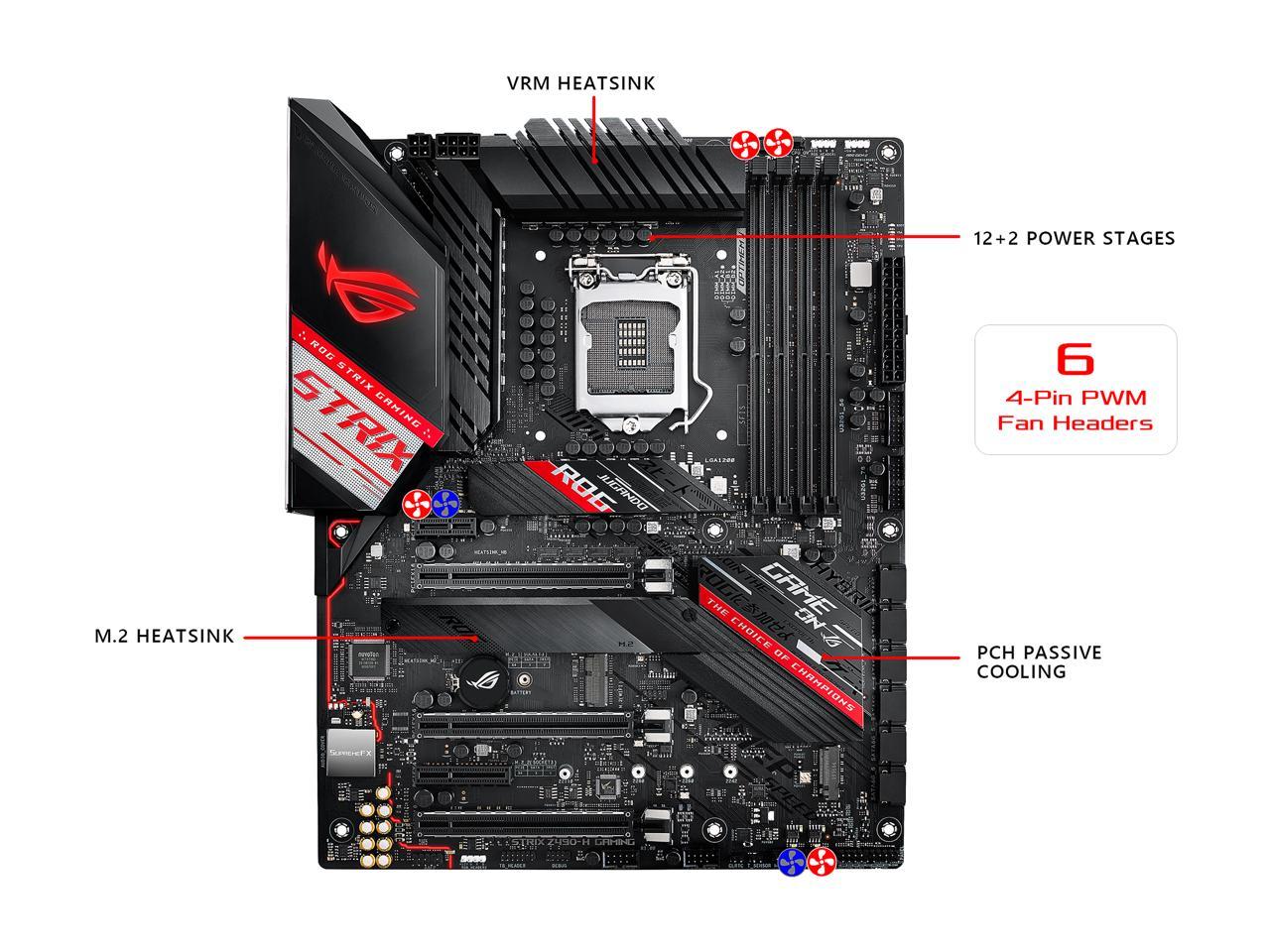

        • Optimized Thermal Design: VRM heatsink, PCH fanless heatsink, M.2 heatsink, hybrid fan headers and Fan Xpert 4 utility
        • High-performance Gaming Networking: On-board Intel 2.5Gb Ethernet with ASUS LANGuard
        • Fastest Connectivity: Supports HDMI 1.4 and DisplayPort 1.4 output, and featuring dual M.2, Thunderbolt header
        • Industry-leading Gaming Audio: High fidelity audio with the SupremeFX S1220A codec, DTS Sound Unbound and Sonic Studio III draws you deeper into the game action

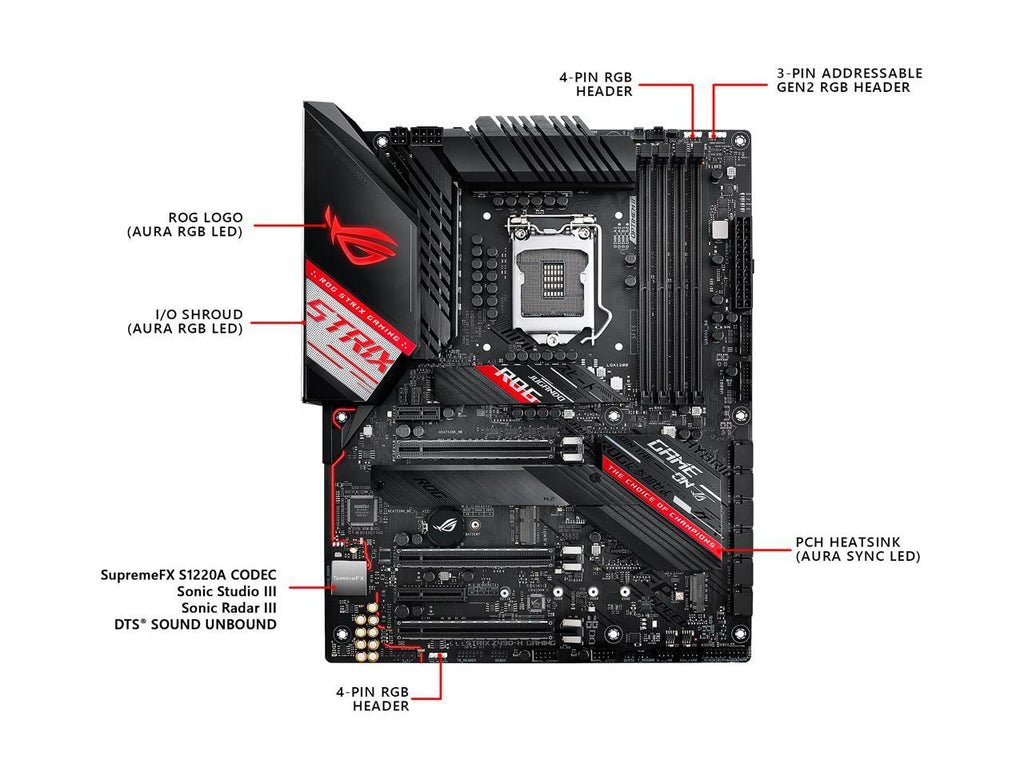

        • Unmatched Personalization: Time-honored red on black gaming look, ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
        Model
        Brand ASUS
        Series ROG
        Model STRIX Z490-H GAMING
        Supported CPU
        CPU Socket Type  LGA 1200
        CPU Type Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
        Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
        ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
        Chipsets
        Chipset  Intel Z490
        Onboard Video
        Onboard Video Chipset  Supported only by CPU with integrated graphic:
        1 x DisplayPort 1.4 *
        1 x HDMI 1.4b
        * Graphics specifications may vary between CPU types.
        ** Support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any update.
        Memory
        Number of Memory Slots 4x288pin (DDR4)
        Memory Standard DDR4 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
        * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
        Maximum Memory Supported 128GB
        Channel Supported  Dual Channel
        Expansion Slots
        PCI Express 3.0 x16 Intel 10th Gen Processors
        3 x PCIe 3.0 x16 (x16 or x8+x4+x4)
        PCI Express x4 Intel Z490 Chipset
        1 x PCIe 3.0 x4 (max at x2 mode)
        PCI Express x1 1 x PCIe 3.0 x1
        Other Slots M.2 slot only (Key E) (Support CNVI & PCIe interface)*
        * Wi-Fi module is sold separately.
        Storage Devices
        SATA 6Gb/s  6 x SATA 6Gb/s
        M.2 1 x M.2_1 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)
        1 x M.2_2 socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)
        Intel Optane Ready Yes
        SATA RAID 0/1/5/10
        Onboard Audio
        Audio Chipset  ROG SupremeFX Surround Sound High Definition Audio CODEC S1220A
        Audio Channels  8 Channels
        * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
        Onboard LAN
        LAN Chipset Intel I225-V
        Max LAN Speed 10/100/1000/2500Mbps

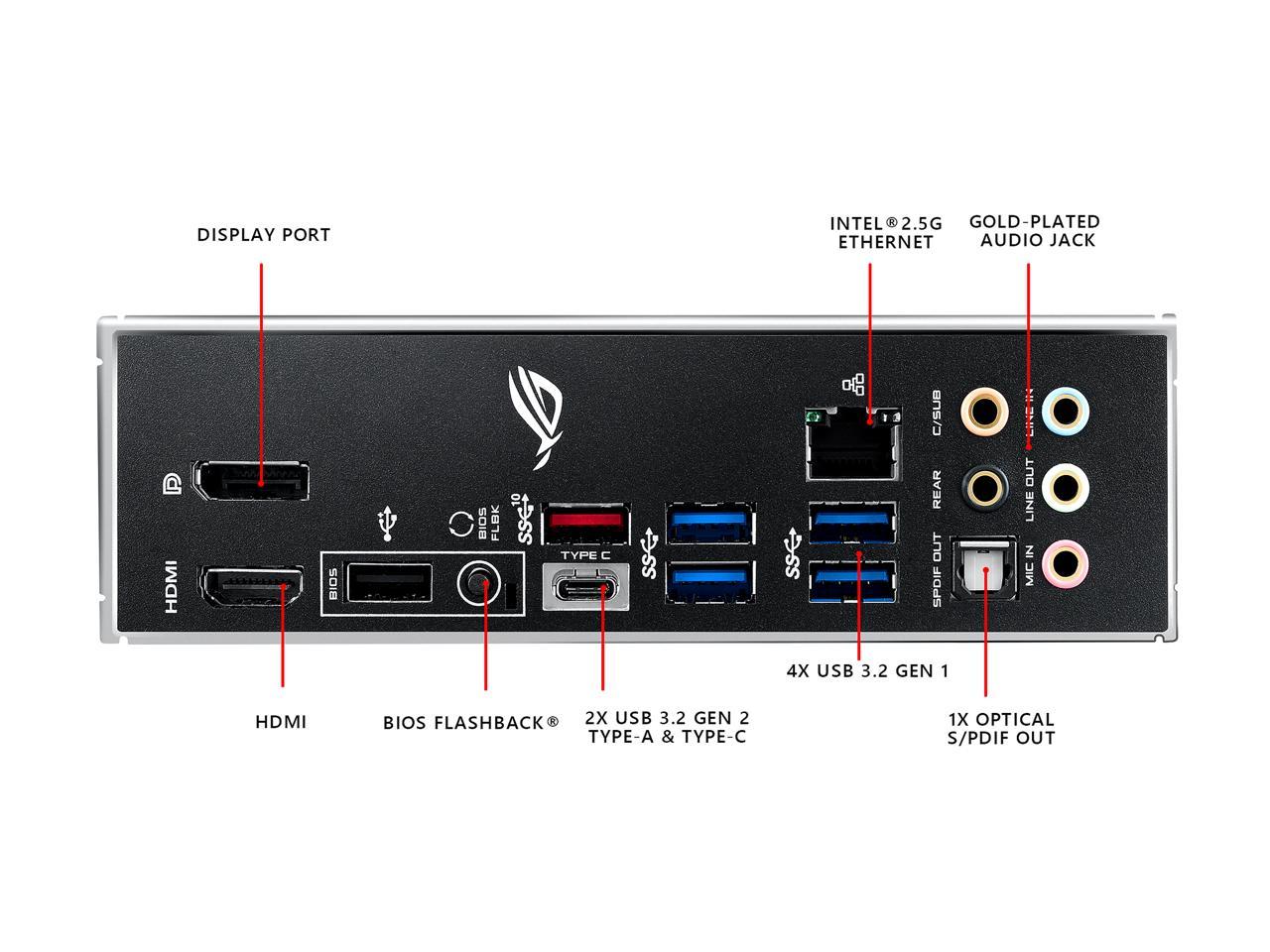

        Rear Panel Ports
        Back I/O Ports 1 x Intel I225-V 2.5Gb Ethernet
        1 x DisplayPort
        1 x HDMI
        2 x USB 3.2 Gen 2 (1 x Type-A + USB Type-C)
        4 x USB 3.2 Gen 1 Type-A
        1 x USB 2.0 (one port can be switched to USB BIOS FlashBack)
        1 x Optical S/PDIF out
        1 x USB BIOS FlashBack Button(s)
        5 x Gold-plated audio jacks
        Internal I/O Connectors
        Onboard USB 2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
        2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
        Other Connectors 1 x M.2_FAN connector
        1 x CPU Fan connector(s)
        1 x CPU OPT Fan connector(s)
        2 x Chassis Fan connector(s)
        1 x AIO_PUMP connector
        1 x Addressable RGB header
        1 x AAFP connector
        2 x Aura RGB Strip Headers
        1 x Thunderbolt header(s)
        1 x System panel(s) (Chassis intrusion header is inbuilt)
        1 x Thermal sensor connector(s)
        1 x Clear CMOS jumper(s)
        1 x CPU_OV jumper
        1 x VRM_HS_FAN Header
        Physical Spec
        Form Factor ATX
        LED Lighting RGB
        Dimensions (W x L) 304.80 mm x 243.84 mm
        Power Pin 1 x 24-pin EATX Power connector(s)
        1 x 8-pin ATX 12V Power connector(s)
        1 x 4-pin ATX 12V Power connector(s)
        Features
        Features Multi-GPU Support:
        Supports AMD 2-Way CrossFireX Technology

        Software Features:
        ROG Exclusive Software
        - RAMCache III
        - ROG CPU-Z
        - GameFirst VI
        - Sonic Studio III + Sonic Studio Virtual Mixer
        - Sonic Radar III
        - DTS Sound Unbound
        - Overwolf
        - Anti-virus software
        ASUS Exclusive Software
        Armoury Crate
        - Aura Creator
        - Aura Sync
        AI Suite 3
        -5-way Optimization with AI Overclocking.
        TPU
        EPU
        Digi+ VRM
        Fan Xpert 4
        Turbo app
        -EZ update
        WinRAR
        UEFI BIOS
        AI Overclocking Guide
        ASUS EZ DIY
        - ASUS CrashFree BIOS 3
        - ASUS EZ Flash 3
        - ASUS UEFI BIOS EZ Mode
        FlexKey

        ASUS Special Features:
        ASUS Q-Design
        - ASUS Q-DIMM
        - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [ yellow green])
        - ASUS Q-Slot
        ASUS Thermal Solution
        - Aluminum M.2 heatsink
        ASUS EZ DIY
        - BIOS Flashback button
        -BIOS FlashBackTM LED
        - Procool II
        - Pre- mounted I/O shield
        - SafeSlot
        AURA Sync
        - 2 x Standard RGB headers
        - Addressable Gen 2 RGB header
        Onboard red LED lighting accent

        BIOS:
        192(128+64)MB Flash ROM, UEFI AMI BIOS

        Manageability:
        WOL by PME, PXE

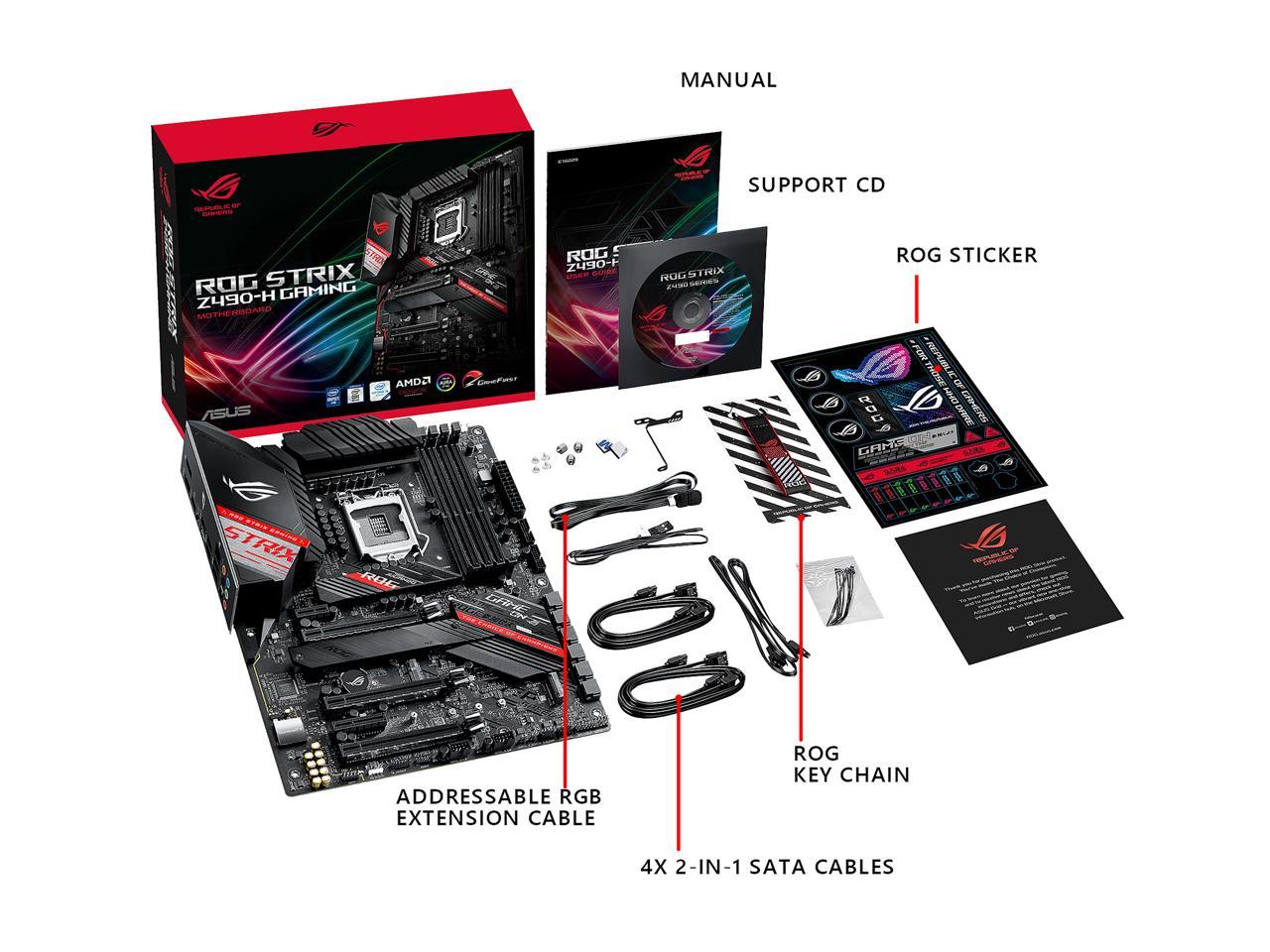

        Packaging
        Package Contents Accessories:
        User's manual
        1 x ASUS Fan Holder
        4 x SATA 6Gb/s cable(s)
        1 x Supporting DVD
        1 x ROG Strix stickers
        1 x Cable ties pack(s)
        1 x Extension Cable for RGB strips (80cm)
        1 x Extension cable for Addressable LED
        1 x Thermistor cable(s)
        1 x ROG Thank you card
        1 x 2-in-1 Rubber pad
        1 M.2 SSD screw package(s)
        1 M.2 Key E screw package(s)
        1 ROG key chain
