Asus Rog Strix Z390-F Gaming Lga 1151 (300 Series) Intel Z390 Hdmi Sata 6Gb/S Usb 3.1 Atx Intel Motherboard

Asus Rog Strix Z390-F Gaming Lga 1151 (300 Series) Intel Z390 Hdmi Sata 6Gb/S Usb 3.1 Atx Intel Motherboard

SKU:ROG Strix Z390-F Gaming

Regular price $499.99
Regular price Sale price $499.99
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Reviews, Que. & Ans.

        Description :

        • Intel Z390
        • Intel Socket 1151 9th/8th Gen Intel Core, Pentium Gold and Celeron Processors
        • DDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
        Model
        Brand ASUS
        Series ROG
        Model Strix Z390-F Gaming

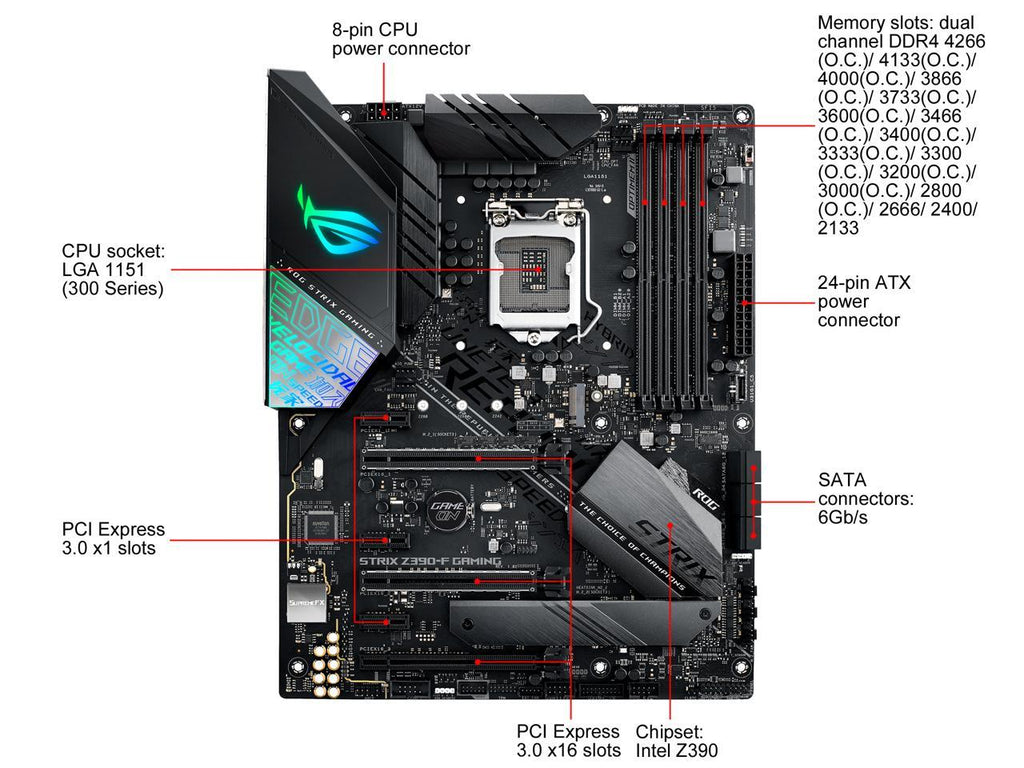

        Supported CPU
        CPU Socket Type  LGA 1151 (300 Series)
        CPU Type Intel Socket 1151 9th/8th Gen Intel Core, Pentium Gold and Celeron Processors
        * Refer to www.asus.com for CPU support list
        * Not backward compatible with older generation of LGA 1151 CPUs
        Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0
        * The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
        Chipsets
        Chipset  Intel Z390
        Onboard Video
        Onboard Video Chipset  Integrated Graphics Processor - Intel HD Graphics support
        Multi-VGA output support: HDMI/DisplayPort ports
        - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
        - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
        Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
        Memory
        Number of Memory Slots 4x288pin (DDR4)
        Memory Standard DDR4 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
        * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
        * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
        Maximum Memory Supported 64GB
        Channel Supported  Dual Channel
        Expansion Slots
        PCI Express 3.0 x16 2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
        1 x PCIe 3.0/2.0 x16 (max at x4 mode)
        PCI Express x1 3 x PCIe 3.0/2.0 x1
        Storage Devices
        SATA 6Gb/s  6 x SATA 6Gb/s
        M.2 1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*
        1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x4 mode)
        * When the M.2_1 Socket 3 is operating in SATA mode, SATA port 2 will be disable.
        Intel Optane Ready Yes
        SATA RAID 0/1/5/10
        Onboard Audio
        Audio Chipset  ROG SupremeFX High Definition Audio CODEC S1220A
        Audio Channels  8 Channels
        * Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.
        Onboard LAN
        LAN Chipset Intel I219-V
        Max LAN Speed 10/100/1000Mbps

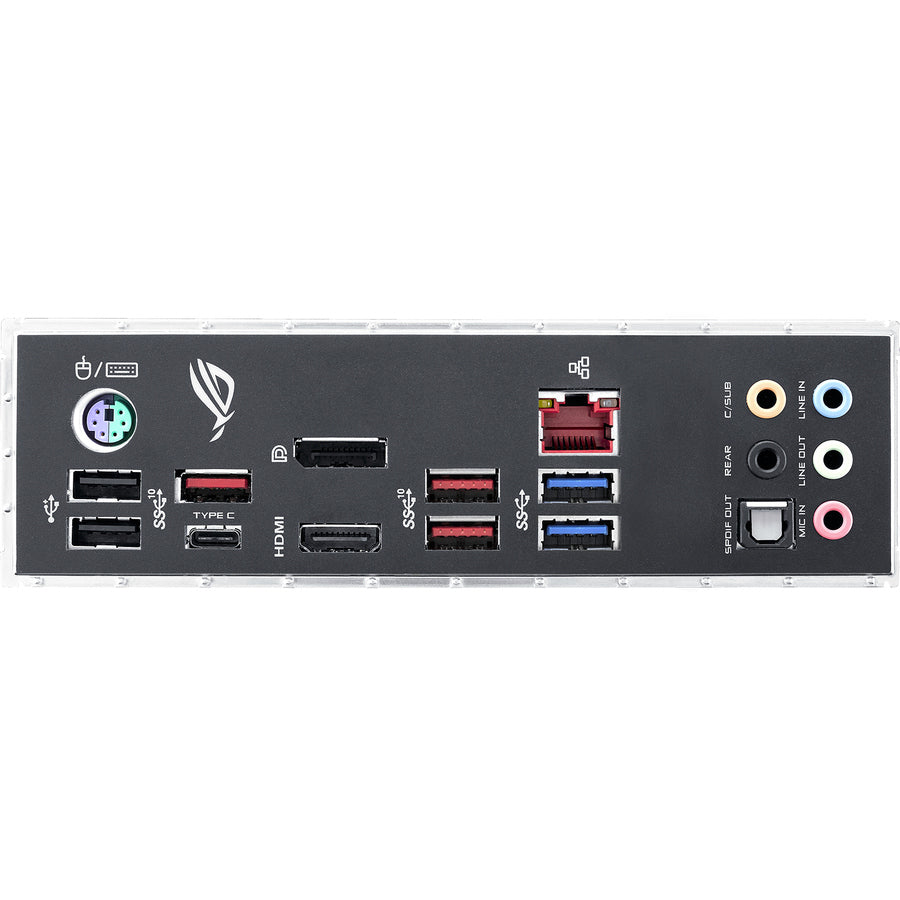

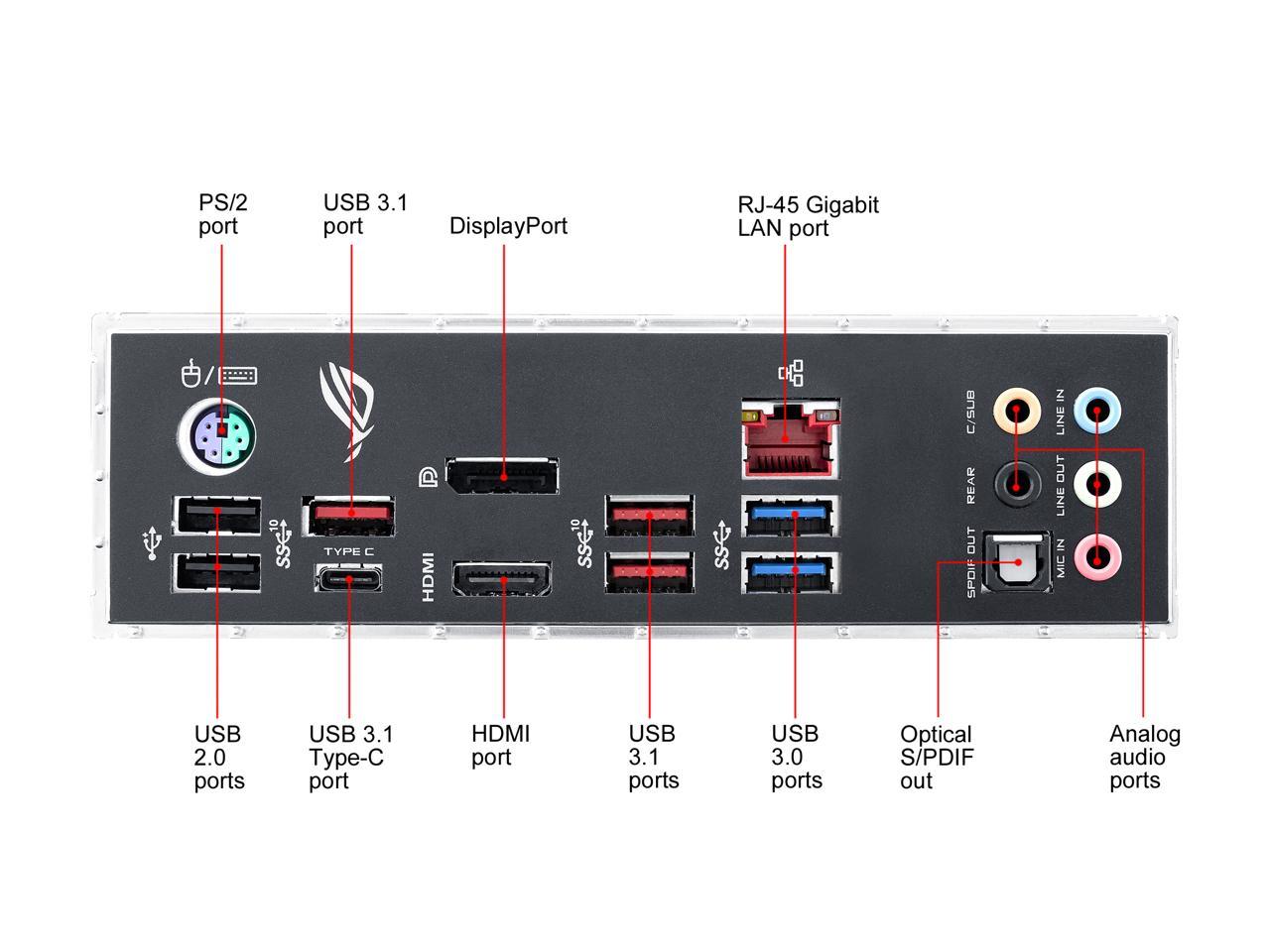

        Rear Panel Ports
        HDMI  1 x HDMI
        RJ45 1 x RJ45
        DisplayPort 1 x DisplayPort
        USB 3.1 3 x USB 3.1 Gen 2
        2 x USB 3.1 Gen 1
        USB 1.1/2.0 2 x USB 2.0
        USB Type-C 1 x USB 3.1 Gen 2
        S/PDIF Out  1 x Optical
        Audio Ports 5 Ports
        Internal I/O Connectors
        Onboard USB 1 x USB 3.1 Gen 1 front panel Type-C connector
        1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
        2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
        Other Connectors 1 x Aura Addressable Strip Header(s)
        1 x AAFP connector
        2 x Aura RGB Strip Header(s)
        1 x M.2_FAN connector
        1 x CPU Fan connector(s)
        1 x CPU OPT Fan connector(s)
        2 x Chassis Fan connector(s)
        1 x W_PUMP+ connector
        1 x System panel(s) (Chassis intrusion header is inbuilt)
        1 x MemOK! II switch(es)
        1 x Thermal sensor connector(s)
        1 x CPU OV
        1 x Clear CMOS jumper(s)
        1 x Node Connector(s)
        1 x 5-pin EXT_FAN (Extension Fan) connector
        1 x 14-1-pin TPM connector
        1 x COM port header
        1 x AIO PUMP Header
        Physical Spec
        Form Factor ATX
        LED Lighting RGB
        Dimensions (W x L) 304.80 mm x 243.84 mm
        Power Pin 1 x 24-pin EATX Power connector(s)
        1 x 8-pin ATX 12V Power connector(s)
        Features
        Features Multi-GPU Support:
        Supports NVIDIA 2-Way SLI Technology
        Supports AMD 3-Way CrossFireX Technology

        ROG Exclusive Features:
        ROG Exclusive Software
        - RAMCache III
        - CPU-Z
        - GameFirst V
        - Sonic Studio III + Sonic Studio Link
        - Sonic Radar III

        Special Features:
        OC Design - ASUS PRO Clock Technology
        - Full BCLK range for extreme overclocking performance
        5-Way Optimization by Dual Intelligent Processors 5
        - 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App
        AI Overclocking
        ASUS Optimem II:
        - Optimem (Improved DDR4 stability)
        - Improved DDR4 Stability
        AURA:
        - Aura Lighting Control
        - Aura RGB Strip Headers
        - Aura Lighting Effects Synchronization with compatible ASUS ROG devices
        - Aura Addressable Strip Header(s)
        ASUS Exclusive Features:
        - MemOK! II
        - AI Suite 3
        - Ai Charger
        - Armoury Crate
        - Pre-mounted I/O Shield
        - ASUS NODE: hardware control interface
        ASUS EZ DIY:
        - ASUS CrashFree BIOS 3
        - ASUS EZ Flash 3
        ASUS Q-Design:
        - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
        - ASUS Q-Slot
        - ASUS Q-DIMM
        Gaming Aesthetics:
        - 3D printing friendly
        - AURA-RGB Lighting
        Digi+VRM
        M.2 Onboard (The latest transfer technologies with up to 32Gb/s data transfer speeds)
        DIY Friendly Design
        - Procool
        - SafeSlot
        - Digi+ VRM
        - DRAM Overcurrent Protection
        - Highly Durable components
        - ESD Guards

        BIOS:
        1 x 128MB Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1

        Manageability:
        WOL, PXE

        Operating System:
        Windows 10 64-bit

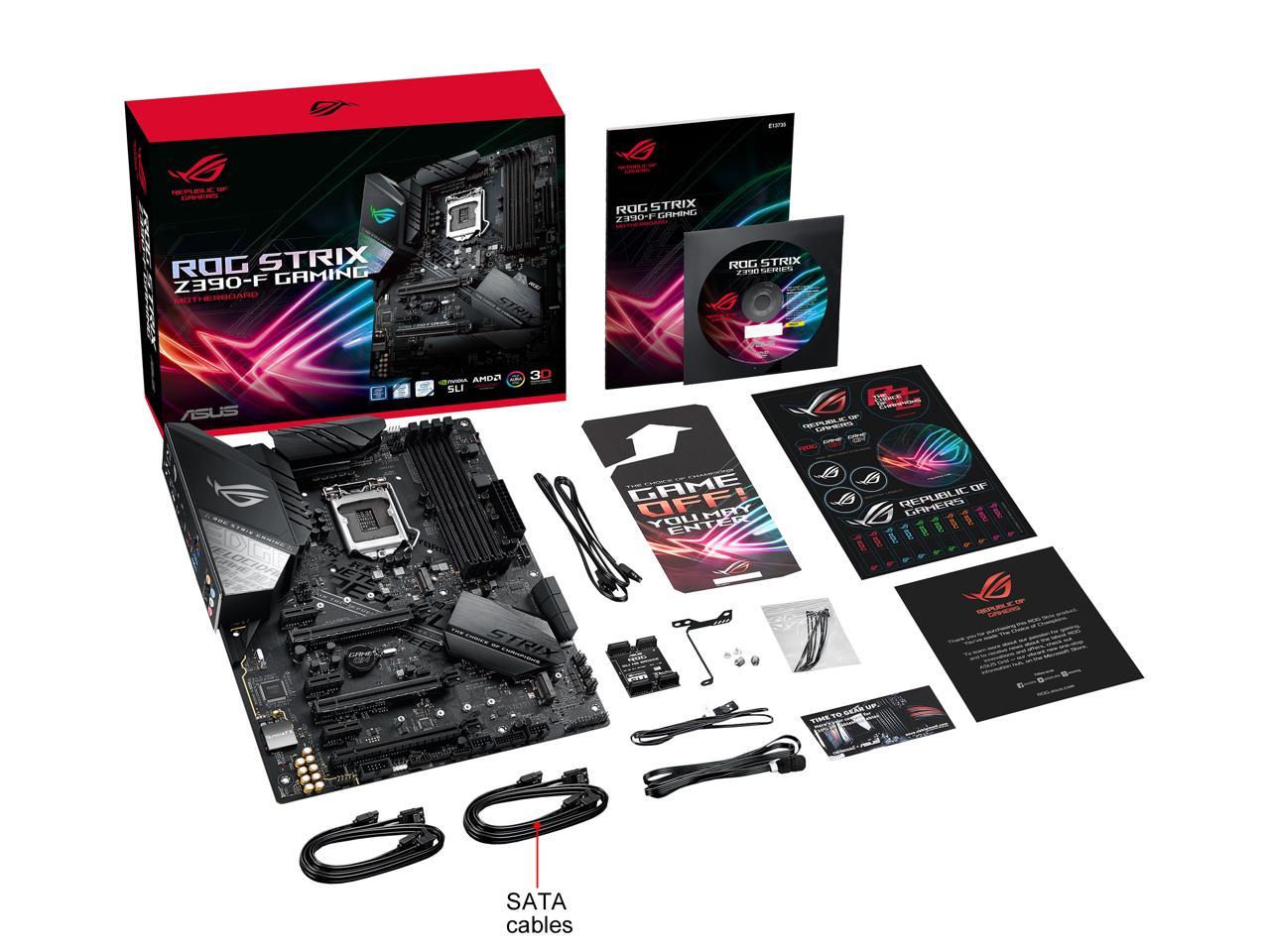

        Packaging
        Package Contents Accessories:
        User's manual
        4 x SATA 6Gb/s cable(s)
        1 x M.2 Screw Package
        1 x Supporting DVD
        1 x MOS fan bracket kit
        1 x CABLE TIE BLACK
        1 x SLI HB BRIDGE (2-WAY-M)
        1 x ROG Strix stickers
        1 x ROG Door Hanger(s)
        1 x Extension Cable for RGB strips (80cm)
        1 x Extension cable for Addressable LED
        1 x Thermistor cable(s)
