Asus Rog Maximus Z690 Extreme Lga1700/ Intel Z690/ Ddr5/ Wifi/ Sata3&Usb3.2/ M.2/ E-Atx Motherboard

Asus Rog Maximus Z690 Extreme Lga1700/ Intel Z690/ Ddr5/ Wifi/ Sata3&Usb3.2/ M.2/ E-Atx Motherboard

SKU:ROG MAXIMUS Z690 EXTREME

$1,029.24
$1,029.24
Sale Sold out
Shipping calculated at checkout.
          View full details
          Description
          Specifications
          Reviews, Que. & Ans.

          Description :

          • Intel LGA 1700 socket: Ready for 12th Gen Intel Core processors and Windows 11, support PCIe 5.0 and DDR5
          • Intelligent Control: ASUS-exclusive tools including AI Overclocking, AI Cooling, AI Networking and Two-Way AI Noise-Cancelation for easy configuration

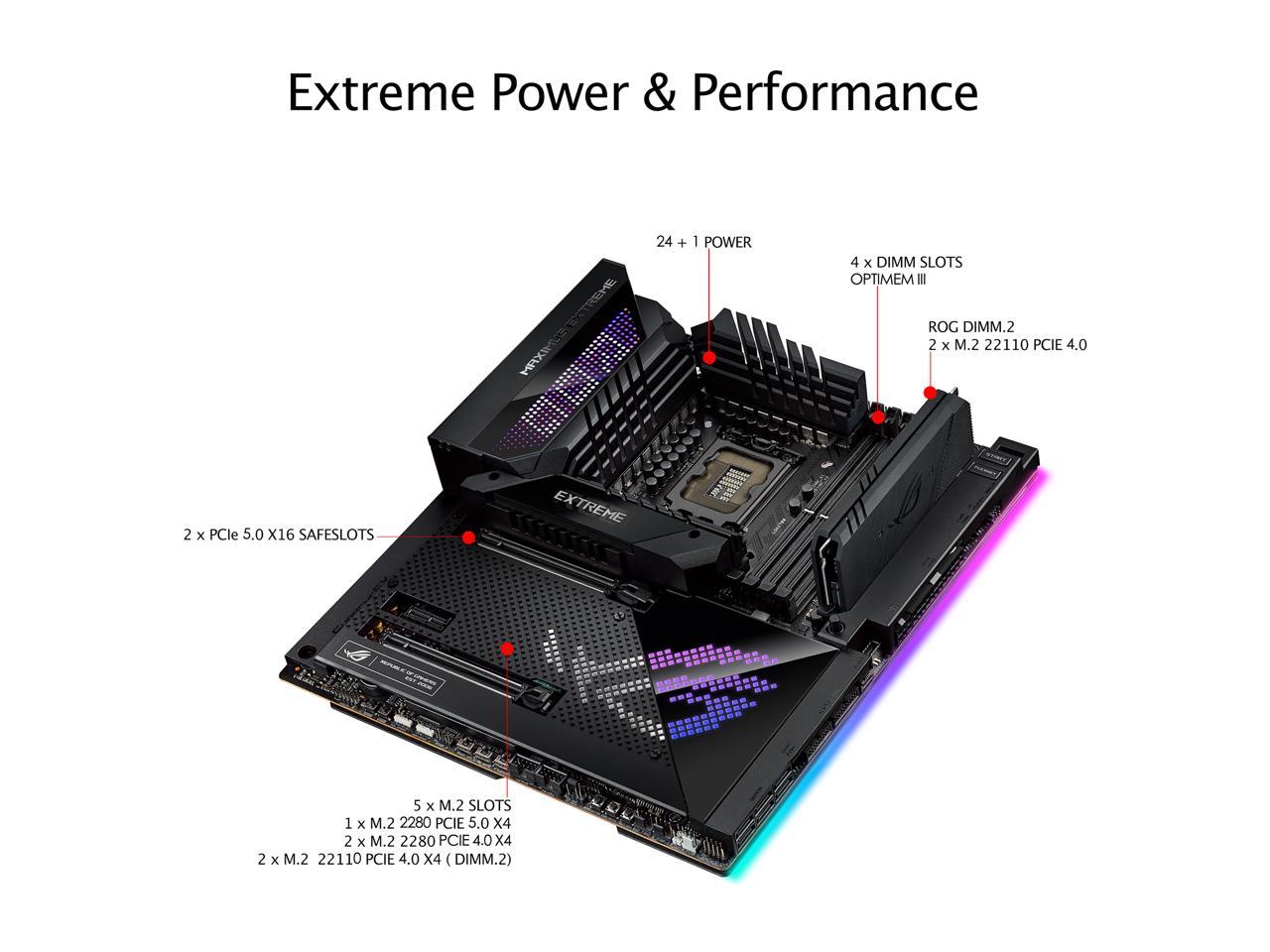

          • Robust Power Solution: 24+1 teamed power stages rated for 105 A, ProCool II power connectors, MicroFine alloy chokes and premium metallic capacitors

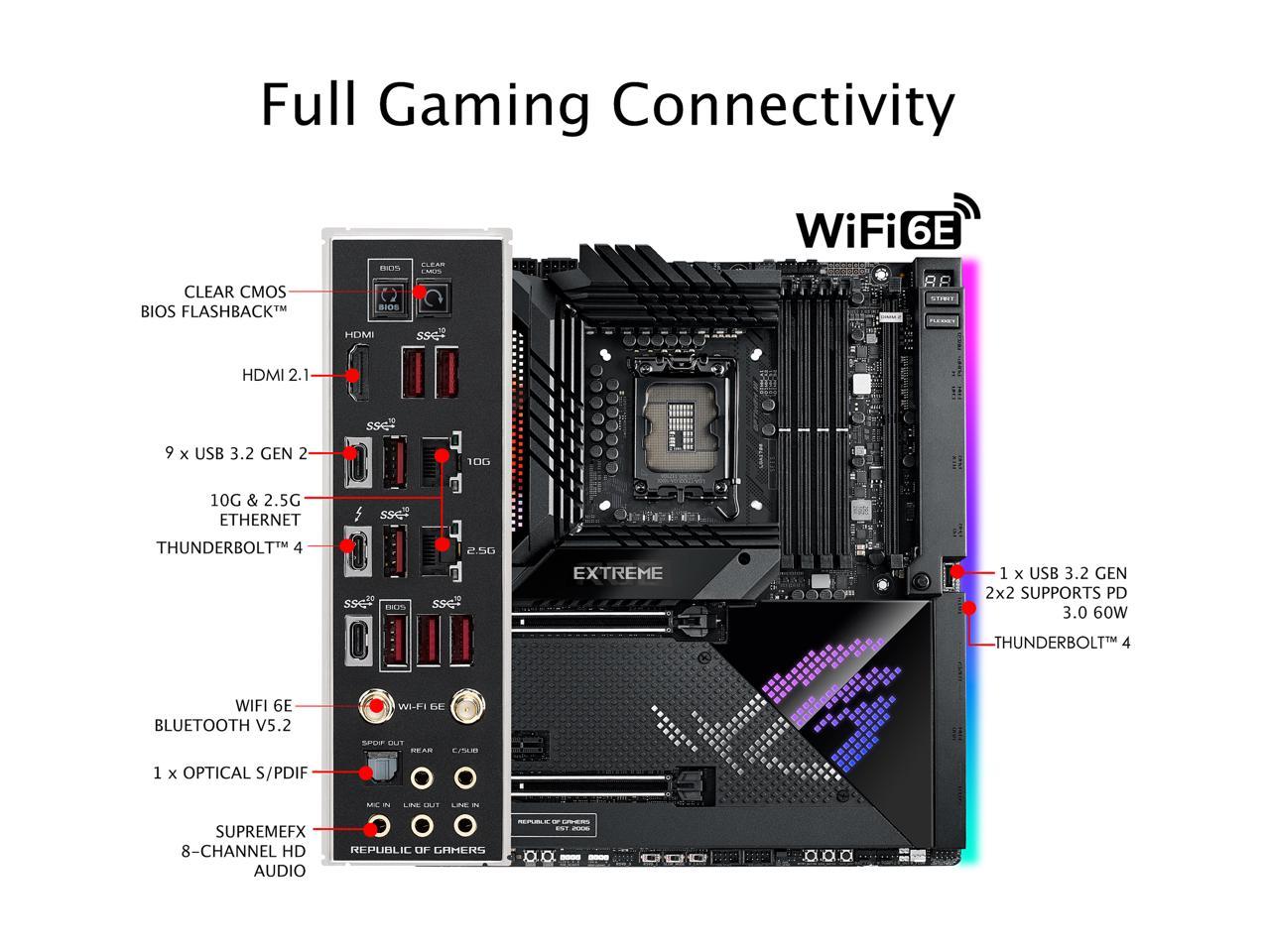

          • High Performance Networking: Onboard Wi-Fi 6E, Marvell AQtion 10Gb, Intel 2.5Gb Ethernet, and ASUS LANGuard
          • Fastest Gaming Connectivity: PCIe 5.0, 5x M.2 slots, 1x PCIe 5.0 M.2, USB 3.2 Gen 2x2 front-panel connector with Quick Charge 4+ Support, 2x Thunderbolt 4 ports , rear triple USB Type-C ports
          • All ASUS Z690 Motherboards designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets

          Don't forget your OS, we have Windows 11 OEM, 10 OEM, Download, and USB versions available.

          LEARN MORE ABOUT THE ASUS MAXIMUS Z690 EXTREME

          Best Seller Ranking #59 in
          Model
          Brand ASUS
          Series ROG
          Model MAXIMUS Z690 EXTREME
          Part Number 90MB18H0-M0AAY0
          Supported CPU
          CPU Socket Type  LGA 1700

          * Designed with dual mounting holes compatible with both Intel LGA1700 and LGA1200 cooling brackets.
          CPU Type Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors
          Chipsets
          Chipset  Intel Z690
          Onboard Video
          Onboard Video Chipset  Supported only by CPU with integrated graphic
          Memory
          Memory Standard DDR5
          Expansion Slots
          PCI Express 5.0 x16 2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)**

          * Please check PCIe bifurcation table in support site.
          ** M.2_1 shares bandwidth with PCIEX16(G5)_2. When M.2_1 is enabled, PCIEX16(G5)_2 will be disabled.
          PCI Express x1 1 x PCIe 3.0 x1 slot
          Storage Devices
          SATA 6Gb/s  6 x SATA 6Gb/s ports****

          ****RAID configuration and boot drives are not supported on the SATA6G_E1-2 ports.
          Onboard Audio
          Audio Chipset  ROG SupremeFX ALC4082
          Onboard LAN
          LAN Chipset Marvell AQtion 10Gb
          Second LAN Chipset Intel 2.5Gb Ethernet
          Max LAN Speed 10Gbps + 10/100/1000/2500Mbps
          Wireless LAN Wi-Fi 6E
          Physical Spec
          Form Factor Extended ATX
          LED Lighting RGB
          Windows Compatibility
          Windows 11 Ready

          Specifications :

          General Information

          UPC 195553462747
