ASUS

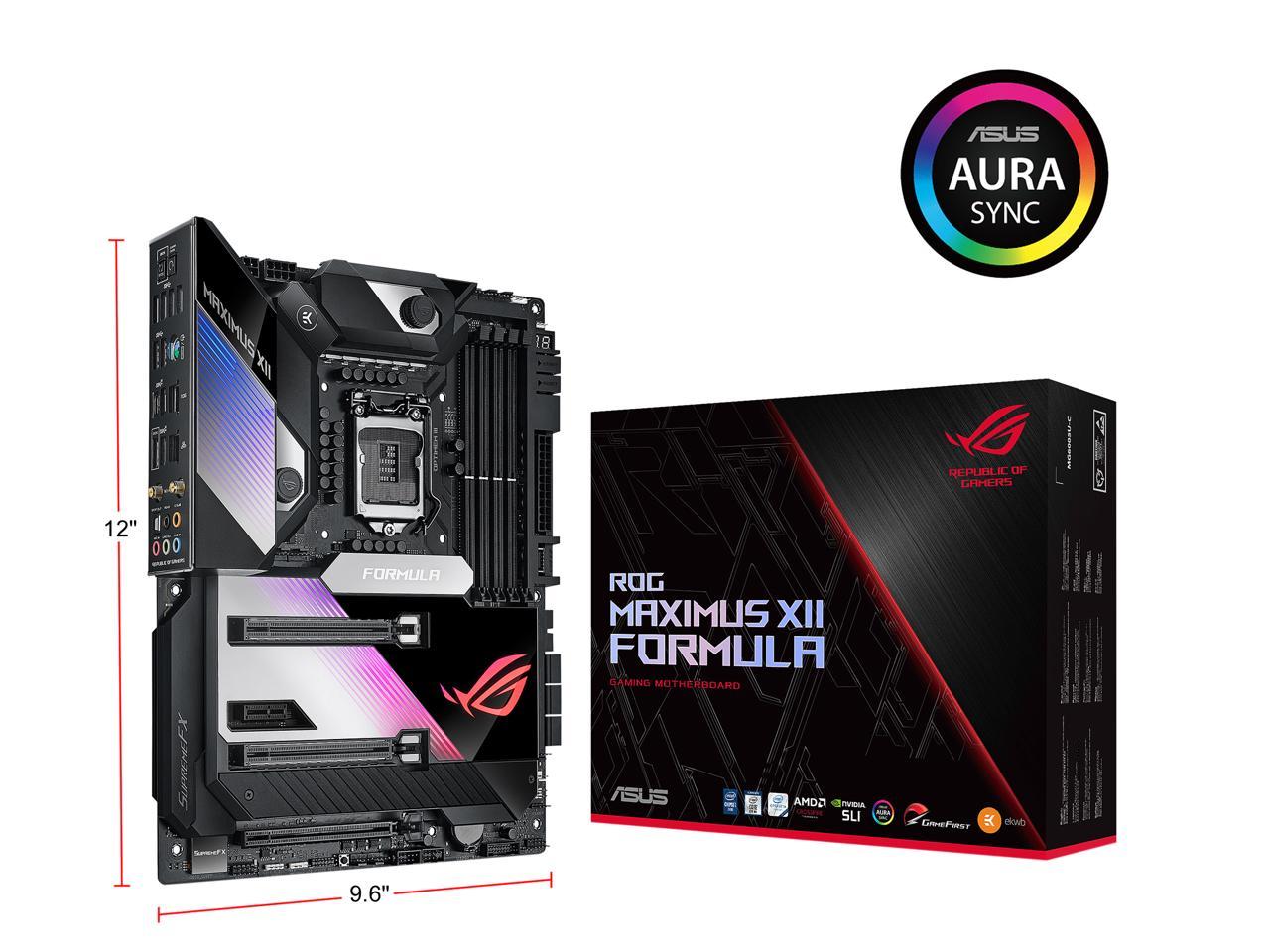

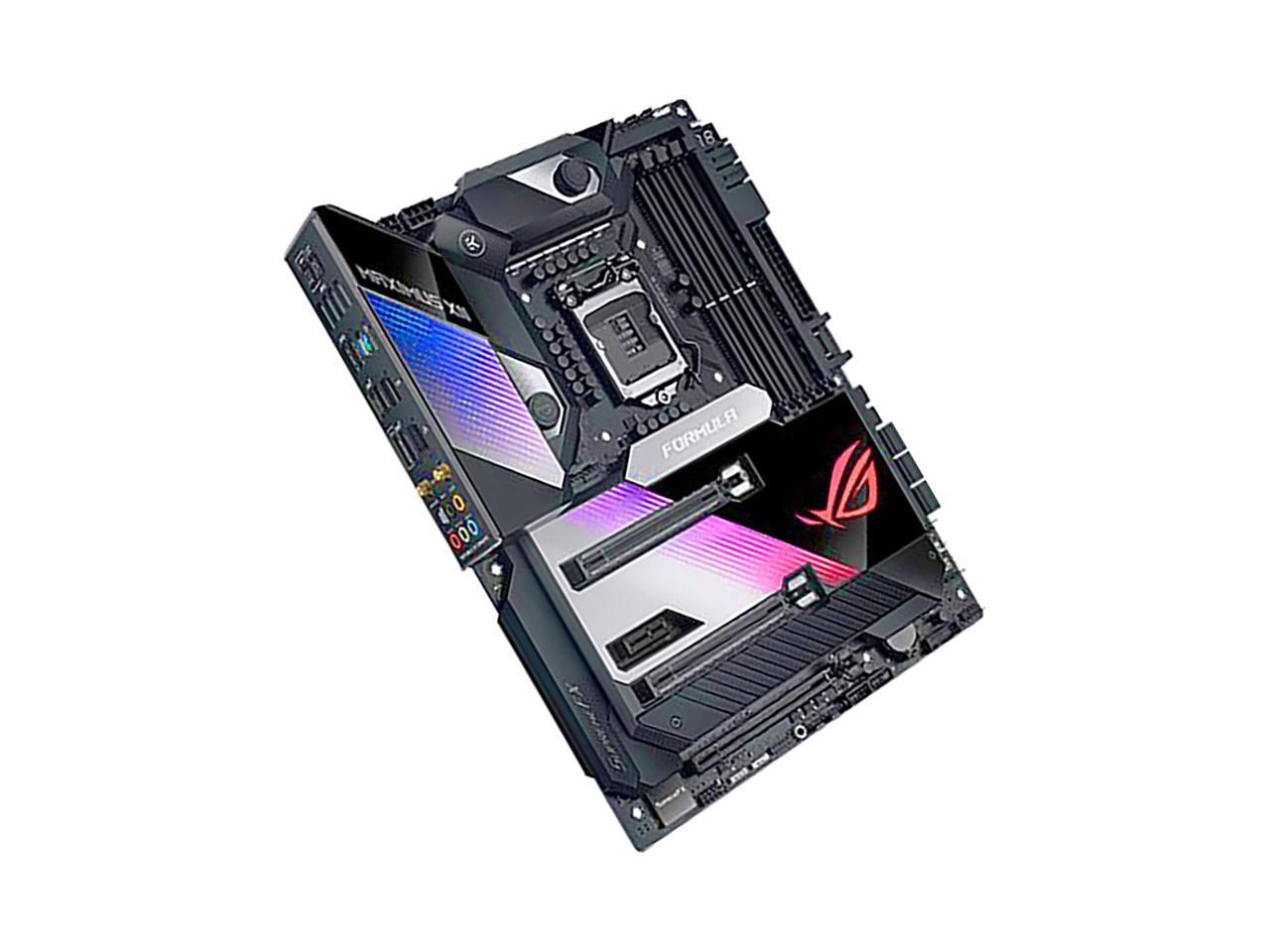

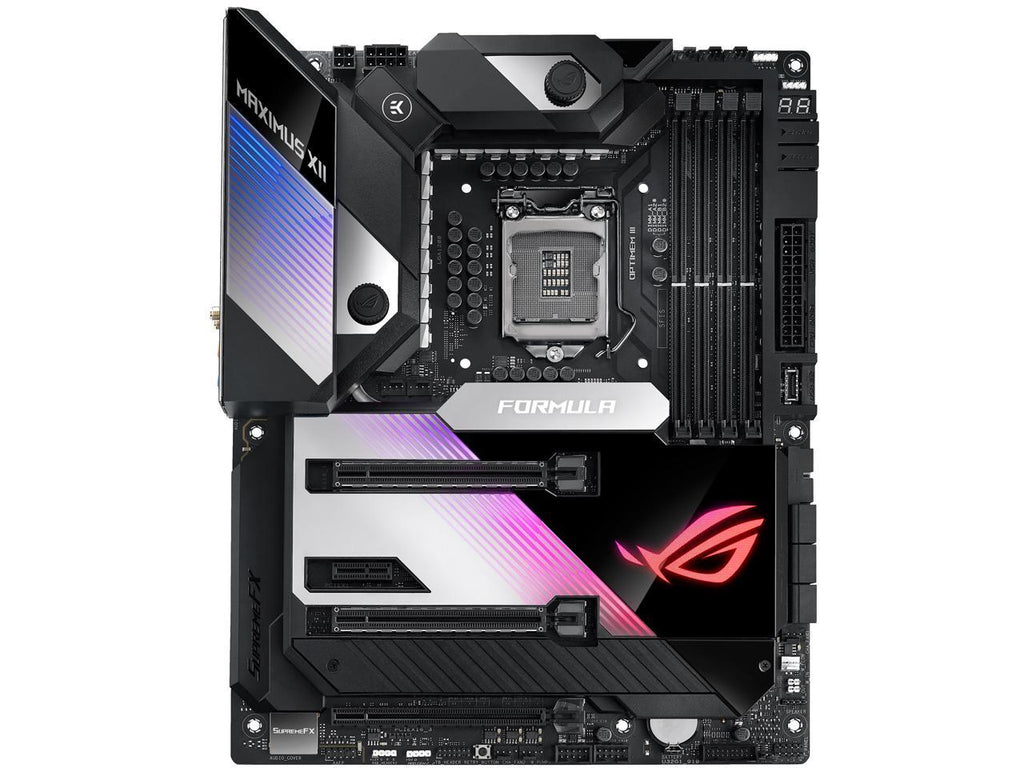

Asus Rog Maximus Xii Formula (Wifi 6) Lga 1200 Intel Z490 Sata 6Gb/S Atx Intel Motherboard (16 Power

Asus Rog Maximus Xii Formula (Wifi 6) Lga 1200 Intel Z490 Sata 6Gb/S Atx Intel Motherboard (16 Power

SKU:MAXIMUS XII FORMULA

Regular price $484.99
Regular price Sale price $484.99
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Reviews, Que. & Ans.

        Description :

        • Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors
        • Extreme Power Solution: features 16 infineon power stages, each rated to handle 70 amps, high-quality alloy chokes and durable capacitors to provide reliable power even when push the CPU performance to the limit
        • Hybrid Cooling System: CrossChill EK III VRM block and Extra-large heatsinks for VRM, chipset and M.2 slots, solid steel backplate lets you cool with air and water
        • Fastest Gaming Connectivity: Intel WiFi 6 AX201 (802.11 ax), Dual Ethernet with Marvell AQtion 10Gb and Intel 2.5Gb Ethernet with LANGaurd technology, Triple M.2 slots, USB 3.2 Gen 2 front panel connectors
        • Unmatched Personalization: 2" Livedash OLED, ASUS-exclusive Aura Sync RGB lighting, including 2 x 4-pin RGB header and 2 x Gen 2 addressable RGB headers
        Model
        Brand ASUS
        Series ROG
        Model MAXIMUS XII FORMULA
        Supported CPU
        CPU Socket Type  LGA 1200
        CPU Type Intel Socket LGA 1200 for 10th Gen Intel Core, Pentium Gold and Celeron processors*
        * Refer to www.asus.com for CPU support list
        Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
        ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
        Chipsets
        Chipset  Intel Z490
        Memory

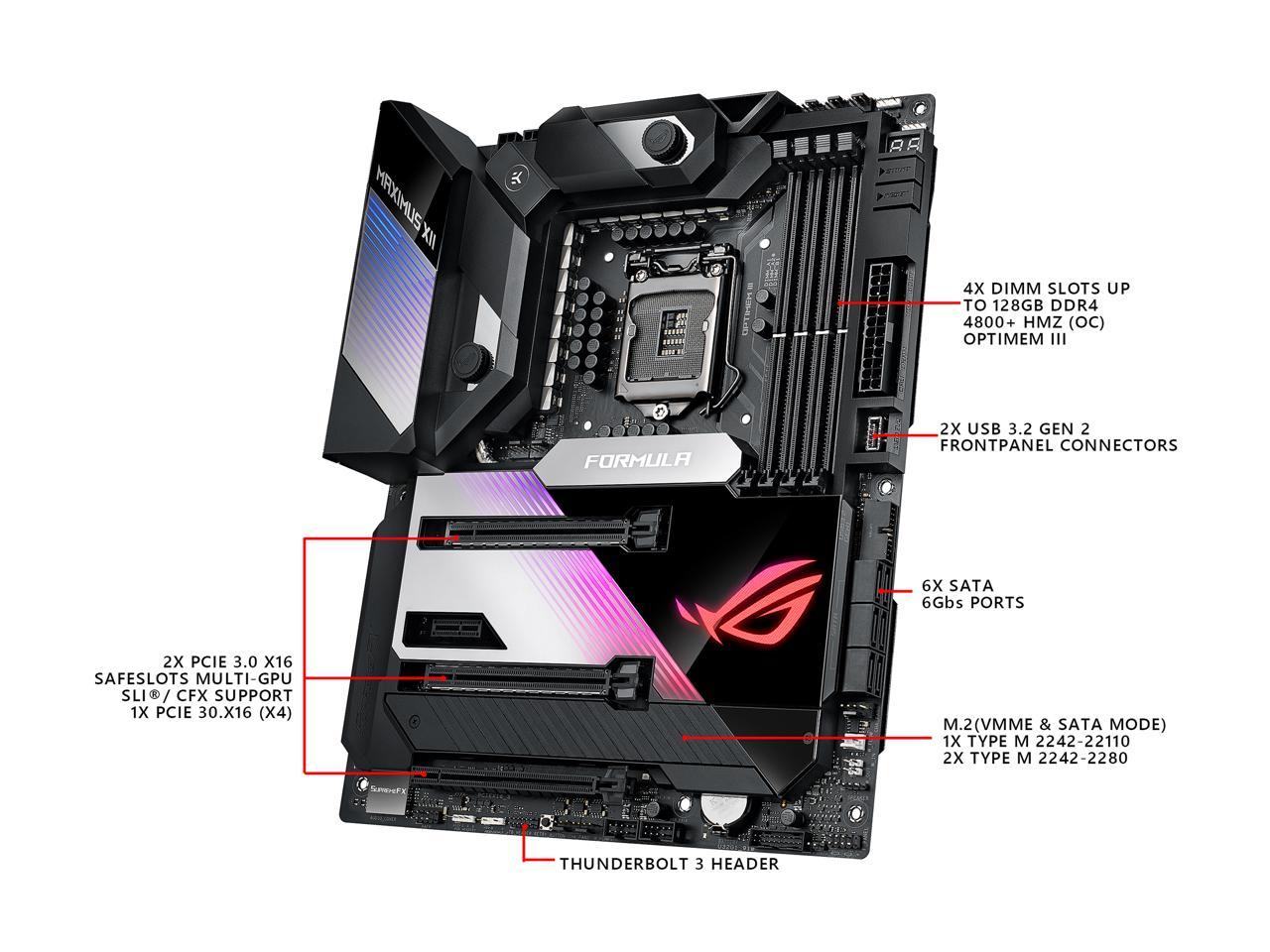

        Number of Memory Slots 4x288pin (DDR4)
        Memory Standard DDR4 4700+(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory*
        * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively. Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
        Maximum Memory Supported 128GB
        Channel Supported  Dual Channel
        Expansion Slots
        PCI Express 3.0 x16 Intel 10th Gen Processors
        2 x PCIe 3.0 x16 slots (support x16 or x8/x8 modes)
        Intel Z490 Chipset
        1 x PCIe 3.0 x16 slot (supports x4 mode)*
        * The PCIEX16_3 shares bandwidth wih M.2_3. When M.2_3 runs x4 mode, PCIEX16_3 will be disabled. When M.2_3 and PCIEX16_3 are both occupied, M.2_3 runs x2 mode, PCIEX16_3 runs X1 mode.
        PCI Express x1 1 x PCIe 3.0 x1 slot**
        ** The PCIEX1 shares bandwidth with M.2_1. When M.2_1 runs x4 mode, PCIEX1 will be disabled.
        Storage Devices
        SATA 6Gb/s  6 x SATA 6Gb/s
        ** M.2_2 shares bandwidth with SATA6G_56. When M.2_2 runs x4 mode, SATA_56 will be disabled. M.2_2 runs x2 mode by default.
        M.2 Intel Z490 Chipset
        M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)*
        M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)**
        M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)***
        * M.2_1 shares bandwidth with PCIEX1. When PCIEX1 is occuppied, M.2_1 runs x2 or SATA mode (when M.2_1 runs SATA mode, SATA6G_2 will be disabled).
        ** M.2_2 shares bandwidth with SATA6G_56. When M.2_2 runs x4 mode, SATA_56 will be disabled. M.2_2 runs x2 mode by default.
        *** M.2_3 shares bandwidth with PCIEX16_3. When PCIEX16_3 runs x4 mode, M.2_3 will be disabled. When M.2_3 and PCIEX16_3 are both occoppied, M.2_3 runs x2 mode, PCIEX16_3 runs X1 mode.
        Intel Optane Ready Yes
        SATA RAID 0/1/5/10
        Onboard Audio
        Audio Chipset  ROG SupremeFX High Definition Audio CODEC S1220
        Audio Channels  8 Channels
        * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
        Onboard LAN
        LAN Chipset AQUANTIA AQC107
        Second LAN Chipset Intel I225-V
        Max LAN Speed 10Gbps + 10/100/1000/2500Mbps
        Wireless LAN Intel Wi-Fi 6 AX201
        2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
        Supports up to 2.4Gbps max data rate
        Support 2.4/5GHz Dual-Band
        Supports channel bandwidth: HT20/HT40/HT80/HT160
        Supports CNVI interface
        Bluetooth Bluetooth v5.1*
        * BT 5.1 function will be ready in Windows 10 build 19041 later.

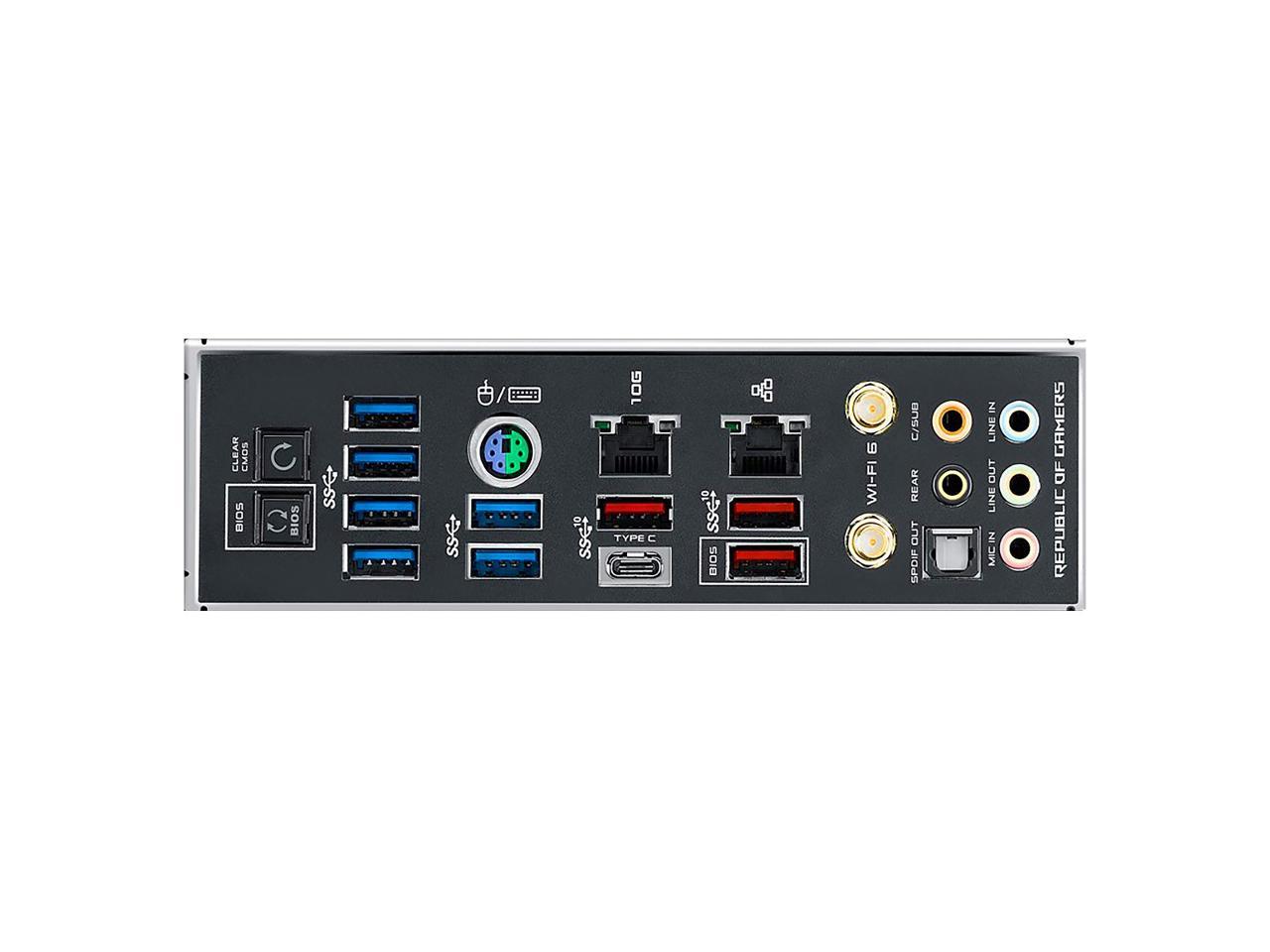

        Rear Panel Ports
        Back I/O Ports 1 x ASUS Wi-Fi Module
        1 x BIOS FlashBack button
        1 x Clear CMOS button
        5 x Gold-plated audio jacks
        1 x Intel I225-V 2.5Gb Ethernet
        1 x Marvell AQtion AQC107 10Gb Ethernet
        1 x Optical S/PDIF out port
        1 x PS/2 keyboard/mouse combo port
        6 x USB 3.2 Gen 1 port(s) (6 x Type-A)
        4 x USB 3.2 Gen 2 port(s) (3 x Type-A + 1 x USB Type-C)
        Internal I/O Connectors
        Onboard USB 1 x USB 3.2 Gen 2 front panel connector (suppports USB Type-C)
        2 x USB 3.2 Gen 1 headers support additional 4 USB 3.2 Gen 1 ports
        2 x USB 2.0 headers support additional 4 USB 2.0 ports

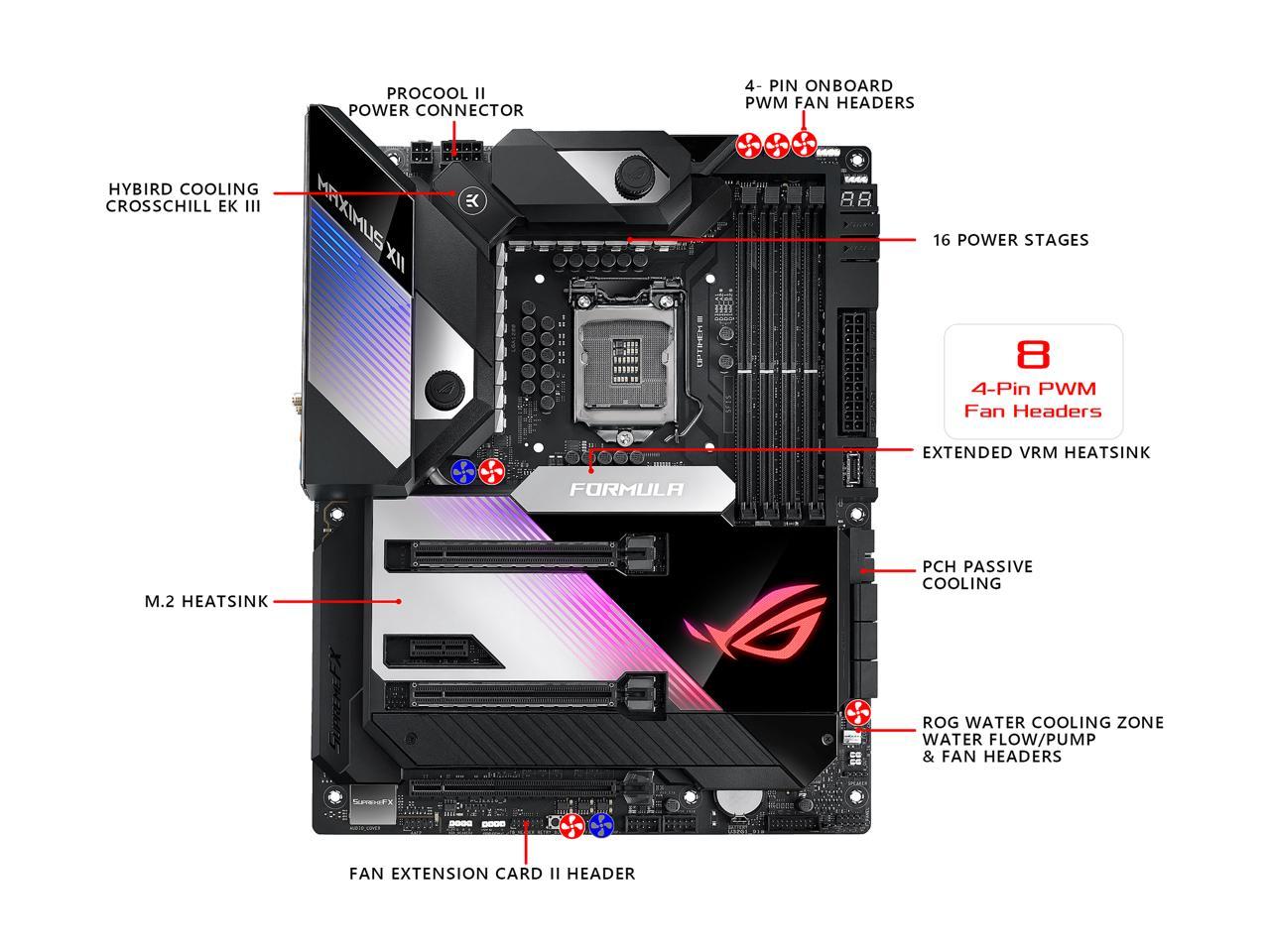

        Other Connectors Fan and cooling-related
        1 x 4-Pin CPU fan header
        1 x 4-Pin CPU OPT fan header
        1 x 4-Pin AIO Pump header
        3 x 4-Pin Chassis fan headers
        1 x 4-Pin H_AMP fan header
        1 x W_PUMP+ header
        1 x 2-pin Water In header
        1 x 2-pin Water Out header
        1 x 3-pin Water Flow header
        Miscellaneous

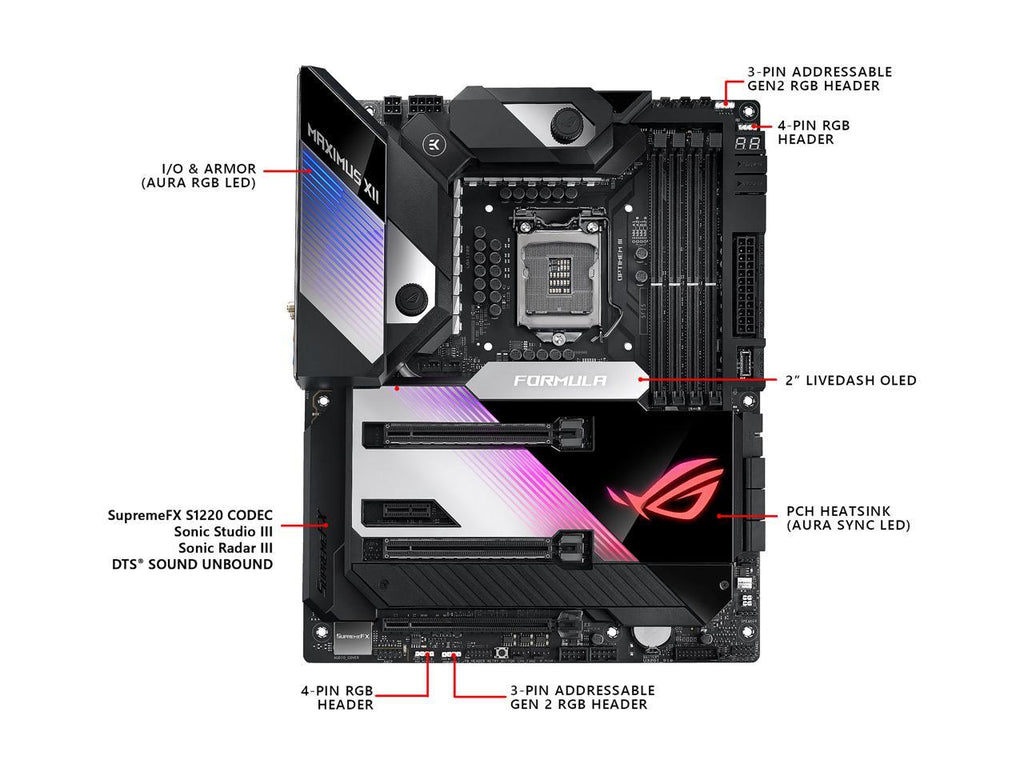

        2 x AURA addressable Gen 2 headers
        2 x AURA RGB headers
        1 x FlexKey button
        1 x Front panel audio header (AAFP)
        1 x ReTry button
        1 x Speaker header
        1 x Start button
        1 x 10-1 pin System Panel header
        1 x Thermal sensor header
        1 x Thunderbolt header
        Physical Spec
        Form Factor ATX
        LED Lighting RGB
        Power Pin 1 x 24-pin Main Power connector
        1 x 8-pin +12V Power connector
        1 x 4-pin +12V Power connector
        Windows Compatibility
        Windows 11 Supported
        Features
        Features Multi-GPU Support:
        Supports NVIDIA 2-Way SLI Technology
        Supports AMD 3-Way CrossFireX Technology

        Special Features:
        ROG Extreme OC kit
        - FlexKey button
        - ReTry button
        - Start button
        Extreme Engine Digi+
        - 10K Black Metallic Capacitors
        - 70A Power Stage
        - MicroFine Alloy Choke
        ASUS Q-Design
        - ASUS Q-Code
        - ASUS Q-Connector
        - ASUS Q-DIMM
        - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
        - ASUS Q-Slot
        ASUS Thermal Solution
        - Aluminum M.2 heatsink
        - CrossChill EK III
        - Steel backplate
        ASUS EZ DIY
        - BIOS Flashback button
        - Clear CMOS button
        - Procool II
        - Pre- mounted I/O shield
        - SafeSlot
        AURA Sync
        - ROG Aura sync Armor
        - Standard RGB header(s)
        - Addressable Gen 2 RGB header(s)
        LiveDash OLED 2"

        Software Features:
        ROG Exclusive Software
        - Mem Tweakit
        - RAMCache III
        - ROG CPU-Z
        - GameFirst VI
        - Sonic Studio III + Sonic Studio Virtual Mixer
        - Sonic Radar III
        - DTS Sound Unbound
        - Overwolf
        - BullGuard Internet Security (1-year full version)
        ASUS Exclusive Software Features
        Armoury Crate
        - Aura Creator
        - Aura Sync
        - OLED Display
        AI Suite 3:
        -5-Way Optimization with AI Overclocking
        TPU
        EPU
        DIGI+ Power Control
        Fan Xpert 4
        Turbo APP
        -EZ Update
        AI Charger
        WinRAR
        UEFI BIOS
        AI Overclocking Guide
        ASUS EZ DIY
        - ASUS CrashFree BIOS 3
        - ASUS EZ Flash 3
        - ASUS UEFI BIOS EZ Mode
        FlexKey

        BIOS:
        256MB Flash ROM, UEFI AMI BIOS

        Manageability:
        WOL by PME, PXE

        Operating System:
        Windows 10 - 64-bit
        Packaging
        Package Contents Accessories:
        Cables
        1 x Addressable RGB extension cable
        1 x RGB extension cable
        2 x ROG weave SATA 6G cables
        4 x SATA 6Gb/s cables
        Miscellaneous
        2 x M.2 Rubber package(s)
        2 x M.2 SSD screw package(s)
        1 x Q-connector
        1 x ROG logo plate sticker
        1 x ROG stickers
        1 x ROG thank you card
        1 x ASUS 2 x 2 dual band Wi-Fi moving antennas
        Installation Media
        1 x Support DVD
        Documentation
        1 x User manual
