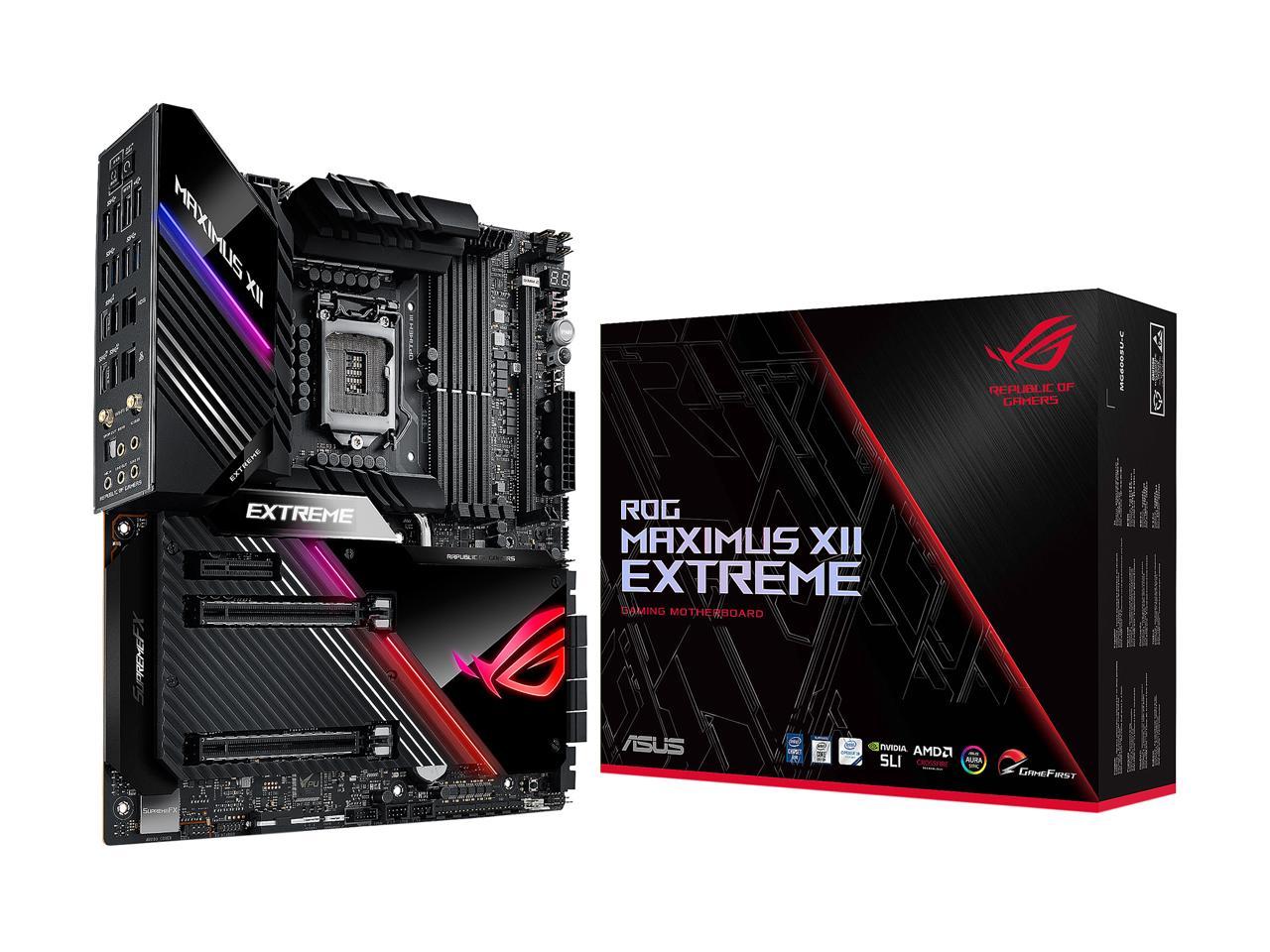

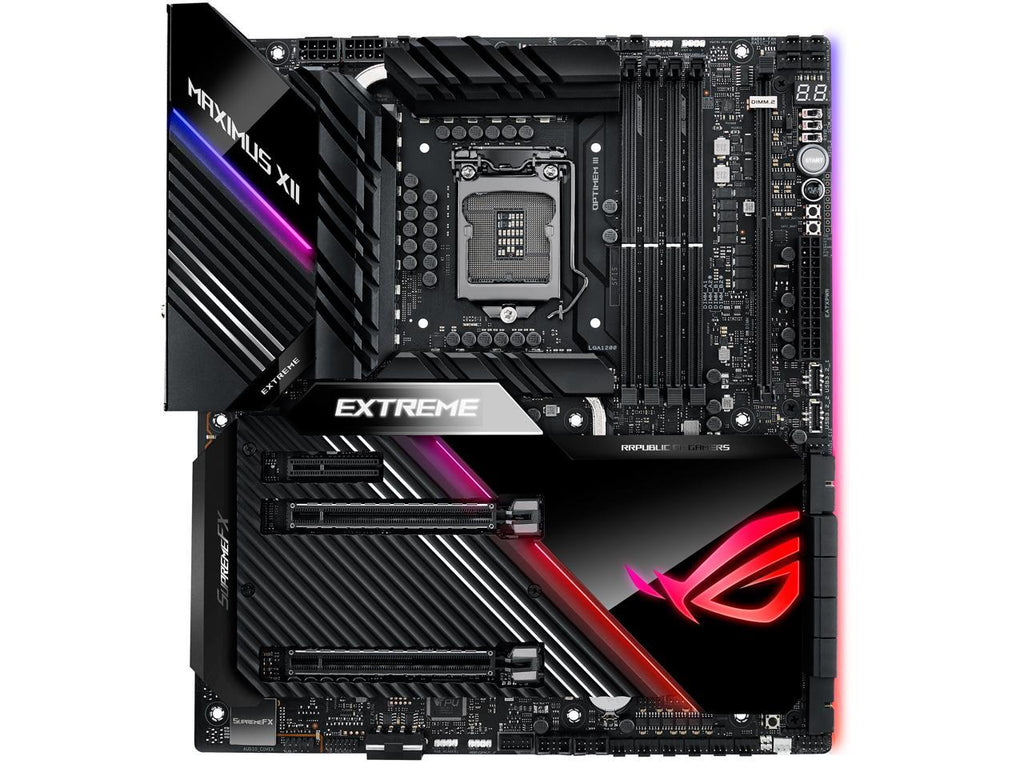

Asus Rog Maximus Xii Extreme (Wifi 6) Lga 1200 Intel Z490 Sata 6Gb/S Extended Atx Intel

Asus Rog Maximus Xii Extreme (Wifi 6) Lga 1200 Intel Z490 Sata 6Gb/S Extended Atx Intel


Regular price $1,454.99
Regular price Sale price $1,454.99
Sale Sold out
Shipping calculated at checkout.
        View full details
        Reviews, Que. & Ans.

        Description :

        • Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors
        • Extreme Power Solution: features 16 infineon TDA21490 power stages, each rated to handle 90 amps, high-quality alloy chokes and durable capacitors
        • Superb Thermal Design: Extra-large heatsinks for VRM, chipset and M.2 slots, solid steel backplate, multiple fan headers and a bundled fan extension card, features AI cooling to balance thermals and acoustics by reducing fan speeds and maintaining a 5 Celsius delta
        • Fastest Gaming Connectivity: Intel WiFi 6 AX201 (802.11 ax), Dual Ethernet with Marvell AQtion 10Gb and Intel 2.5Gb Ethernet with LANGaurd technology, Quad M.2 slots with Dimm.2, 2 x USB 3.2 Gen 2 front panel connectors
        • Unmatched Personalization: 2" Livedash OLED, ASUS-exclusive Aura Sync RGB lighting, including RGB headers and Gen 2 addressable headers
        Brand ASUS
        Series ROG
        Supported CPU
        CPU Socket Type  LGA 1200
        CPU Type Intel Socket LGA1200 for 10th Gen Intel Core, Pentium Gold and Celeron processors*
        * Refer to for CPU support list.
        Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
        ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
        Chipset  Intel Z490
        Number of Memory Slots 4x288pin (DDR4)
        Memory Standard DDR4 4800(O.C.)/ 4700(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory *
        * 10th Gen Intel Core i9/i7 CPUs support 2933/ 2800/ 2666/ 2400/ 2133 natively, Refer to for the Memory QVL (Qualified Vendors Lists).
        Maximum Memory Supported 128GB
        Channel Supported  Dual Channel
        Expansion Slots
        PCI Express 3.0 x16 2 x PCIe 3.0 x16 slots (support x16 or x8/x8 modes)
        PCI Express x4 1 x PCIe 3.0 x4 slot*
        * PCIEx4 slot shares bandwidth with SATA6G_56 and PCIEx4 slot is default set at x2 mode.
        Storage Devices
        SATA 6Gb/s  8 x SATA 6Gb/s
        M.2 Intel 10th Gen Processors
        DIMM.2_1 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)*
        DIMM.2_2 slot (Key M) via ROG DIMM.2, type 2242/2260/2280/22110 (supports PCIe 3.0 x4 mode)*
        Intel Z490 Chipset
        M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)**
        M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 mode)
        * The DIMM.2 Slots are disabled by default. Please adjust BIOS settings to enable DIMM.2 Slots.
        ** When M.2_1 is operating in SATA mode, SATA6G_2 will be disabled.
        Intel Optane Ready Yes
        SATA RAID 0/1/5/10
        Onboard Audio
        Audio Chipset  ROG SupremeFX High Definition Audio CODEC S1220
        Audio Channels  8 Channels
        * Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
        Onboard LAN
        LAN Chipset AQUANTIA AQC107
        Second LAN Chipset Intel I225-V
        Max LAN Speed 10Gbps + 10/100/1000/2500Mbps
        Wireless LAN Intel Wi-Fi 6 AX201
        2x2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) support 1024QAM/OFDMA/MU-MIMO
        Supports up to 2.4Gbps max data rate
        Support 2.4/5GHz Dual-Band
        Supports channel bandwidth: HT20/HT40/HT80/HT160
        Supports CNVI interface
        Bluetooth Bluetooth v5.1*
        * BT 5.1 function will be ready in Windows 10 build 19041 or later.

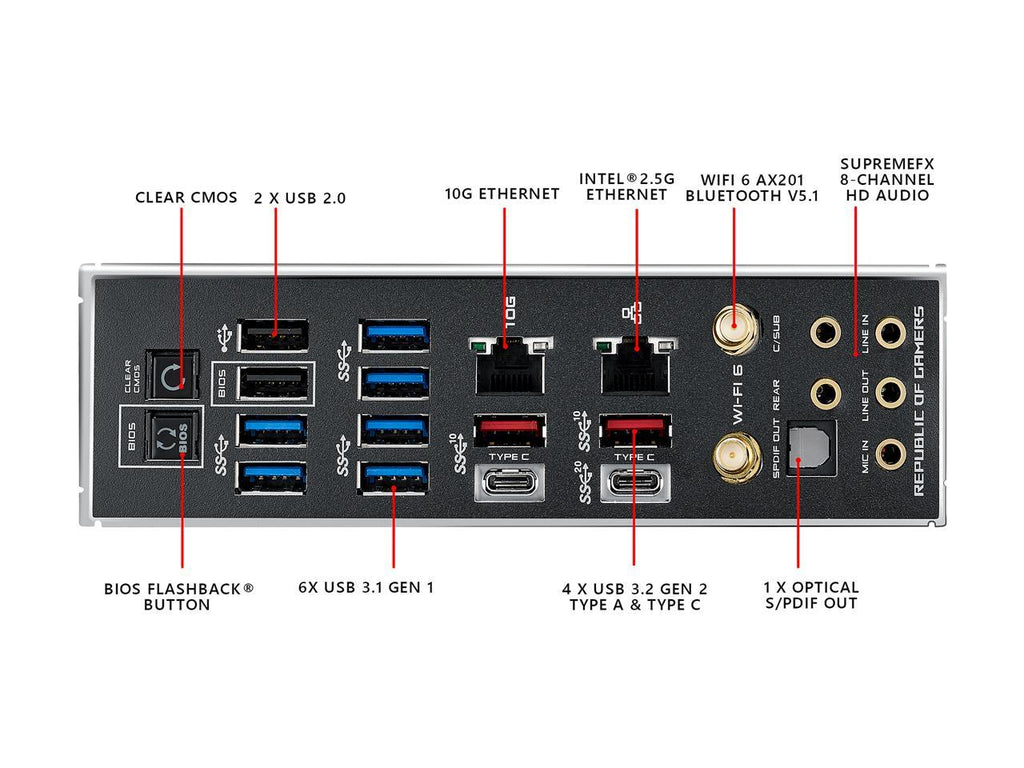

        Rear Panel Ports
        Back I/O Ports 1 x USB 3.2 Gen 2x2 port(s) (1 x USB Type-C)
        3 x USB 3.2 Gen 2 port(s) (2 x Type-A + 1 x USB Type-C)
        6 x USB 3.2 Gen 1 port(s) (6 x Type-A)
        2 x USB 2.0 port(s) (2 x Type-A)
        1 x ASUS Wi-Fi Module
        1 x Intel I225-V Ethernet port
        1 x Marvell AQtion AQC107 10Gb Ethernet port
        5 x LED-illuminated audio jacks
        1 x Optical S/PDIF out port
        1 x BIOS FlashBack button
        1 x Clear CMOS button
        Internal I/O Connectors
        Onboard USB 2 x USB 3.2 Gen 2 Front Panel connectors (support(s) USB Type-C)
        2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports
        2 x USB 2.0 header(s) support(s) additional 4 USB 2.0 ports
        Other Connectors Fan and cooling related
        1 x 4-pin CPU Fan header(s)
        1 x 4-pin CPU OPT Fan header(s)
        2 x 4-pin Chassis Fan header(s)
        8 x 4-pin Radiator Fan header(s)
        2 x W_PUMP+ header(s)
        1 x WB_SENSOR header(s)
        1 x 2-pin Water In header
        1 x 2-pin Water Out header
        1 x 3-pin Water Flow header
        1 x NODE header
        2 x AURA Addressable Gen 2 header(s)
        2 x AURA RGB header(s)
        1 x BIOS Switch button
        1 x FlexKey button
        1 x Front Panel Audio header (AAFP)
        1 x LN2 Mode jumper
        8 x ProbeIt Measurement Points
        1 x ReTry button
        2 x RSVD switch
        1 x Safe Boot button
        1 x Slow Mode switch
        1 x Speaker header
        1 x Start button
        1 x 10-1 pin System Panel header
        1 x Thermal Sensor header
        1 x Thunderbolt header
        Physical Spec
        Form Factor Extended ATX
        LED Lighting RGB

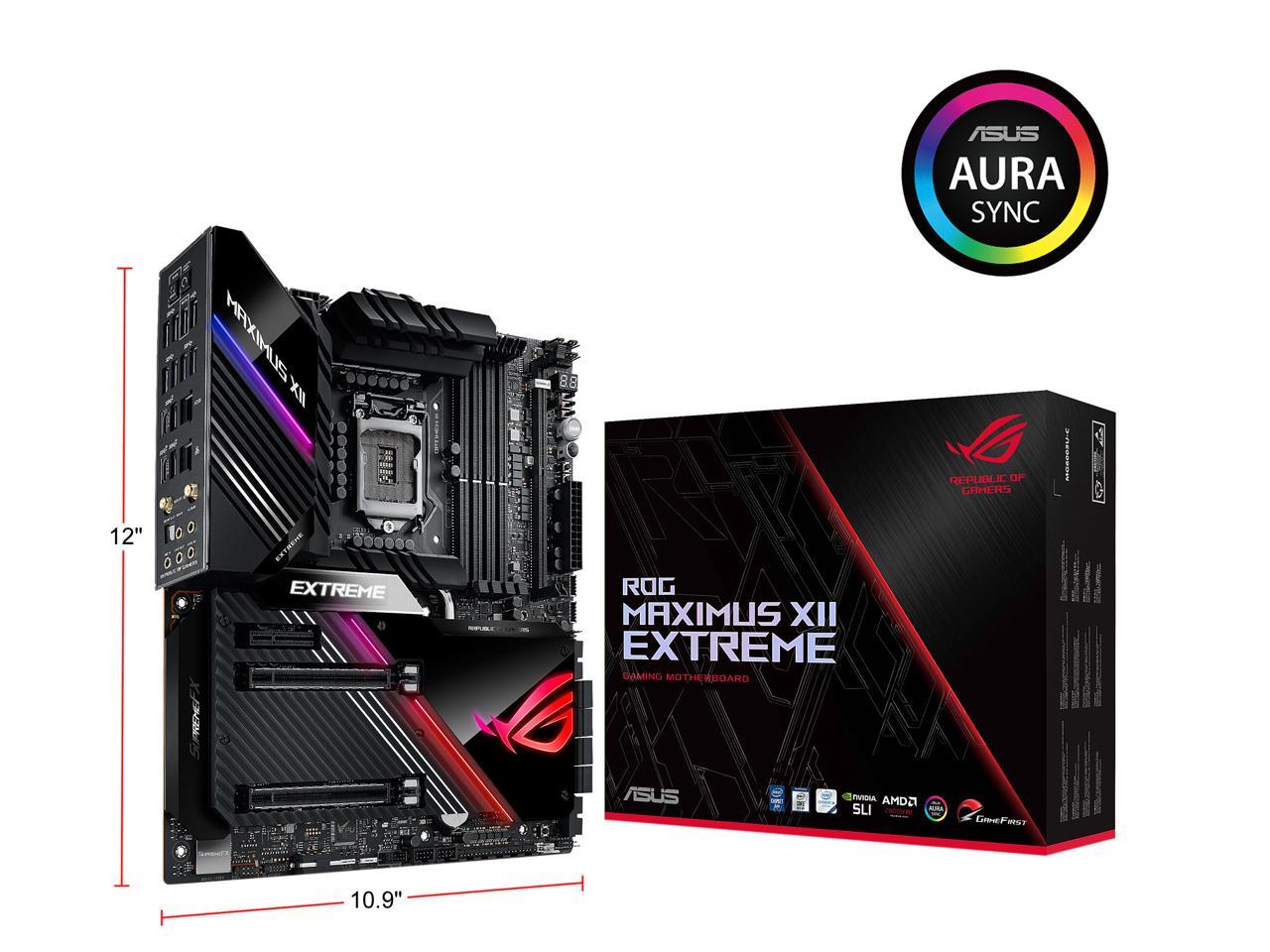

        Dimensions (W x L) 304.80 mm x 276.86 mm
        Power Pin 1 x 24-pin Main Power connector
        2 x 8-pin +12V Power connector
        1 x 4-Pin EZ_PLUG connector
        Features Multi-GPU Support:
        Supports NVIDIA 2-Way SLI Technology
        Supports AMD 3-Way CrossFireX Technology

        Special Features:
        ROG Extreme OC kit
        - EZ PLUG
        - FlexKey button
        - LN2 Mode
        - Probelt
        - ReTry button
        - Safe boot button
        - Start button
        - Slow Mode
        Extreme Engine Digi+
        - 10K Black Metallic Capacitors
        - Infineon TDA21490 Power Stage
        - MicroFine Alloy Choke
        ASUS Q-Design
        - ASUS Q-Code
        - ASUS Q-Connector
        - ASUS Q-DIMM
        - ASUS Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
        - ASUS Q-Slot
        ASUS Thermal Solution
        - Aluminum M.2 heatsink cover
        - Steel backplate
        ASUS EZ DIY
        - BIOS Flashback button
        - Clear CMOS button
        - Procool II
        - Pre-mounted I/O shield
        - SafeSlot
        AURA Sync
        - ROG Aura sync backplate
        - Standard RGB header(s)
        - Addressable Gen 2 RGB header(s)
        LiveDash OLED 2"

        Software Features:
        ROG Exclusive Software
        - Mem Tweakit
        - RAMCache III
        - ROG CPU-Z
        - GameFirst VI
        - Sonic Studio III + Sonic Studio Virtual Mixer
        - Sonic Radar III
        - DTS Sound Unbound
        - Overwolf
        - BullGuard Internet Security (1-year full version)
        ASUS Exclusive Software
        Armoury Crate
        - Aura Creator
        - Aura Sync
        - OLED Display
        AI Suite 3:
        - 5-Way Optimization with AI Overclocking
        Digi+ Power Control
        Fan Xpert 4
        Turbo app
        - EZ update
        AI Charger
        UEFI BIOS
        AI Overclocking Guide
        ASUS EZ DIY
        - ASUS CrashFree BIOS 3
        - ASUS EZ Flash 3
        - ASUS UEFI BIOS EZ Mode

        2 x 256MB Flash ROM, UEFI AMI BIOS

        WOL by PME, PXE

        Operating System:
        Windows 10 - 64-bit

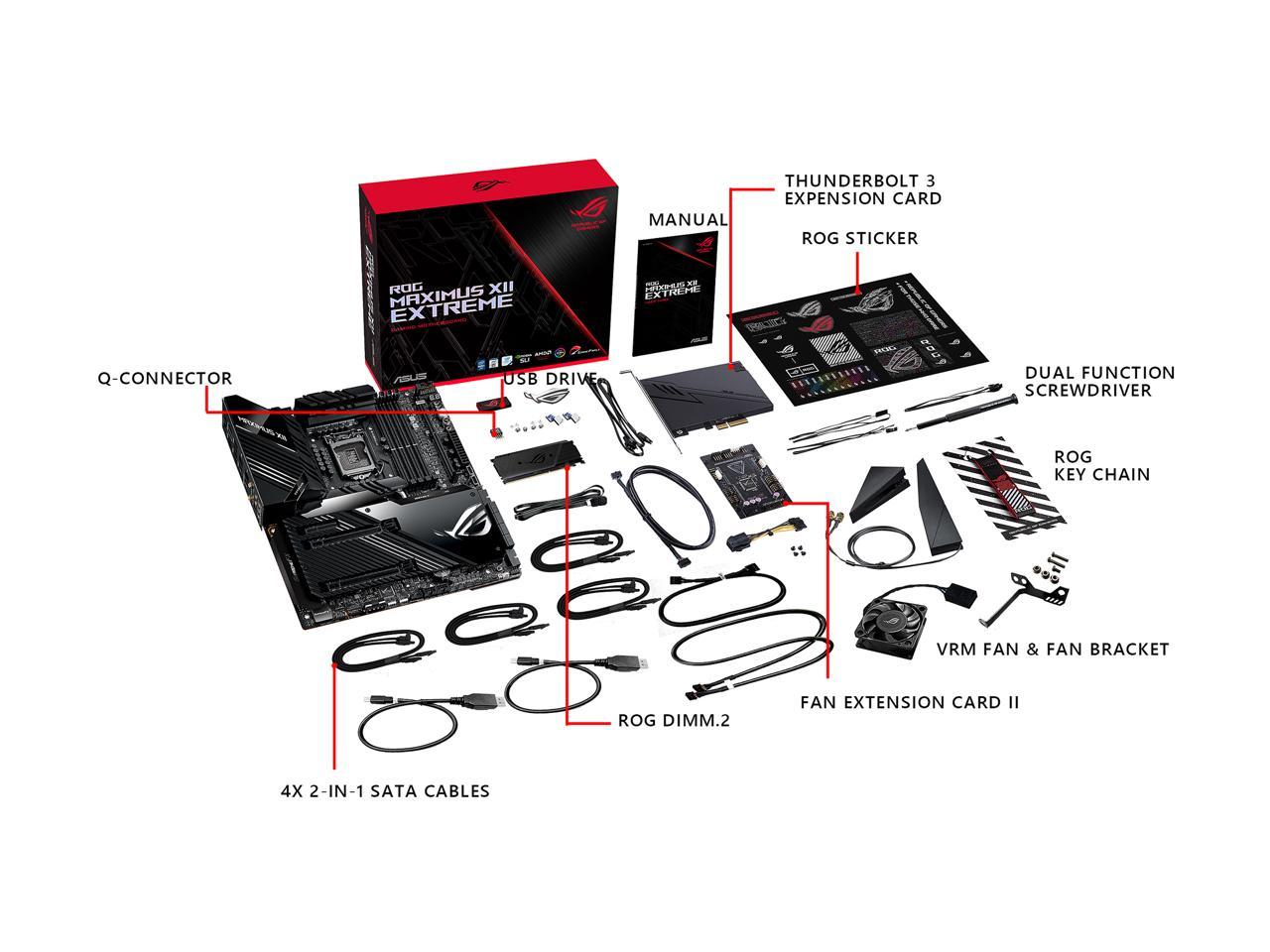

        Package Contents Accessories:
        1 x Addressable RGB extension cable
        1 x RGB extension cable
        8 x ROG weave SATA 6G cables
        1 x 3-in-1 Thermistor cables pack
        Additional Cooling Kit
        1 x Fan bracket
        1 x ROG assistant fan (40mm)
        Fan Extension Card II
        1 x Fan Extension Card II
        1 x Fan Extension Card II power
        1 x Fan Extension Card II NODE connector cable
        1 x Fan Extension Card II screw package
        ROG DIMM.2 with Heatsink
        1 x ROG DIMM.2 with heatsink
        2 x M.2 pad for ROG DIMM.2
        2 x M.2 screw package for ROG DIMM.2
        1 x THUNDERBOLTEX 3-TR Card
        2 x Mini DisplayPort cables
        1 x ASUS TB header cable
        1 x USB2.0 Cable
        1 x M.2 Rubber Package(s)
        1 x M.2 SSD screw package(s)
        1 x Q-connector
        1 x ROG key chain
        1 x ROG logo plate stickers
        1 x ROG multi-bit screwdriver
        1 x ROG stickers
        1 x ASUS 2x2 dual band Wi-Fi moving antennas
        Installation Media
        1 x USB drive with utilities and drivers
        1 x User manual
