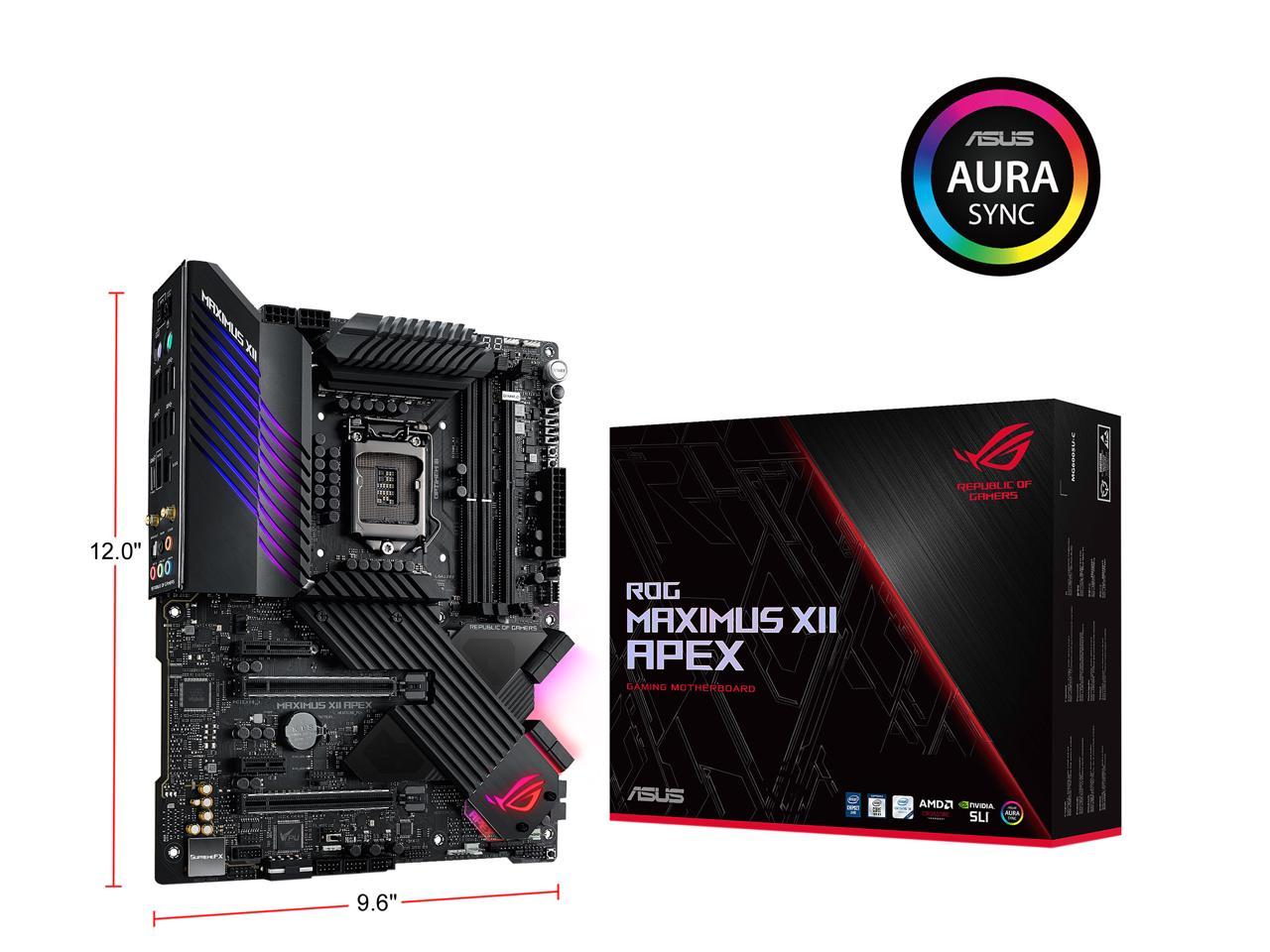

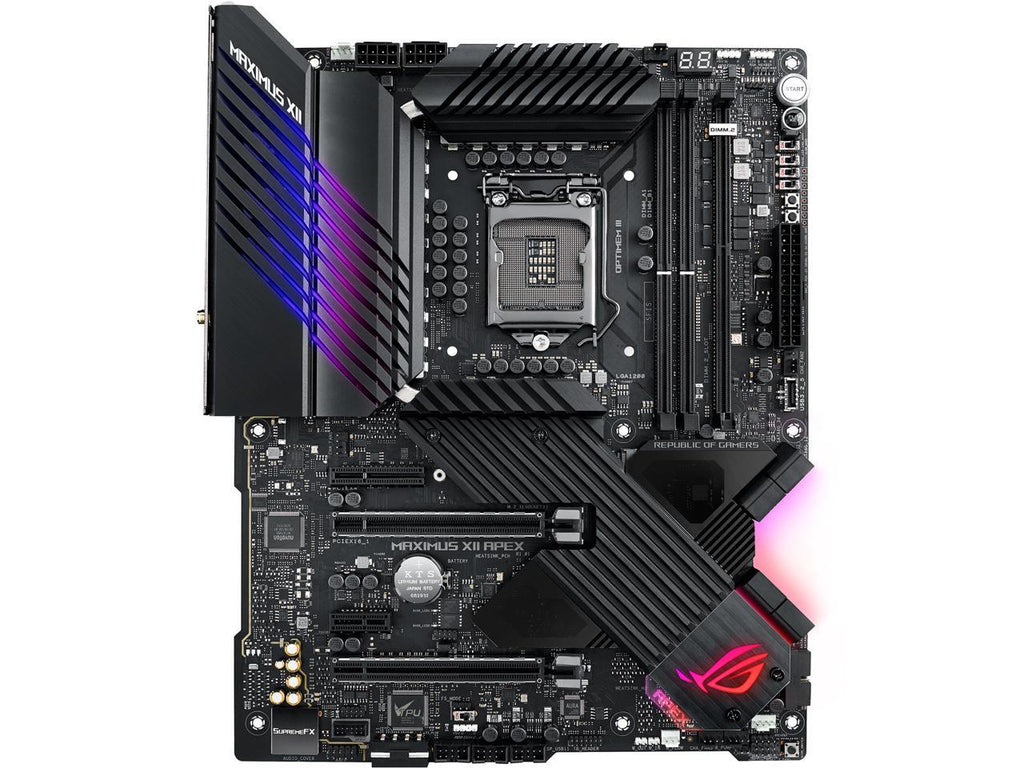

Asus Rog Maximus Xii Apex (Wifi 6) Lga 1200 Intel Z490 Sata 6Gb/S Atx Intel Motherboard (16 Power

Asus Rog Maximus Xii Apex (Wifi 6) Lga 1200 Intel Z490 Sata 6Gb/S Atx Intel Motherboard (16 Power


Regular price $600.99
Regular price Sale price $600.99
Sale Sold out
Shipping calculated at checkout.
        View full details
        Reviews, Que. & Ans.

        Description :

        • Intel LGA 1200 socket: Designed to unleash the maximum performance of 10th Gen Intel Core processors
        • Robust Power Solution: features 16 teamed power stages, high-quality alloy chokes and durable capacitors provide reliable power to push your CPU performance to the extreme
        • Built to Break Limits: Record-breaking overclocking performance, Overclocker's toolkit, condensation detection, OptiMem III

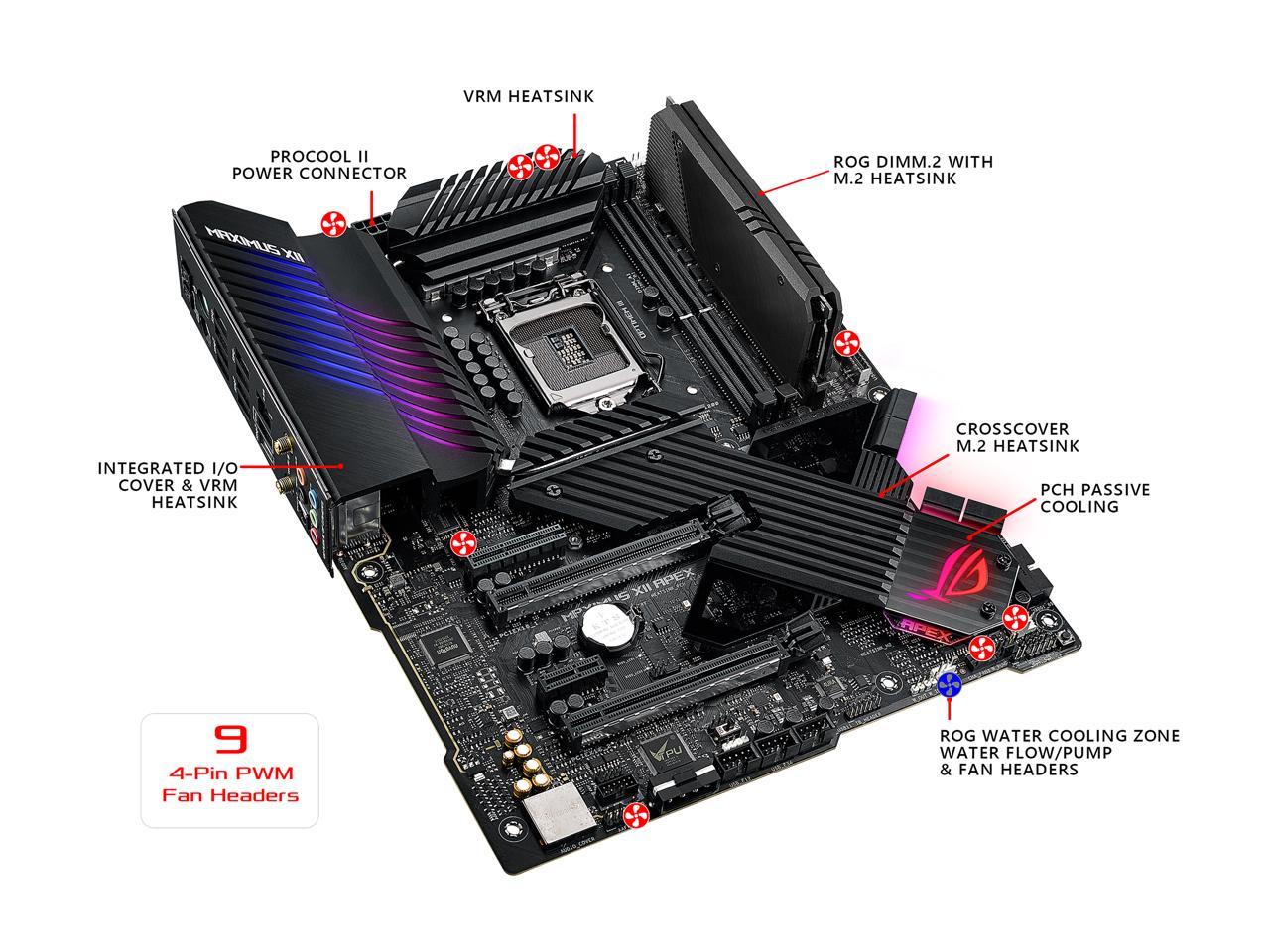

        • Superb Thermal Design: VRM heatsinks and C-shaped heatpipe, chipset and M.2 slots heatsinks, solid steel backplate, multiple fan headers, features AI cooling to balance thermals and acoustics by reducing fan speeds and maintaining a 5 Celsius delta
        • Fastest Gaming Connectivity: Intel WiFi 6 AX201 (802.11 ax), Intel 2.5Gb Ethernet with LANGaurd technology, 3 x M.2 slots, Dimm.2, USB 3.2 Gen 2 front panel connector
        Brand ASUS
        Series ROG
        Model MAXIMUS XII APEX
        Supported CPU
        CPU Socket Type  LGA 1200
        CPU Type Build in Intel Socket 1200 for 10th Gen Intel Core, Pentium Gold and Celeron Processors
        Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
        ** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
        Chipset  Intel Z490

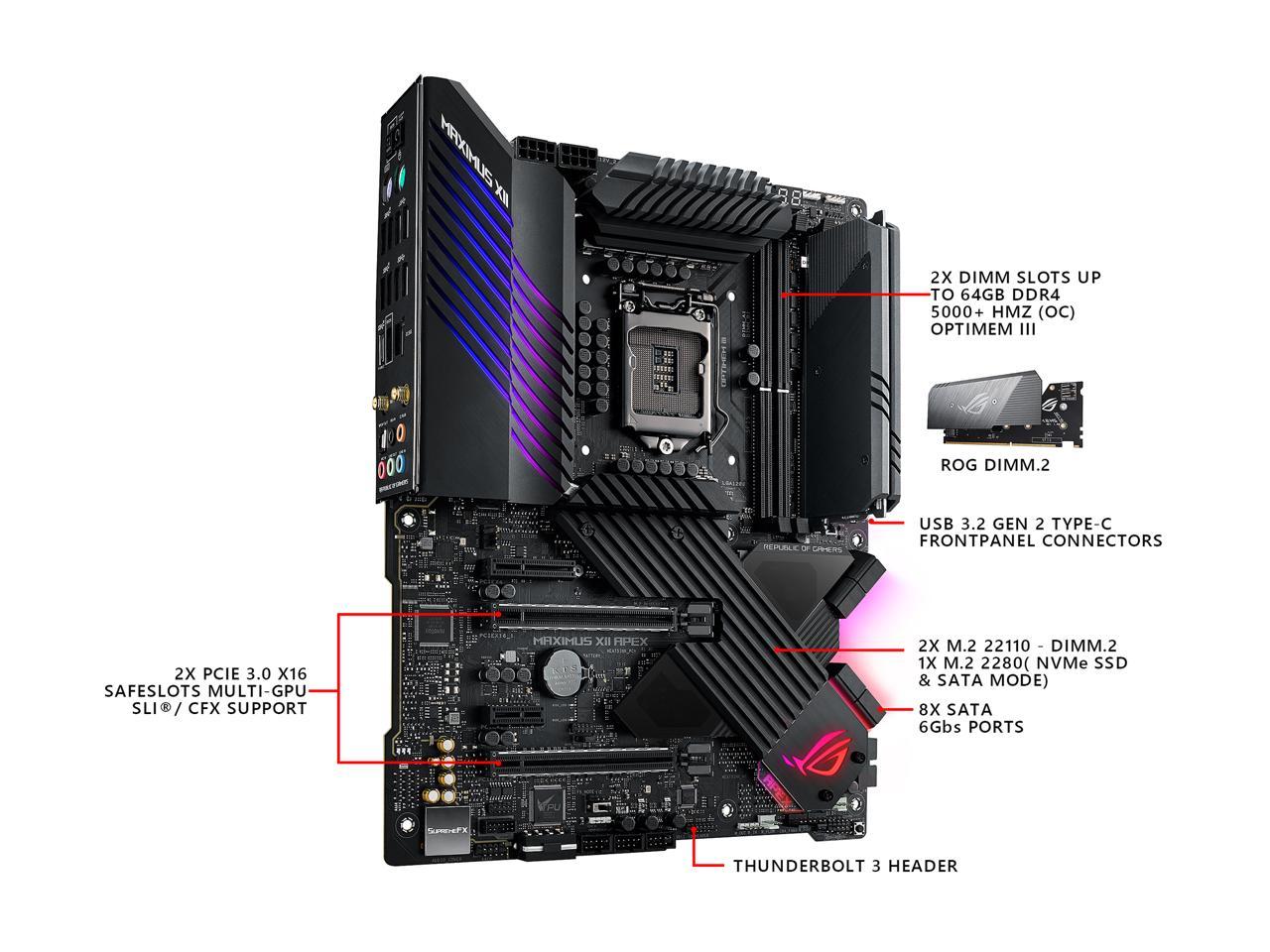

        Number of Memory Slots 2x288pin (DDR4)
        Memory Standard DDR4 4800(O.C.)/ 4700(O.C)/ 4600(O.C)/ 4500(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933(O.C.)/ 2800(O.C.)/ 2666/ 2133 MHz Memory *
        * Double Capcity DRAM support depends on the DRAM models
        Maximum Memory Supported 64GB
        Channel Supported  Dual Channel
        Expansion Slots
        PCI Express 3.0 x16 Intel 10th Gen Processors
        2 x PCIe 3.0 x16 (Single at x16, dual at x8/x8)
        PCI Express x4 Intel Z490 Chipset
        1 x PCIe 3.0 x4
        PCI Express x1 1 x PCIe 3.0 x1
        Storage Devices
        SATA 6Gb/s  Intel Z490 Chipset:
        6 x SATA 6Gb/s port(s)*3
        *3 M.2_1 shares bandwidth with PCIe x4 slot, when M.2_1 is populated a x2 device, PCIe x4 slot will running at x1 mode, when M.2_1 is populated a x4 device, PCIe x4 slot will be disabled

        ASMedia SATA 6Gb/s controller:
        2 x SATA 6Gb/s port(s)
        M.2 Intel Z490 Chipset:
        1 x ROG DIMM.2 Module supports 2 M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x4 mode)*1
        1 x M.2_1 socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x4 mode)*2

        *1 When DIMM.2_1 is operating in SATA Mode, SATA6G_2 will be disabled.
        *2 When DIMM.2_2 is populated, SATA6G_5&6 will be disabled.
        Intel Optane Ready Yes
        SATA RAID 0/1/5
        Onboard Audio
        Audio Chipset  ROG SupremeFX High Definition Audio CODEC S1220A
        Audio Channels  7.1 Channels
        Onboard LAN
        LAN Chipset Intel I225-V
        Max LAN Speed 10/100/1000/2500Mbps
        Wireless LAN Intel Wi-Fi 6 AX201
        Wi-Fi Intel Wi-Fi 6
        Supports channel bandwidth: HT20/HT40/HT80/HT160. Up to 1.73Gbps transfer speed
        2 x 2 Wi-Fi 6 (802.11 a/b/g/n/ac/ax) with MU-MIMO supports dual frequency band 2.4/5GHz
        Bluetooth Bluetooth v5.1*
        * BT 5.1 function will be ready in Windows 10 build 19041 or later.

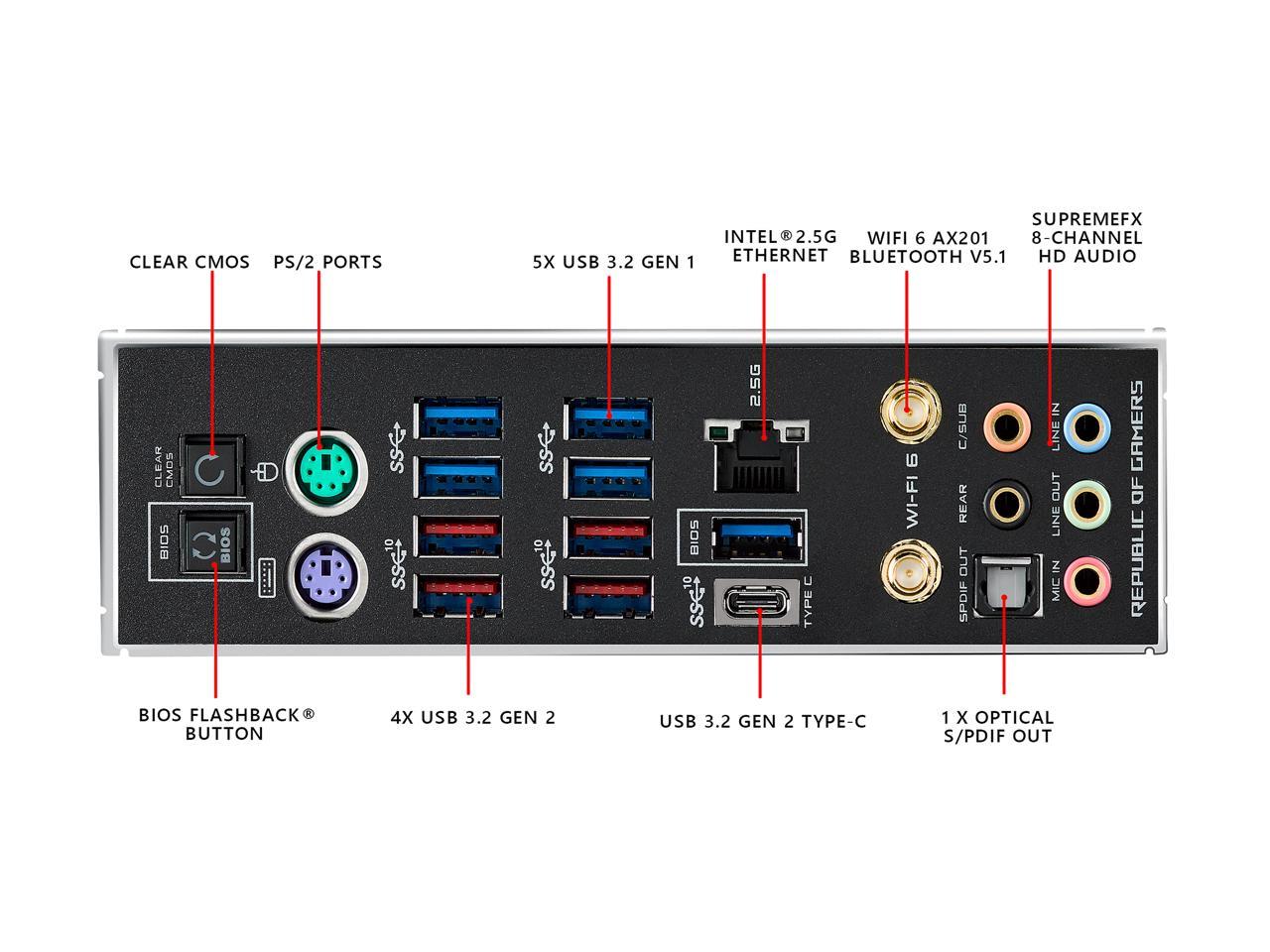

        Rear Panel Ports
        Back I/O Ports 1 x PS/2 keyboard (purple)
        1 x PS/2 mouse (green)
        1 x LAN (RJ45) port(s)
        4 x USB 3.2 Gen 2 (red)
        1 x USB 3.2 Gen 2 (black) Type-C
        5 x USB 3.2 Gen 1 (blue)
        1 x Optical S/PDIF out
        1 x Clear CMOS button(s)
        1 x USB BIOS FlashBack Button(s)
        1 x ASUS Wi-Fi GO! module (Wi-Fi 802.11 a/b/g/n/ac and Bluetooth v5.0)
        5 x Gold-plated audio jacks
        Internal I/O Connectors
        Onboard USB 1 x USB 3.2 Gen 2 front panel connector
        1 x USB 3.2 Gen 1 connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
        3 x USB 2.0 connector(s) support(s) additional 5 USB 2.0 port(s)
        Other Connectors 1 x W_IN header
        1 x W_OUT header
        1 x W_FLOW header
        1 x Node Connector(s)

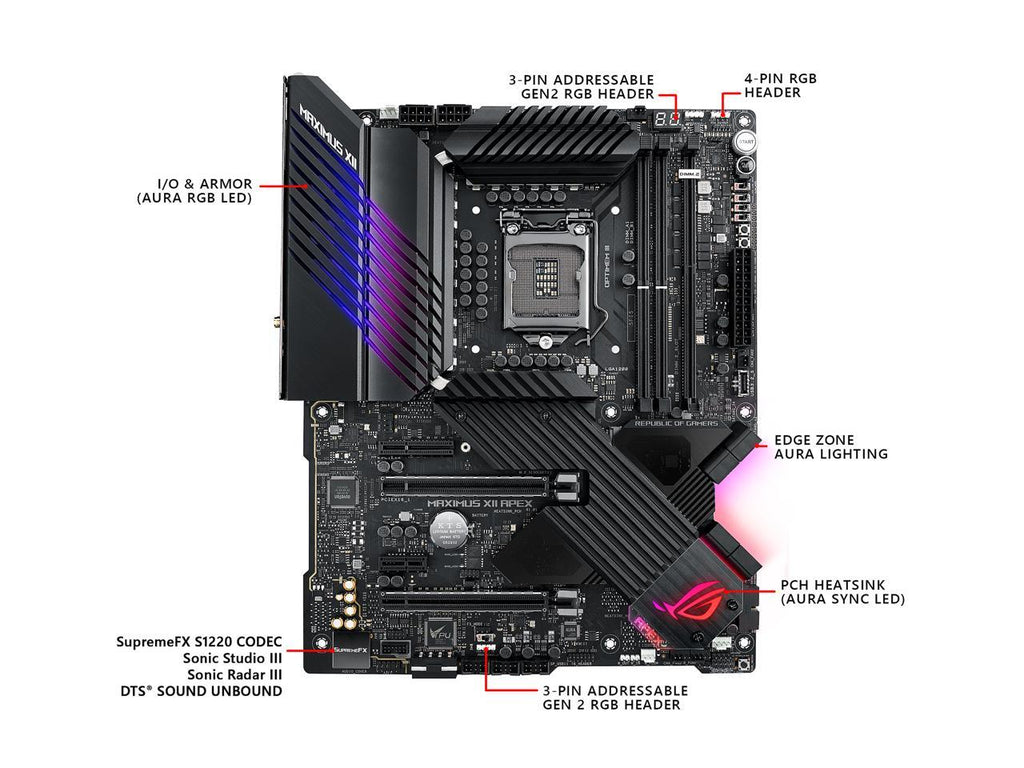

        2 x Aura Addressable Strip Header(s)
        1 x ReTry jumper
        1 x S/PDIF out header(s)
        2 x 8-pin EATX 12V Power connectors
        1 x 4-pin EZ_PLUG Power connector(s)
        1 x Front panel audio connector(s) (AAFP)
        1 x Clear CMOS button(s)
        1 x LN2 Mode jumper(s)
        1 x Safe Boot button
        1 x ReTry button
        1 x System panel connector
        1 x W_Pump+ Header
        1 x AIO PUMP Header
        2 x 4-pin Full Speed Fan connectors
        3 x onboard LED ON/OFF jumper(s)
        1 x Start button
        1 x Q-Code
        1 x RGB Header
        1 x FS Mode switch
        Physical Spec
        Form Factor ATX
        LED Lighting RGB
        Dimensions (W x L) 304.80 mm x 243.84 mm
        Features ROG Exclusive Features:
        Condensation detection
        Clear CMOS button
        ROG CPU-Z
        ROG CloneDrive
        Slow Mode
        ReTry Button
        Safe Boot Button
        Start Button
        Reset Button
        LN2 Mode
        Extreme Engine Digi+:
        - Infineon TDA21472 Power Stage
        - MicroFine Alloy Chokes
        - 10K Black Metallic Capacitors
        Mem TweakIt
        ROG Extreme OC kit:
        - OptiMem III
        Double Power:
        - Dual 8 -pin CPU
        UEFI BIOS features:
        - O.C. Profile
        - GPU.DIMM Post
        - Tweakers' Paradise
        - ROG SSD Secure Erase
        - Graphic Card Information Preview
        Extreme Tweaker
        ROG Patented Pre-mounted I/O Shield
        ROG Exclusive Software
        - RAMCache III

        Special Features:
        ASUS Dual Intelligent Processors 3 - SMART DIGI+ Power Control:
        - 5-Way Optimization tuning key perfectly consolidates TPU, EPU, DIGI+ VRM, Fan Expert 4, and Turbo App
        AI Overclocking
        Fan Xpert4
        - Fan Xpert 4 featuring Fan Auto Tuning function and multiple thermistors selection for optimized system cooling control
        - Advanced fan and liquid controls for ultimate cooling and quietness
        ASUS 5X Protection III:
        - ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
        - ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
        - ASUS Overvoltage Protection: World-class circuit-protecting power design
        SafeDIMM slot
        - Aura Lighting Control
        - Aura RGB Strip Headers
        - Aura Lighting Effects Synchronization with compatible ASUS ROG devices
        - Addressable Gen 2 Header
        ASUS Exclusive Features:
        - USB BIOS FlashBack
        - MemOK! II
        - AI Suite 3
        - Anti-Surge
        - ASUS CrashFree BIOS 3
        - ASUS NODE: hardware control interface
        - BIOS FlashBack Button
        - Clear CMOS Button
        ASUS Q-Design:
        - ASUS Q-Code
        - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED, HDD LED)
        - ASUS Q-Slot
        - ASUS Q-DIMM
        - ASUS Q-Connector
        Gaming Aesthetics:
        - AURA-RGB Lighting
        DIY Friendly Design
        - ProCool II
        - SafeSlot
        - Digi+ VRM
        - DRAM Overcurrent Protection
        - Highly Durable components
        - ESD Guards
        Armoury Crate

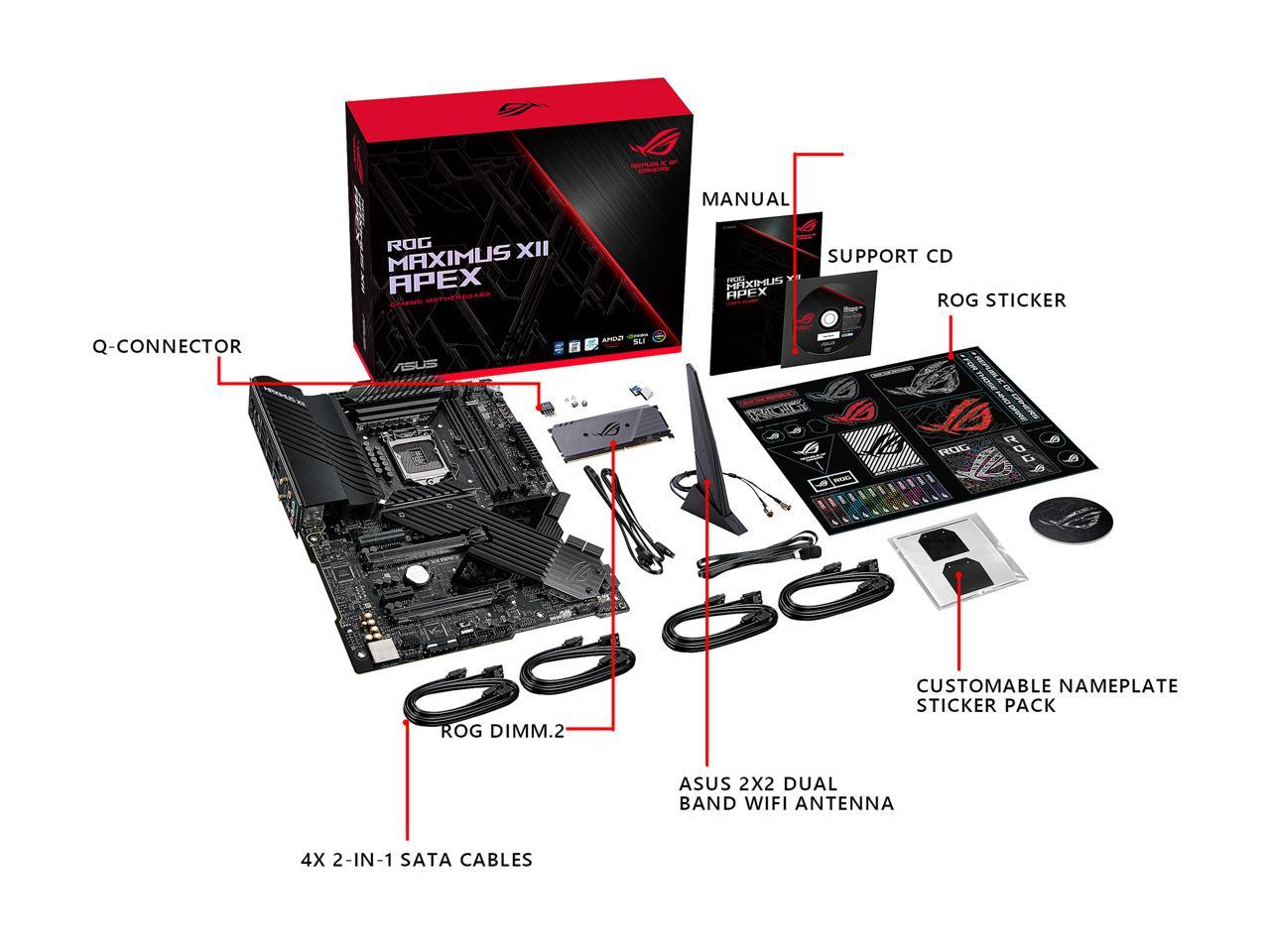

        Package Contents Accessories:
        1 x Supporting DVD
        1 x ROG big sticker
        1 x Q-Connector
        1 x M.2 screw kit (long screw and mount)
        2 x M.2 screw kit (short screw and mount)
        1 x Wi-Fi Antenna(s)
        1 x Extension Cable for RGB strips (80cm)
        1 x Extension cable for Addressable LED
        User manual
        1 x ROG coaster(s)
        1 x Customizable Name Plate Accessory Pack
        1 x ROG Thank you card
        1 x ROG DIMM.2 with heatsink
        1 x M.2 Pad for ROG DIMM.2

        Specifications :

        General Information

        UPC 192876669211
