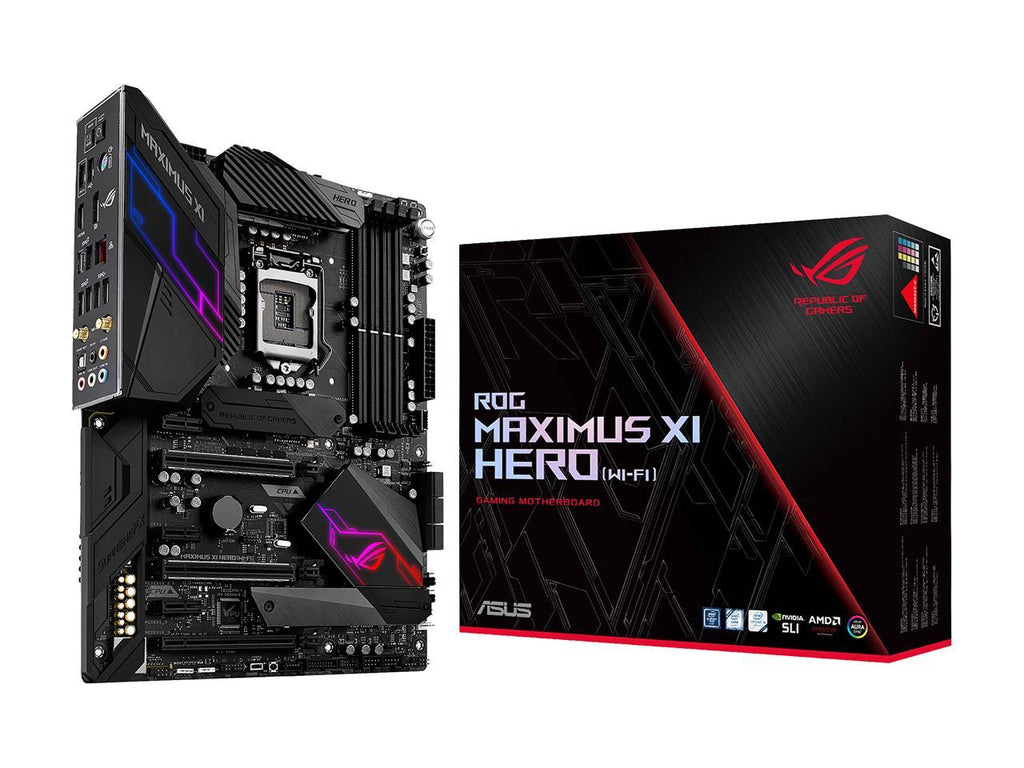

• Asus Rog Maximus Xi Hero (Wi-Fi) Z390 Gaming Motherboard Lga1151
1 1

ASUS

Asus Rog Maximus Xi Hero (Wi-Fi) Z390 Gaming Motherboard Lga1151

Asus Rog Maximus Xi Hero (Wi-Fi) Z390 Gaming Motherboard Lga1151

SKU:Maximus XI Hero (Wi-Fi)

$399.99
$399.99
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Specifications
        Reviews, Que. & Ans.

        Description :

        • Designed for 9th and 8th generation Intel Core processors to maximize connectivity and speed with dual M.2, USB 3.1 Gen 2, onboard 802.11 ac Wi-Fi and ASUS OptiMem II for better DRAM overclocking stability
        • Revamped 5-Way Optimization overclocks intelligently based on smart prediction and thermal telemetry while FanXpert 4 delivers dynamic system cooling
        • Aura Sync RGB lighting with addressable headers features a nearly endless spectrum of colors with the ability to synchronize effects across an ever-expanding ecosystem of Aura Sync enabled products
        • Pre-mounted I/O shield ensures streamlined installation and represents ROG's attention to detail and quality
        Model
        Brand ASUS
        Series ROG
        Model Maximus XI Hero (Wi-Fi)
        Supported CPU
        CPU Socket Type  LGA 1151 (300 Series)
        CPU Type Intel Socket 1151 9th/8th Gen Intel Core, Pentium Gold and Celeron Processors
        * Not backward compatible with older generation of LGA 1151 CPUs
        * Refer to www.asus.com for CPU support list
        Supported CPU Technologies Supports Intel Turbo Boost Technology 2.0*
        * Intel Turbo Boost Technology 2.0 support depends on the CPU types
        Chipsets
        Chipset  Intel Z390
        Onboard Video
        Onboard Video Chipset  Integrated Graphics Processor - Intel UHD Graphics support
        Multi-VGA output support: HDMI/DisplayPort ports
        - Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
        - Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
        Memory
        Number of Memory Slots 4x288pin (DDR4)
        Memory Standard DDR4 4400(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133

        * Hyper DIMM support is subject to the physical characteristics of individual CPUs.
        * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).
        Maximum Memory Supported 64GB
        Channel Supported  Dual Channel
        Expansion Slots
        PCI Express 3.0 x16 2 x PCIe 3.0 x16 (x16 or dual x8 or x8/x4/x4)
        1 x PCIe 3.0 x16 (x4 mode) *

        * The PCIe x16_3 slot shares bandwidth with SATA6G_5 and SATA6G_6. The PCIe x16_3 runs x2 mode by default.
        PCI Express x1 3 x PCIe 3.0 x1 slots
        Storage Devices
        SATA 6Gb/s  6 x SATA 6Gb/s
        M.2 1 x M.2_1 Socket 3 with M Key, type 2242/2260/2280 (supports PCIE 3.0 x4 and SATA modes)*
        1 x M.2_2 Socket 3 with M Key, type 2242/2260/2280/22110 (supports PCIE 3.0 x4 mode)

        * When the M.2_1 Socket 3 is operating in SATA mode, SATA6G_2 port will be disabled.
        Intel Optane Ready Yes
        SATA RAID 0/1/5/10
        Onboard Audio
        Audio Chipset  ROG SupremeFX S1220 High Definition Audio CODEC
        Audio Channels  8 Channels
        * Due to limitations in HDA bandwidth, 32-Bit / 192 kHz is not supported for 8-Channel audio.
        Onboard LAN
        LAN Chipset Intel I219-V
        Max LAN Speed 10/100/1000Mbps
        Wireless LAN Intel Wireless-AC 9560
        Wi-Fi 802.11 a/b/g/n/ac
        Supports dual band frequency 2.4/5 GHz
        Supports MU-MIMO
        Supports channel bandwidth: HT20/HT40/HT80/HT160
        Bluetooth Bluetooth v5.0
        Rear Panel Ports
        Back I/O Ports 1 x PS/2 keyboard/mouse combo port(s)
        1 x DisplayPort
        1 x HDMI
        1 x LAN (RJ45) port(s)
        4 x USB 3.1 Gen 2 (red) (1 x Type-C + 3 x Type-A)
        2 x USB 3.1 Gen 1 (blue) Type-A
        2 x USB 2.0
        1 x Optical S/PDIF out
        1 x Clear CMOS button(s)
        1 x USB BIOS Flashback Button(s)
        1 x ASUS Wi-Fi Module
        5 x Gold-plated audio jacks
        Internal I/O Connectors
        Onboard USB 1 x USB 3.1 Gen 2 front panel connector
        1 x USB 3.1 Gen 1 (up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
        2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
        Other Connectors 2 x Aura Addressable Strip Header(s)
        2 x Aura RGB Strip Headers
        1 x TPM connector(s)
        1 x CPU Fan connector(s) (1 x 4-pin)
        1 x CPU OPT Fan connector(s) (1 x 4-pin)
        3 x Chassis Fan connector(s) (3 x 4-pin)
        1 x AIO_PUMP connector (1 x 4-pin)
        1 x H_AMP fan connector
        1 x W_PUMP+ connector (1 x 4-pin)
        1 x Front panel audio connector(s) (AAFP)
        1 x MemOK! II switch(es)
        1 x Reset button(s)
        1 x ReTry button
        1 x System panel connector
        1 x EXT_Fan header
        1 x W_IN header
        1 x W_OUT header
        1 x W_FLOW header
        1 x Thermal sensor connector
        1 x Start button
        Physical Spec
        Form Factor ATX
        LED Lighting RGB
        Dimensions (W x L) 304.80 mm x 243.84 mm
        Power Pin 1 x 24-pin EATX Power connector(s)
        1 x 8-pin EATX 12V Power connectors
        1 x 4-pin ATX 12V Power connector(s)
        Features
        Features Multi-GPU Support:
        Supports NVIDIA 2-Way SLI Technology
        Supports AMD 3-Way CrossFireX Technology

        ROG Exclusive Features:
        ReTry Button
        Start Button
        Reset Button
        Extreme Engine Digi+:
        - MicroFine Alloy Chokes
        - 10K Black Metallic Capacitors
        - OptiMOS MOSFET
        Mem TweakIt
        Extreme Tweaker
        ROG Exclusive Software
        - Mem Tweakit
        - RAMCache III
        - RAMDisk
        - CPU-Z
        - GameFirst V
        - Sonic Studio III + Sonic Studio Link
        - Sonic Radar III

        Special Features:
        ASUS Dual Intelligent Processors 5-Way Optimization by Dual Intelligent Processors 5:
        - 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App
        AURA:
        - Aura Lighting Control
        - Aura RGB Strip Headers
        - Aura Lighting Effects Synchronization with compatible ASUS ROG devices
        - Aura Addressable Strip Header(s)
        ASUS Exclusive Features:
        - USB BIOS Flashback
        - MemOK! II
        - AI Suite 3
        - Ai Charger
        - ASUS CrashFree BIOS 3
        - Armoury Crate
        - Pre-mounted I/O Shield
        - ASUS NODE: hardware control interface
        - OptiMem II
        - ASUS EZ Flash 3
        - ASUS C.P.R. (CPU Parameter Recall)
        - BUPDATER
        - BIOS Flashback Button
        - Clear CMOS Button
        - Reset Button
        ASUS EZ DIY:
        - ASUS CrashFree BIOS 3
        - ASUS EZ Flash 3
        ASUS Q-Design:
        - ASUS Q-Code
        - ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
        - ASUS Q-Slot
        - ASUS Q-DIMM
        - ASUS Q-Connector
        Overclocking Protection:
        - ASUS C.P.R. (CPU Parameter Recall)

        BIOS:
        1 x 128MB Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1

        Operating System:
        Windows 10 64-bit
        Packaging
        Package Contents Accessories:
        User's manual
        4 x SATA 6Gb/s cable(s)
        1 x M.2 Screw Package
        1 x Supporting DVD
        1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11 a/b/g/n/ac compliant)
        1 x SLI HB BRIDGE (2-WAY-M)
        1 x ROG big sticker
        1 x Q-Connector
        1 x Extension Cable for RGB strips (80cm)
        1 x Extension cable for Addressable LED
        1 x ROG coaster(s)

        Specifications :

        General Information

        UPC 192876124130
