Asus Rog Crosshair Viii Dark Hero Socket Am4/ Amd X570/ Ddr4/ 2-Way Crossfirex & 2-Way Sli/ Sata3&Usb3.2/ M.2/ Wifi/ Bluetooth/ Atx Motherboard
Asus Rog Crosshair Viii Dark Hero Socket Am4/ Amd X570/ Ddr4/ 2-Way Crossfirex & 2-Way Sli/ Sata3&Usb3.2/ M.2/ Wifi/ Bluetooth/ Atx Motherboard
SKU:ROG CROSSHAIR VIII DARK HERO
Regular price
$461.83
Regular price
Sale price
$461.83
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability
Description
Specifications
Description :
- AMD X570
- AMD AM4 Socket for AMD Ryzen 5000 Series/4000 G-Series/3000 Series/3000 G-Series/2000 Series/2000 G-Series Desktop Processors
- AMD Ryzen 5000 Series/3000 Series Desktop Processors
- DDR4 4866(O.C)/ 4800(O.C.)/ 4666(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400(O.C.)/ 2133 MHz Non-ECC, Un-buffered Memory
- AMD Ryzen 4000 G-Series Desktop Processors
- DDR4 5100(O.C)/ 5000(O.C)/ 4866(O.C)/ 4800(O.C.)/ 4600(O.C)/ 4400(O.C)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200/ 3000/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
- AMD Ryzen 2000 Series Processors
- DDR4 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Non-ECC, Un-buffered Memory
- AMD Ryzen 3000 G-Series/2000 G-Series Processors
- DDR4 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz Memory
Don't forget your OS, we have Windows 11 OEM, 10 OEM, Download, and USB versions available.
ROG CROSSHAIR VIII DARK HERO
Upgraded power delivery, passive chipset cooling, and stealthy aesthetics allow the Crosshair VIII Dark Hero to strike from the shadows and form a menacing duo with AMD Zen 3.
Upgraded power delivery, passive chipset cooling, and stealthy aesthetics allow the Crosshair VIII Dark Hero to strike from the shadows and form a menacing duo with AMD Zen 3.

SPEC OVERVIEW

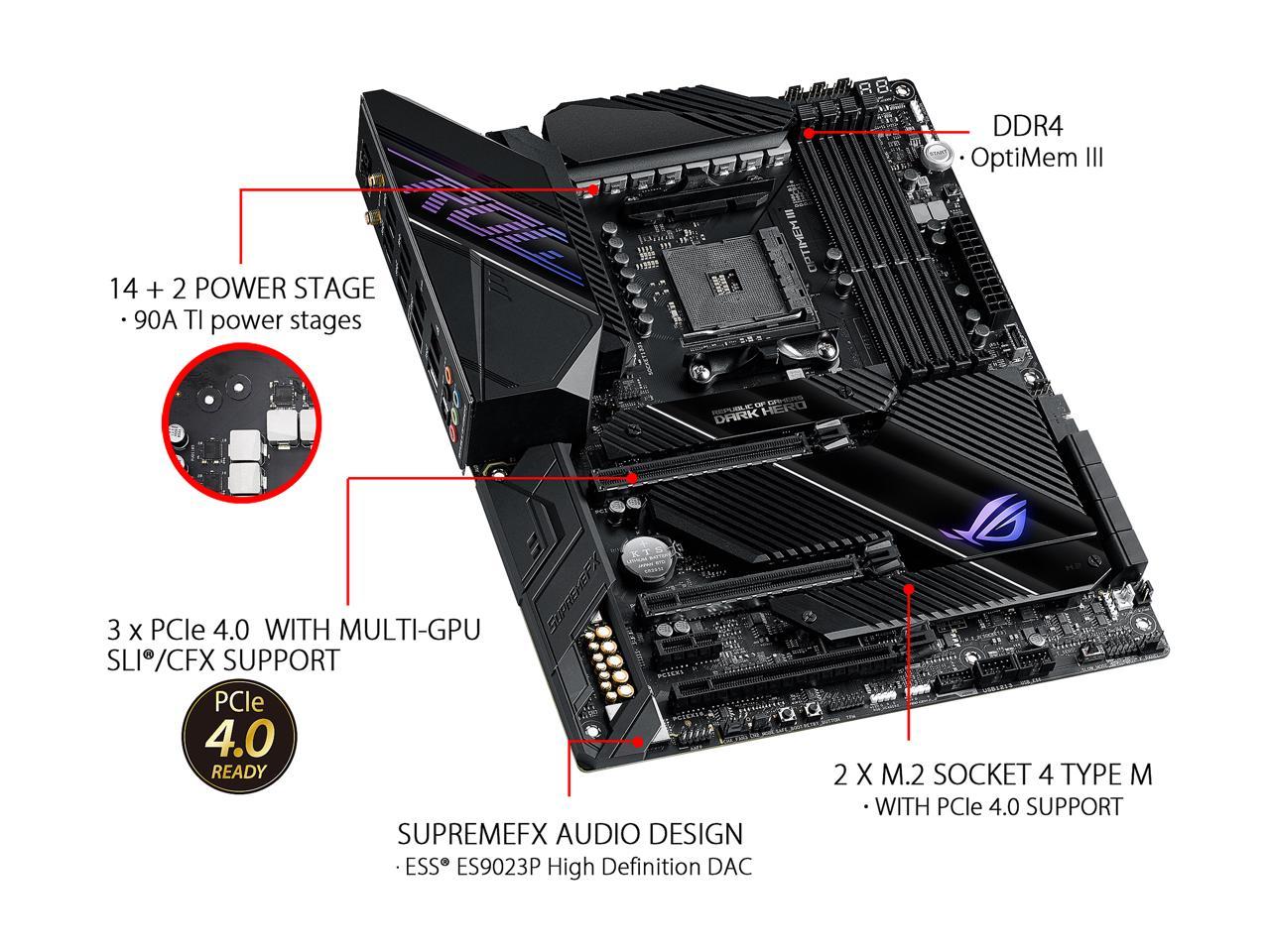

Performance
Extreme Power & Performance
Performance
Extreme Power & Performance
- PROCOOL II POWER CONNECTOR
- 14+2 POWER STAGE​
- MULTI-GPU SLI®/ CFX SUPPORT​*
- 2 x PCIe 4.0 x16 Safeslots (x16, x8/x8) [CPU]
- 1 x PCIe 4.0 x16 slot (x4)
- 1 x PCIe 4.0 x1 slot
for AMD Ryzenâ„¢ 5000 Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series/ 2000 Series/ 2000 G-Series desktop processors
- OptiMem III
- Dual channel
- 2242~2280 (PCIe 4.0 x 4 + SATA)
- 2242~22110 (PCIe 4.0 x 4 + SATA)
* The specifications depend on different CPU types. The listed specifications are based on AMD Ryzenâ„¢ 5000 Series and 3000 Series Desktop Processors.

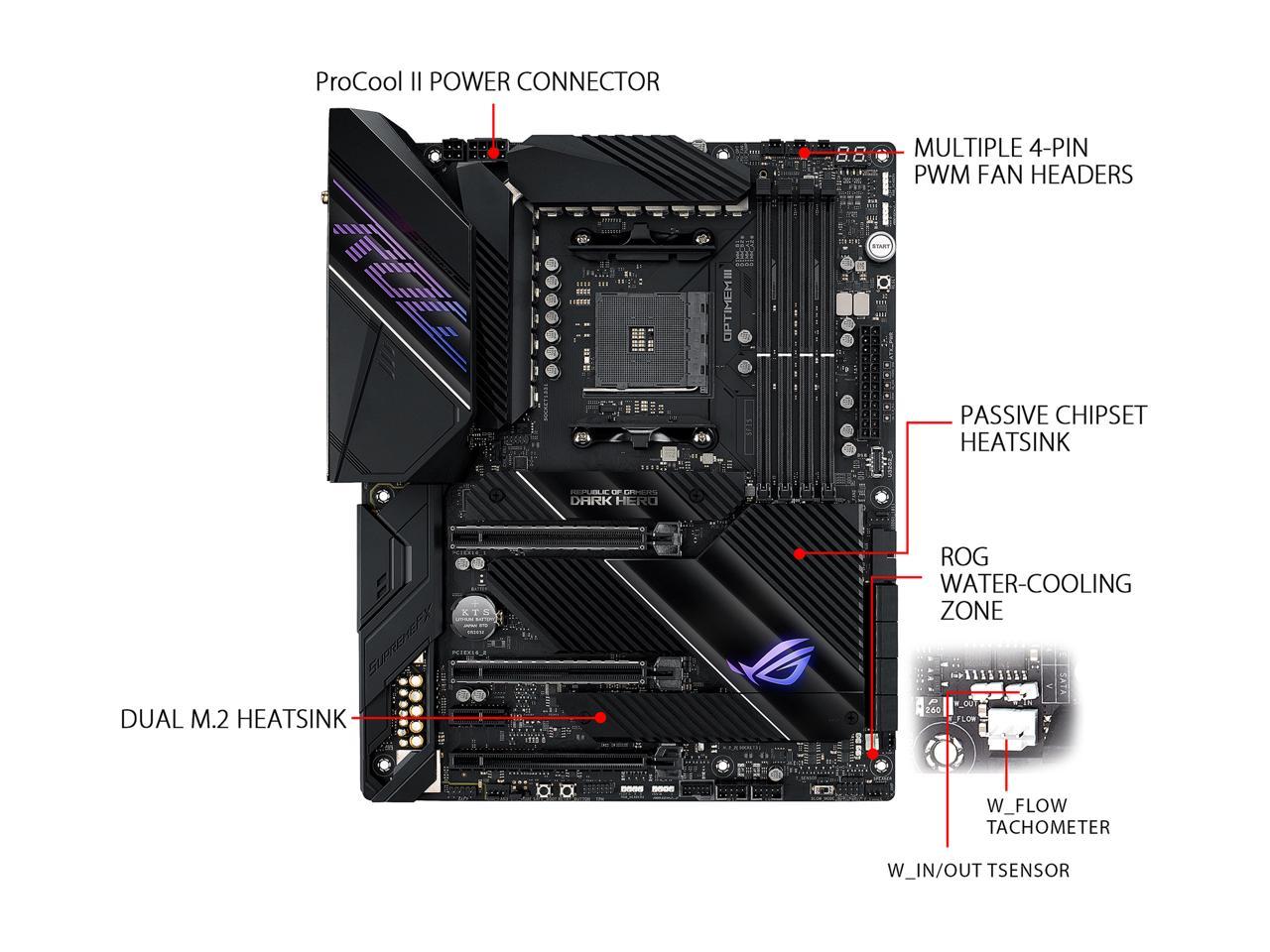

Cooling
Comprehensive Cooling
Comprehensive Cooling
- VRM HEATSINK DESIGN
- DUAL M.2 HEATSINKS
- MULTIPLE 4-PIN PWM FAN HEADERS
- PASSIVE CHIPSET HEATSINK DESIGN
- ROG WATER-COOLING ZONE
- W_FLOW tachometer
- W_IN/OUT T-sensor
Gaming Immersion
Total Gaming Immersion
Total Gaming Immersion
- I/O & ARMOR ZONE AURA LIGHTING
- SupremeFX S1220 CODEC
ESS® ES9023P High Definition DAC
120 dB SNR stereo playback output
113 dB SNR recording input
Gold-plated Audio Jacks
SONIC STUDIO III
Sonic Studio Virtual Mixer
SONIC RADAR III
DTS® SOUND UNBOUND

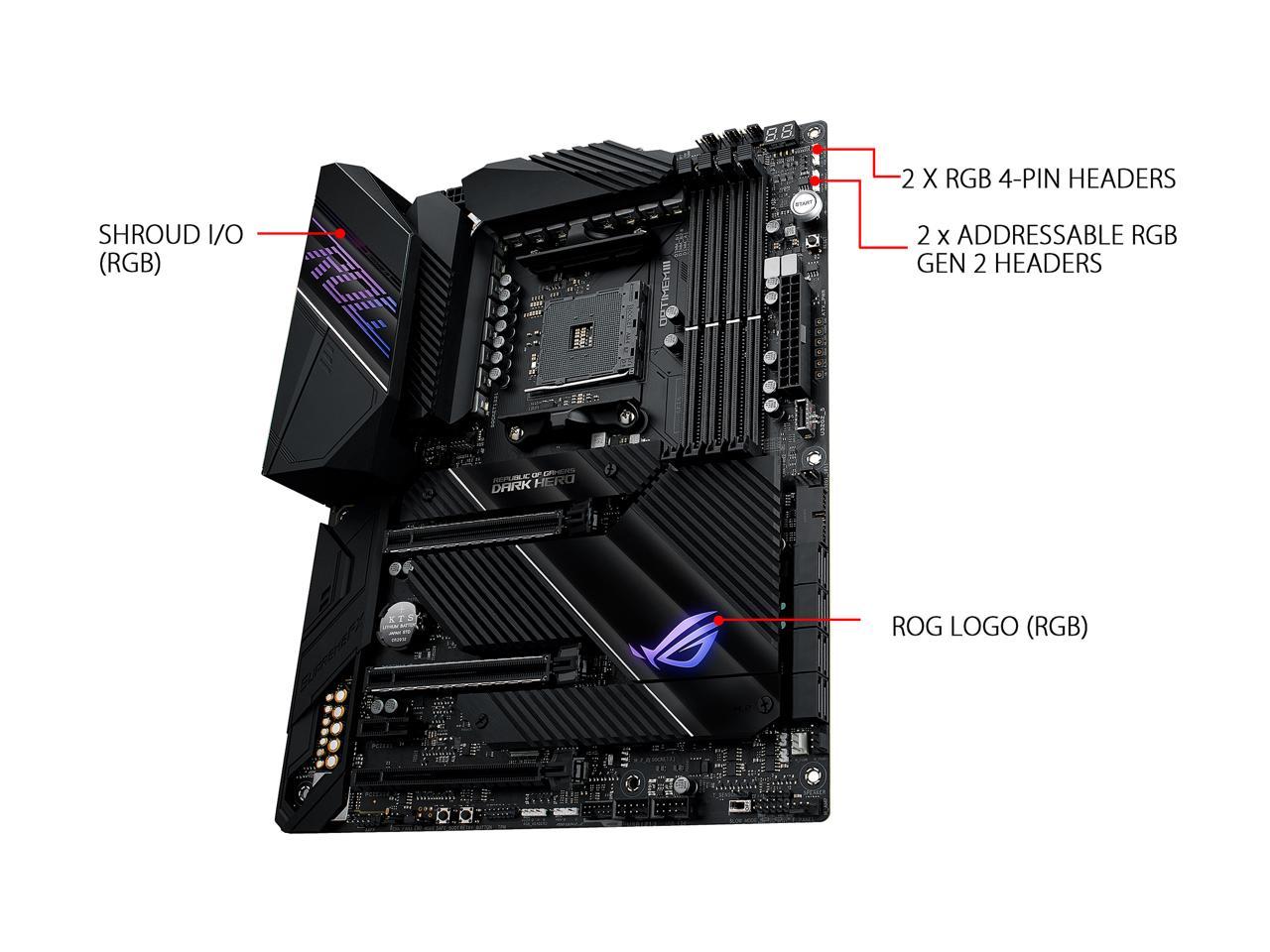

- 2 X 4-PIN AURA RGB HEADERS​
- 2 X 3-PIN ADDRESSABLE GEN 2 RGB HEADERS​
- PCH ZONE AURA LIGHTING

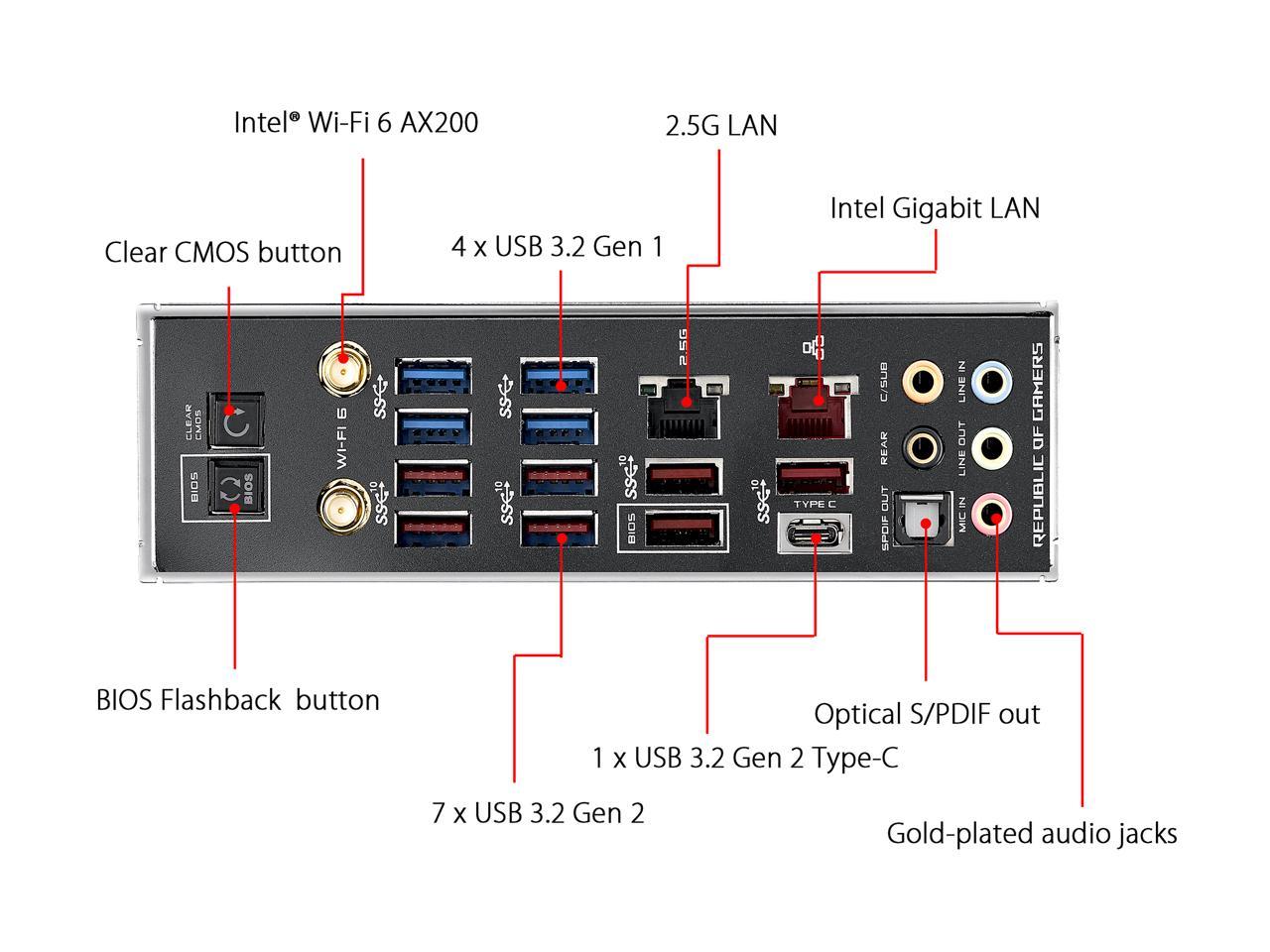

Connectivity
Full Connectivity
Full Connectivity
- BIOS FlashBackâ„¢ button
- CLEAR CMOS button
- Intel® Wi-Fi 6 AX200
- 8 x USB 3.2 Gen 2*
- 7 x Type-A
- 1 x USB Type-C®
- 4 x Type-A
- 2.5G Ethernet
Intel® I211-AT Gb LAN
ROG GameFirst VI
ASUS LANGuard - OPTICAL S/PDIF OUT
- 1 x USB 3.2 Gen 2
Front Panel Connector - 8 x SATA 6 Gb/s
- ASUS NODE Connector
* The specifications depend on different CPU types. The listed specifications are based on AMD Ryzenâ„¢ 5000 Series and 3000 Series Desktop Processors.
DIY Friendly
- ROG PATENTED PRE-MOUNTED I/O SHIELD
- ESD GUARDS
Provides greater electrostatic protection than the industry standard. ESD Guards cover the USB, audio and LAN ports. - TRUEVOLT USB
Supplies stable 5-volt power delivery to all USB ports, with minimal power fluctuations to minimize data loss. - 2 x SAFESLOT
Provides stronger PCIe device retention and greater shearing resistance. - Q-Code
LED panel shows a 2-digit code to reflect system status.
- 4 x Q-DIMM
One sided clips for super-simple, super-secure handling of memory modules. - FLEXKEY
At its default, the FlexKey functions as a system reset button, but it can also be easily set to quickly turn Aura lighting on or off, activate Safe Boot or enter the BIOS. - Q-CONNECTOR
Simple adapter that helps arrange front-panel cables in an orderly manner.
Power solution
Teamed Power Architecture
Modern CPU architectures up the ante for motherboard power design by transitioning from deep power-saving modes to full load almost instantaneously. Our latest VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.
Teamed Power Architecture
Modern CPU architectures up the ante for motherboard power design by transitioning from deep power-saving modes to full load almost instantaneously. Our latest VRM architecture rises to the challenge by utilizing teamed power stages to rapidly swing current, while maintaining exemplary thermal performance.
A brief history
We became the first manufacturer to implement phase-doublers when we shipped our A8N32-SLI Deluxe motherboard, back in 2005. The board's VRM was lauded for elegantly overcoming the power handling capabilities of components that were available at the time and also reducing voltage ripple. Those benefits led to phase-doublers becoming universally accepted in the industry, and they are still used for similar purposes today.
We became the first manufacturer to implement phase-doublers when we shipped our A8N32-SLI Deluxe motherboard, back in 2005. The board's VRM was lauded for elegantly overcoming the power handling capabilities of components that were available at the time and also reducing voltage ripple. Those benefits led to phase-doublers becoming universally accepted in the industry, and they are still used for similar purposes today.
Teamed Power Stage Design
Conventional Phase-doubled Design
A shift in CPU demands
However, today's CPUs now pack more cores than their predecessors, and the latest instruction sets allow them to crunch computationally dense workloads at an incredible pace. In addition, they consume less power at idle and can transition between load states much more quickly. These improvements necessitate a re-evaluation of power-design priorities because phase-doublers add a propagation delay that hampers transient response.
While doublers help extend the number of effective phases, they do so at the cost of a processing delay.
However, today's CPUs now pack more cores than their predecessors, and the latest instruction sets allow them to crunch computationally dense workloads at an incredible pace. In addition, they consume less power at idle and can transition between load states much more quickly. These improvements necessitate a re-evaluation of power-design priorities because phase-doublers add a propagation delay that hampers transient response.
While doublers help extend the number of effective phases, they do so at the cost of a processing delay.
Teamed Power Stage Design
Conventional Phase-doubled Design
Bucking the trend
Fortunately, the latest integrated power components can handle higher currents than the devices of yesteryear, making it possible to implement a simple circuit topology that isn't hamstrung by the processing lag of phase-doublers. That's why ROG Crosshair VIII Dark Hero utilizes teamed power stages to deliver higher burst current per phase, while maintaining the thermal performance of phase-doubled designs.
The teamed architecture allows two power stages to work in tandem to provide more power to the CPU.
Fortunately, the latest integrated power components can handle higher currents than the devices of yesteryear, making it possible to implement a simple circuit topology that isn't hamstrung by the processing lag of phase-doublers. That's why ROG Crosshair VIII Dark Hero utilizes teamed power stages to deliver higher burst current per phase, while maintaining the thermal performance of phase-doubled designs.
The teamed architecture allows two power stages to work in tandem to provide more power to the CPU.
Teamed Power Stage Design
Conventional Phase-doubled Design
Thermal performance
Each VRM component serves a specific purpose. PWM controllers and phase-doublers control the circuit, and the power stages do the heavy lifting from an electrical and thermal standpoint. That's why ROG Crosshair VIII Dark Hero utilizes 16 power stages. The power stage sits at the top of Infineon's lineup and features a low RDSON to reduce switching and conduction losses, helping to improve overall thermal headroom.
The MOSFETs within the power stages generate the most heat as they are responsible for voltage conversion and delivery to the CPU from the 12 V EPS connector.
Each VRM component serves a specific purpose. PWM controllers and phase-doublers control the circuit, and the power stages do the heavy lifting from an electrical and thermal standpoint. That's why ROG Crosshair VIII Dark Hero utilizes 16 power stages. The power stage sits at the top of Infineon's lineup and features a low RDSON to reduce switching and conduction losses, helping to improve overall thermal headroom.
The MOSFETs within the power stages generate the most heat as they are responsible for voltage conversion and delivery to the CPU from the 12 V EPS connector.
Teamed Power Stage Design
Conventional Phase-doubled Design
High Quality Components
MicroFine alloy chokes
Each Power stage is accompanied by a high-permeability alloy-core choke rated to handle 45Â amps.
Memory
ASUS OptiMem III
Infused with proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, Optimem III allows memory kits to run at lower latencies, reduced voltages, and operate at higher frequencies. Stack the Dark Hero with your favorite modules and maximize Zen 3 processors throughput for applications that demand massive bandwidth, or balance infinity fabric and memory performance for a diverse range of workloads.
ASUS OptiMem III
Infused with proprietary memory trace layout tweaks that improve signal integrity and mitigate noise, Optimem III allows memory kits to run at lower latencies, reduced voltages, and operate at higher frequencies. Stack the Dark Hero with your favorite modules and maximize Zen 3 processors throughput for applications that demand massive bandwidth, or balance infinity fabric and memory performance for a diverse range of workloads.
G.Skill Memory 4 x 32 GB CL18 @3600 MHz
Lower the data is better
OptiMem III
CL 16
No OptiMem IIIÂ CL 18
CL 16
No OptiMem IIIÂ CL 18
Lower the data is better
Test Configuration: AMD Ryzenâ„¢ 9 5950X | ROG Crosshair VIII Dark Hero
High Frequency
Max Capacity without Compromise
Heatsinks
Cooling Heatsinks
Cooling Heatsinks
- VRM heatsink
The two VRM heatsinks are placed above the MOSFETs and chokes, and are connected by a heat-pipe to further increase surface area for heat dissipation. - M.2 heatsink
Two dedicated heatsinks keep the dual M.2 SSDs at the optimum operating temperature for consistent performance and reliability.
- High-conductivity thermal pad
A high-quality thermal pad improves overall heat transfer from the system by bridging the heat generated by the power stages to the heatsink. - Passive chipset heatsink
A dedicated chipset heatsink draws heat away to maintain optimum operating temperatures.
Headers
Cooler by design
ROG Crosshair VIII Dark Hero features the most comprehensive cooling options ever.
Cooler by design
ROG Crosshair VIII Dark Hero features the most comprehensive cooling options ever.
Multiple temperature sources
Each header can be set to monitor and react to three user-configurable thermal sensors for workload-based cooling. All settings can be easily managed by Fan Xpert 4 or UEFI.
ROG Water-Cooling Zone
Dual water-temperature headers and a flow-rate header feed information straight into the AI Suite utility, allowing you to track coolant temperatures and the flow rate of the entire loop.
Dual water-temperature headers and a flow-rate header feed information straight into the AI Suite utility, allowing you to track coolant temperatures and the flow rate of the entire loop.
5-way optimization
Performance Level Up
The dashboard-style control panel of AI Suite 3 lets you fine-tune almost every aspect of your ROG Crosshair VIII Dark Hero system with ease. Get the best balance between performance, cooling, stability, and efficiency via one simple and intuitive interface.
Performance Level Up
The dashboard-style control panel of AI Suite 3 lets you fine-tune almost every aspect of your ROG Crosshair VIII Dark Hero system with ease. Get the best balance between performance, cooling, stability, and efficiency via one simple and intuitive interface.
EPU
All-around energy efficiency
With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
All-around energy efficiency
With the Energy Processing Unit (EPU) you'll enjoy system-wide power savings. The EPU automatically optimizes power consumption and maximizes savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers.
BIOS
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.
UEFI BIOS
The renowned ROG UEFI (BIOS) provides everything you need to configure, tweak, and tune your rig. It offers intelligently simplified options for newcomers to PC DIY, as well as comprehensive features for seasoned veterans.
Advanced Mode
When you're ready for a deeper dive, delve into the UEFI's Advanced mode and take complete control. Advanced mode enables full control over every aspect of the motherboard, and a built-in search function helps you quickly find the setting you need.
When you're ready for a deeper dive, delve into the UEFI's Advanced mode and take complete control. Advanced mode enables full control over every aspect of the motherboard, and a built-in search function helps you quickly find the setting you need.
My Favorites
Quickly find tuning options and add preferred tools to the list.
EZ Flash 3
Flash the latest BIOS via the internet from within the BIOS.
S.M.A.R.T.
Check your storage device Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) logs to gauge reliability and identify potential failures.
GPU POST
Automatically detect selected ASUS graphics cards to view detailed information.
Secure Erase
Restore your SSDs and NVMe storage to factory settings.
Last Modified Log
Track the last change and save preferred profiles to a USB drive.
SATA Port Renaming
Rename SATA ports for easy identification.
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
Q-Fan control
Configure the fan's operating speed manually or use pre-configured fan profiles to quickly select Standard, Silent, Turbo or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75 °C.
Quickly find tuning options and add preferred tools to the list.
EZ Flash 3
Flash the latest BIOS via the internet from within the BIOS.
S.M.A.R.T.
Check your storage device Self-Monitoring, Analysis, and Reporting Technology (S.M.A.R.T.) logs to gauge reliability and identify potential failures.
GPU POST
Automatically detect selected ASUS graphics cards to view detailed information.
Secure Erase
Restore your SSDs and NVMe storage to factory settings.
Last Modified Log
Track the last change and save preferred profiles to a USB drive.
SATA Port Renaming
Rename SATA ports for easy identification.
ASUS User Profile
Port configuration settings between different BIOS versions or share them with friends.
Q-Fan control
Configure the fan's operating speed manually or use pre-configured fan profiles to quickly select Standard, Silent, Turbo or Full Speed modes. By default, system fans will automatically switch to full speed if the temperature reaches 75 °C.
EZ Mode
Designed to simplify setup, EZ mode presents vital settings and stats on a single page. With guided wizards, drag-and-drop functionality, and one-click application of important settings, your rig will be up and running in no time.
Designed to simplify setup, EZ mode presents vital settings and stats on a single page. With guided wizards, drag-and-drop functionality, and one-click application of important settings, your rig will be up and running in no time.
Intuitive graphical fan controls
Fine-tune individual fans simply by dragging a curve with the mouse.
SATA information
View SATA port details for easy device recognition.
Fast and easy clock adjustment
Use the mouse to quickly change time and date settings.
Aura On/Off mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.
Fine-tune individual fans simply by dragging a curve with the mouse.
SATA information
View SATA port details for easy device recognition.
Fast and easy clock adjustment
Use the mouse to quickly change time and date settings.
Aura On/Off mode (Stealth)
Easily enable or disable Aura RGB lighting or every onboard LED, for a more subdued aesthetic.
Differential Sensing
Accurate Voltage Monitoring
Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. ROG Crosshair VIII Dark Hero features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately.
Accurate Voltage Monitoring
Conventional motherboards use single-ended sensing tapped from a location that isn't ideal, leading to a large disparity between the actual voltage fed to the CPU and the value reported to software. ROG Crosshair VIII Dark Hero features a differential-sensing circuit and delicate IC that simplify overclocking and tuning by allowing you to track voltages more accurately.
Networking
Wi-Fi 6 (AX200)
Onboard Wi-Fi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity and better performance in dense Wi-Fi environments, providing exceptional online gaming experiences.*
Pair your motherboard with ASUS Wi-Fi 6 routers to fully experience the networking potential of Wi-Fi 6.
Onboard Wi-Fi 6 (802.11ax) supports ultrafast wireless-networking speeds, improved capacity and better performance in dense Wi-Fi environments, providing exceptional online gaming experiences.*
Pair your motherboard with ASUS Wi-Fi 6 routers to fully experience the networking potential of Wi-Fi 6.
REALTEK 2.5G LAN
2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
2.5G on-board Ethernet kicks your LAN connection up a notch with an up to 2.5X bandwidth improvement. Using your existing LAN cable, you can take advantage this networking upgrade to experience smoother, lag-free gaming, immediately stream high-resolution videos and enjoy faster file transfers.
Intel® 1 Gbps Ethernet
ROG Crosshair VIII Dark Hero features the latest Intel® Ethernet (I211-AT) ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.
ROG Crosshair VIII Dark Hero features the latest Intel® Ethernet (I211-AT) ensuring data exchanges with your network and the outside world are fast and smooth. Intel LAN reduces CPU overhead and increases TCP and UDP throughput, keeping more processing power.
* Actual speed varies, depending on networking conditions.
Storage
UNTHROTTLED TRANSFER SPEED
Dual PCIe 4.0 M.2 Slot support up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the AMD Ryzenâ„¢ 5000 and 3000 Series desktop processors.
AMD STOREMI
AMD StoreMI technology is a software utility that accelerates any drive for better system responsiveness with reduced startup and software load times. It combines SSD performance with the affordability and capacity of an HDD by automatically moving frequently accessed data to dedicated SSD storage.
Dual PCIe 4.0 M.2 Slot support up to 22110 and provide NVMe SSD RAID support for an incredible performance boost. Create a RAID configuration with up to two PCIe 4.0 storage devices to enjoy the fastest data-transfer speeds on the AMD Ryzenâ„¢ 5000 and 3000 Series desktop processors.
AMD STOREMI
AMD StoreMI technology is a software utility that accelerates any drive for better system responsiveness with reduced startup and software load times. It combines SSD performance with the affordability and capacity of an HDD by automatically moving frequently accessed data to dedicated SSD storage.
Bandwidth [MB/s]
PCIe 4.0 x 4Â Â 8066
PCIe 3.0 x 4
  4032
* The actual transmission speed will be lower than the theoretical maximum speed.
Audio
SupremeFX
ROG SupremeFX audio technology delivers an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide best-ever recording quality. There's also a low-dropout regulator for cleaner power delivery to the SupremeFX S1220 codec, an ESS® ES9023P digital-to-analog converter for superior front-panel output, and a Texas Instruments® RC4580 op amp for high gain with low distortion — all to produce unmatched audio quality.
SupremeFX
ROG SupremeFX audio technology delivers an exceptional 113 dB signal-to-noise ratio on the line-in connection to provide best-ever recording quality. There's also a low-dropout regulator for cleaner power delivery to the SupremeFX S1220 codec, an ESS® ES9023P digital-to-analog converter for superior front-panel output, and a Texas Instruments® RC4580 op amp for high gain with low distortion — all to produce unmatched audio quality.
ESS® ES9023P
The ESS® ES9023P digital-to-analog converter creates a perfect balance for top-tier audio clarity capable of 112 dB DNR /-94 dB THD+N for superior front-panel output.
The ESS® ES9023P digital-to-analog converter creates a perfect balance for top-tier audio clarity capable of 112 dB DNR /-94 dB THD+N for superior front-panel output.
Aura Sync
Grow your gaming world
Gear up with ROG components, from graphics and monitors to mice and keyboards. And up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so enjoy greater choice as your system expands.
Grow your gaming world
Gear up with ROG components, from graphics and monitors to mice and keyboards. And up your game with complementary aesthetics, control and compatibility. The ROG ecosystem is more extensive than any competing brand, so enjoy greater choice as your system expands.
Static
Breathing
Strobing
Rainbow
Color cycle
Starry night
Music effect
Smart
RGB Header
Addressable Gen 2 RGB header
The addressable Gen 2 RGB headers now feature software that can automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
Addressable Gen 2 RGB header
The addressable Gen 2 RGB headers now feature software that can automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
Ramcache III
RAMCache lll software utility turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express® storage options, RAMCache lll utilizes uniquely intelligent technology to effectively cache any storage device, so favorite games and apps launch at breakneck speeds.
RAMCache lll software utility turns milliseconds into microseconds to boost game-load times. Fully compatible with the latest NVM Express® storage options, RAMCache lll utilizes uniquely intelligent technology to effectively cache any storage device, so favorite games and apps launch at breakneck speeds.
Audio
Sonic Studio III
Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
* A head-related transfer function is an audio algorithm derived from sound data recorded through a dummy head. Test tones are played from a spherical grid around the dummy head to obtain subtle changes in sounds that come from different directions. The results are combined into an algorithm that allows Sonic Studio's virtual surround to process sound true to life.
Sonic Studio III
Sonic Studio supports HRTF-based (head-related transfer function*) virtual surround for headsets, casting an immersive aural landscape that draws you deeper into the action. The intuitive Sonic Studio interface also offers a range of EQ options and one-click presets, allowing you to tailor acoustics to suit personal preferences or the characteristics of your headset.
* A head-related transfer function is an audio algorithm derived from sound data recorded through a dummy head. Test tones are played from a spherical grid around the dummy head to obtain subtle changes in sounds that come from different directions. The results are combined into an algorithm that allows Sonic Studio's virtual surround to process sound true to life.
Sonic Studio Link
Easily apply Sonic Studio effects on all playback devices. Simply press the Sonic Studio Link button to enjoy the effect on any playback device.
Easily apply Sonic Studio effects on all playback devices. Simply press the Sonic Studio Link button to enjoy the effect on any playback device.
DTS : Sound Unbound
ROG Crosshair VIII Dark Hero includes a pre-loaded DTS Sound Unbound app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By exploiting Windows Sonic spatial technology, DTS Sound Unbound delivers audio in a virtual 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep or other sound in your virtual environment.
* DTS Sound Unbound requires in-game support. Check with developers for titles that offer support.
ROG Crosshair VIII Dark Hero includes a pre-loaded DTS Sound Unbound app that envelops you in audio as never before, conjuring whole new levels of immersion for extraordinary gaming and entertainment experiences. By exploiting Windows Sonic spatial technology, DTS Sound Unbound delivers audio in a virtual 3D space — putting you right in the middle of the soundscape, where you can sense the location and direction of every gunshot, footstep or other sound in your virtual environment.
* DTS Sound Unbound requires in-game support. Check with developers for titles that offer support.
Stereo Sound
Surround Sound
Spatial Sound
Armoury Crate
Armoury Crate
Armoury Crate is a software utility designed to provide centralized control of supported ROG gaming products. From a single intuitive interface, Armoury Crate puts command of all your Aura gear at your fingertips with the new Aura Creator suite ready. The software also provides control of settings for a growing number of ROG products, making it easier to tune the look and feel of your system. Armoury Crate even offers dedicated product registration and ROG news feeds to help you stay in touch with the ROG gaming community.
Armoury Crate
Armoury Crate is a software utility designed to provide centralized control of supported ROG gaming products. From a single intuitive interface, Armoury Crate puts command of all your Aura gear at your fingertips with the new Aura Creator suite ready. The software also provides control of settings for a growing number of ROG products, making it easier to tune the look and feel of your system. Armoury Crate even offers dedicated product registration and ROG news feeds to help you stay in touch with the ROG gaming community.
- Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details.
- *Precise specifications and features vary by model . Please refer to the specification page.
- The product (electrical , electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for disposal of electronic products.
- The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos or slogans, is being used as trademark under common laws protection and/or registered as Trademark in U.S. and/or other country/region.
- Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products.
- All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets.
- Specifications and features vary by model, and all images are illustrative. Please refer to specification pages for full details.
- PCB color and bundled software versions are subject to change without notice.
- Brand and product names mentioned are trademarks of their respective companies.
About ASUS
ASUS aspires to deliver the incredible in everything it does. With more than 17,000 employees around the globe with a world-class R&D team of 5,500 engineers, ASUS is dedicated to the design and manufacture of products that perfectly meet the needs of today’s (and tomorrow’s) digital home and office. ASUS’ broad portfolio includes motherboards, graphics cards, displays, desktop PCs, all-in-one PCs, laptops, servers, wireless networking devices, tablets, smartphones and wearables. Driven by innovation and committed to quality, the company won 4,385 awards and earned approximately US$13.3 billion of revenue in 2016.
© 2020 ASUS Computer International. All Rights Reserved. ASUS is a registered trademark of ASUSTeK Computer. All specifications and terms are subject to change without notice. Please check with your supplier for exact offers on selected models. Products may not be available in all markets. Product may not be exactly as shown in photos. Actual colors may differ from their appearance due to variation of monitor restrictions and color processing. All trademarks are registered to their respective companies. ASUS shall not be liable for technical or editorial errors or omissions contained herein.
ASUS aspires to deliver the incredible in everything it does. With more than 17,000 employees around the globe with a world-class R&D team of 5,500 engineers, ASUS is dedicated to the design and manufacture of products that perfectly meet the needs of today’s (and tomorrow’s) digital home and office. ASUS’ broad portfolio includes motherboards, graphics cards, displays, desktop PCs, all-in-one PCs, laptops, servers, wireless networking devices, tablets, smartphones and wearables. Driven by innovation and committed to quality, the company won 4,385 awards and earned approximately US$13.3 billion of revenue in 2016.
© 2020 ASUS Computer International. All Rights Reserved. ASUS is a registered trademark of ASUSTeK Computer. All specifications and terms are subject to change without notice. Please check with your supplier for exact offers on selected models. Products may not be available in all markets. Product may not be exactly as shown in photos. Actual colors may differ from their appearance due to variation of monitor restrictions and color processing. All trademarks are registered to their respective companies. ASUS shall not be liable for technical or editorial errors or omissions contained herein.
Specifications :
General Information
| UPC | 192876961629 |
|---|
- Choosing a selection results in a full page refresh.
- Opens in a new window.
