ASRock
Asrock Z590M Phantom Gaming 4 Lga 1200 Intel Z590 Sata 6Gb/S Micro Atx Intel Motherboard
Asrock Z590M Phantom Gaming 4 Lga 1200 Intel Z590 Sata 6Gb/S Micro Atx Intel Motherboard
SKU:Z590M PHANTOM GAM 4
Couldn't load pickup availability
Description :
- Intel Z590
- Supports 10th Gen Intel Core Processors
- Supports 11th Gen Intel Core Processors
- 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)
- 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4600+(OC)
- Supports 10th Gen Intel Core Processors and 11th Gen Intel Core Processors
- 8 Phase Power Design
- Supports DDR4 4800MHz (OC)
- 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x4, 1 x PCIe 3.0 x1
- 1 x M.2 Key-E for WiFi
- Graphics Output Options: HDMI
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec), Nahimic Audio
- 4 SATA3, 1 x Hyper M.2 (PCIe Gen4 x4)
- 1 x Ultra M.2 (PCIe Gen3 x4 & SATA3)

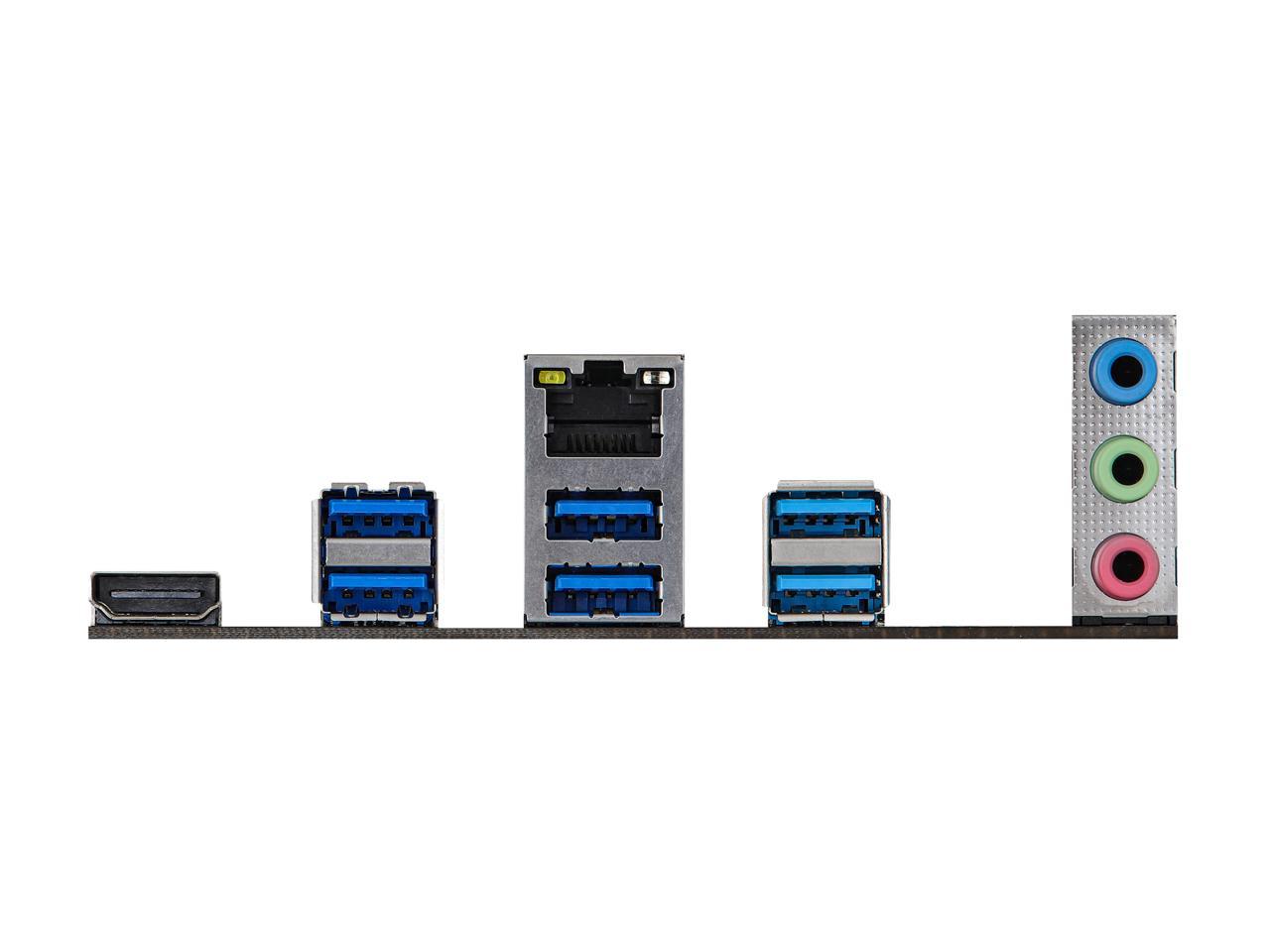

- 2 x Rear USB 3.2 Gen2 (10Gb/s)
- 8 x USB 3.2 Gen1 (4 x Rear, 4 x Front), 4 x Front USB 2.0
- Intel Gigabit LAN

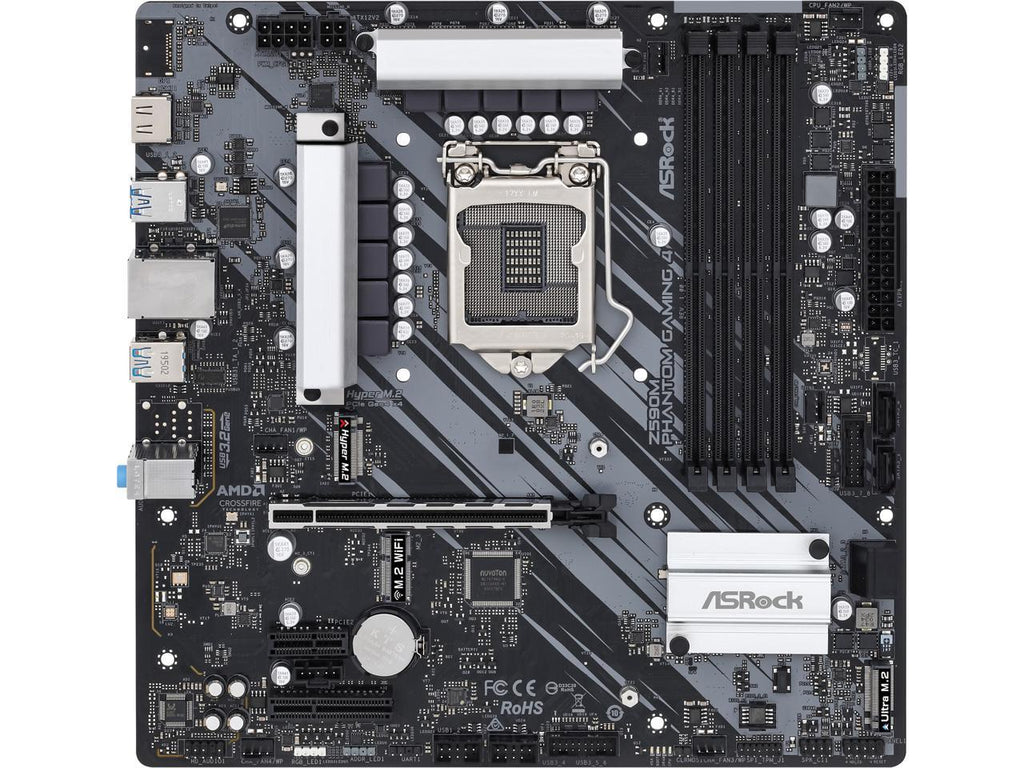

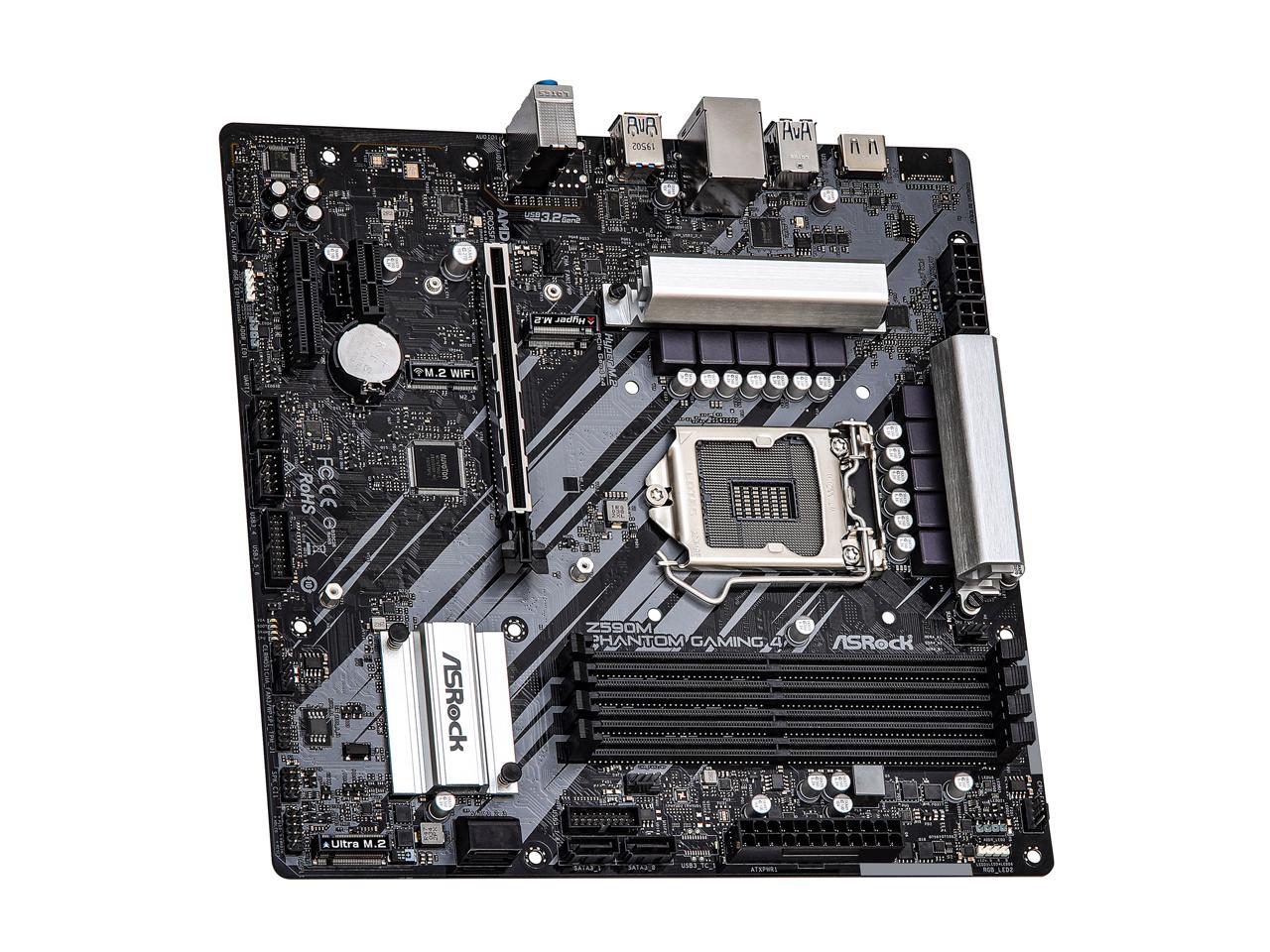

ASRock Z590M Phantom Gaming 4
A micro ATX Z590 motherboard oriented and optimized for gaming. Its steel-reinforced PCIe slot offers strong support for beefy graphics card. The latest PCIe 4.0 unleashes full performance of new generation M.2 SSDs and VGA cards. And built with Super Alloy components and a set of onboard heatsink, the Z590M Phantom Gaming 4 will keep running cool and stable even in the heat of gaming.
Phantom Gaming is designed by gamers and for gamers! Underneath its relentless appearance lie plentiful gaming oriented features and excellent gaming capabilities. It’s all about bringing a new gaming experience to gamers!
8 Power Phase Design
Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers enhanced performance with the lowest temperature for advanced gamers.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.
Who ever said that only K series CPUs and the Z-family platform are capable of being performed with maximum power. Via ASRock BFB (Base Frequency Boost) Technology, users may install their non K series CPUs to ASRock’s selected 500 series motherboards and enjoy the base frequency boost with the hidden power of processors immediately.
While ASRock BFB breathes life into non K series CPUs, the boost frequency currently still depends on the cooling system applied on your rig.
** BFB frequency performance results may vary between different CPUs and hardware configurations. Frequency shown in this chart is for reference only.
PCIe 4.0 High Speed M.2 Solution
This motherboard is capable of accommodating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD, it is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
2 x USB3.2 Gen2
Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen2 technology advances the data transfer rate up to 10Gb/s. ASRock provides 2 x USB 3.2 Gen2 ports onboard allows you to have a stunning data transfer experience.
The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
? Extra anchor points
? Stronger latch
? Ensure signal stability
? Make sure heavy graphics cards to be well-installed.
Intel LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver ultimate network experience to users!
This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.
* The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
* The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.
M.2 (KEY E) For WiFi
Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
* Wi-Fi module is not included.
POST Status Checker
An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is a fast and easy way to identify the source of the problem.
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
Premium 50A Power Choke
Compared to traditional chokes, ASRock’s premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.
Sapphire Black PCB
Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.
High Density Glass Fabric PCB
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
Specifications :
General Information
| UPC | 4710483933851 |
|---|
