Asrock Z590 Steel Legend Wifi 6E Lga 1200 Intel Z590 Sata 6Gb/S Atx Intel Motherboard

Asrock Z590 Steel Legend Wifi 6E Lga 1200 Intel Z590 Sata 6Gb/S Atx Intel Motherboard


Regular price $254.99
Regular price Sale price $254.99
Sale Sold out
Shipping calculated at checkout.
        View full details
        Reviews, Que. & Ans.

        Description :

        • Intel Z590
        • Supports 10th Gen Intel Core Processors
        • Supports 11th Gen Intel Core Processors
        • 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
        • 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*
        • * 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666.
        • * 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
        • * Please refer to Memory Support List on ASRock's website for more information. (

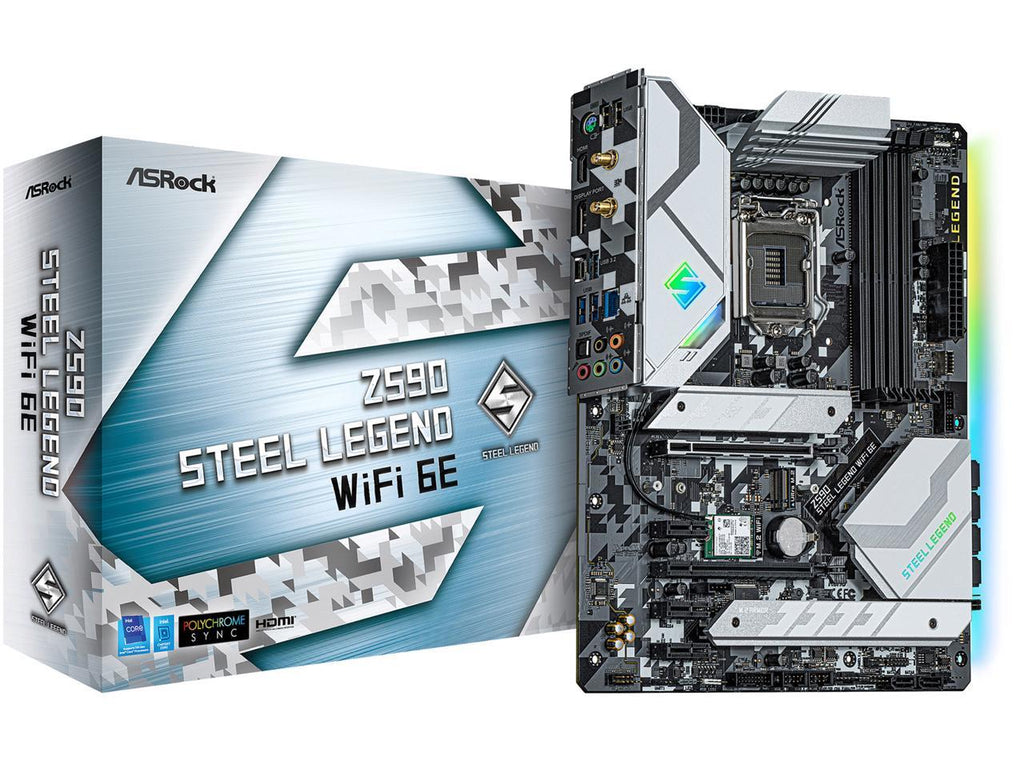

        ASRock Z590 Steel Legend WiFi 6E

        A well-rounded ATX motherboard that fully supports 11th Gen Intel Core processors and is luxuriously equipped for your next powerhouse. Along with PCIe Gen4 M.2 and USB 20 Gbps for the latest SSD and peripherals, 2.5 GbE LAN and Wi-Fi 6E are also built onboard for ultra-fast network connection, both wired and wireless. Aesthetically, the Z590 Steel Legend WiFi 6E sports striking black and silver colorway complemented by camouflage pattern and RGB lighting.


        Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance.

        Style in Details

        Featuring sturdy components as well as more elaborately styled pieces.

        14 Power Phase Design

        Designed with a 14 Power Phase design, this motherboard features sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

        Clever Access Memory

        Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With Clever Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increases performance.

        PCIe 4.0 High Speed M.2 Solution

        This motherboard is capable of accommodating multiple M.2 storage devices, one of which can even support next generation PCI Express 4.0 M.2 SSD that is capable of performing twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

        The M.2 Heatsink is default equipped with M.2_1 socket to pair with Intel 11th Gen processor. You may use it for M.2_2 if you’re using the Intel 10th Gen processor to get the best heat dissipation.

        ASRock Graphics Card Holder

        Install your heavy graphics card on the holder and connect it to your motherboard and chassis with screws. Flexibly slide up and down to perfectly adjust the height required for your graphics card in place.

        Dragon 2.5 Gb/s LAN

        The intelligent 2.5 Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet. You’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.


        Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and the competitive edge.

        Wi-Fi 6E 802.11ax

        WiFi 6E technology has been extended to the whole new 6 GHz spectrum band, providing more WiFi capability and giving an even better and faster internet traffic. In addition to delivering higher speeds, the WiFi 6E also enhances the lower latency and supports service levels that are equivalent to 5G networks.

        Wi-Fi 6E (6 GHz band) is not currently enabled by default due to the different regulation status of each country. It will be activated (for supported countries) through Windows Update and software update once available.

        USB 3.2 Gen2 x2 Type-C

        The latest USB 3.2 Gen2 x2 Type-C delivers up to 20 Gbps data transfer rate which is 2x as fast as previous generation, providing a blazing fast data transfer interface with reversible USB Type-C design that fits the connector either way.

        Dual USB 3.2 Gen2 (Type-A + Type-C)

        This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.

        Reinforced Steel Slot [PCIe 4.0 Version]

        The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:

        • Extra anchor points
        • Stronger latch
        • Ensure signal stability
        • Make sure heavy graphics cards to be well-installed.

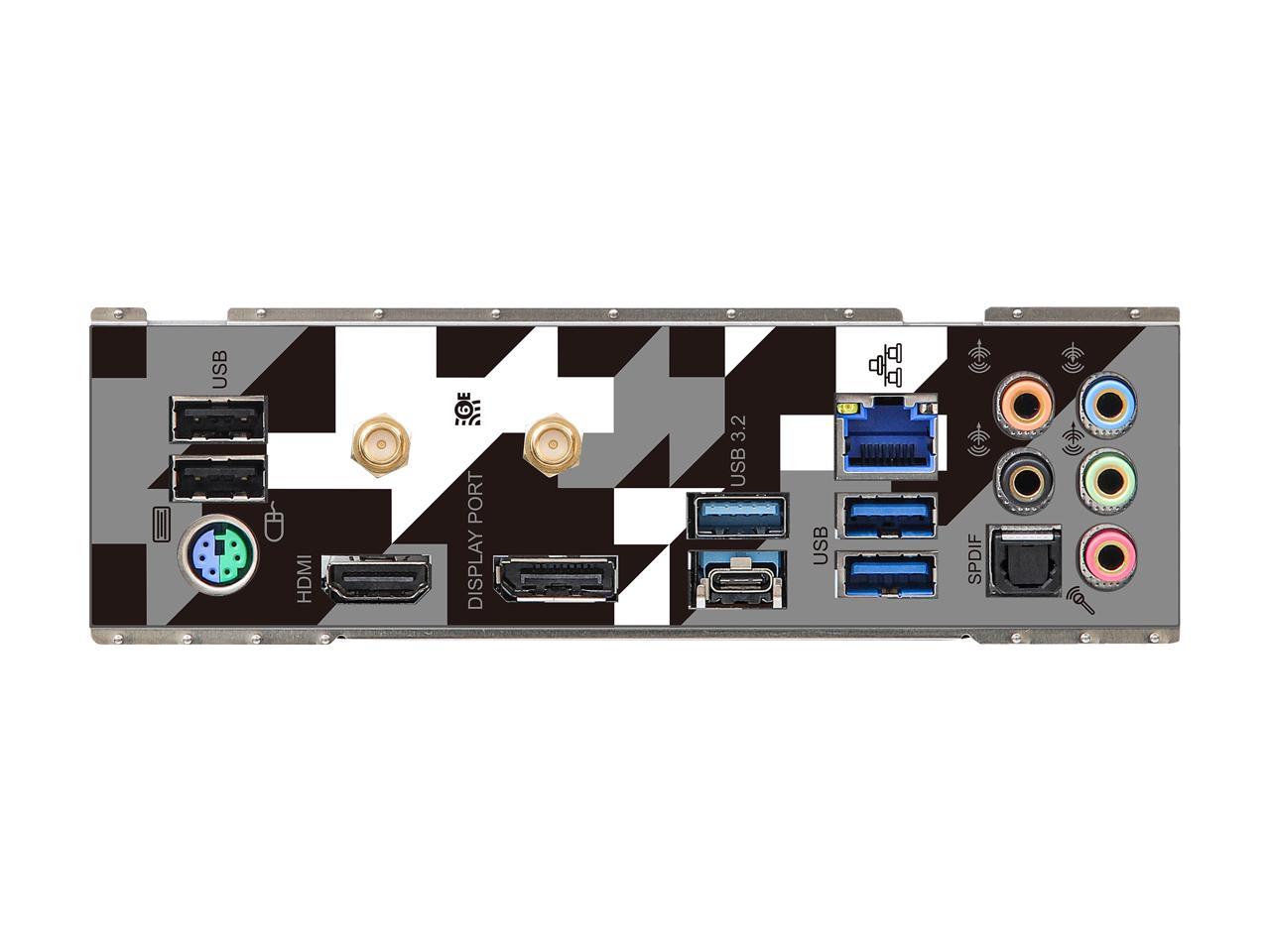

        Flexible Integrated I/O Shield

        Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow I/O shield to be adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

        2oz Copper PCB

        2 ounce copper inner layers provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking, it's able to support the latest DDR4 memory modules with the most extreme memory performance!


        ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive lighting control to let the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices perform smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.


        * The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.

        * The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

        Nahimic Audio

        Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.


        The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

        Post Status Checker

        An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is a fast and easy way to identify the source of the problem.

        HDMI 4k @60Hz

        Supports the most recent HDMI 4K 60 Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.


        Water Pump Header

        This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.


        Full Spike Protection

        Some sensitive digital components on the motherboard are vulnerable to power surges. The excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.


        Live Update & APP Shop

        ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
