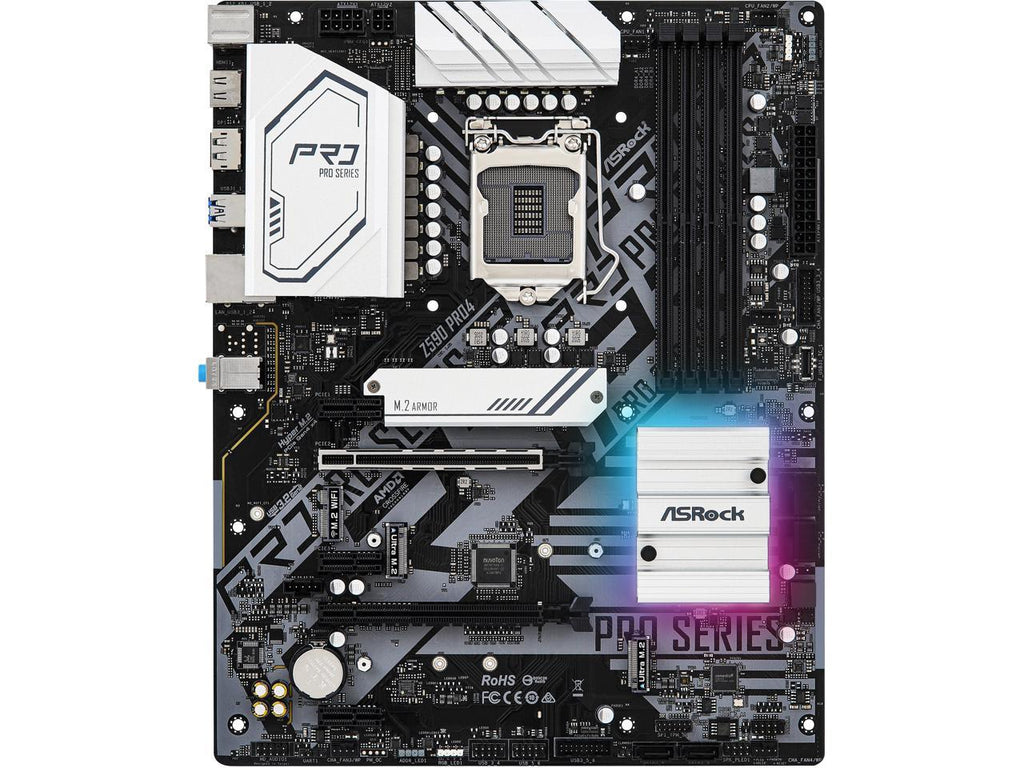

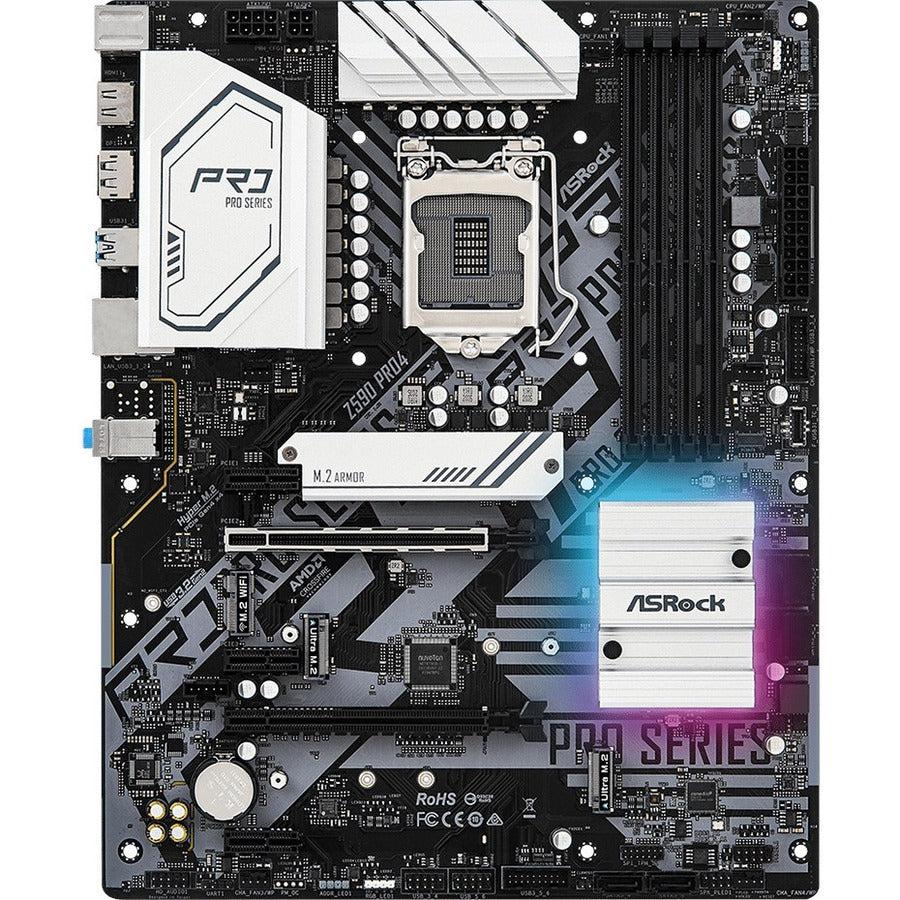

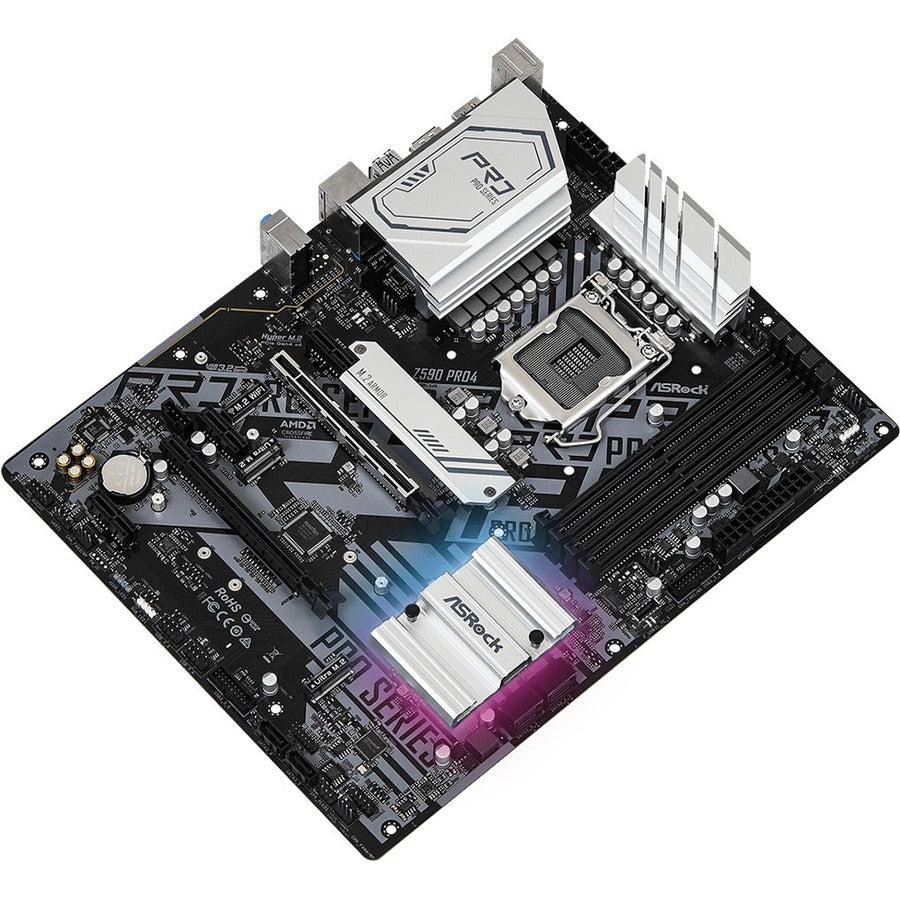

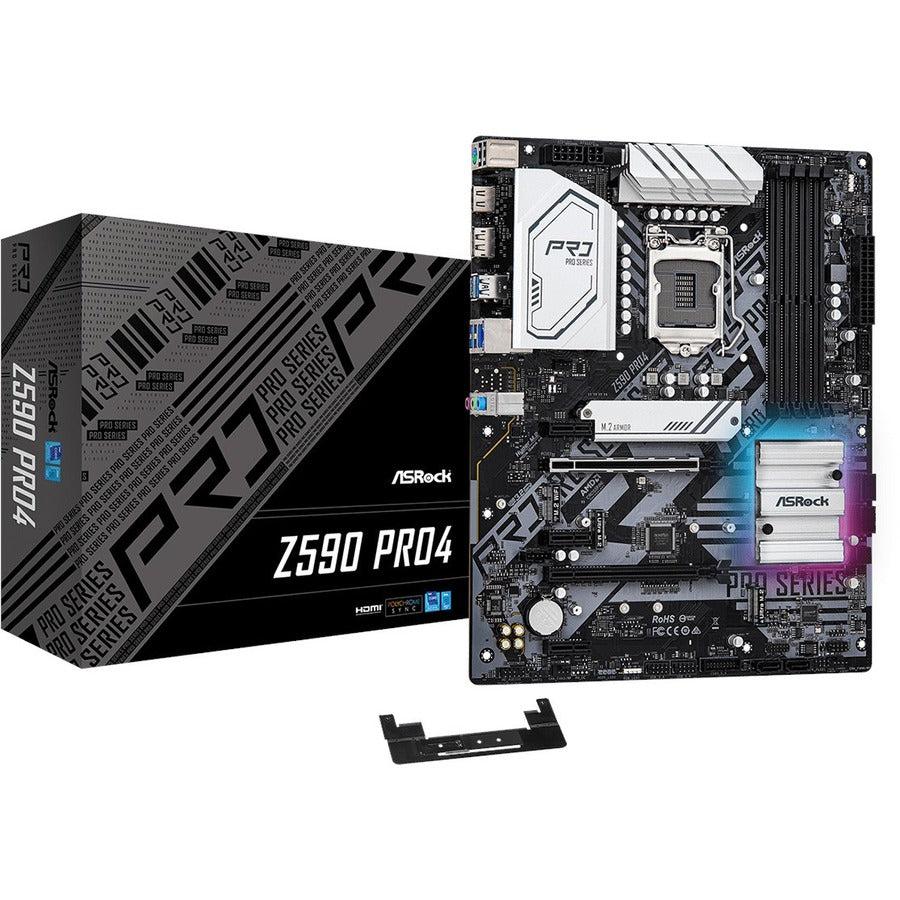

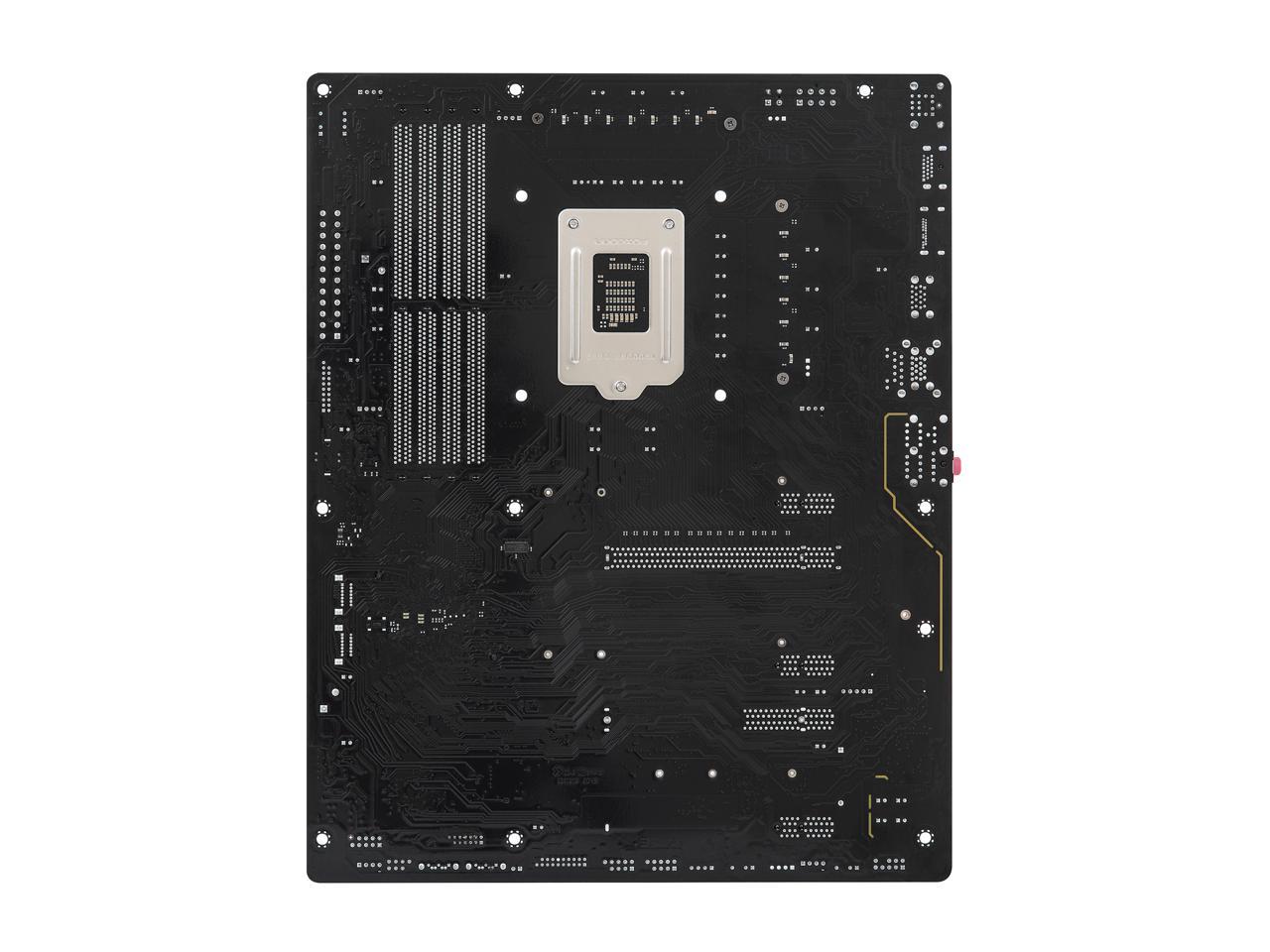

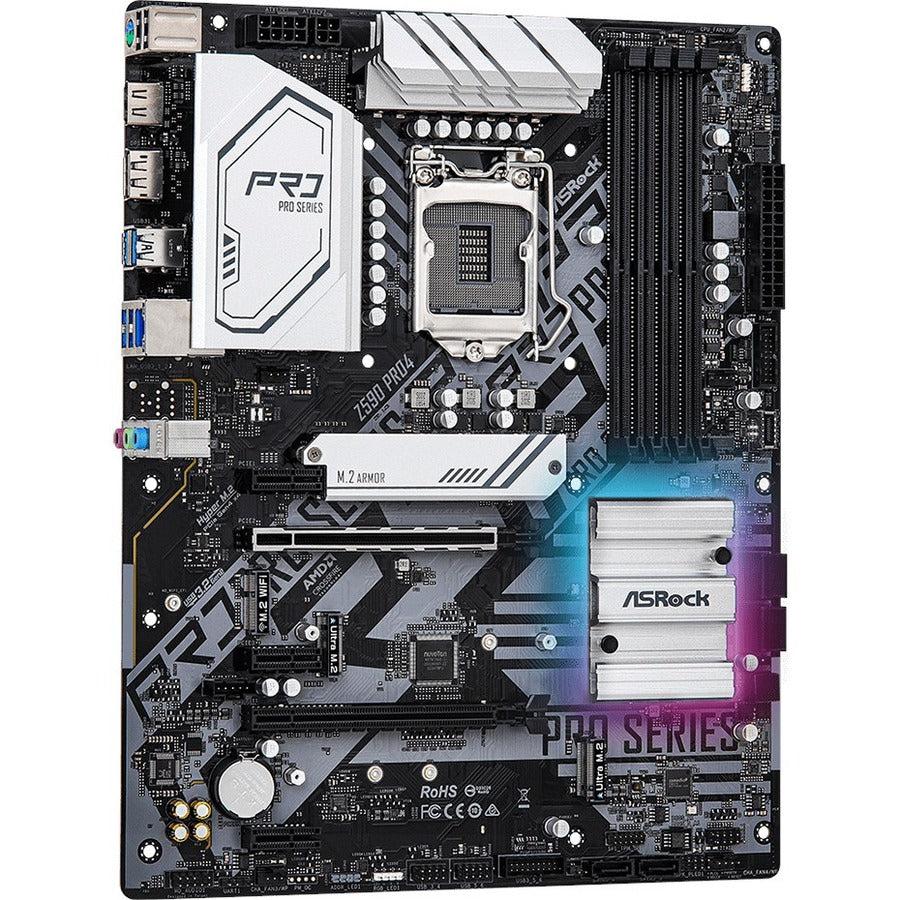

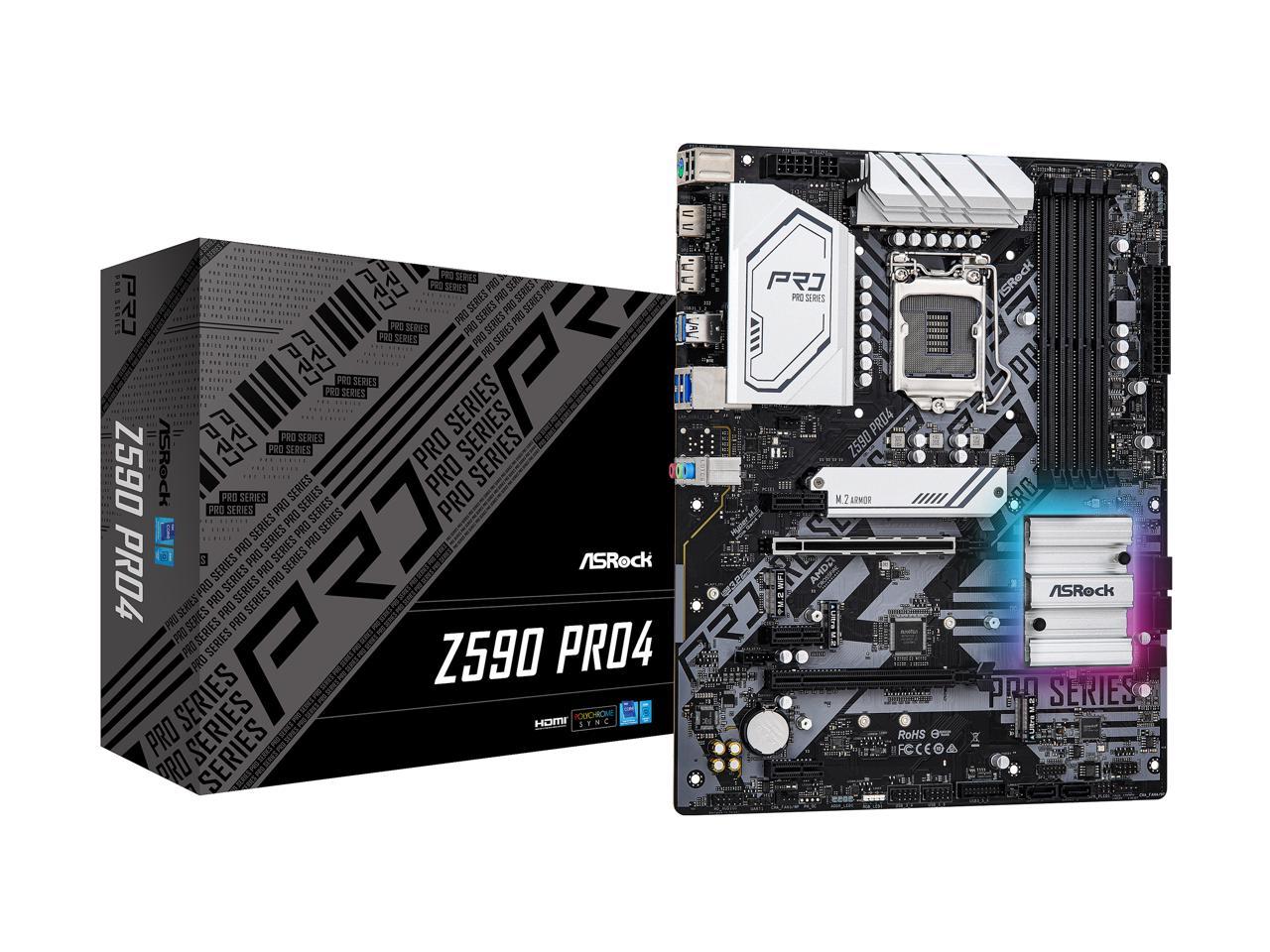

Asrock Z590 Pro4 Lga 1200 Intel Z590 Sata 6Gb/S Atx Intel Motherboard

Name: Asrock Z590 Pro4 Lga 1200 Intel Z590 Sata 6Gb/S Atx Intel Motherboard
Brand: ASRock
SKU: Z590 PRO4
Price: 199.99 USD
Availability: InStock

Asrock Z590 Pro4 Lga 1200 Intel Z590 Sata 6Gb/S Atx Intel Motherboard

SKU:Z590 PRO4

$199.99

Sale Sold out

Shipping calculated at checkout.

Product variants

Quantity

View full details

Description

Specifications

Reviews, Que. & Ans.

Description :

Intel Z590
Supports 10th Gen Intel Core Processors
Supports 11th Gen Intel Core Processors
11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)
10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)

**Model**
Brand	ASRock
Model	Z590 PRO4

**Supported CPU**
CPU Socket Type	LGA 1200
CPU Type	Supports 10th Gen Intel Core Processors Supports 11th Gen Intel Core Processors
Supported CPU Technologies	Turbo Boost Technology 3.0

**Chipsets**
Chipset	Intel Z590

**Onboard Video**
Onboard Video Chipset	Supported only by CPU with integrated graphic

**Memory**
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4800+(OC) (11th Gen Intel Core Processors support)* DDR4 4666+(OC) (10th Gen Intel Core Processors support)* * 11th Gen Intel Core (i9/i7/i5) support DDR4 3200 natively; Core (i3), Pentium and Celeron support DDR4 2666 natively. * 10th Gen Intel Core (i9/i7) support DDR4 2933 natively; Core (i5/i3), Pentium and Celeron support DDR4 2666 natively.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

**Expansion Slots**
PCI Express 4.0 x16	1 x PCI Express 4.0 x16 (PCIE2) * Actual support may vary by CPU. * Supports NVMe SSD as boot disks.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16 (PCIE4) * Supports NVMe SSD as boot disks.
PCI Express x1	3 x PCI Express 3.0 x1
Other Slots	1 x M.2 Socket (Key E), supports type 2230 WiFi/BT module and Intel CNVi (Integrated WiFi/BT) 15µ Gold Contact in VGA PCIe Slot (PCIE2)

**Storage Devices**
SATA 6Gb/s	6 x SATA 6Gb/s* * If M2_2 is occupied by a SATA-type M.2 device, SATA3_2 will be disabled. * If M2_3 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled. * If M2_3 is occupied by a PCIe-type M.2 device, SATA3_0 will be disabled.

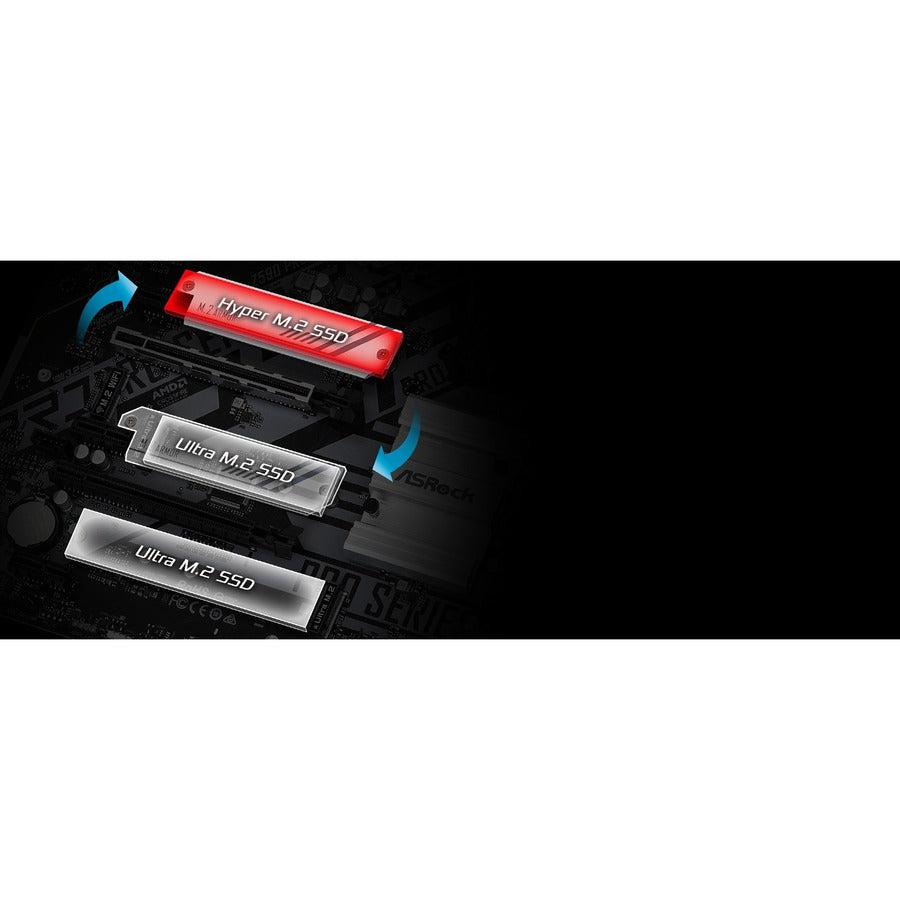

M.2	1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64Gb/s) (Only supported with 11th Gen Intel Core Processors)* 1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)* 1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)* * Supports Intel Optane Technology. * Supports NVMe SSD as boot disks. * Supports ASRock U.2 Kit.
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

**Onboard Audio**
Audio Chipset	Realtek ALC897
Audio Channels	7.1 Channels

**Onboard LAN**
LAN Chipset	Dragon RTL8125BG
Max LAN Speed	10/100/1000/2500Mbps

**Rear Panel Ports**

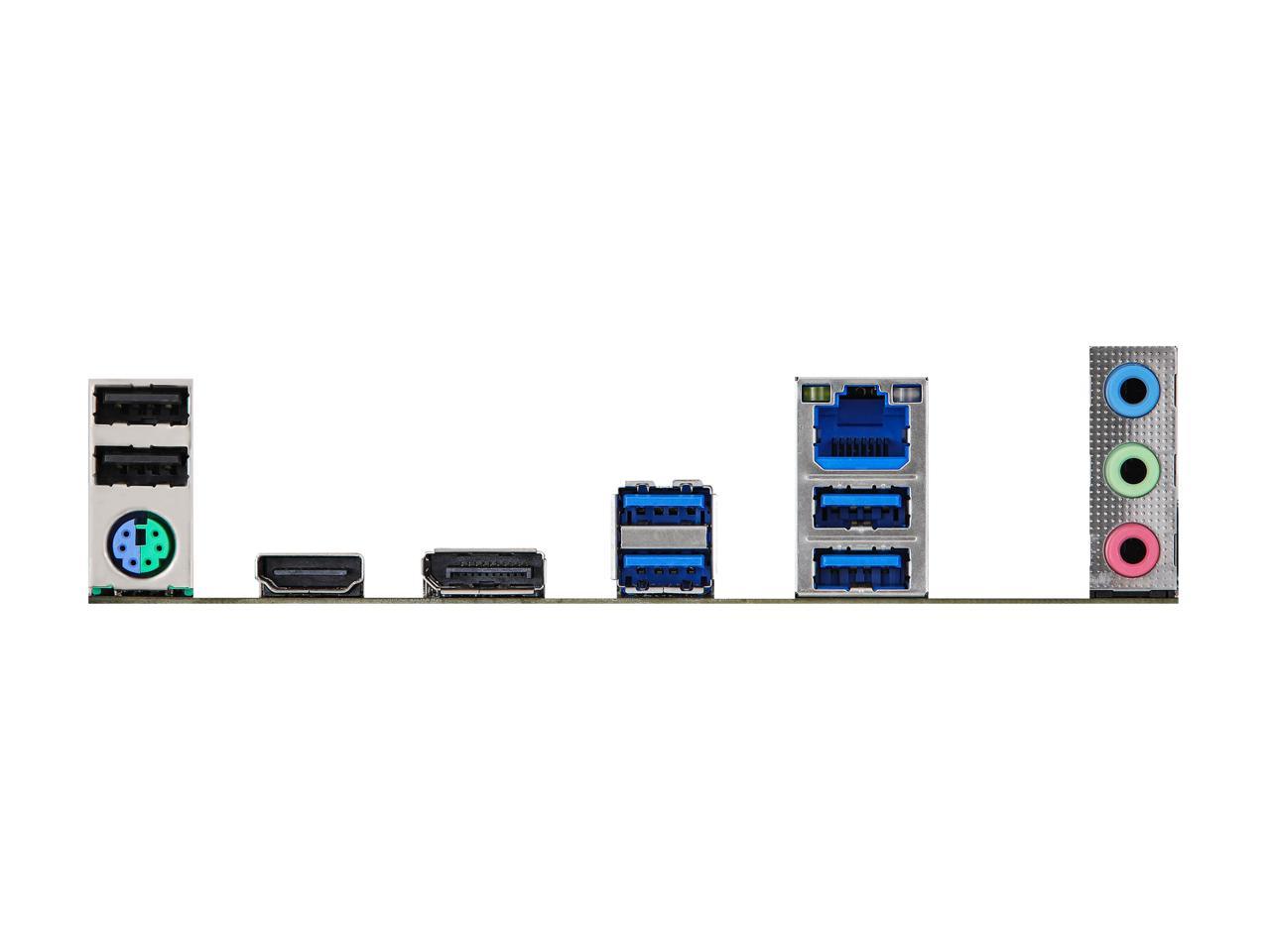

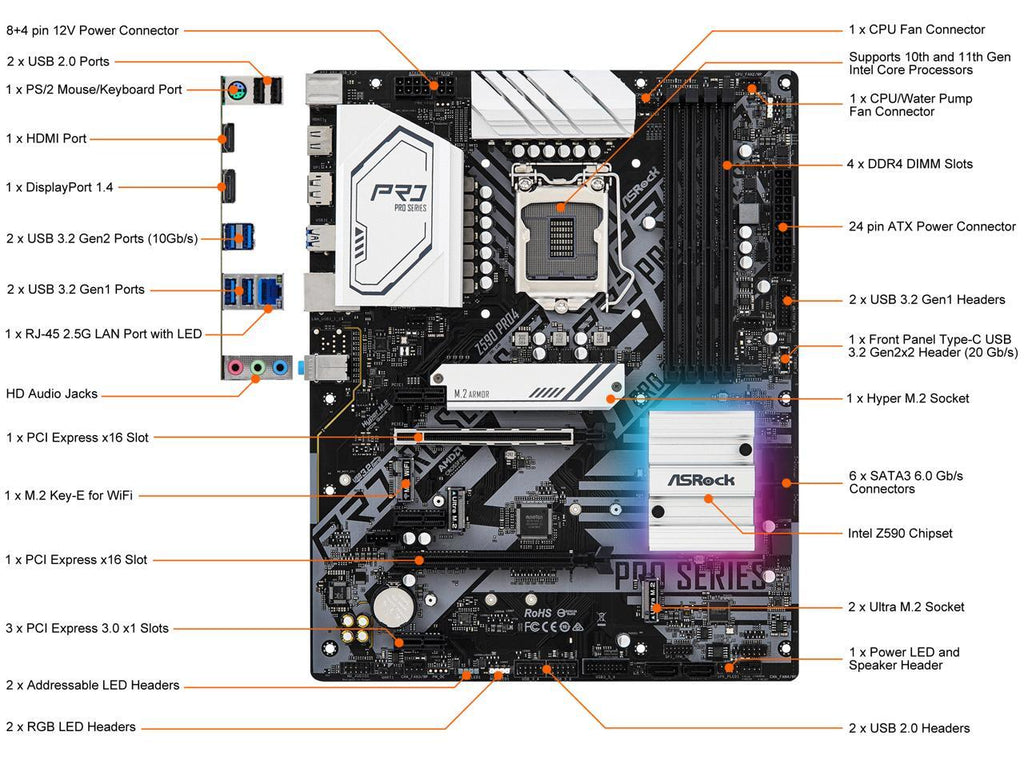

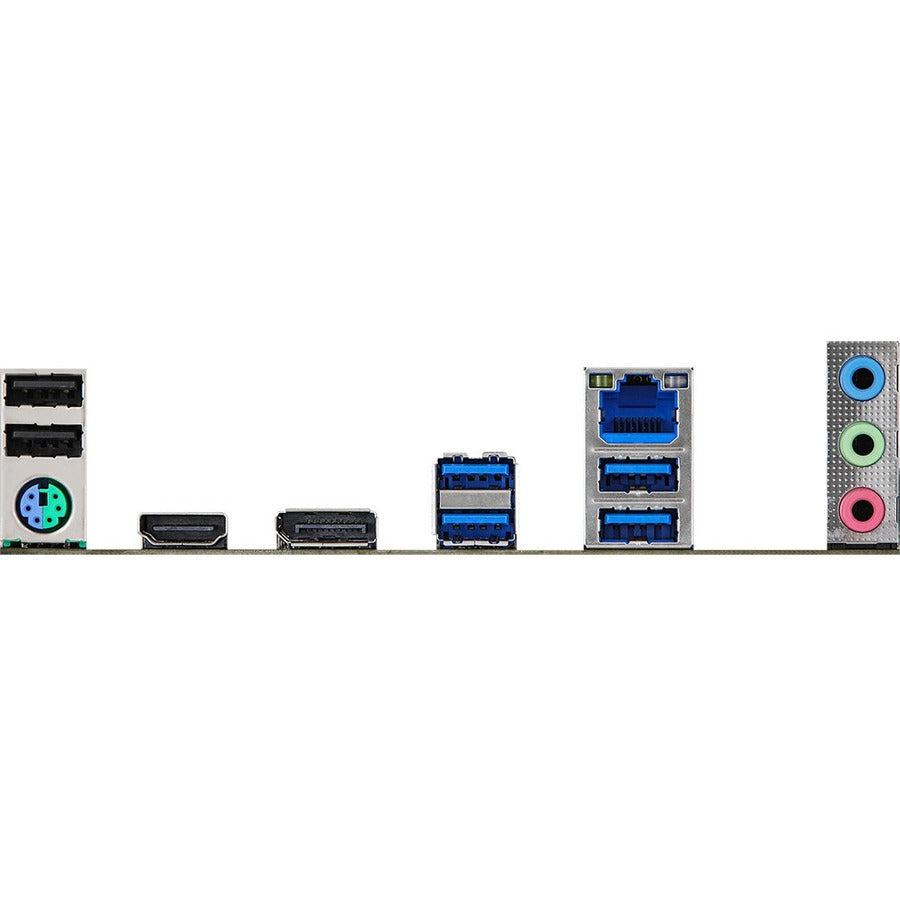

Back I/O Ports	1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 2 x USB 3.2 Gen2 Ports (10Gb/s) (ReDriver) (Supports ESD Protection) 2 x USB 3.2 Gen1 Ports (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone

**Internal I/O Connectors**

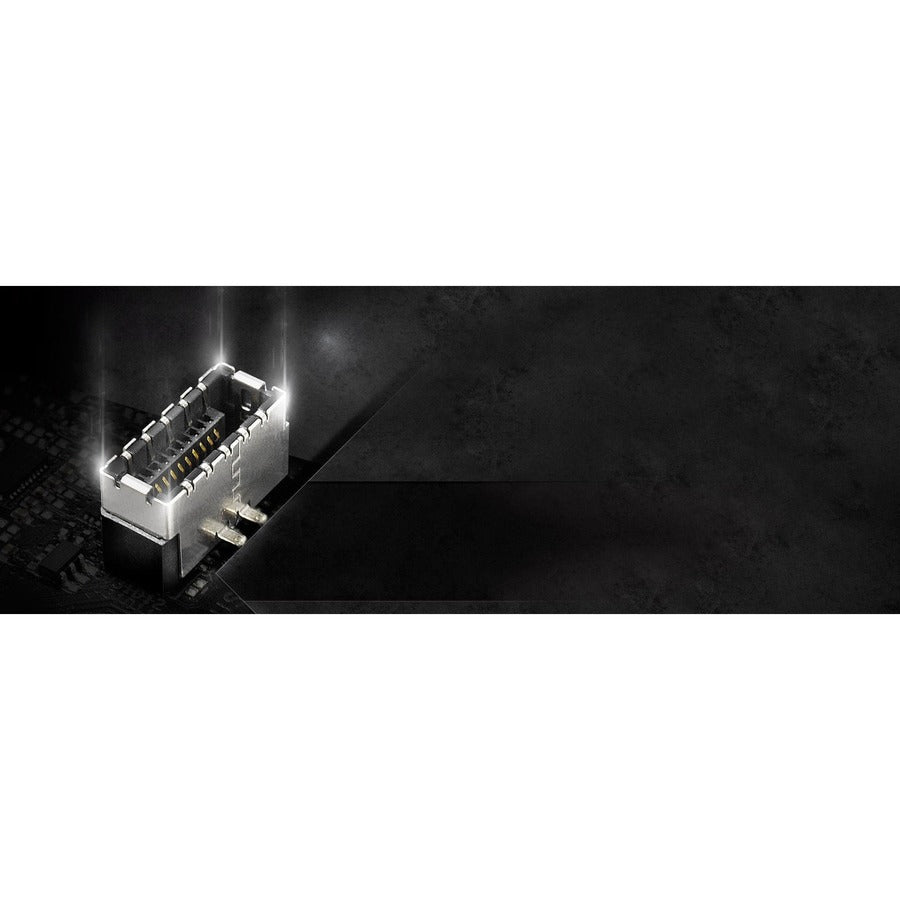

Onboard USB	1 x Front Panel Type C USB 3.2 Gen2x2 Header (20Gb/s) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection) 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)

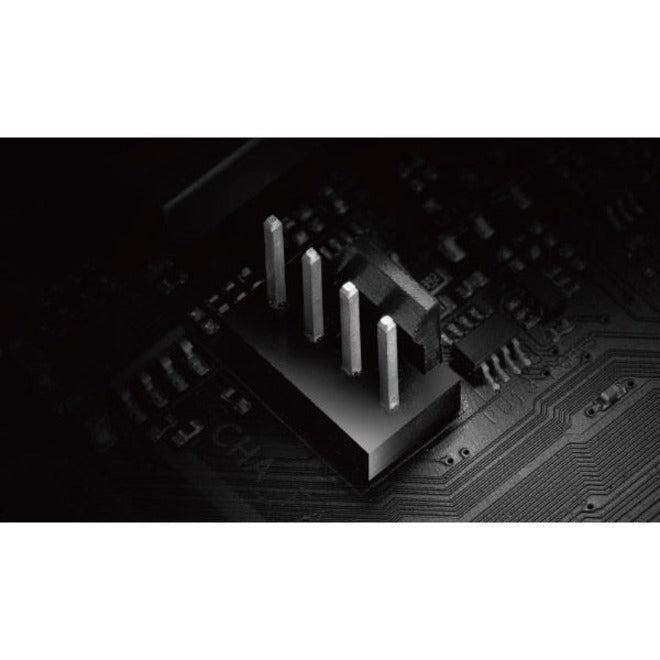

Other Connectors	1 x SPI TPM Header 1 x Power LED and Speaker Header 2 x RGB LED Headers* 2 x Addressable LED Headers 1 x CPU Fan Connector (4-pin)* 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)** 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*** 1 x Front Panel Audio Connector 1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card) * Support in total up to 12V/3A, 36W LED Strip. Support in total up to 5V/3A, 15W LED Strip. * The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power. ** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. * The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power. *** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.

**Physical Spec**
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	304.80 mm x 243.84 mm
Power Pin	1 x 24-pin ATX Power Connector 1 x 8-pin 12V Power Connector (Hi-Density Power Connector) 1 x 4-pin 12V Power Connector (Hi-Density Power Connector)

**Windows Compatibility**
Windows 11	Supported

**Features**

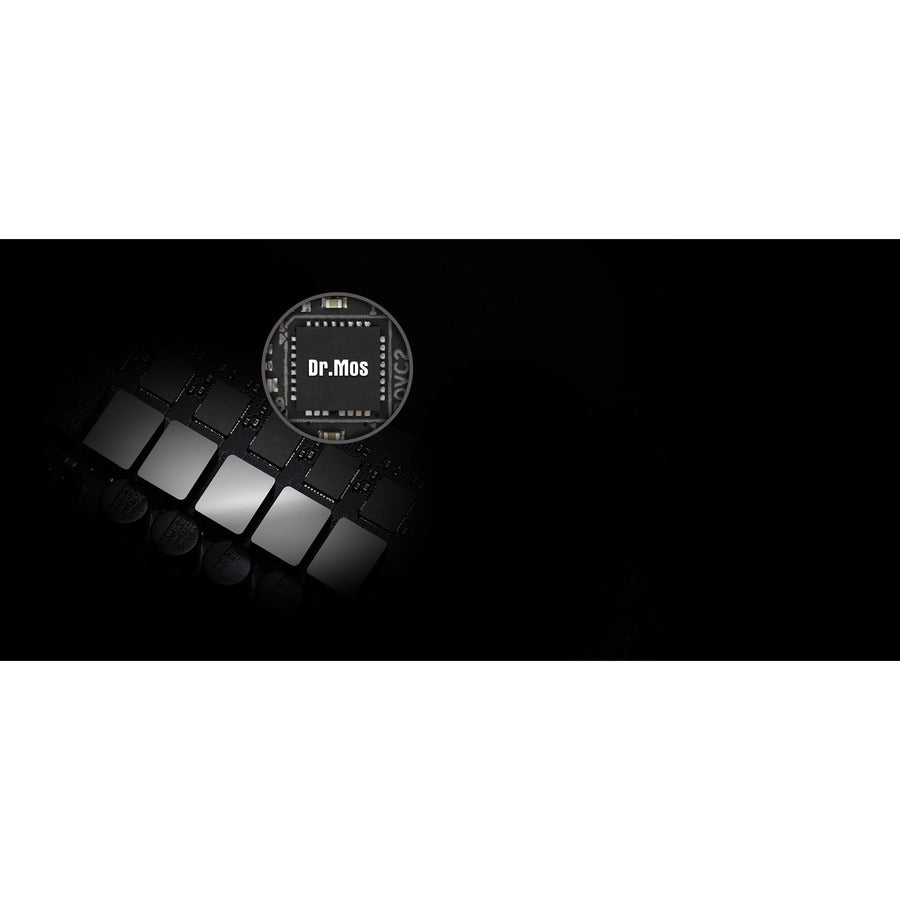

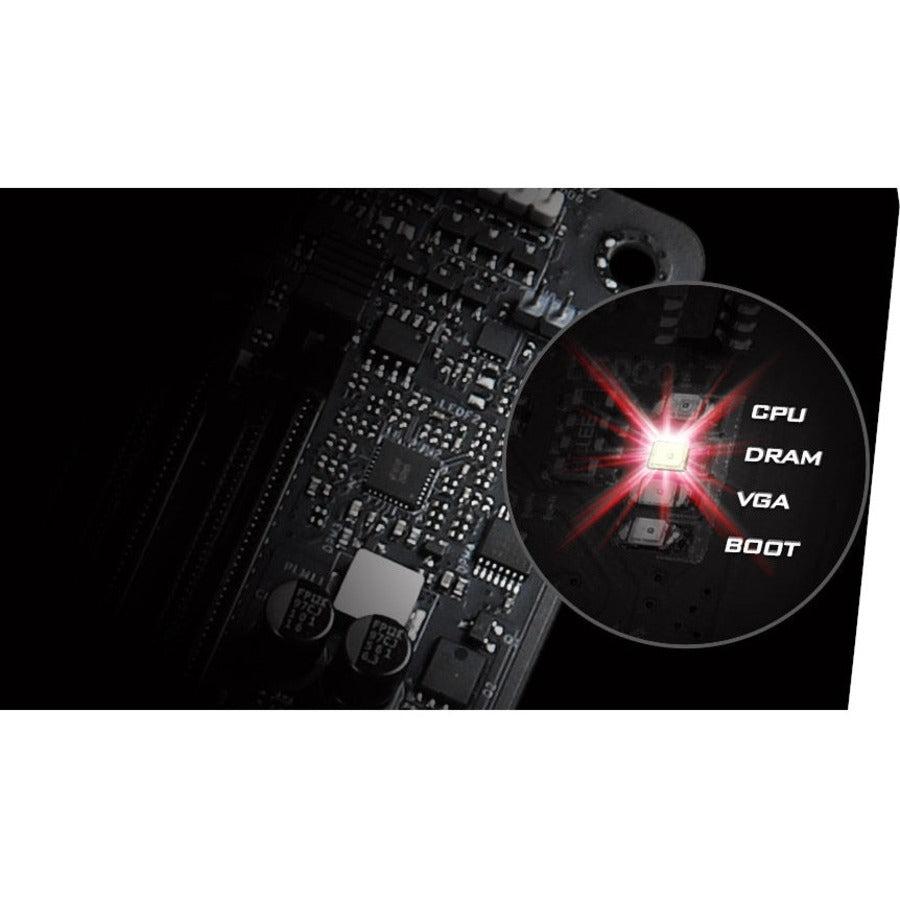

Features	Unique Feature: ASRock USB 3.2 Gen2 - ASRock Front Panel Type C USB 3.2 Gen2x2 Header (20Gb/s) - ASRock USB 3.2 Gen2 Type-A Port (10Gb/s) ASRock Super Alloy - Premium 50A Power Choke - 50A Dr.MOS - Sapphire Black PCB - High Density Glass Fabric PCB 2.5G LAN ASRock Steel Slot ASRock Full Coverage M.2 Heatsink ASRock Hyper M.2 (PCIe Gen4x4) ASRock POST Status Checker (PSC) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop BIOS: - 128 MB AMI UEFI Legal BIOS with multilingual GUI support - ACPI 6.0 Compliant wake up events - SMBIOS 2.7 Support - CPU Core/Cache, GT, DRAM, VPPM, VCCIN AUX, VCCIO, VCCST, VCCSA Voltage Multi-adjustment Software and UEFI: Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock EZ Mode - ASRock Full HD UEFI - ASRock My Favorites in UEFI - ASRock Instant Flash - ASRock Internet Flash - ASRock Easy RAID Installer * These utilities can be downloaded from ASRock Live Update & APP Shop. Support CD: - Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Hardware Monitor: - Fan Tachometer: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis/Water Pump Fans - Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis/Water Pump Fans - Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, DRAM, VPPM, VCCIN AUX, VCCSA, VCCPLL, VCCIO OS: - Microsoft Windows 10 64-bit / 11 64-bit Certifications: - FCC, CE - ErP/EuP ready (ErP/EuP ready power supply is required)

**Packaging**

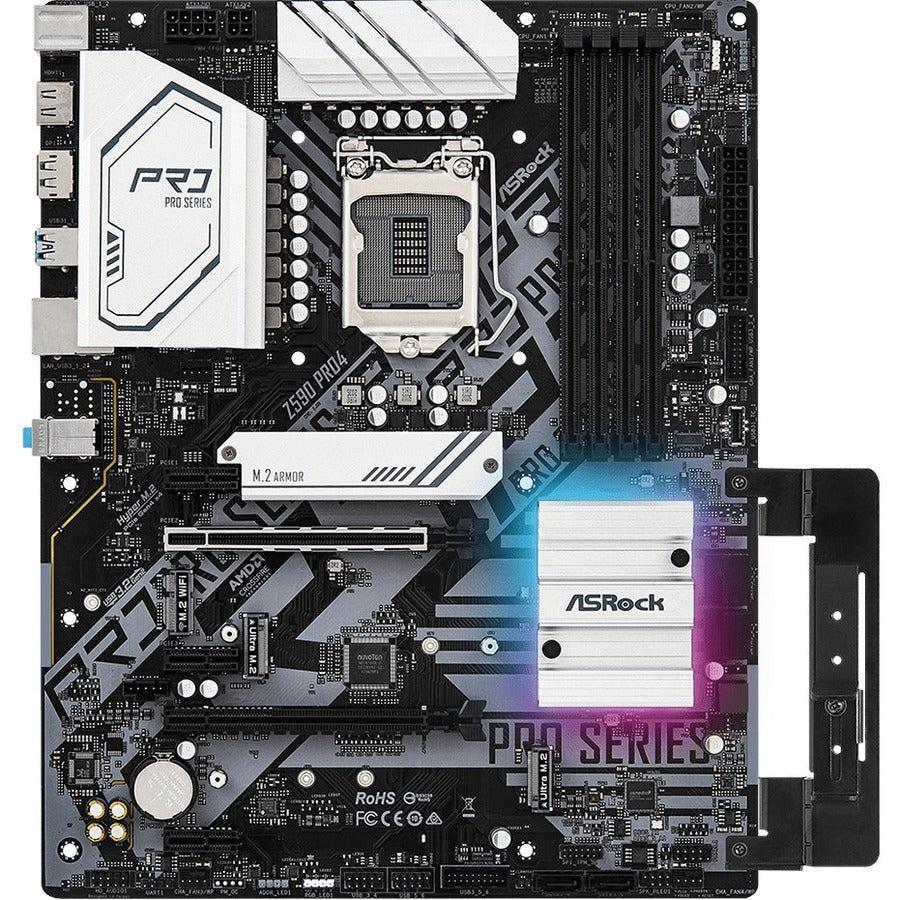

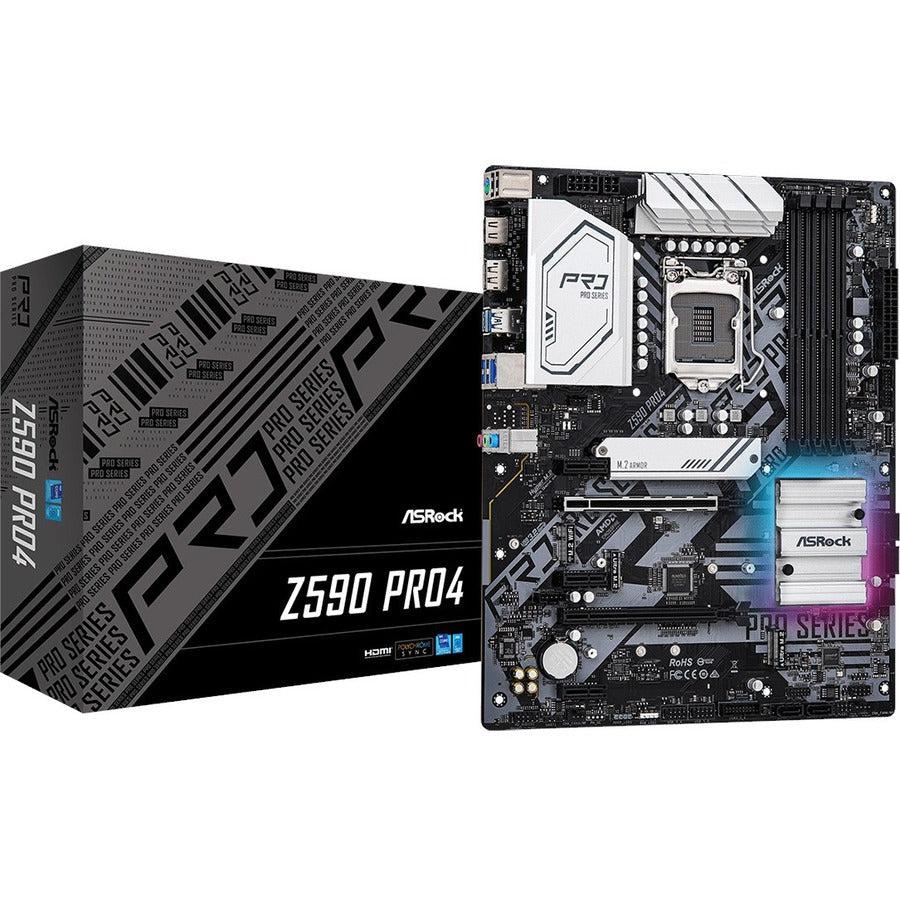

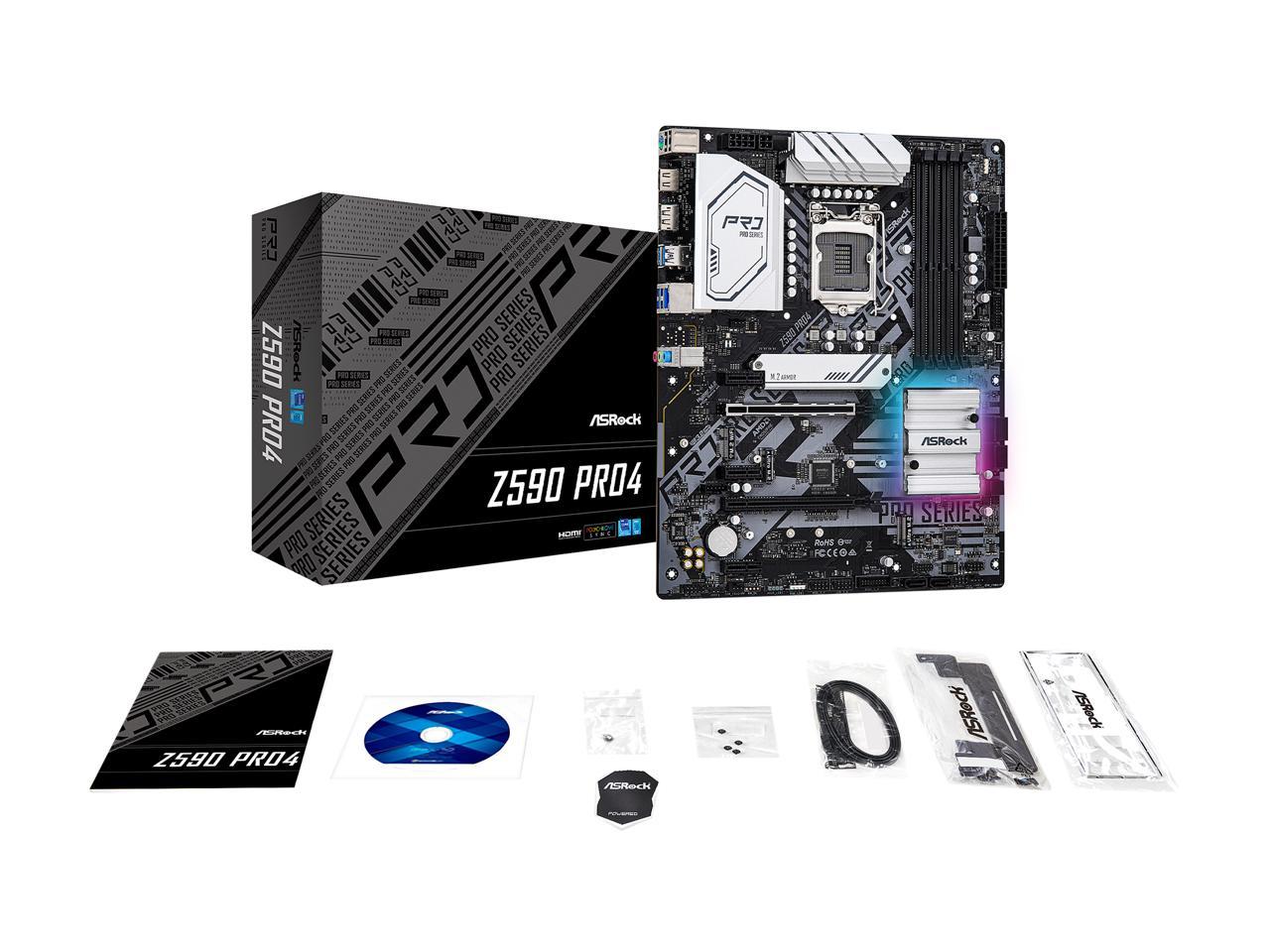

Package Contents	Accessories: Quick Installation Guide, Support CD, I/O Shield 2 x SATA Data Cables 4 x Screws for M.2 Sockets 1 x Standoff for M.2 Socket 1 x Graphics Card Holder

Specifications :

General Information

Manufacturer	ASRock, Inc
Manufacturer Part Number	Z590 PRO4
Manufacturer Website Address	http://www.asrock.com
Brand Name	ASRock
Product Model	Z590 Pro4
Product Name	Z590 Pro4 Desktop Motherboard
Product Type	Desktop Motherboard
UPC	4710483933899
