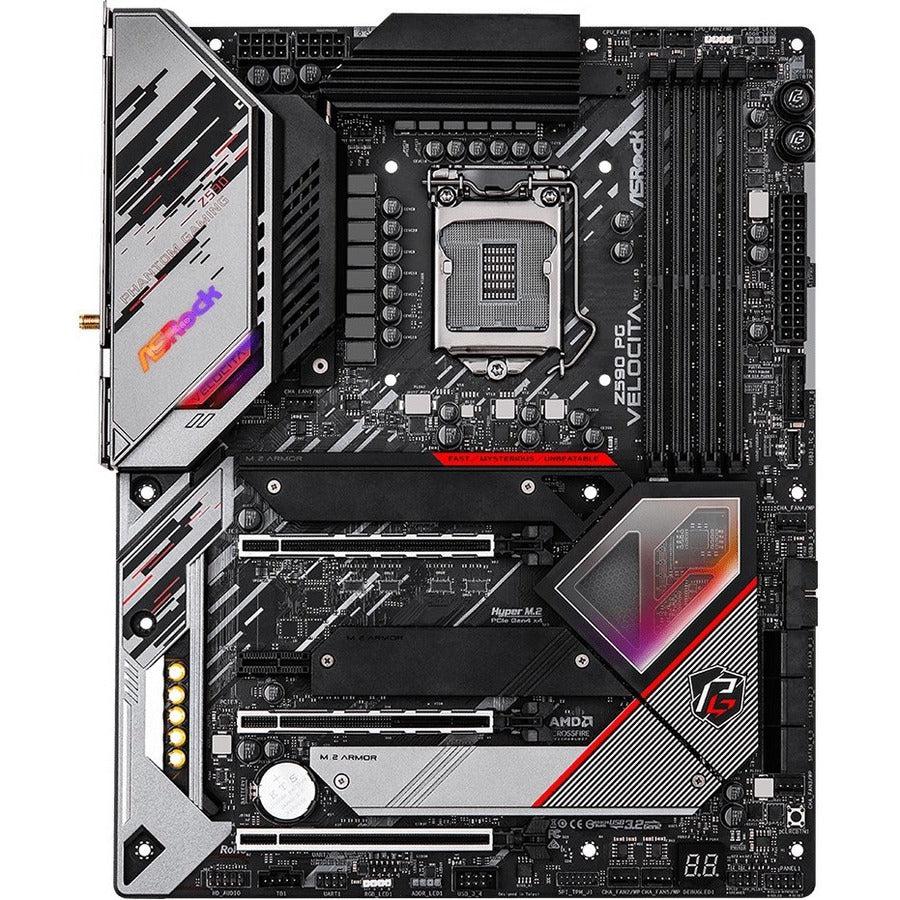

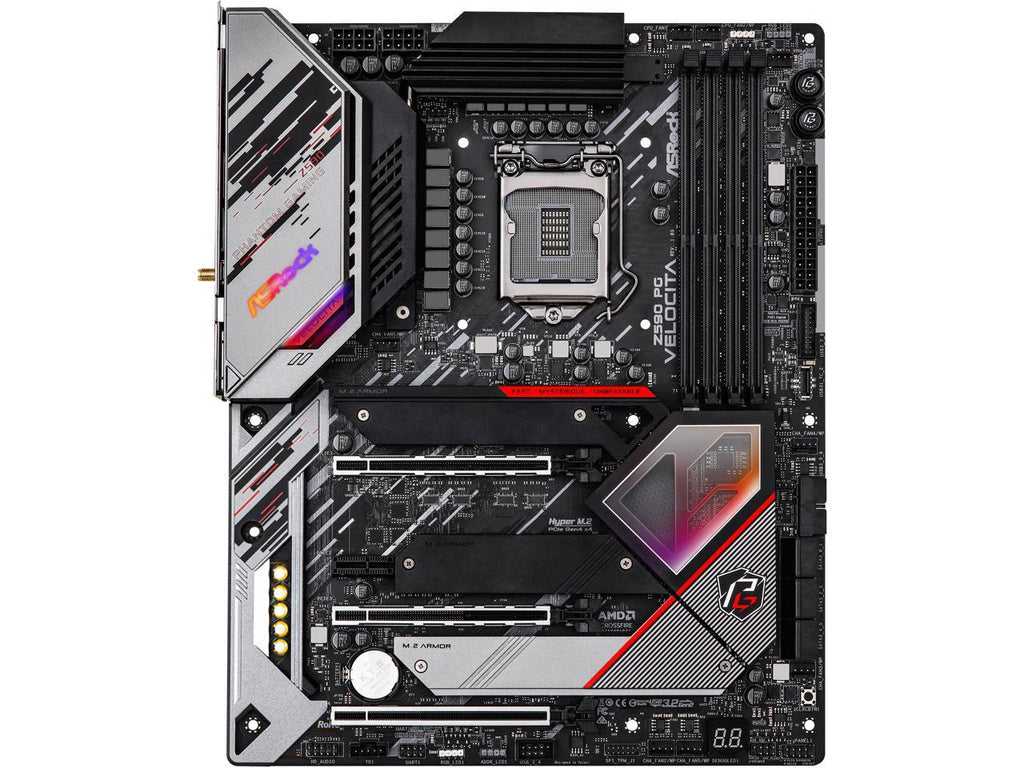

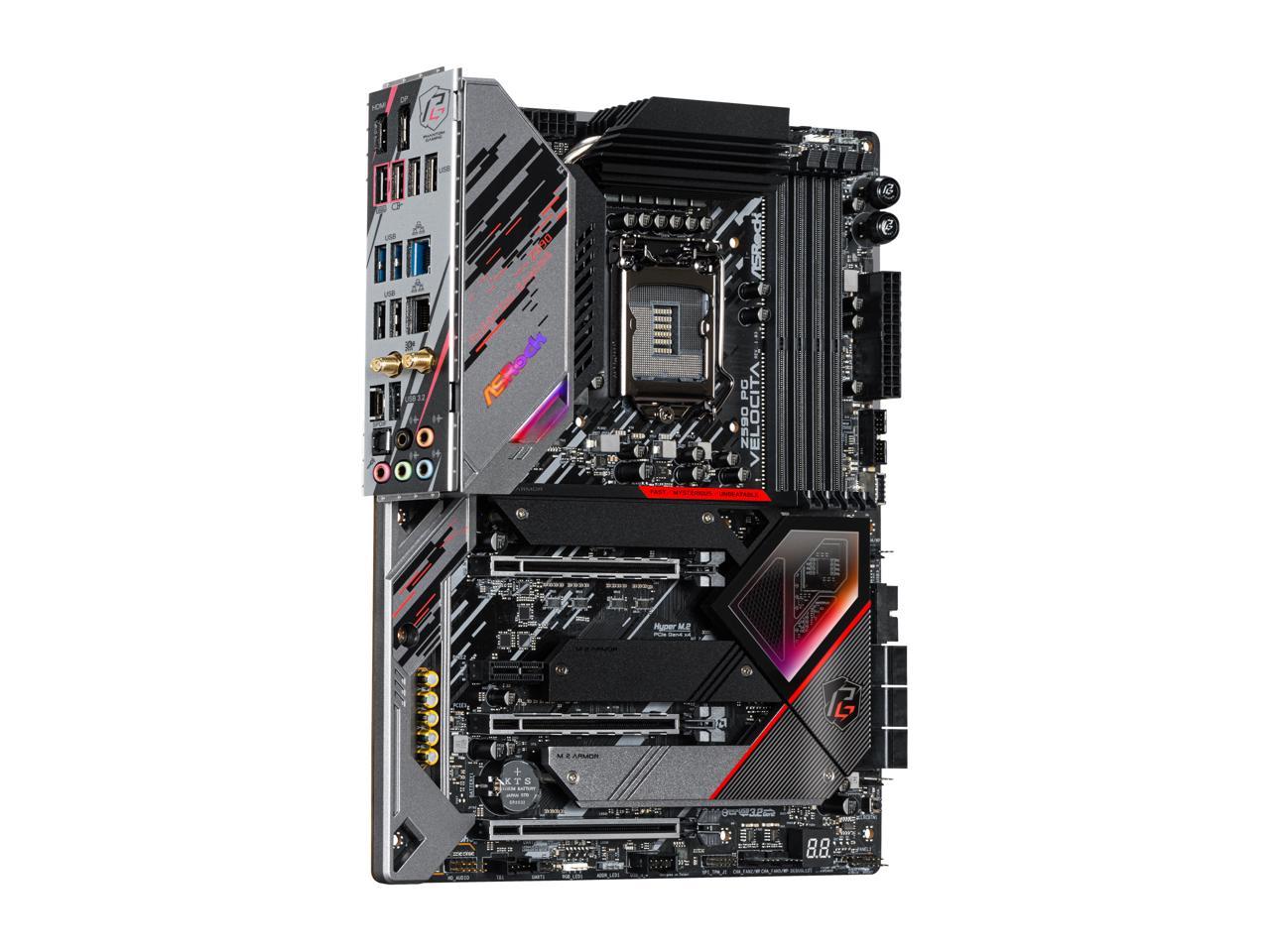

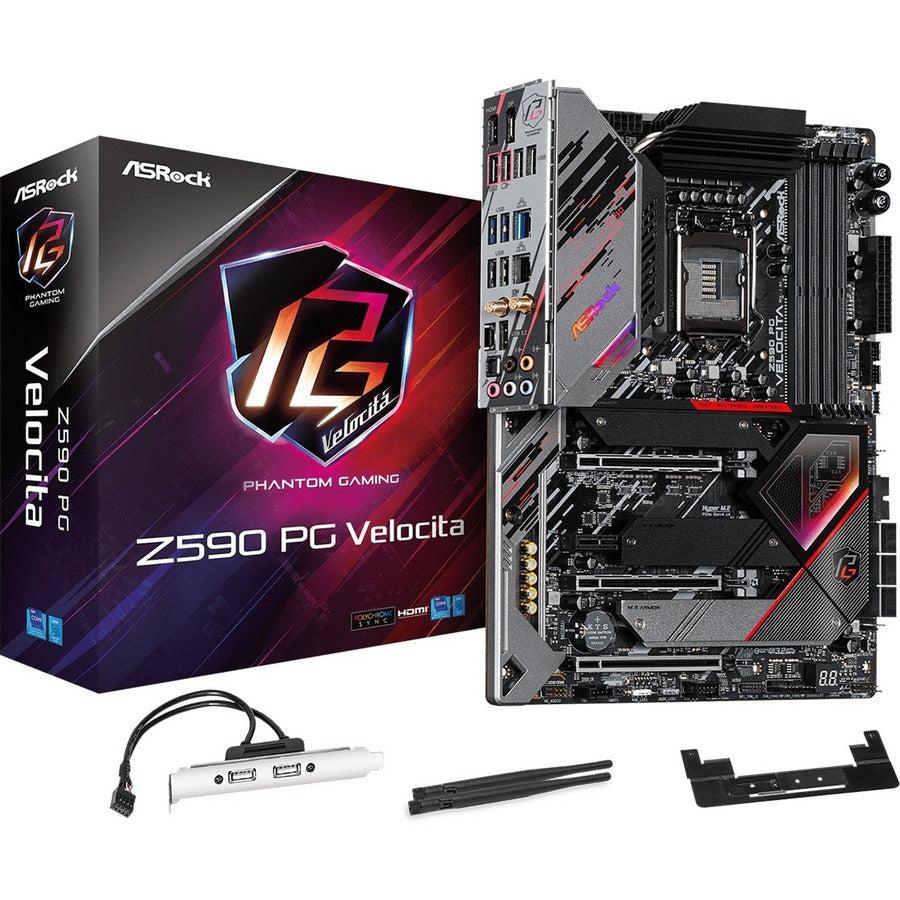

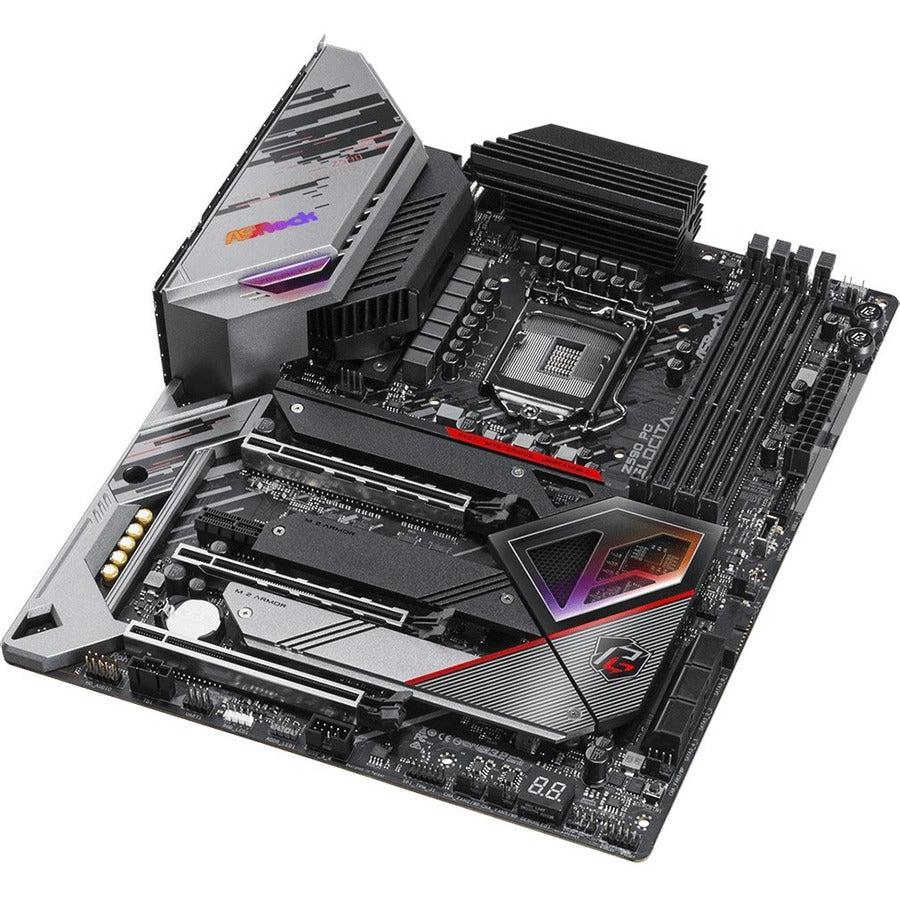

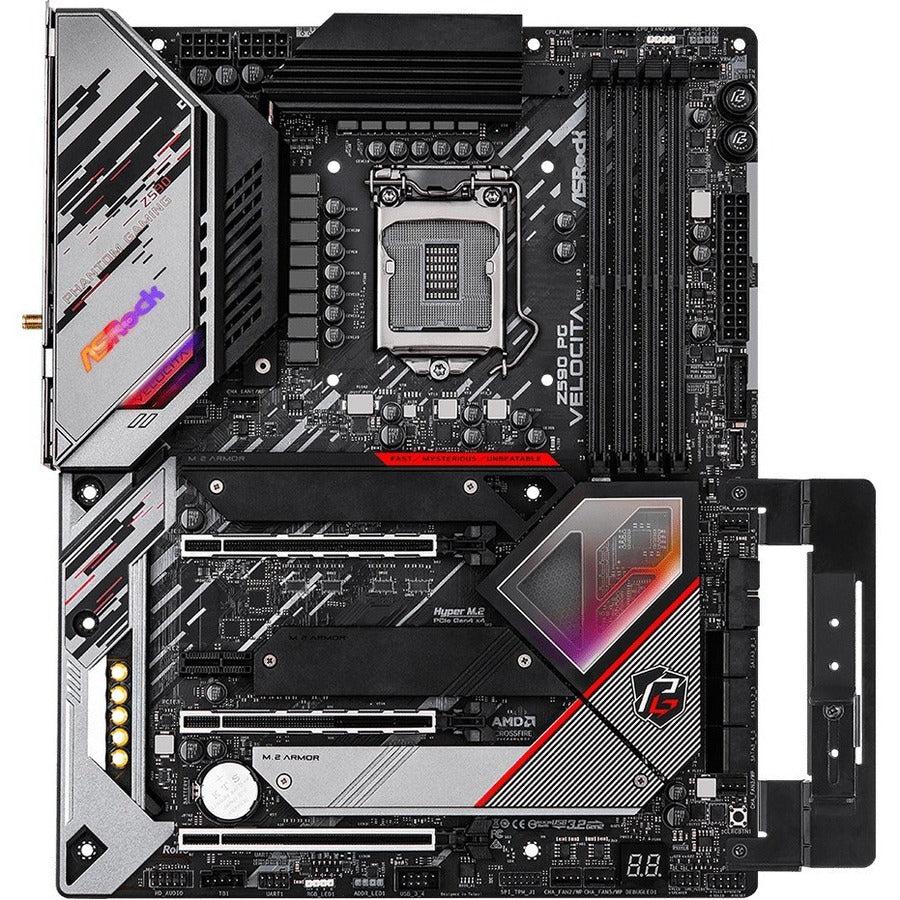

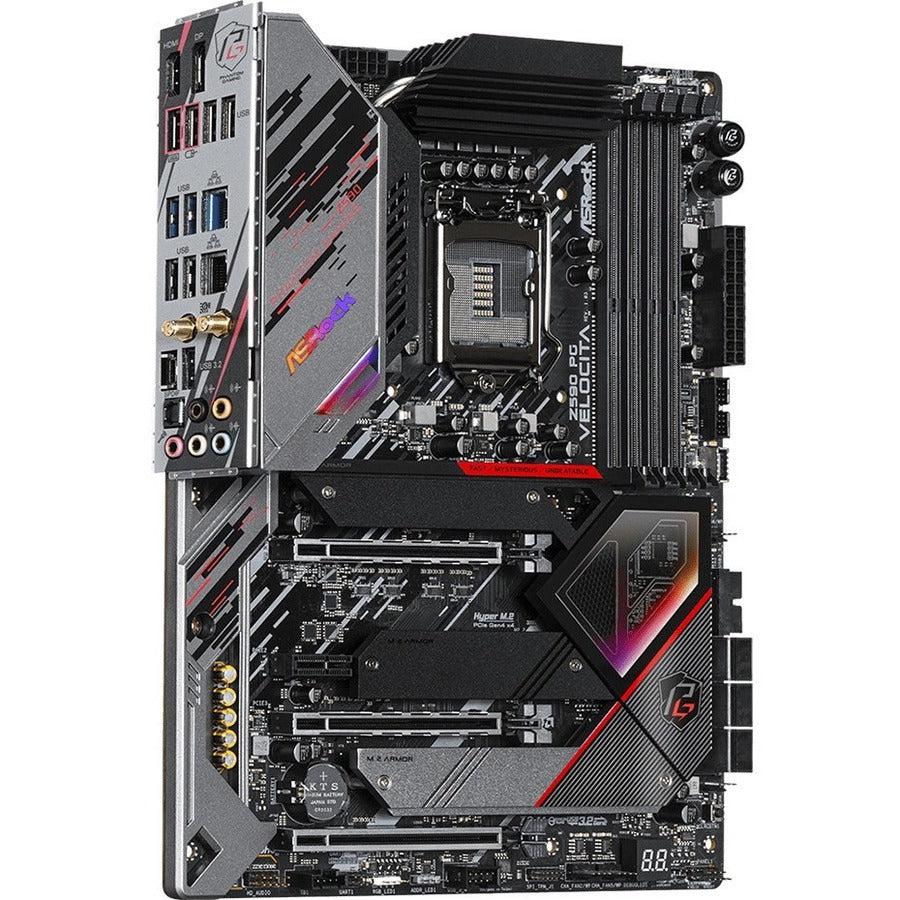

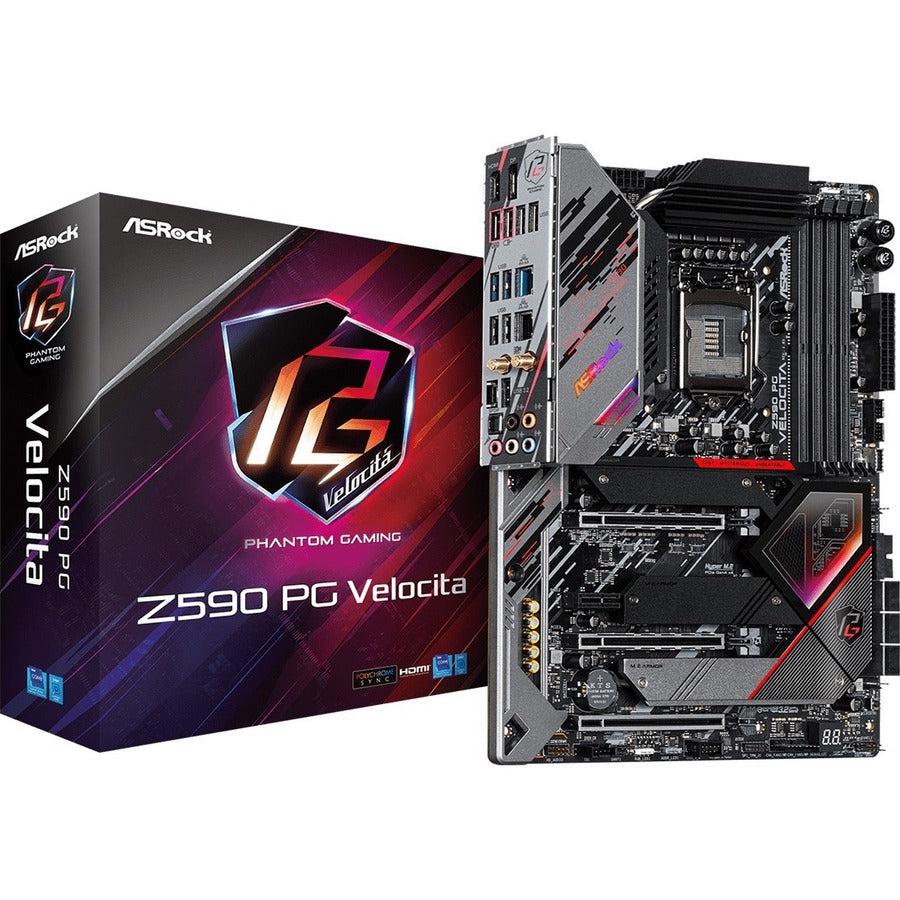

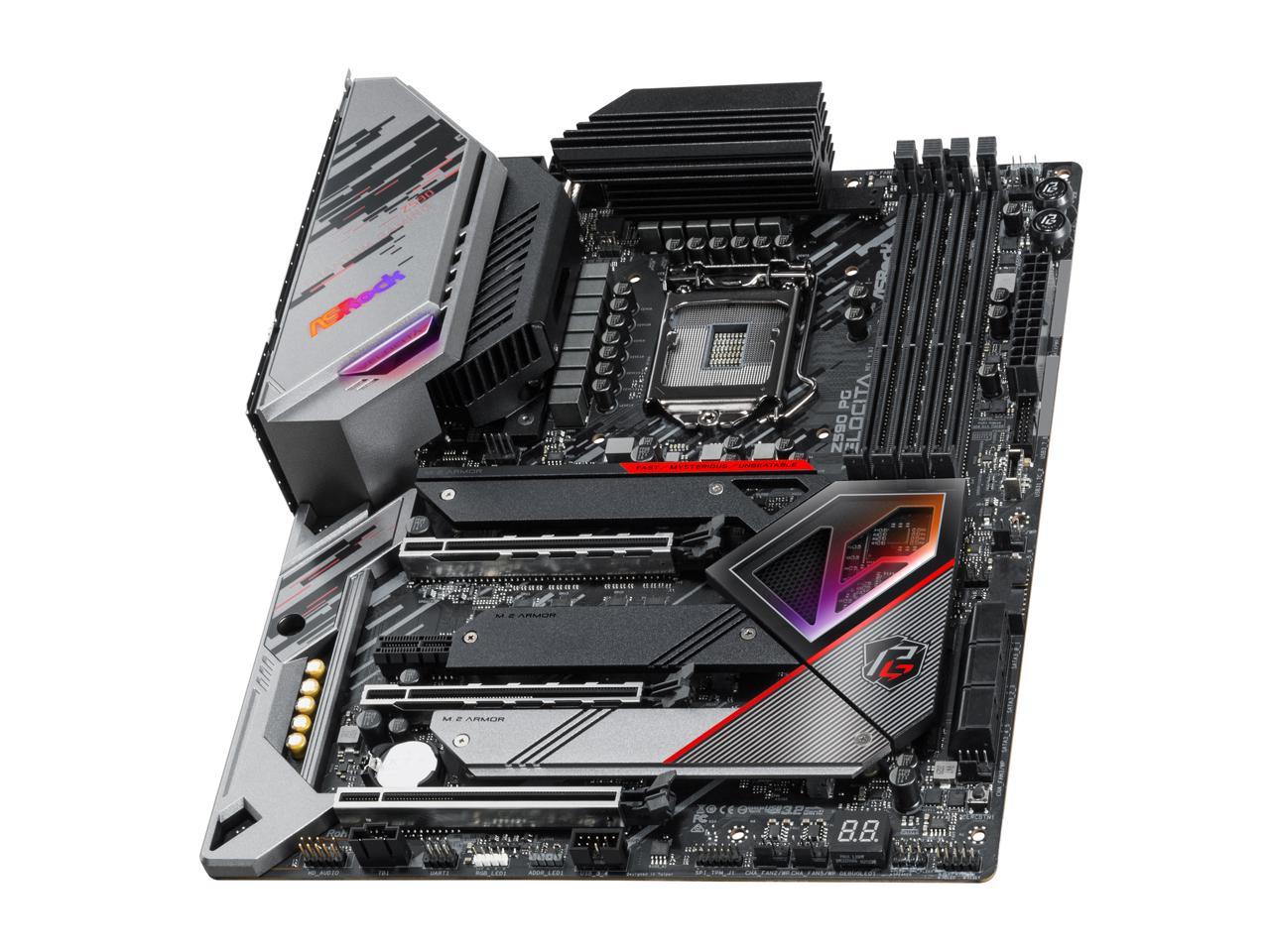

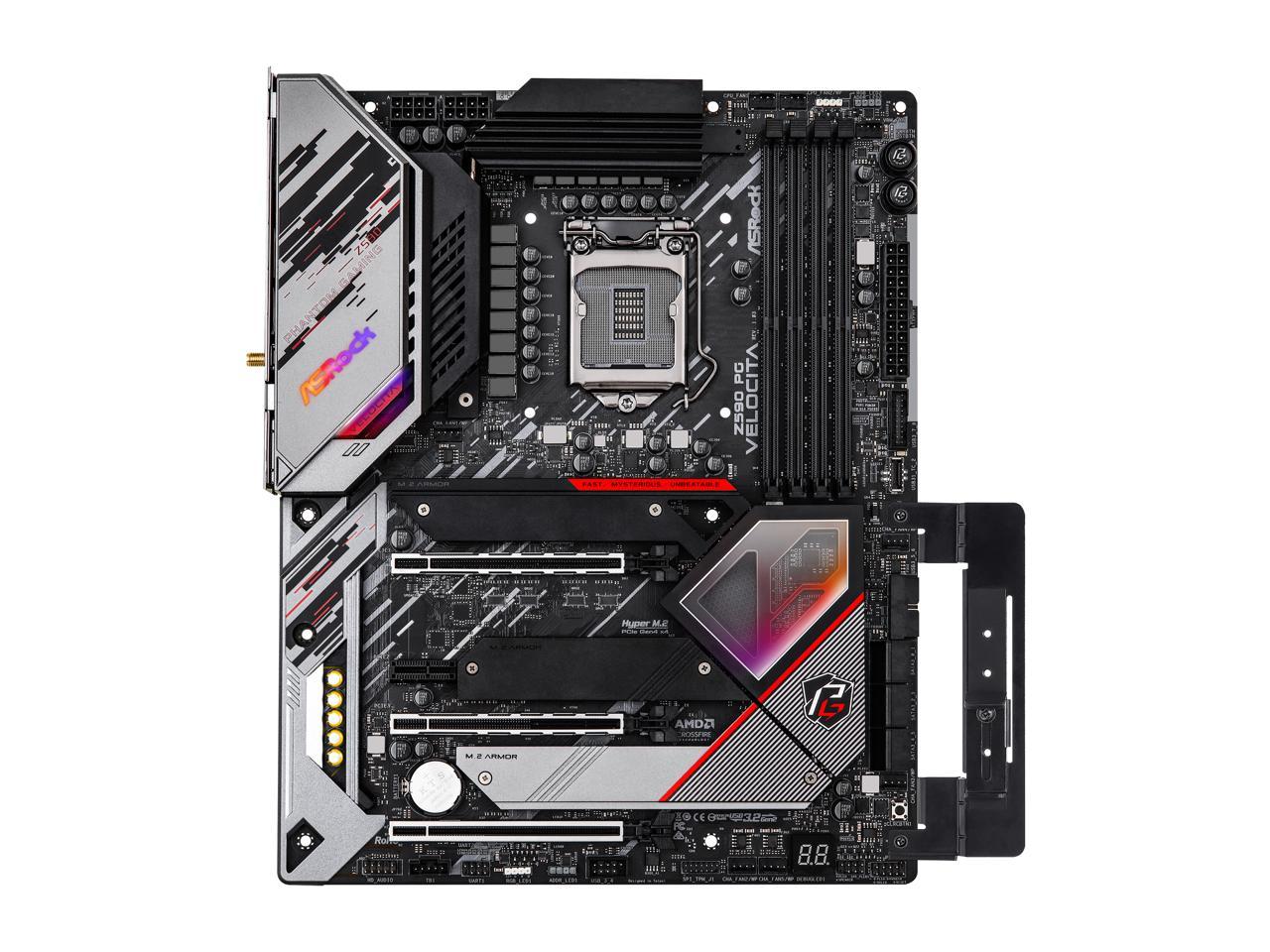

Asrock Z590 Pg Velocita Lga 1200 Intel Z590 Sata 6Gb/S Atx Intel Motherboard

Asrock Z590 Pg Velocita Lga 1200 Intel Z590 Sata 6Gb/S Atx Intel Motherboard

SKU:Z590 PG VELOCITA

Regular price $559.99
Regular price Sale price $559.99
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Specifications
        Reviews, Que. & Ans.

        Description :

        • Intel Z590
        • Supports 10th Gen Intel Core Processors
        • Supports 11th Gen Intel Core Processors
        • 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)
        • 10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)
        Model
        Brand ASRock
        Model Z590 PG VELOCITA
        Supported CPU
        CPU Socket Type  LGA 1200
        CPU Type Supports 10th Gen Intel Core Processors
        Supports 11th Gen Intel Core Processors
        Supported CPU Technologies Turbo Boost Technology 3.0
        Chipsets
        Chipset  Intel Z590
        Onboard Video
        Onboard Video Chipset  11th Gen Intel Core Processors support Intel Xe Graphics Architecture (Gen 12). 10th Gen Intel Core Processors support Gen 9 Graphics
        Graphics, Media & Compute: Microsoft DirectX 12, OpenGL 4.5, Intel Built In Visuals, Intel Quick Sync Video, Hybrid / Switchable Graphics, OpenCL 2.1
        Display & Content Security: Rec. 2020 (Wide Color Gamut), Microsoft PlayReady 3.0, UHD/HDR Blu-ray Disc
        Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
        Supports HDMI 2.0 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
        Supports DisplayPort 1.4 with max. resolution up to 4K x 2K (4096x2304) @ 60Hz
        Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.0 Port (Compliant HDMI monitor is required)
        Supports HDCP 2.3 with HDMI 2.0 and DisplayPort 1.4 Ports
        Supports 4K Ultra HD (UHD) playback with HDMI 2.0 and DisplayPort 1.4 Ports**

        * Intel UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
        ** 11th Gen Intel Core Processors support HDMI 2.0. 10th Gen Intel Core Processors support HDMI 1.4.
        Memory
        Number of Memory Slots 4x288pin (DDR4)
        Memory Standard 11th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4800+(OC)*
        10th Gen Intel Core Processors support DDR4 non-ECC, un-buffered memory up to 4666+(OC)*

        * 11th Gen Intel Core (i9/i7/i5) support DDR4 up to 3200; Core (i3), Pentium and Celeron support DDR4 up to 2666.
        * 10th Gen Intel Core (i9/i7) support DDR4 up to 2933; Core (i5/i3), Pentium and Celeron support DDR4 up to 2666.
        Maximum Memory Supported 128GB

        ** Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.
        Channel Supported  Dual Channel
        Expansion Slots
        PCI Express 4.0 x16 11th Gen Intel Core Processors
        - 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen4x16 (PCIE1); dual at Gen4x8 (PCIE1) / Gen4x8 (PCIE3); triple at Gen4x8 (PCIE1) / Gen4x8 (PCIE3) / Gen3x4 (PCIE4))*
        10th Gen Intel Core Processors
        - 3 x PCI Express x16 Slots (PCIE1/PCIE3/PCIE4: single at Gen3x16 (PCIE1); dual at Gen3x8 (PCIE1) / Gen3x8 (PCIE3); triple at Gen3x8 (PCIE1) / Gen3x8 (PCIE3) / Gen3x4 (PCIE4))*

        * Supports NVMe SSD as boot disks
        PCI Express x1 1 x PCI Express 3.0 x1 Slot
        Other Slots 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax module (on the rear I/O)

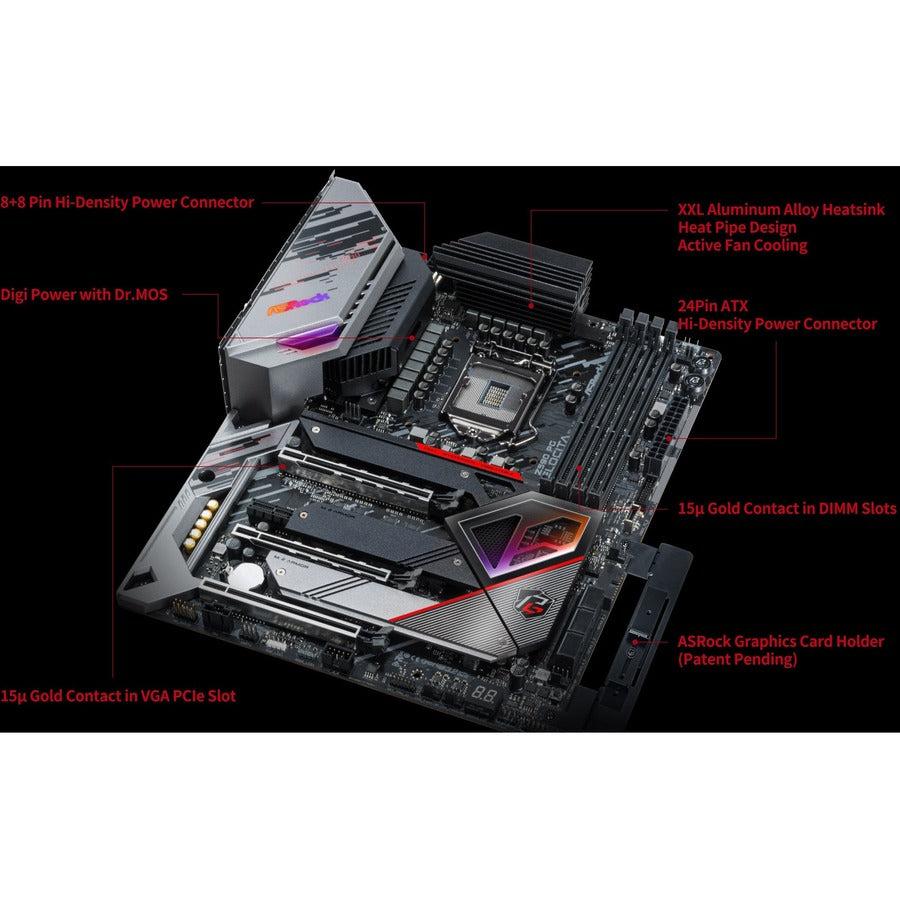

        15µ Gold Contact in VGA PCIe Slot (PCIE1)
        Storage Devices
        SATA 6Gb/s  6 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot Plug*

        * If M2_2 is occupied, SATA3_0 and SATA3_1 will be disabled.
        * If M2_3 is occupied by a SATA-type M.2 device, SATA3_3 will be disabled.

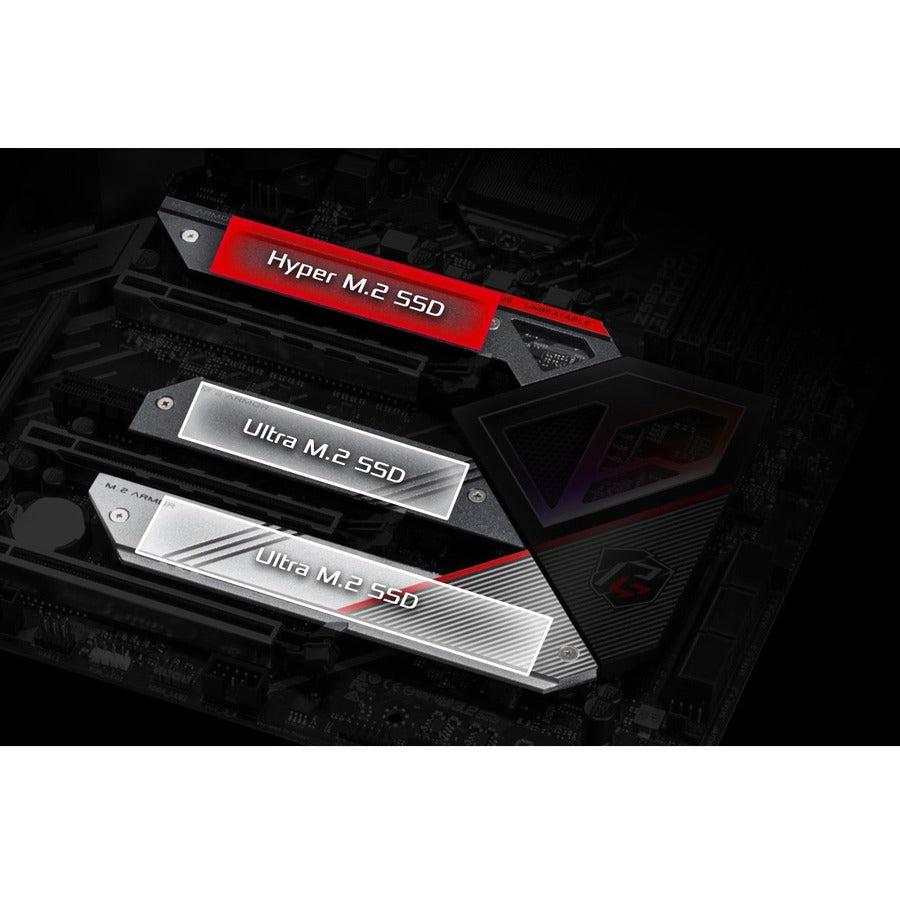

        M.2 1 x Hyper M.2 Socket (M2_1), supports M Key type 2260/2280 M.2 PCI Express module up to Gen4x4 (64Gb/s) (Only supported with 11th Gen Intel Core Processors)**
        1 x Ultra M.2 Socket (M2_2), supports M Key type 2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**
        1 x Ultra M.2 Socket (M2_3), supports M Key type 2260/2280/22110 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)**

        ** Supports Intel Optane Technology (M2_2 and M2_3 only)
        ** Supports NVMe SSD as boot disks
        ** Supports ASRock U.2 Kit
        Intel Optane Ready Yes
        SATA RAID 0/1/5/10
        Onboard Audio
        Audio Chipset  Realtek ALC1220
        Audio Channels  7.1 Channels
        Onboard LAN
        LAN Chipset Killer E3100G
        Second LAN Chipset Intel I219V
        Max LAN Speed 10/100/1000/2500Mbps + 10/100/1000Mbps
        Wireless LAN Killer AX1675x 802.11ax Wi-Fi 6E Module
        Supports IEEE 802.11a/b/g/n/ax
        Supports Dual-Band 2x2 160MHz with extended 6GHz band support*
        2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
        Supports MU-MIMO
        Supports Killer LAN Software
        Supports Killer DoubleShot™ Pro

        * Wi-Fi 6E (6GHz band) is not currently enabled by default due to the different regulation status of each country. It will be activated (for supported countries) through Windows Update and software update once available. The update is expected to be in the middle of 2021.
        Bluetooth Supports Bluetooth 5.2 + High speed class II

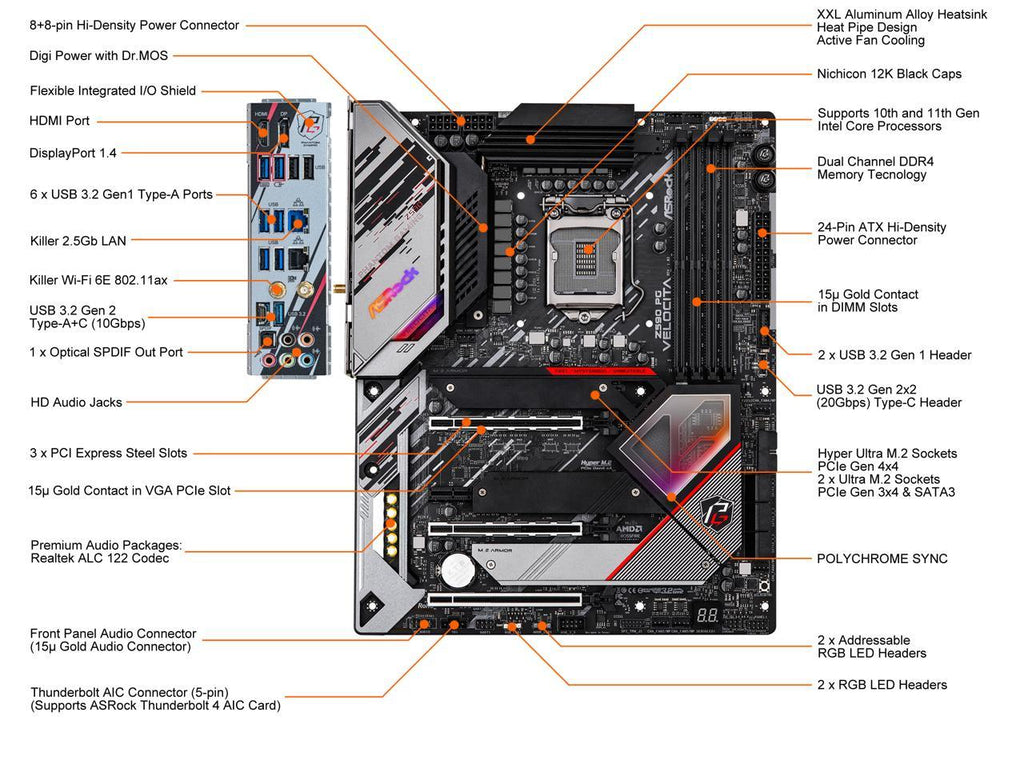

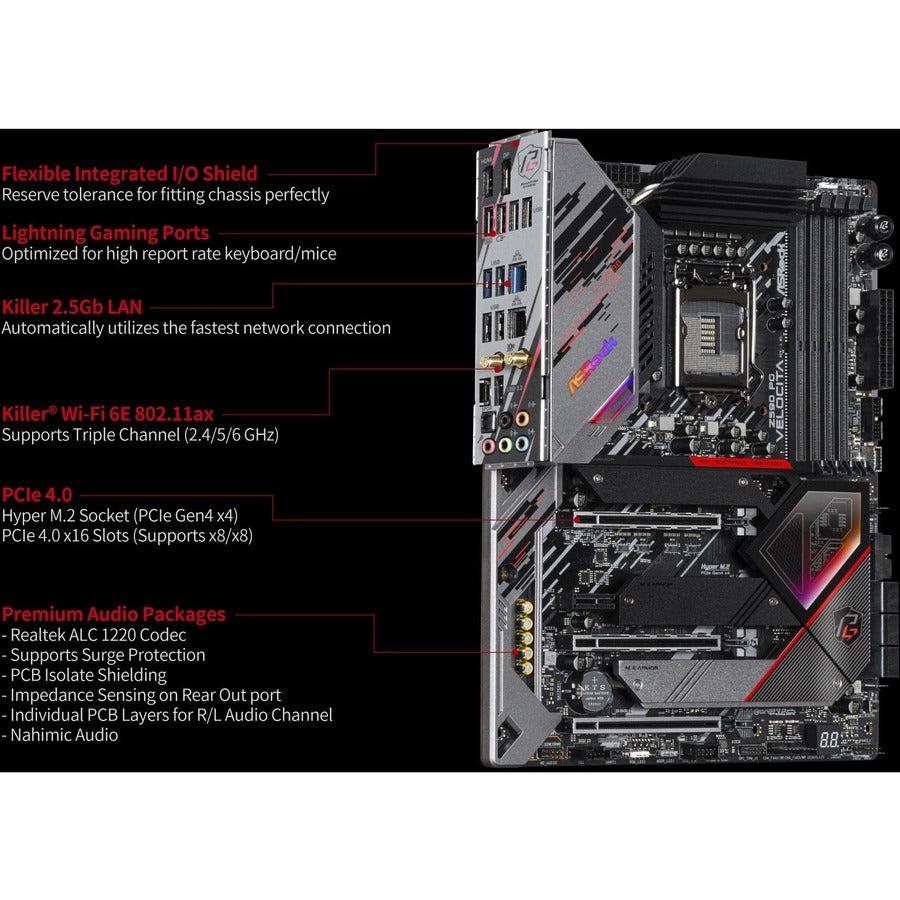

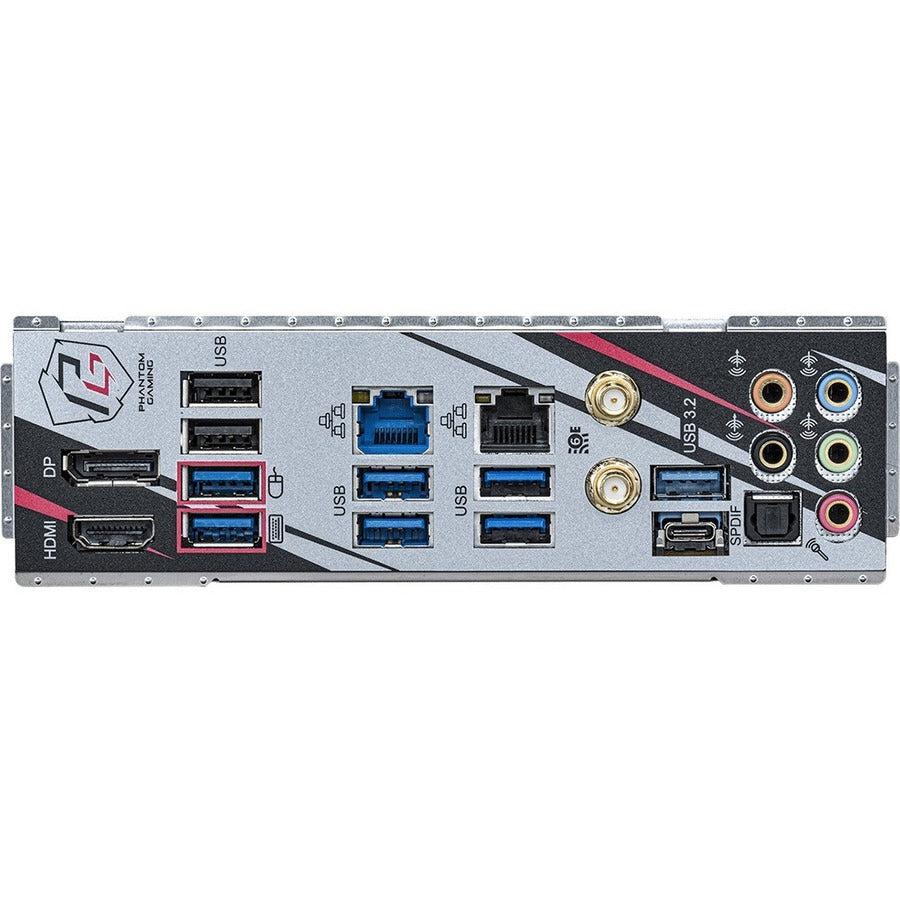

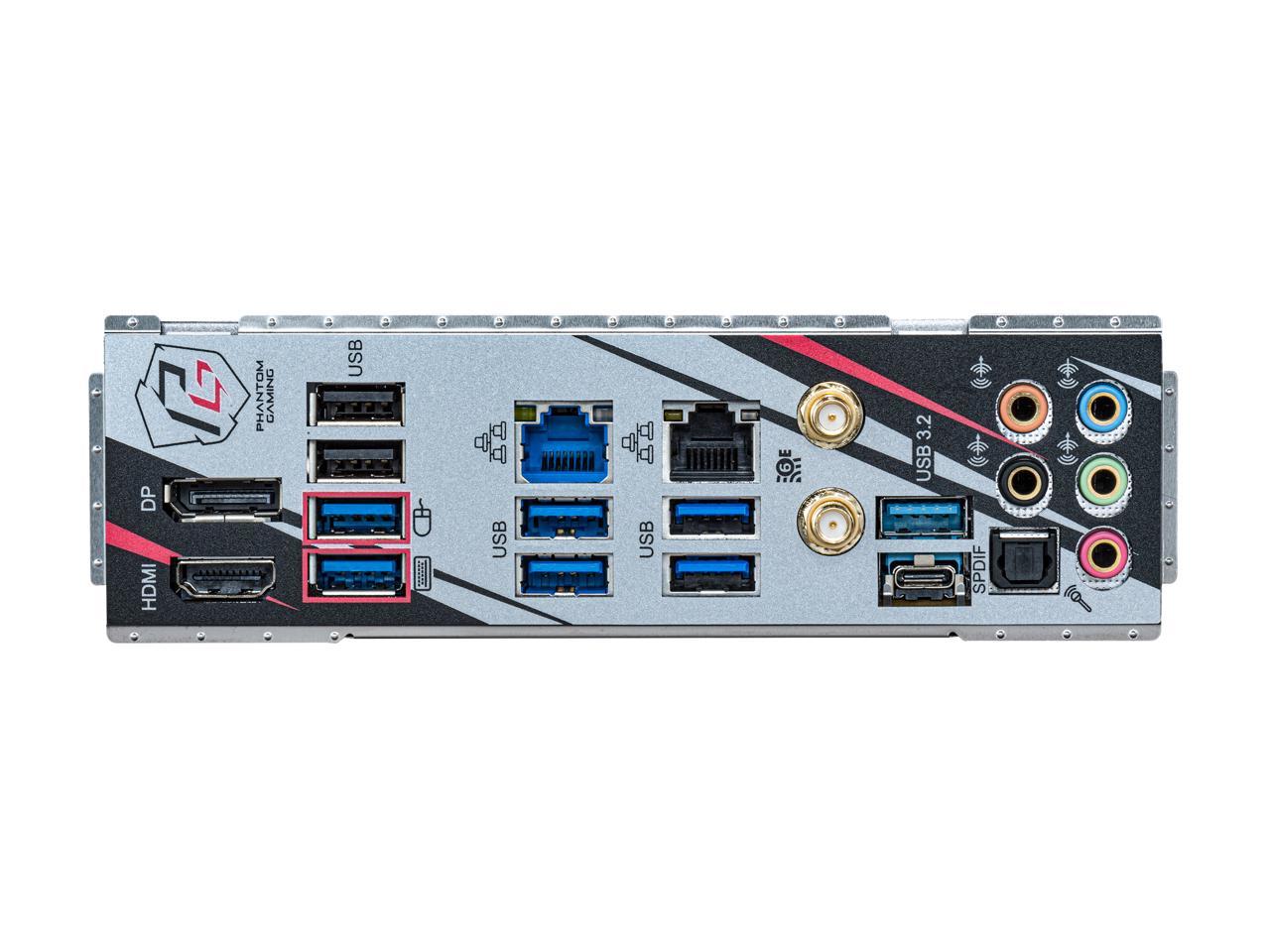

        Rear Panel Ports
        Back I/O Ports 2 x Antenna Ports
        1 x HDMI Port
        1 x DisplayPort 1.4
        1 x Optical SPDIF Out Port
        1 x USB 3.2 Gen2 Type-A Port (10Gb/s) (ReDriver) (Supports ESD Protection)*
        1 x USB 3.2 Gen2 Type-C Port (10Gb/s) (ReDriver) (Supports ESD Protection)*
        2 x USB 3.2 Gen1 Type-A Ports (ASMedia ASM1042A) (Supports ESD Protection)*
        4 x USB 3.2 Gen1 Type-A Ports (Intel Z590) (Supports ESD Protection)*
        2 x USB 2.0 Ports (Supports ESD Protection)
        2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
        HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)

        * Ultra USB Power is supported on USB3_12 ports.
        * ACPI wake-up function is not supported on USB3_12 ports.

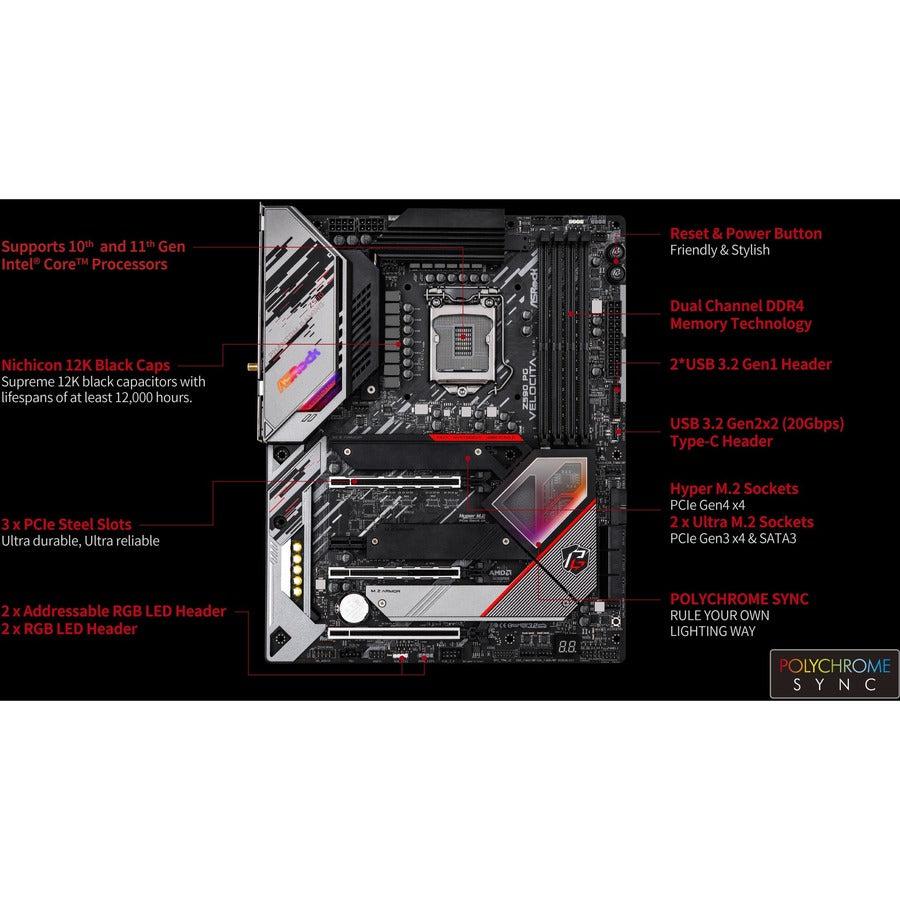

        Internal I/O Connectors
        Onboard USB 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20Gb/s) (Supports ESD Protection)
        2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (ASMedia ASM1074 hub) (Supports ESD Protection)
        1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
        Other Connectors 1 x SPI TPM Header
        1 x Power LED and Speaker Header
        2 x RGB LED Headers*
        2 x Addressable LED Headers**
        1 x CPU Fan Connector (4-pin)***
        1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
        5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)****
        1 x VRM Fan Connector (4-pin)*****
        1 x Front Panel Audio Connector (15µ Gold Audio Connector)
        1 x Thunderbolt AIC Connector (5-pin) (Supports ASRock Thunderbolt 4 AIC Card)
        1 x Clear CMOS Button
        1 x Dr. Debug with LED
        1 x Power Button with LED
        1 x Reset Button with LED

        * Support in total up to 12V/3A, 36W LED Strip.
        ** Support in total up to 5V/3A, 15W LED Strip.
        *** The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
        **** The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
        ***** The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
        ****** The VRM Fan Connector supports the VRM fan of maximum 1A (12W) fan power.
        ****** CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP, CHA_FAN4/WP and CHA_FAN5/WP can auto detect if 3-pin or 4-pin fan is in use.
        Physical Spec
        Form Factor ATX
        LED Lighting RGB

        Specifications :

        General Information

        Manufacturer ASRock, Inc
        Manufacturer Part Number Z590 PG VELOCITA
        Manufacturer Website Address http://www.asrock.com
        Brand Name ASRock
        Product Model Z590 PG Velocita
        Product Name Z590 PG Velocita Desktop Motherboard
        Product Type Desktop Motherboard
        UPC 4710483934162

        Chipset

        Chipset ManufacturerIntel

        Network & Communication

        Wireless LAN StandardIEEE 802.11 a/b/g/n/ax
        BluetoothYes

        Interfaces/Ports

        HDMIYes
        Total Number of USB Ports10
        Number of USB 3.2 Gen 1 Ports6

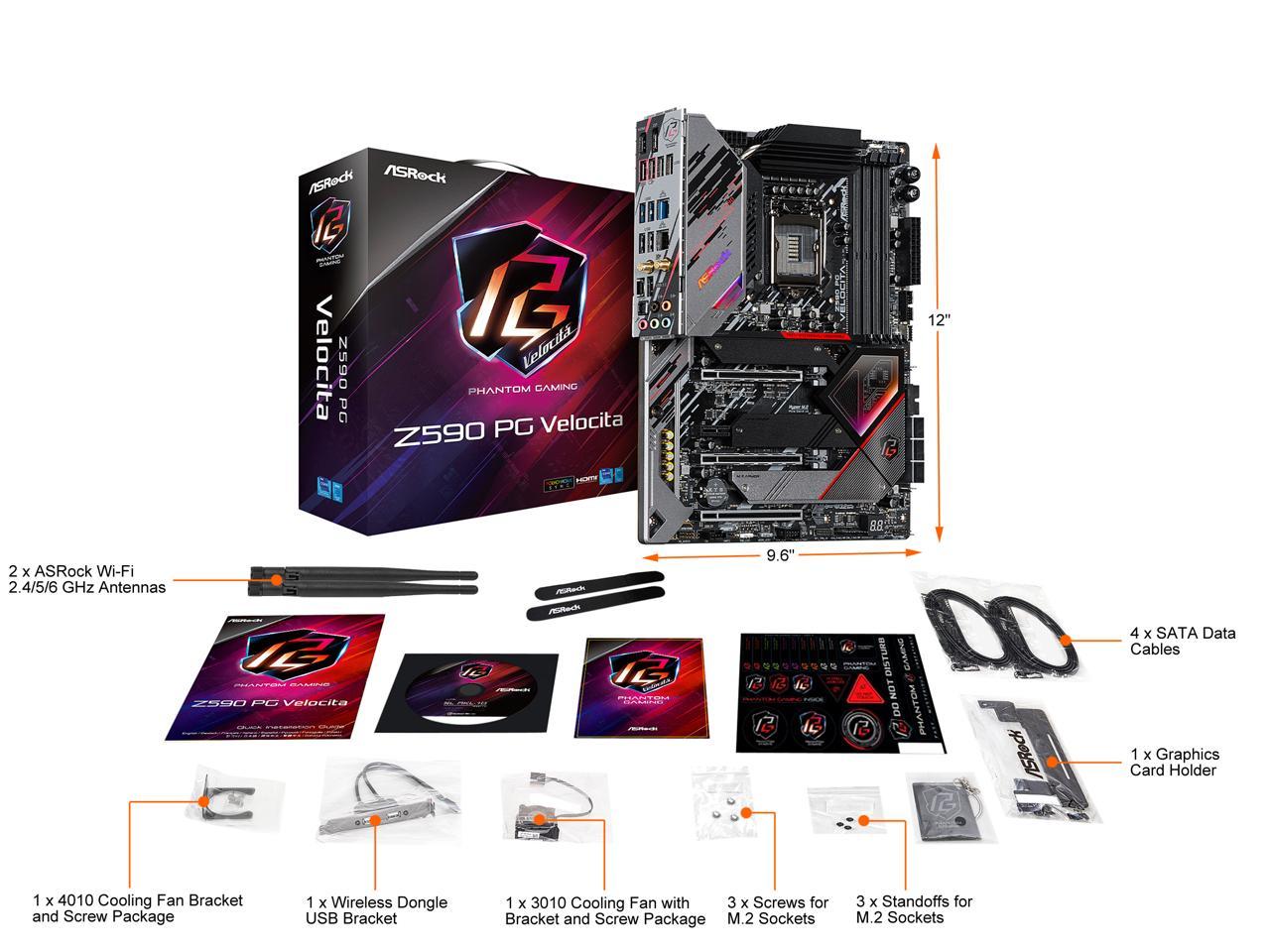

        Width12"
        Depth9.6"
