ASRock

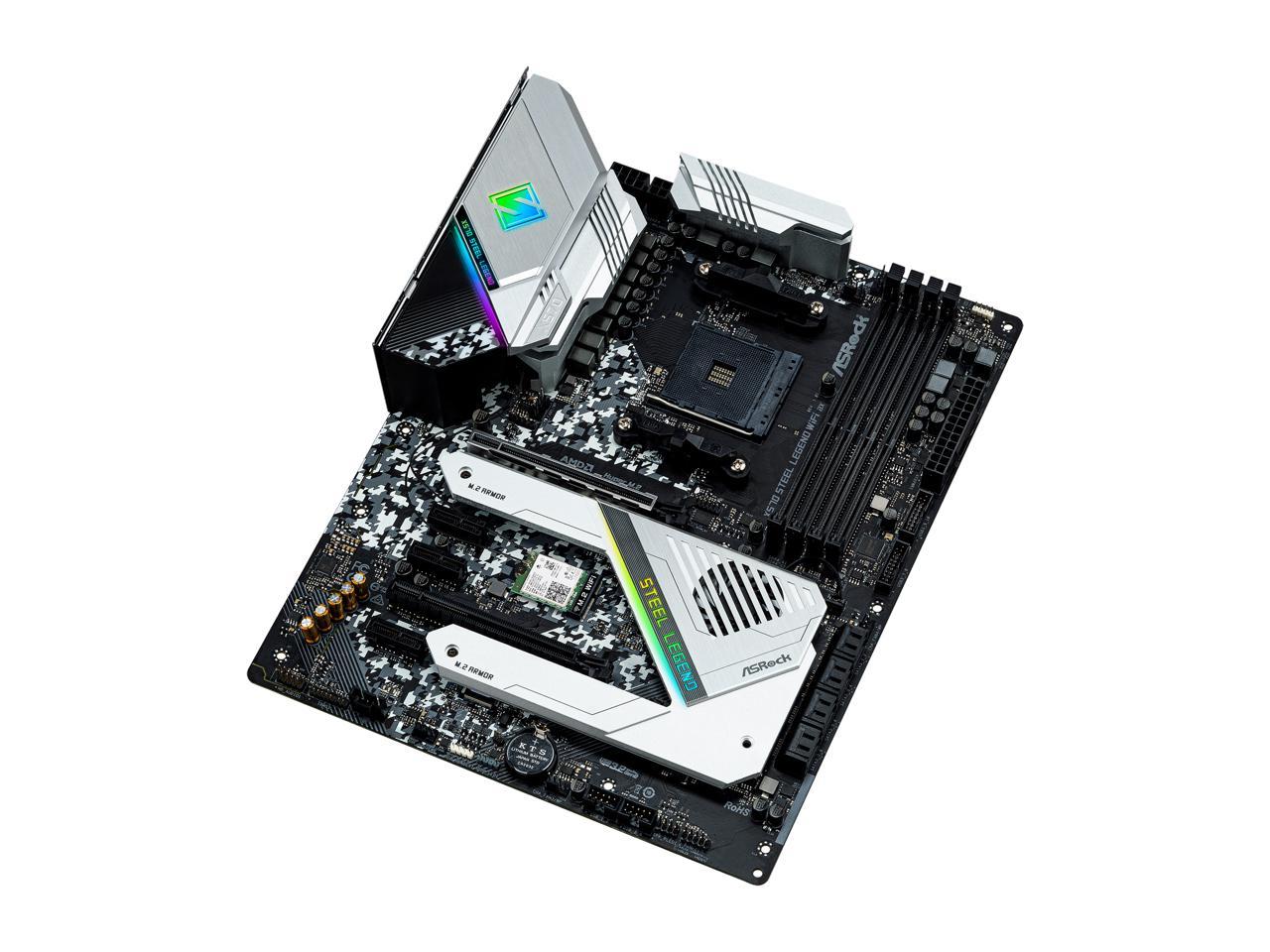

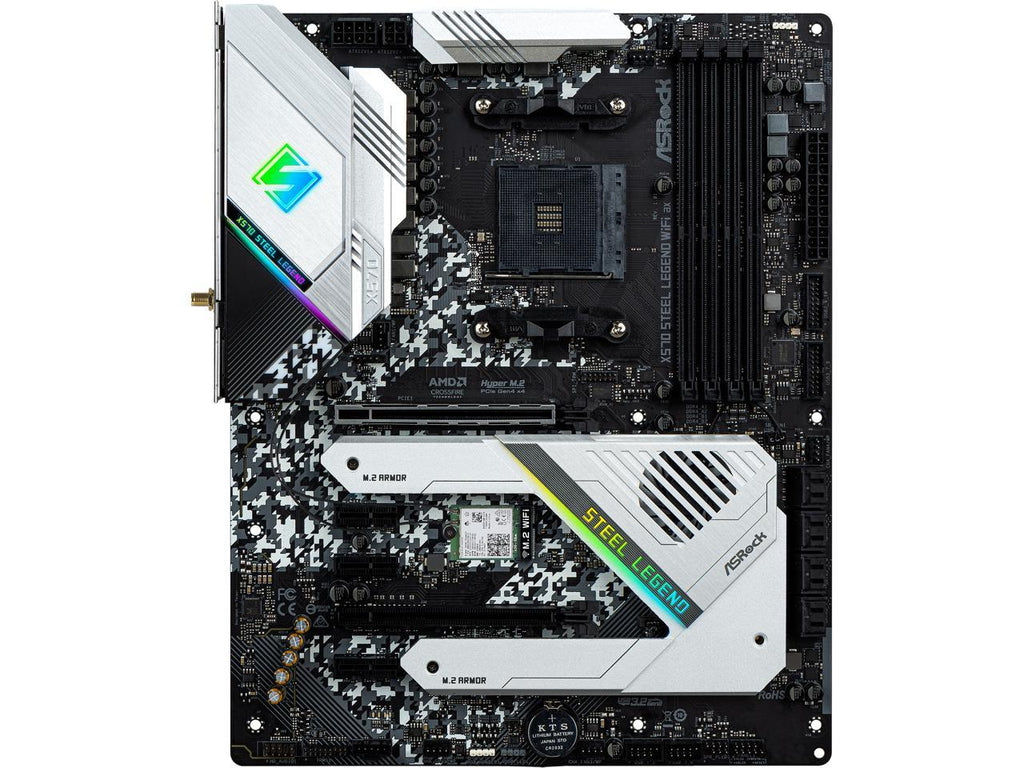

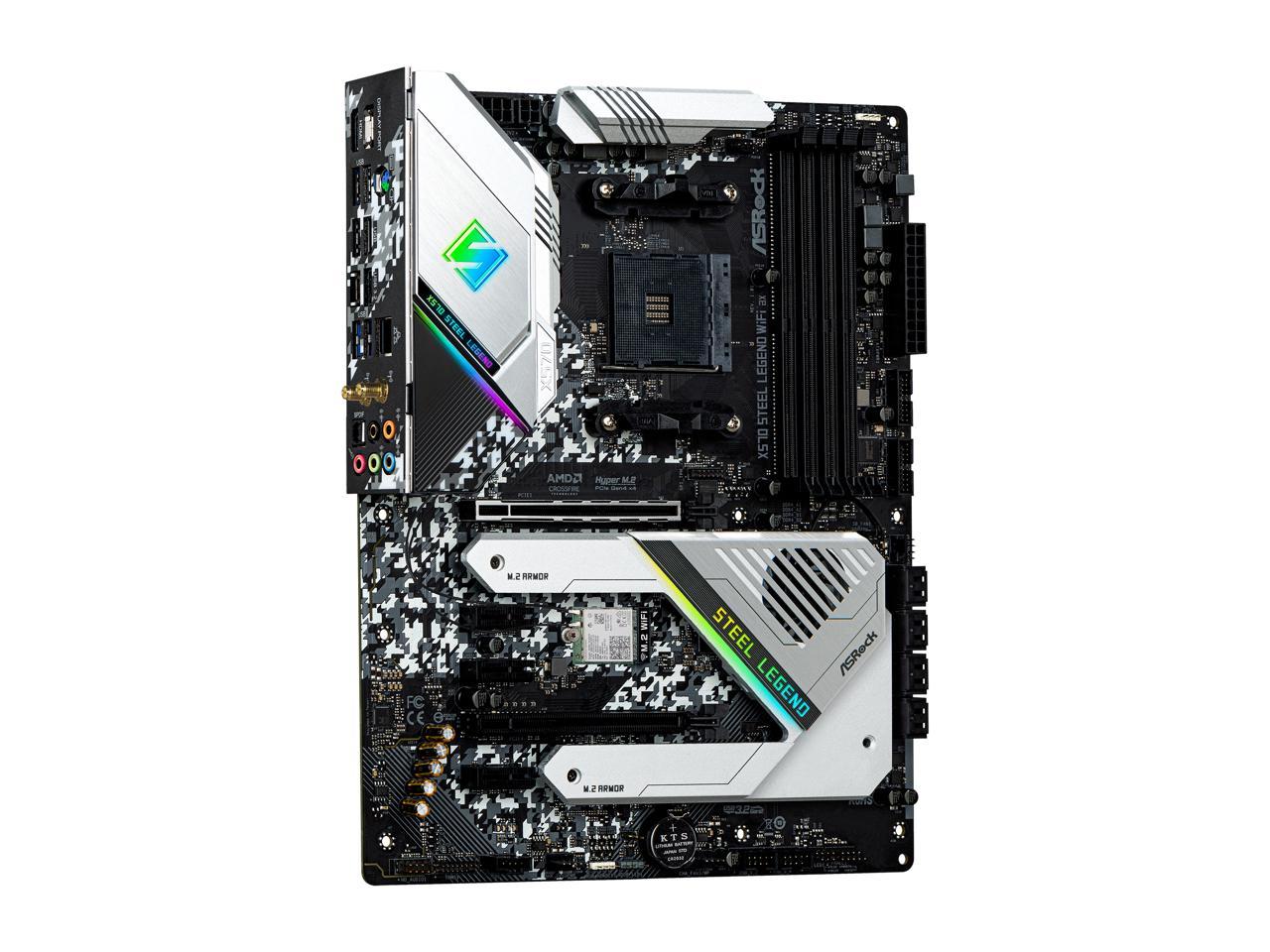

Asrock X570 Steel Legend Wifi Ax Am4 Amd X570 Sata 6Gb/S Atx Amd Motherboard

Asrock X570 Steel Legend Wifi Ax Am4 Amd X570 Sata 6Gb/S Atx Amd Motherboard

SKU:X570 STEEL LEGEND WI

Regular price $229.99
Regular price Sale price $229.99
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Specifications
        Reviews, Que. & Ans.

        Description :

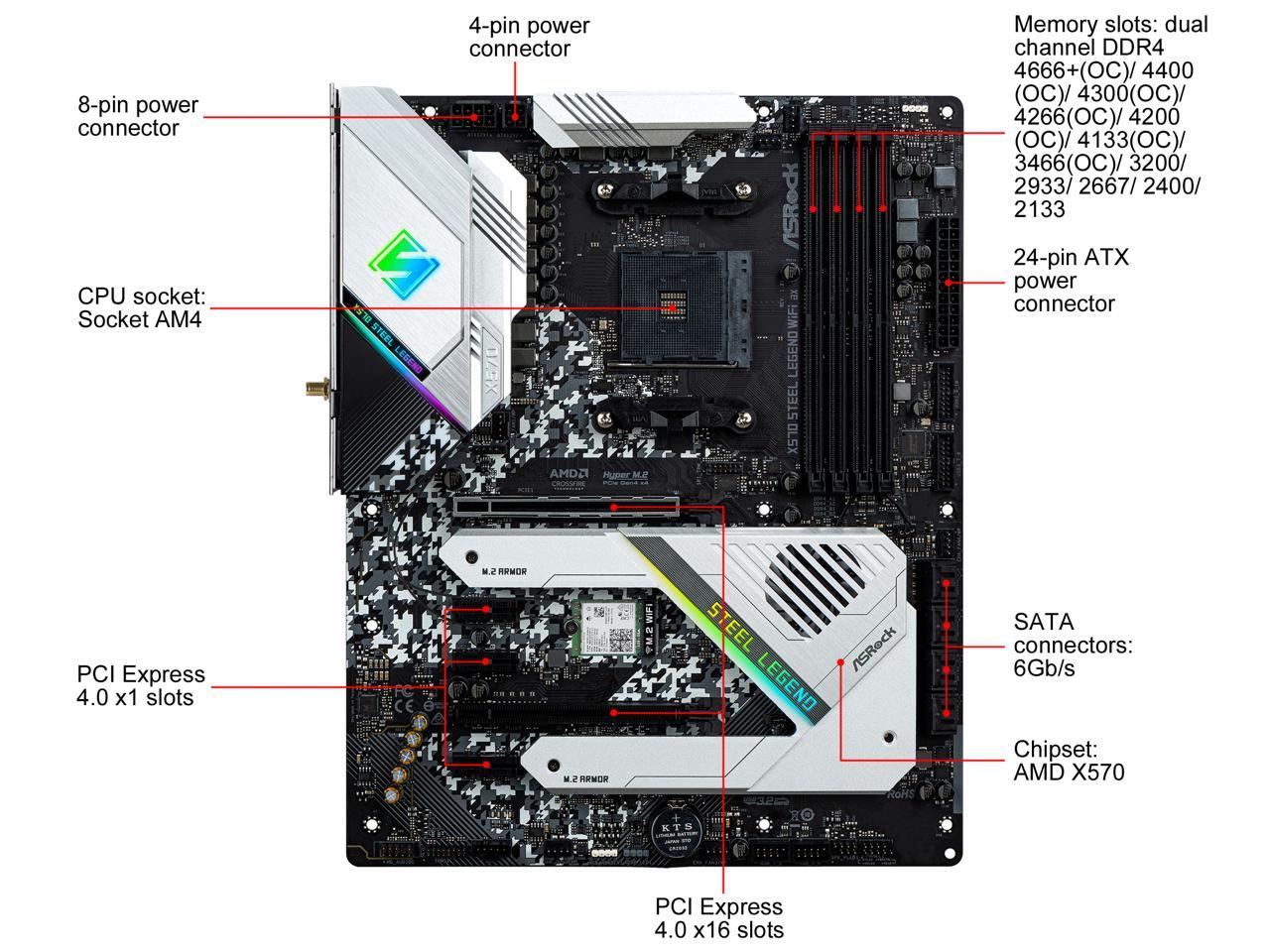

        • AMD X570
        • Supports AMD AM4 socket Ryzen 2000 and 3000 series processors
        • AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
        • AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC)/ 3466(OC)/ 3200(OC)/ 2933/ 2667/ 2400 /2133 ECC & non-ECC, un-buffered memory
        • AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory

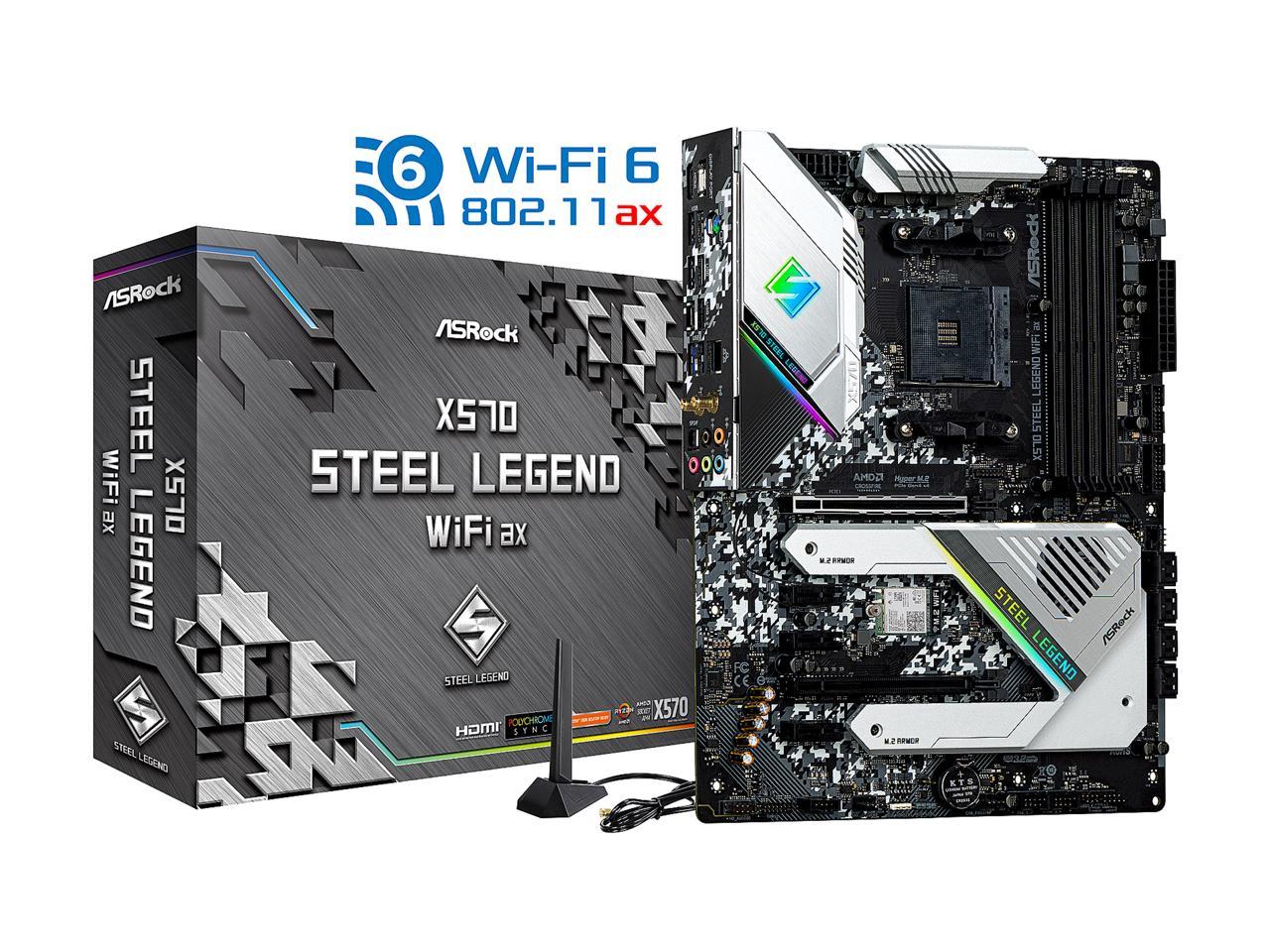

        ASRock X570 Steel Legend WiFi ax Motherboard Standing Up, Next to Its Product Box and the AMD 50 Logo
        ASRock X570 Steel Legend WiFi ax
        • Supports AMD AM4 Socket Ryzenâ„¢ 2000 and 3000 Series Processors
        • 10 Power-Phase Design
        • Supports DDR4 4666+ (OC)
        • 2x PCIe 4.0 x16 and 3x PCIe 4.0 x1
        • AMD Quad CrossFireXâ„¢ and CrossFireXâ„¢
        • Graphics Output Options: HDMI, DisplayPort
        • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nichicon Audio Caps
        • 8x SATA3, 1x Hyper M.2 (PCIe Gen4 x4 & SATA3) and 1x Hyper M.2 (PCIe Gen4 x4)

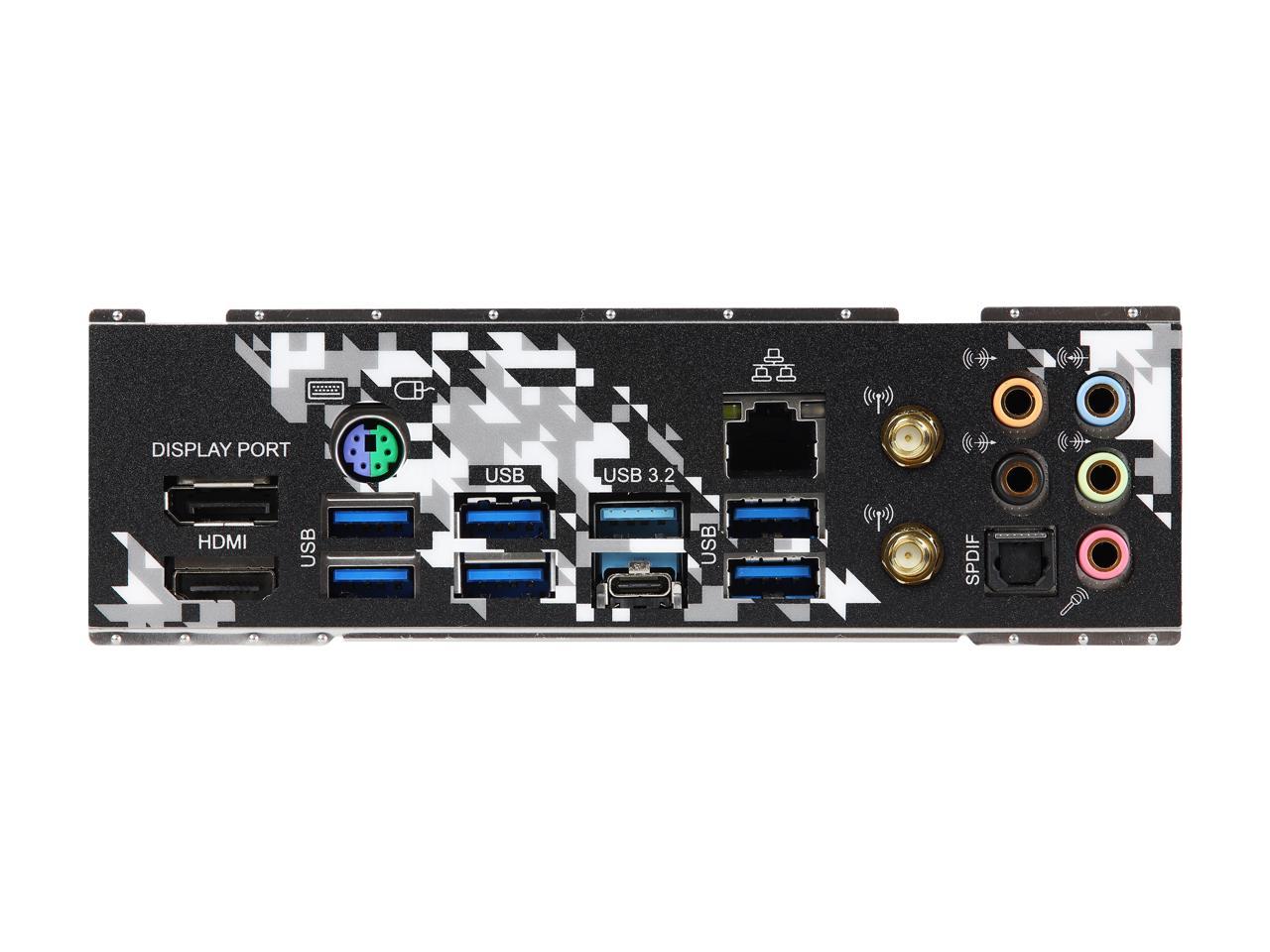

        • 2x USB 3.2 Gen 2 (Rear Type-A + C) and 10x USB 3.2 Gen 1 (4x Front, 6x Rear)
        • Intel® Wi-Fi 6 802.11ax (2.4Gbps) + Bluetooth 5.0 & Intel® Gigabit LAN
        • ASRock Polychrome SYNC
        SteelLegend-KeyImage
        SteelLegend Tough as steel, true legend
        Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance. A motherboard that fulfills every task–with style!
        Your-PC-Transformed-X570 Steel Legend WiFi ax, different angles of the motherboard
        Revolutionary X570 Motherboards:
        Your PC Transformed

        A More Reliable Design That Delivers

        AMD Ryzen 3000 Series Banner

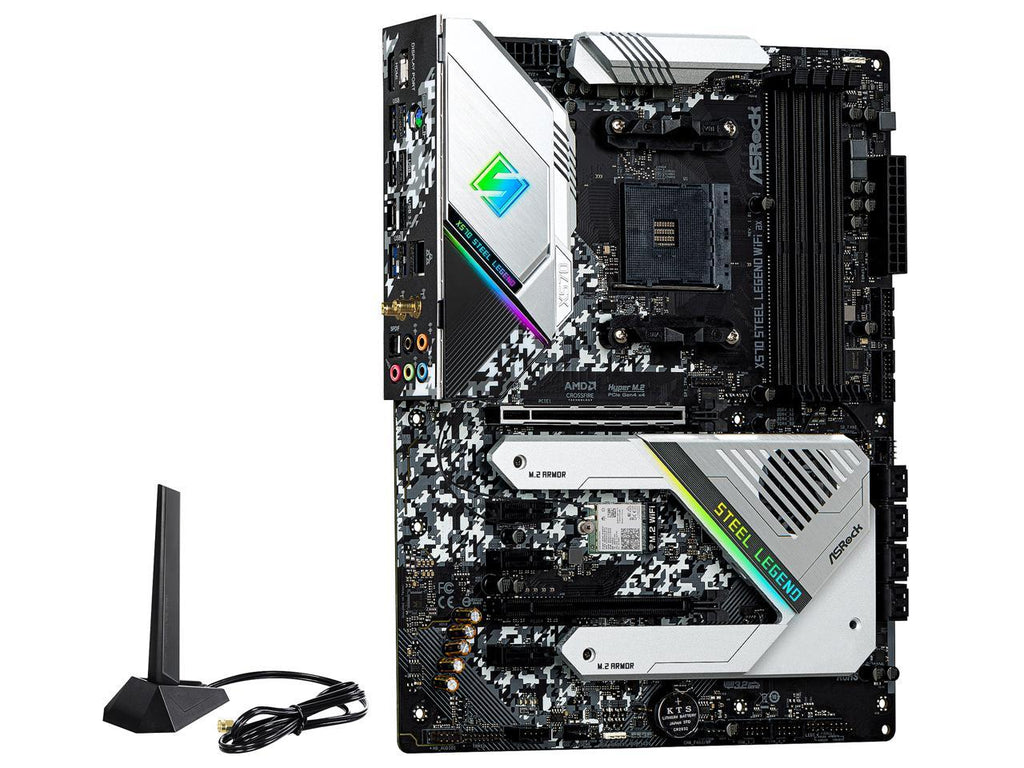

        WiFi 802.11ax Graphic and Antenna
        Wi-Fi 6 802.11ax

        Welcome to the new Wi-Fi standard! ASRock's motherboard will be the 1st product coming with a next-generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4GHz and 5GHz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.

        Bluetooth 5.0 and 2.4Gbps WiFi Icon802.11 ac versus 802.11ax that's 40% faster
        PCIeSteel-X570 Steel Legend WiFi ax
        Steel Slot with New-Gen PCI-Express 4.0

        The next-generation PCI Express 4.0 is capable of performing up to twice the speed compared to previous 3rd generation. ASRock's exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also make sure heavy graphics cards can be well-installed into the PCI-E slot safely.

        DualM2-SSD-X570 Steel Legend WiFi ax
        Dual Hyper M.2 for SSDs

        Supports the next generation of PCI Express 4.0 M.2 SSDs that perform at up to twice the speed, compared to previous 3rd generation. Now, you can have a lightning fast data-transferring experience.

        POLYRGBLED-X570 Steel Legend WiFi ax
        Rule Your Own Lighting Way with Polychrome RGB

        ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

        ASRock Polychrome RGB and Sync BadgesThe addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
        The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
        RGB_accessories and components
        IOShield-X570 Steel Legend WiFi ax
        Flexible Integrated I/O Shield

        Unlike most so-called pre-mounted I/O shields that are only decorated with fancy color schemes, we reserve more space to make a more adjustable IO shield during installation, thus fitting the chassis perfectly without any mechanical issue.

        PowerPhase10-X570 Steel Legend WiFi ax
        10 Power-Phase Design

        Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

        DrMOS-X570 Steel Legend WiFi ax
        Dr. MOS

        Dr.MOS is the integrated power-stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal results and superior performance.

        USB 3.2 GEN2
        Dual USB 3.2 Gen2 (Type-A + Type-C)

        This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen 2 ports built on the rear i/o for supporting next-generation USB 3.2 Gen 2 devices and to deliver up to 10Gbps data-transfer rates. USB 3.2 Gen2 do

        USB 3.2 Gen2 doubles the data transfer rate
        USB 3.2 GEN2 2X faster data transfer than USB 3.2 Gen 1

        USB 3.2 Gen2 Type-C doubles the charge speed!
        USB 3.2 GEN2 2X faster charging than USB 3.2 Gen 1
        PREMIUM60APOWERCHOKE-X570
        PREMIUM 60A POWER CHOKE

        ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

        StatusLED-X570 Steel Legend WiFi ax
        Post Status Checker

        An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.

        PuritySound4-X570 Steel Legend WiFi ax
        Purity Sound 4

        It's time to enjoy the most purified audio performance with ultra-high definition. Purity Sound 4 is a combination of several hardware, software audio solutions. 7.1 CH HD audio with the latest Realtek ALC1220 audio codec, individual PCB layers for R/L audio channel, 120dB SNR DAC and other technologies to deliver the crispest sound effects.

        Thunderbolt 3 Header
        Thunderbolt 3 AIC Header

        Thunderbolt 3 is no longer limited to certain chipset, ASRock is the first motherboard manufacturer to skillfully implement the Thunderbolt 3 technology onto AMD X570 motherboards. All you need is a Thunderbolt 3 AIC card!
        1: Only three TB3 devices can be detected.
        2 : Some USB 3.2 Type-C devices will cause system reboot after wake up from S3/S4.
        3 : Cannot light up the TB3 monitor after wake up from S3/S4, re-plug the cable is needed.
        4 : Does not support Thunderbolt 3 PCIe graphics card box.

        Super Alloy Motherboard Graphic
        XXL Aluminum Alloy Heatsink

        SA-Heatsink-X570

        Extra-large aluminum alloy heat sinks effectively take away heat from the MOSFET and chipset so that your whole system may perform more stably.

        Premium 60A Power Choke
        SA-60APowerChoke-X570

        Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

        Dr. MOS
        SA-DrMOS

        Dr. MOS design features the latest SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

        Premium Memory Alloy Choke
        SA-MemoryAlloyChoke

        Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.

        Combo Caps
        SA-ComboCaps

        A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, helping overclockers achieve higher scores.

        Nichicon 12K Black Caps
        SA-Nichicon12KBlack

        Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

        I/O Armor

        SA-Armor-X570

        A newly designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

        Matte Black PCB

        SA-MattePCB

        A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

        High-Density Glass-Fabric PCB
        SA-HDPCB

        Using a high-density glass-fabric PCB design reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

        FullSpike Protection Logo
        Full Spike Protection

        Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

        ASRock APPShop
        Live Update & APP Shop

        ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

        Specifications :

        General Information

        UPC 4717677339109
