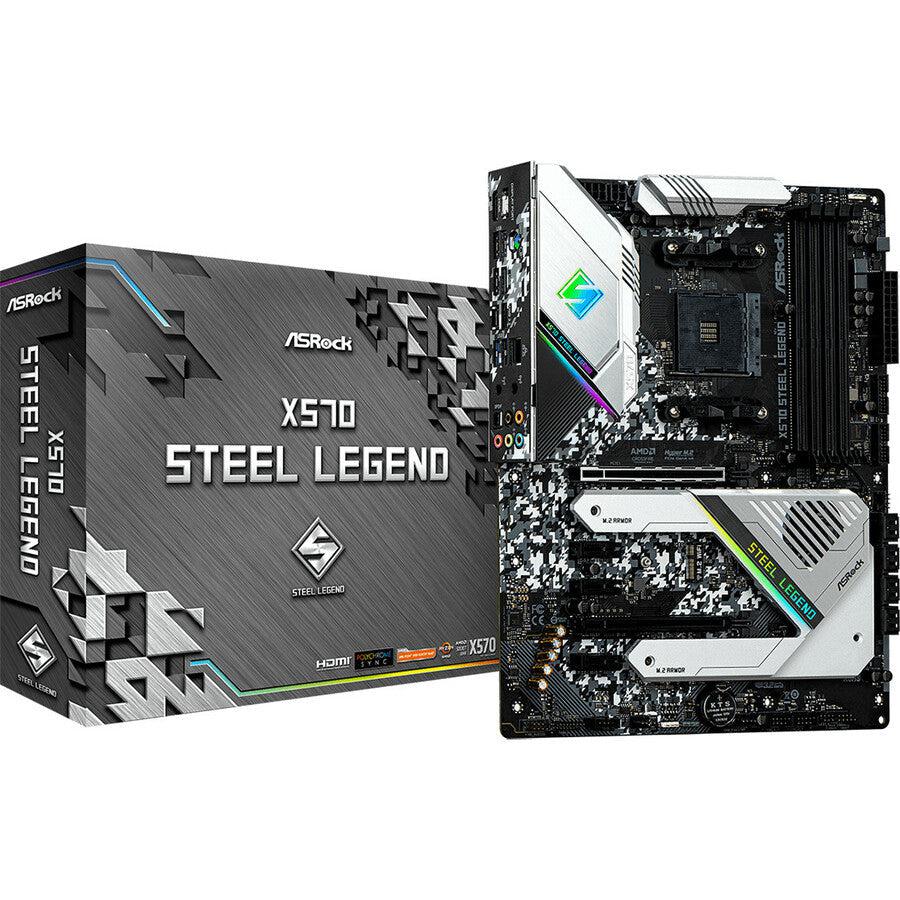

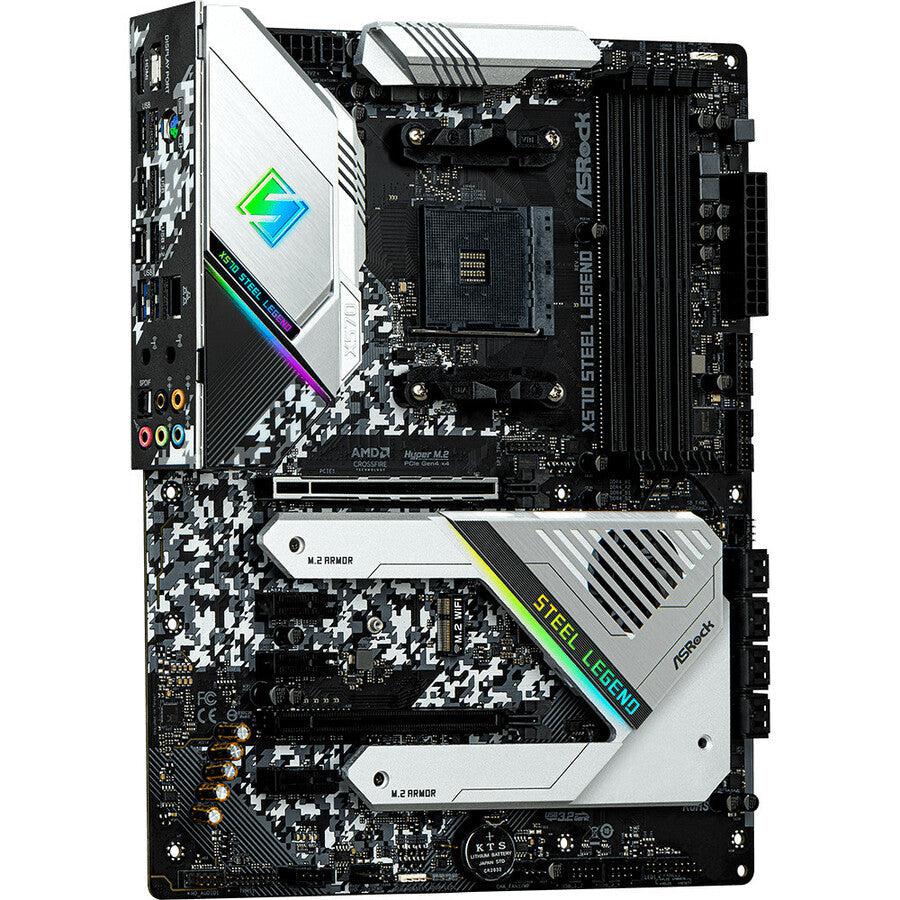

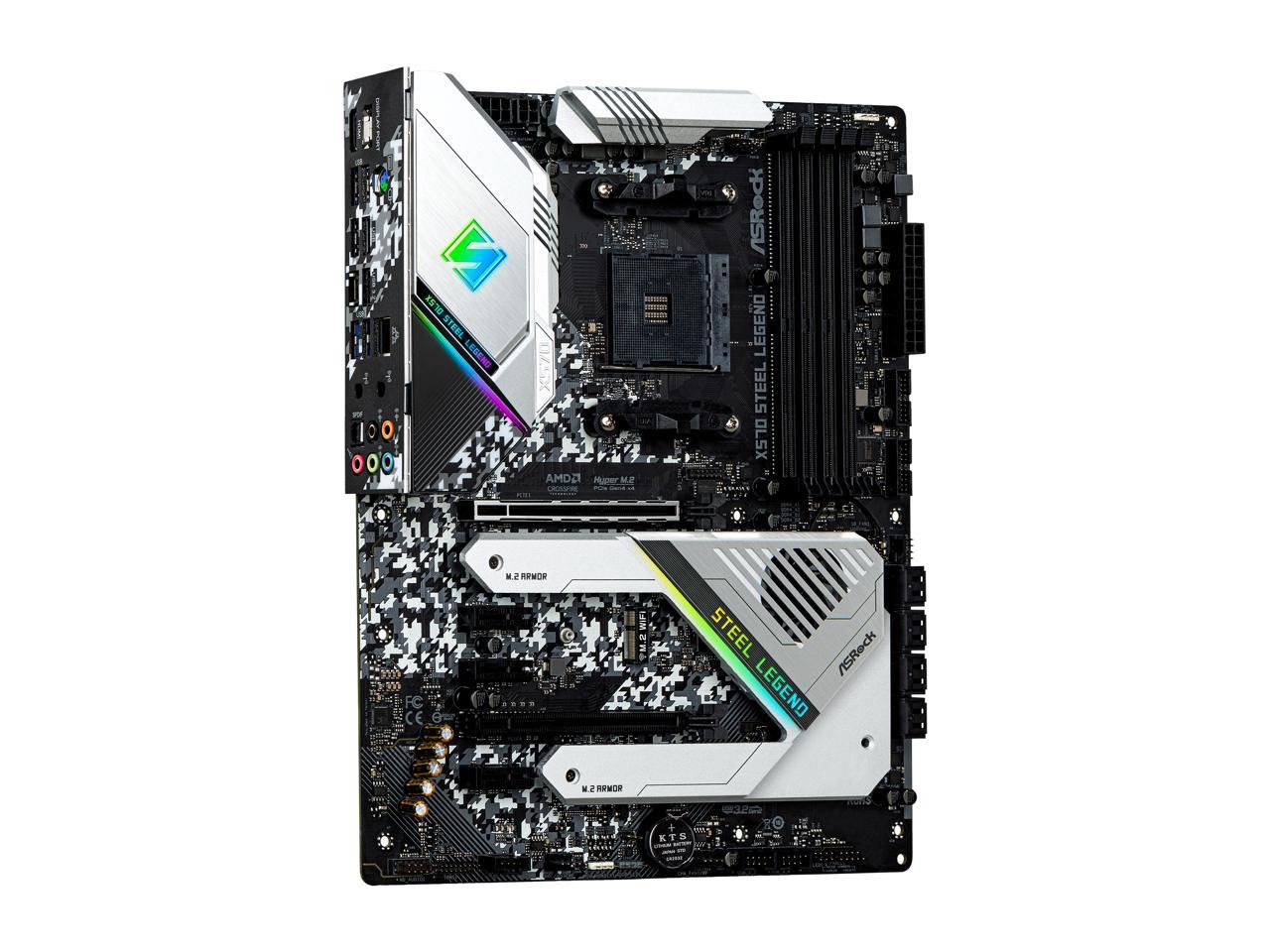

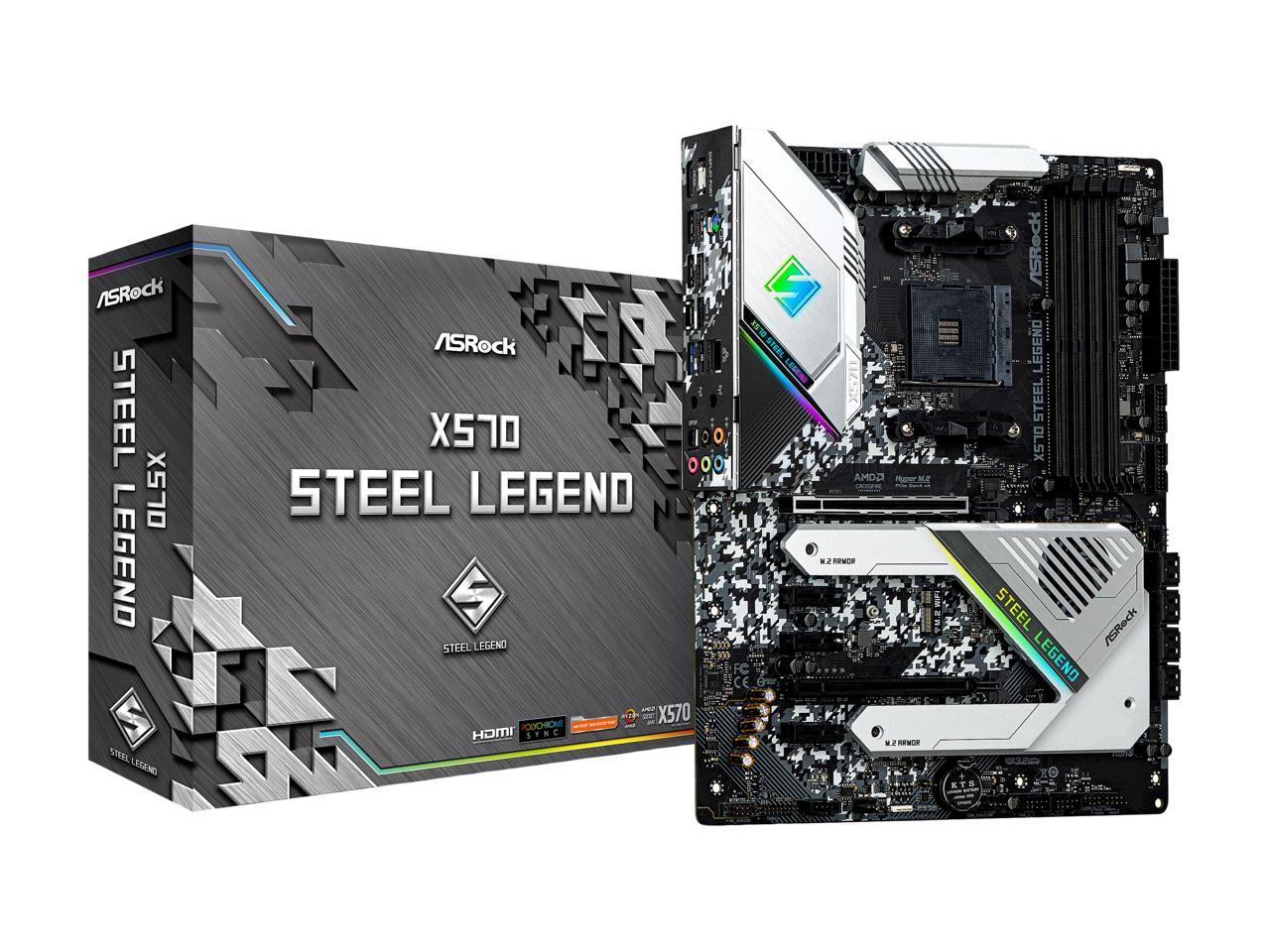

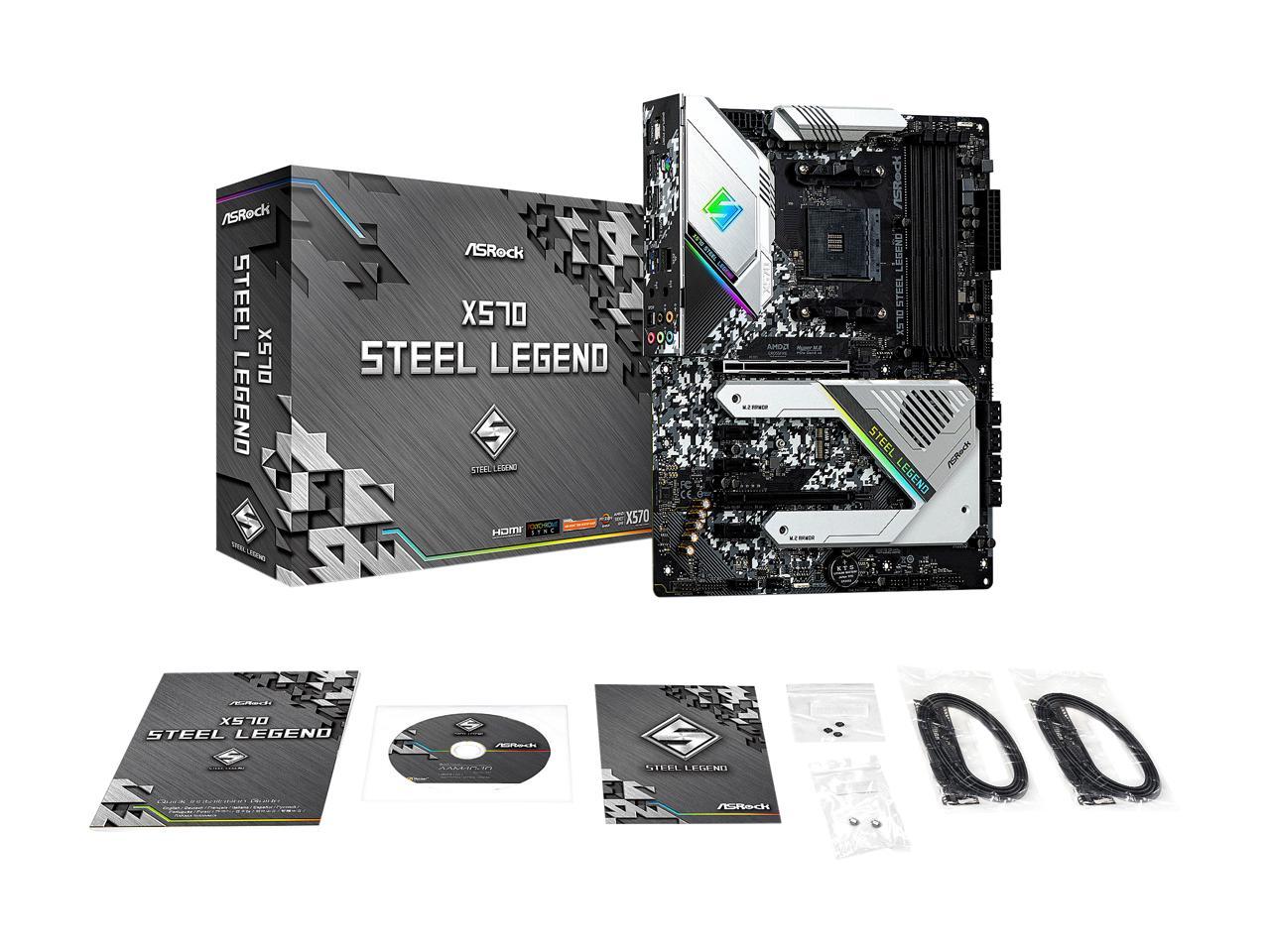

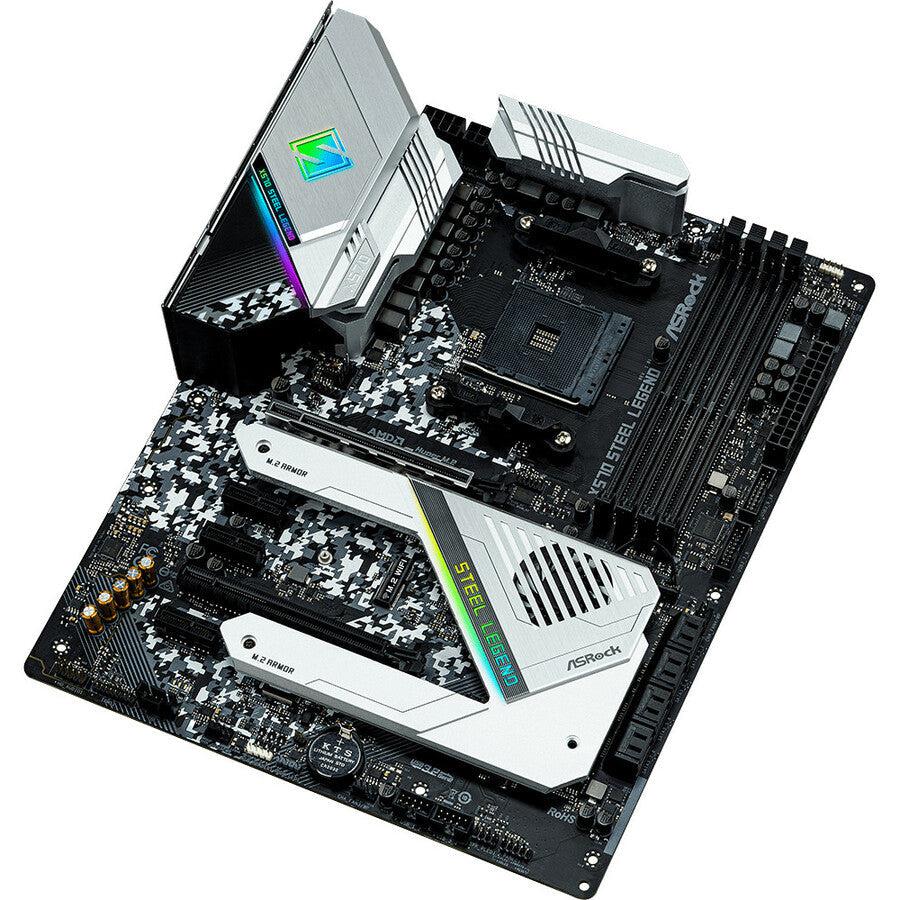

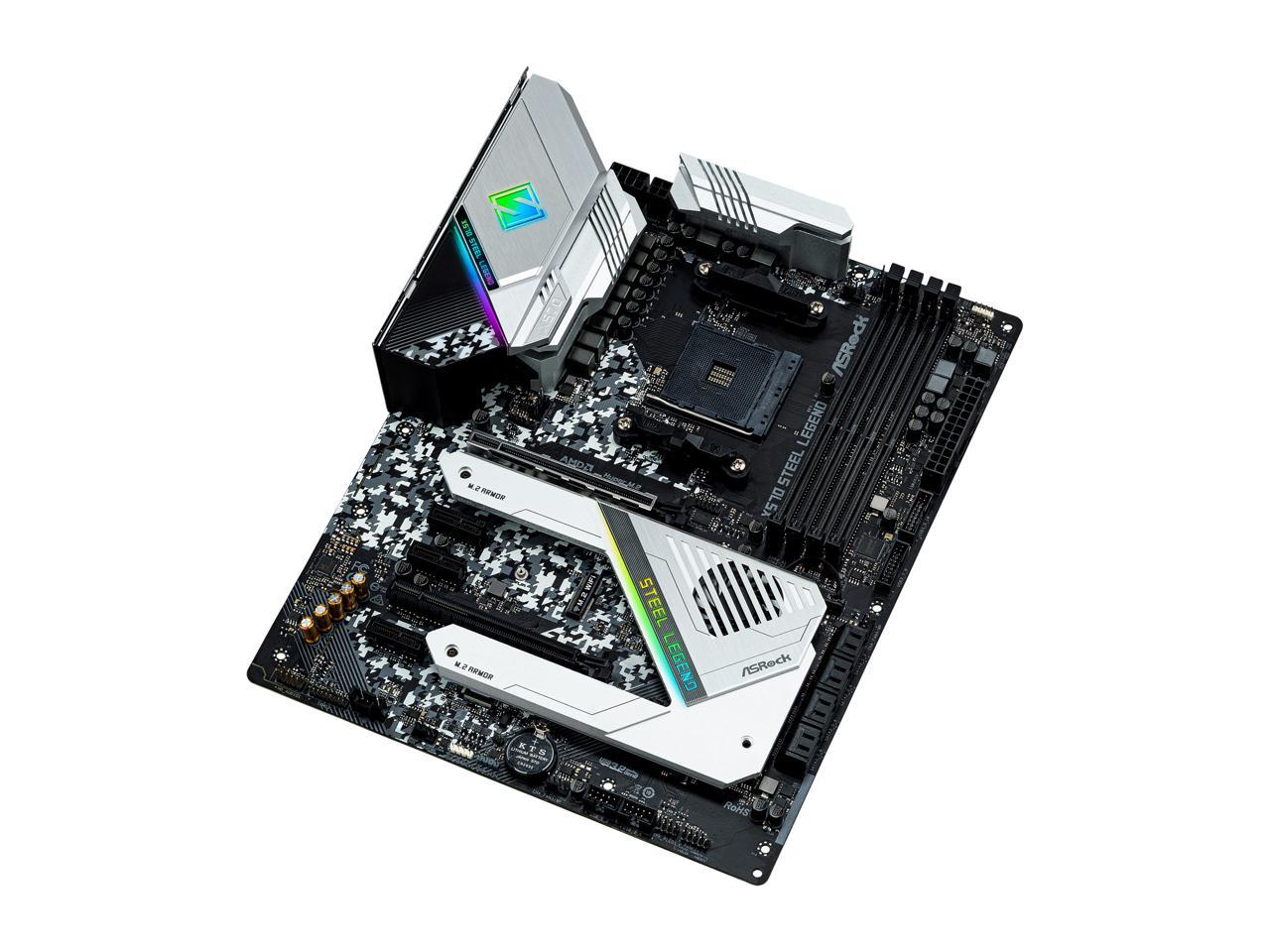

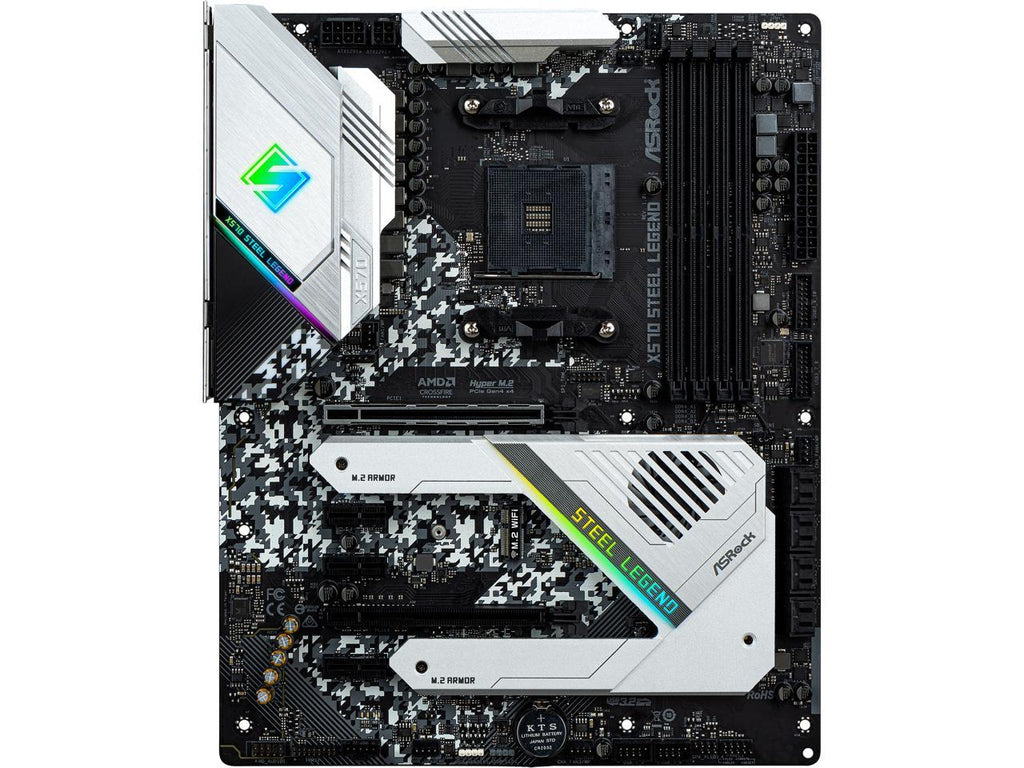

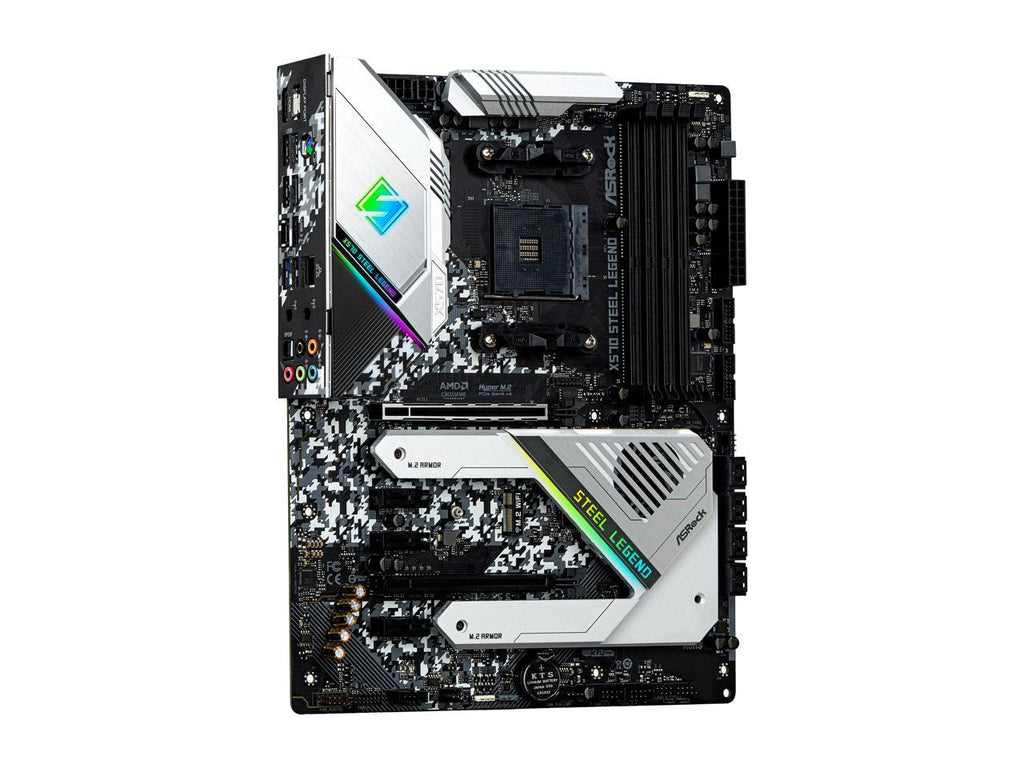

Asrock X570 Steel Legend Am4 Amd X570 Sata 6Gb/S Atx Amd Motherboard

Asrock X570 Steel Legend Am4 Amd X570 Sata 6Gb/S Atx Amd Motherboard

SKU:X570 STEEL LEGEND

Regular price $214.99
Regular price Sale price $214.99
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Specifications
        Reviews, Que. & Ans.

        Description :

        • BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU

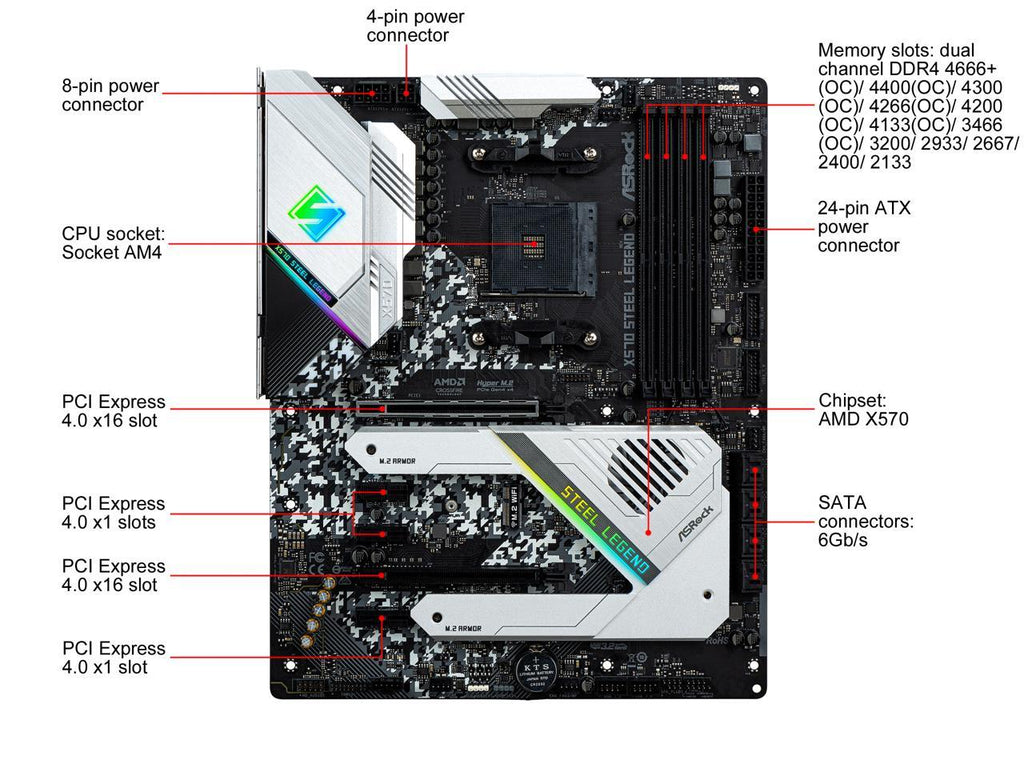

        • AMD X570
        • Supports AMD AM4 socket Ryzen 2000 and 3000 series processors
        • AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
        • AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC)/ 3466(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
        • AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory
        X570 Phantom Gaming X
        X570 Steel Legend
        • Supports AMD AM4 Socket Ryzenâ„¢ 2000 and 3000 Series processors
        • 10 Power Phase Design
        • Supports DDR4 4666+ (OC)
        • 2 PCIe 4.0 x16, 3 PCIe 4.0 x1, 1 M.2(Key E) For WiFi
        • AMD Quad CrossFireXâ„¢ and CrossFireXâ„¢
        • Graphics Output Options: HDMI, DisplayPort
        • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nichicon Audio Caps
        • 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4 & SATA3), 1 Hyper M.2 (PCIe Gen4 x4)
        • 2 USB 3.2 Gen2 (Rear Type A+C), 10 USB 3.2 Gen1 (4 Front, 6 Rear)
        • Intel® Gigabit LAN
        • ASRock Polychrome SYNC
        X570 Phantom Gaming X
        X570 Phantom Gaming X
        Steel Legend represents the philosophical state of rock-solid durability and irresistible aesthetics. Built around most demanding specs and features, the Steel Legend series aims at daily users and mainstream enthusiasts! Providing a strong array of materials/components to ensure a stable and reliable performance. A motherboard that fulfills every task – with style!
        X570 Phantom Gaming X
        REVOLUTIONARY X570 MOTHERBOARDS :
        Your PC Transformed

        Style. More reliable. Design that delivers.

        X570 Phantom Gaming X
        X570 Phantom Gaming X
        STEEL SLOT WITH NEW-GEN PCI EXPRESS 4.0

        The next generation PCI Express 4.0 is capable of performing twice the speed compared to previous 3rd generation. ASRock's exclusive Steel Slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely.

        X570 Phantom Gaming X
        Dual Hyper M.2 For SSD

        Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

        X570 Phantom Gaming X
        RULE YOUR OWN LIGHTING WAY - POLYCHROME RGB

        ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

        X570 Phantom Gaming X*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
        *The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
        X570 Phantom Gaming X
        X570 Phantom Gaming X
        Flexible Integrated I/O Shield

        Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

        X570 Phantom Gaming X
        10 POWER PHASE DESIGN
        X570 Phantom Gaming X
        Dr. MOS

        Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.

        X570 Steel Legend
        Dual USB 3.2 Gen2 (Type-A + Type-C)

        This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates. USB 3.2 Gen2 do

        USB 3.2 Gen2 doubles the data transfer rate
        X570 Steel Legend

        USB 3.2 Gen2 Type-C doubles the charge speed!
        X570 Steel Legend
        X570 Phantom Gaming X
        PREMIUM 60A POWER CHOKE

        ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

        X570 Phantom Gaming X
        Post Status Checker

        An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.

        X570 Phantom Gaming X
        Purity Sound 4

        It's time to enjoy the most purified audio performance with ultra high definition. Purity Sound4 is a combination of several hardware, software audio solutions. 7.1 CH HD audio with the latest Realtek ALC1220 audio codec, individual PCB layers for R/L audio channel, 120dB SNR DAC and other technologies to deliver the crispest sound effects.

        X570 Steel Legend
        XXL Aluminum Alloy Heatsink

        X570 Steel Legend

        Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

        Premium 60A Power Choke
        X570 Steel Legend

        Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

        Dr. MOS

        X570 Steel Legend

        Dr. MOS design features the latest SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

        Premium Memory Alloy Choke
        X570 Steel Legend

        Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.

        Combo Caps
        X570 Steel Legend

        A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, and overclockers may achieve higher scores.

        Nichicon 12K Black Caps
        X570 Steel Legend

        Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

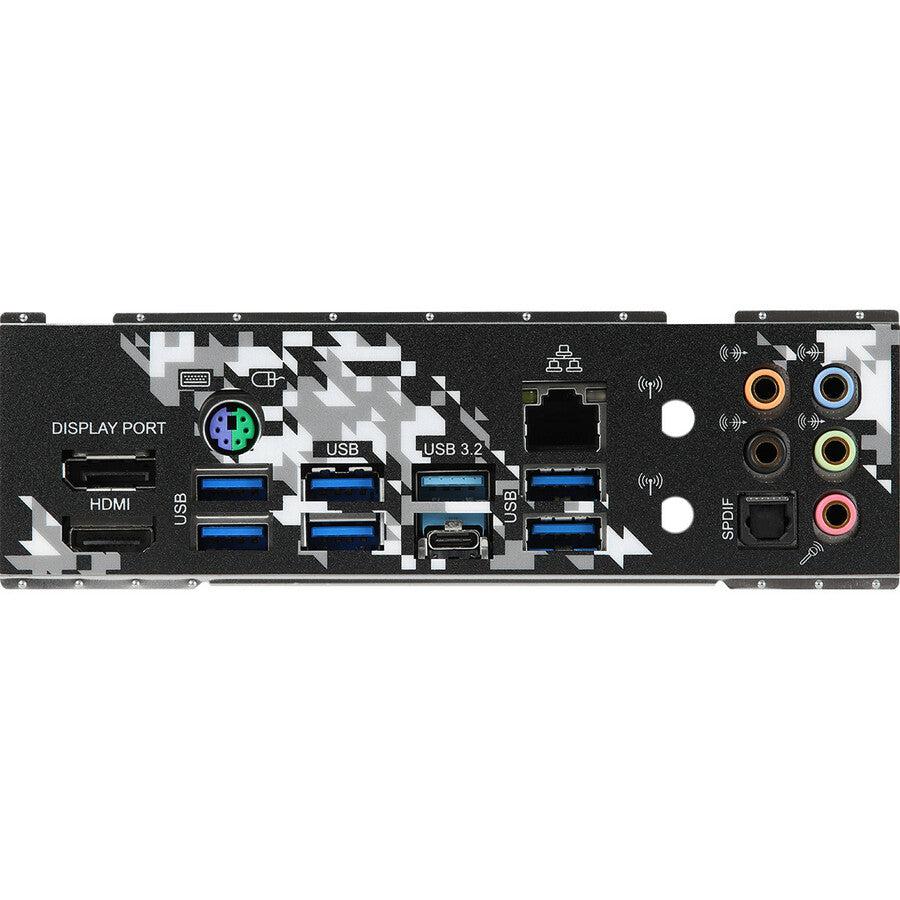

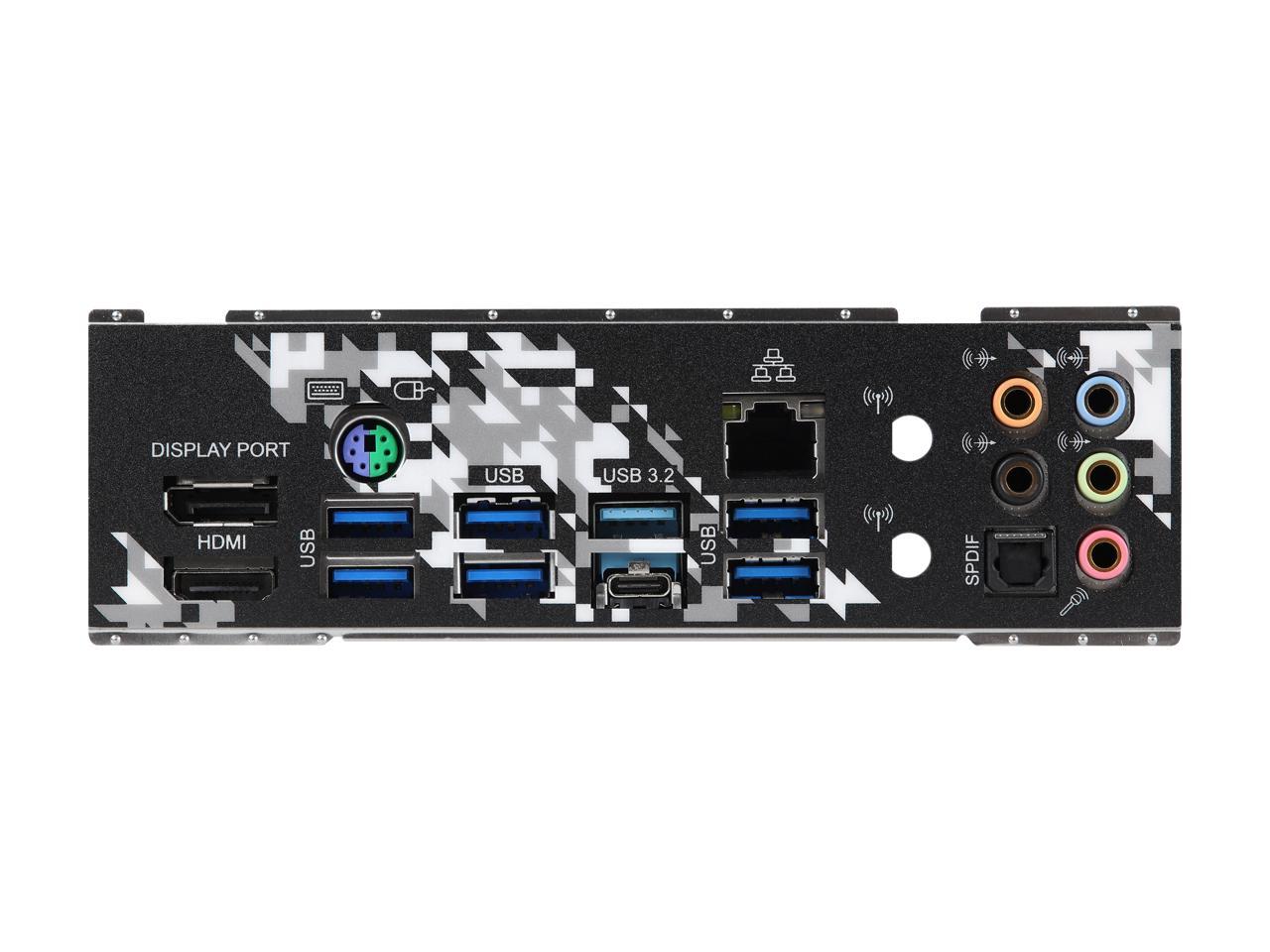

        I/O Armor

        X570 Steel Legend

        A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

        Matte Black PCB

        X570 Steel Legend

        A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

        High Density Glass Fabric PCB
        X570 Steel Legend

        High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

        X570 Phantom Gaming X
        M.2 (KEY E) For WiFi

        Besides the onboard LAN port, users may also choose 802.11ac wireless connections by M.2 (Key E) slot.
        *Wi-Fi module is not included.

        X570 Phantom Gaming X
        Full Spike Protection

        Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

        X570 Phantom Gaming X
        Live Update & APP Shop

        ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.

        Specifications :

        General Information

        Manufacturer ASRock, Inc
        Manufacturer Part Number X570 STEEL LEGEND
        Manufacturer Website Address http://www.asrock.com
        Brand Name ASRock
        Product Model X570 STEEL LEGEND
        Product Name X570 STEEL LEGEND Desktop Motherboard
        Product Type Desktop Motherboard
        UPC 4717677338904

        Chipset

        Chipset ManufacturerAMD

        Interfaces/Ports

        HDMIYes
        Total Number of USB Ports8
        Width12"
        Depth9.6"
