ASRock

Asrock X570 Phantom Gaming X Am4 Amd Premium X570 Sata 6Gb/S Atx Amd Motherboard4717677338850

Asrock X570 Phantom Gaming X Am4 Amd Premium X570 Sata 6Gb/S Atx Amd Motherboard4717677338850

SKU:X570 PHANTOM GAM X

Regular price $391.00
Regular price Sale price $391.00
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Reviews, Que. & Ans.

        Description :

        • BIOS update might require for AMD Zen 3 Ryzen 5000 series CPU

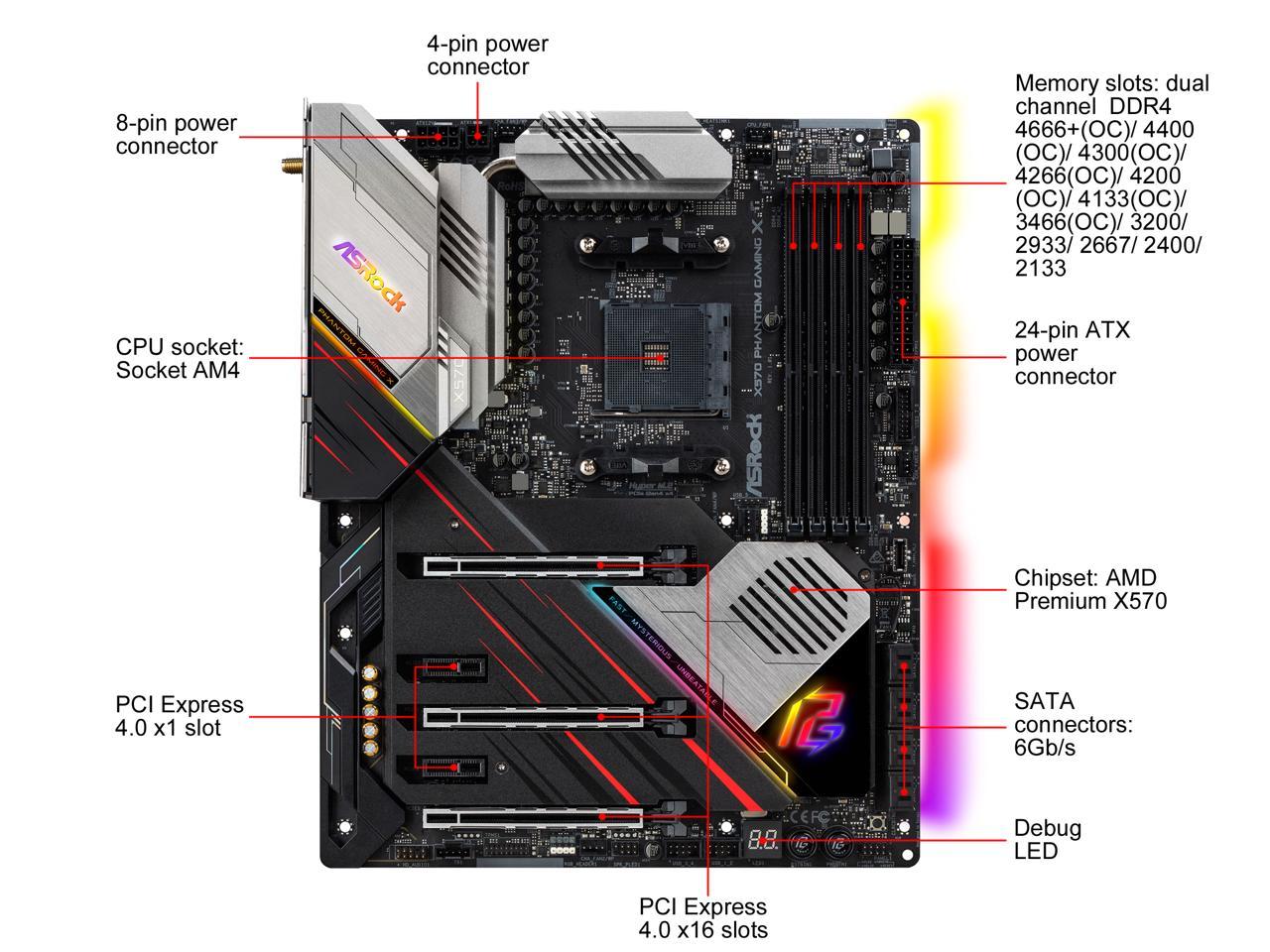

        • AMD Premium X570
        • Supports AMD AM4 socket Ryzen 2000 and 3000 series processors
        • AMD Ryzen series CPUs (Matisse) support DDR4 4666+(OC)/ 4400(OC)/ 4300(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
        • AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC)/ 3466(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
        • AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory

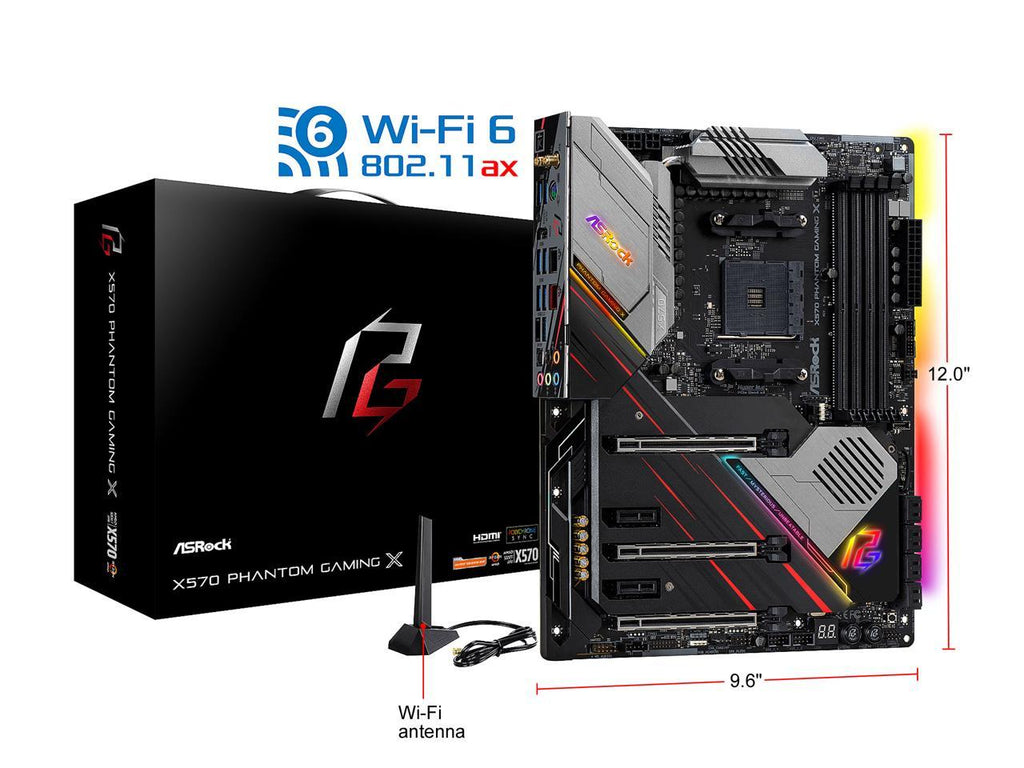

        ASRock X570 Phantom Gaming X Standing Up, Angled to the Right Next to Its Product Box and the AMD 50 Years Logo

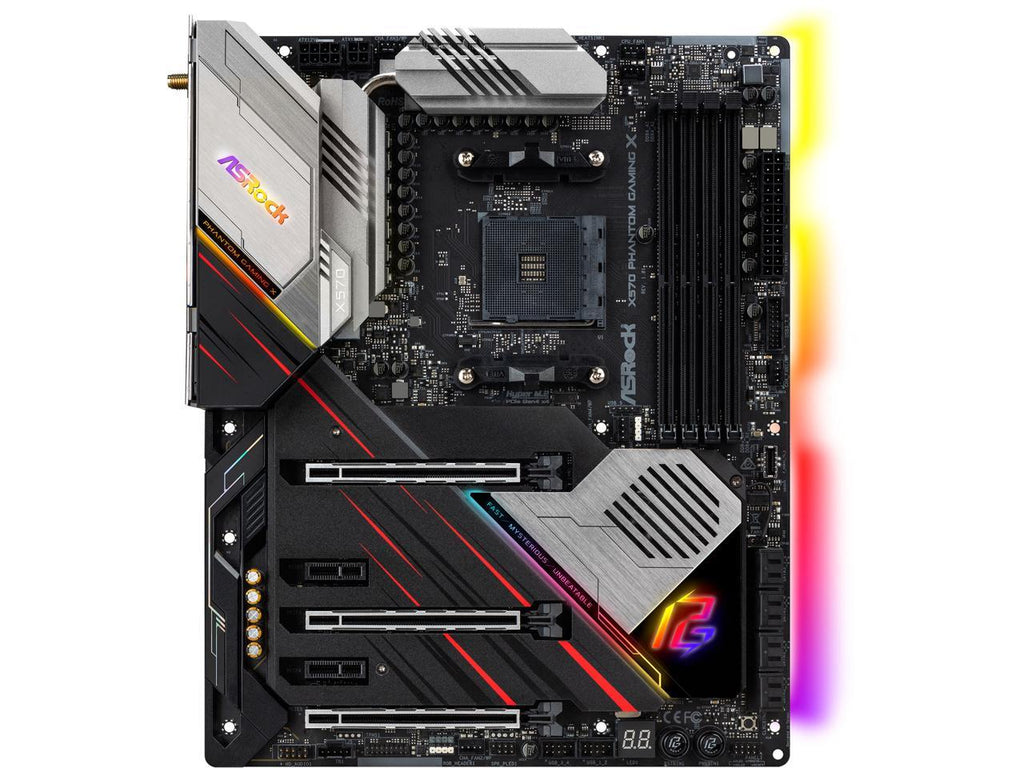

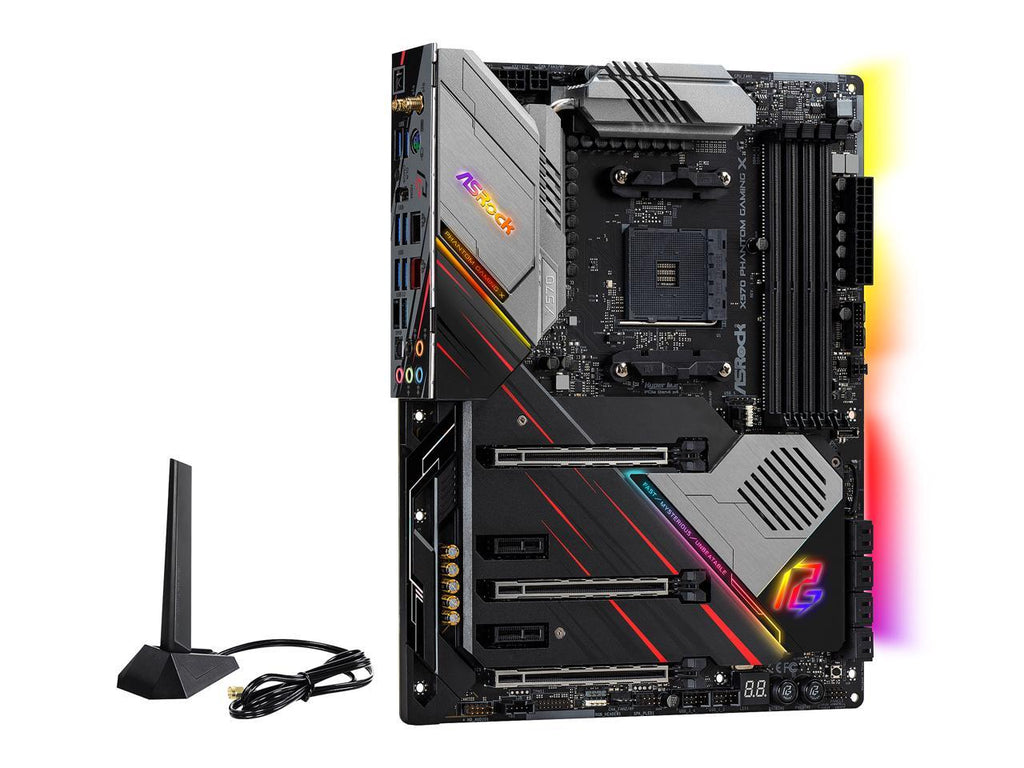

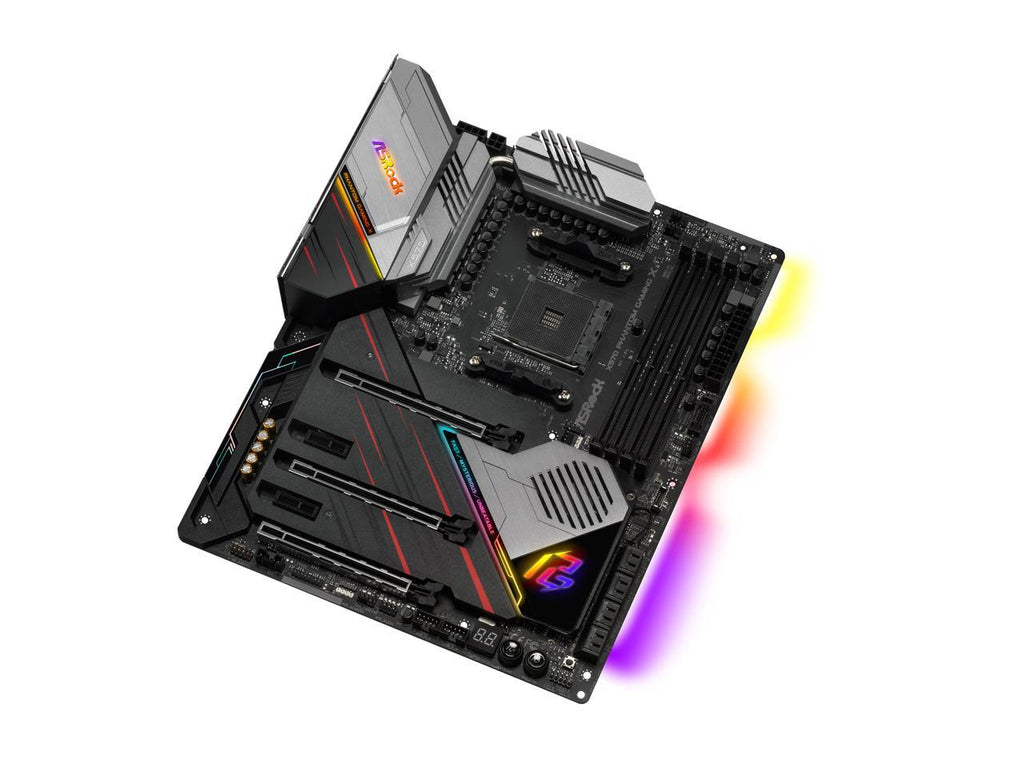

        X570 Phantom Gaming X
        • Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series processors
        • Intel® Wi-Fi 6 802.11ax (2.4Gbps) + Bluetooth 5.0
        • Phantom Gaming 2.5 Gigabit LAN, Intel® Gigabit LAN
        • Supports DDR4 4666+ (OC)
        • 3x PCIe 4.0 x16, 2x PCIe 4.0 x1
        • NVIDIA® NVLink™, Quad SLI™, AMD 3-Way CrossFireX™
        • 7.1 CH HD Audio (Realtek ALC1220 Audio Codec)
        • Supports Creative Sound Blaster Cinema 5
        • 8x SATA3, 2x Hyper M.2 (PCIe Gen4 x4 & SATA3), 1x Hyper M.2 (PCIe Gen4 x4)
        • 3x USB 3.2 Gen2 (Rear Type A+C, Front Type-C), 8x USB 3.2 Gen1 (2x Front, 6x Rear)
        • ASRock Polychrome SYNC
        Two ASRock X570 Phantom Gaming X Motherboard Back to Back along with text and graphics pointing out the following features: Metal backplate for enhanced durability, Polychrome Sync to rule your own lighting way and unbeatable heatsink armor to cool with style via this strong and solid top coverASRock X570 Phantom Gaming X Motherboard Standing Up, Angled Slightly to the Right, Along with Text and Graphics that indicate: 1) Flexible Integrated I/O Shield - Reserve tolerance for fitting chassis perfectly, 2) 2T2R Intel WiFi 6 802.11ax (2.4Gbps), 3) Phantom Gaming 2.5Gb LAN - Boost networking performance up to 2.5X than standard Gigabit LAN (The Phantom Gaming 2.56 LAN Stylized Text and Ethernet Port with red rays and icons for gaming, media watching and Internet coming out are below this) - Dual LAN with Teaming function - Creative Sound Blaster Cinema 5 (Text with Logo Badge) - Enjoy the new level of gaming audioASRock X570 Phantom Gaming X Motherboard Angled Up to the Right with Text and Graphics Indicating: Hi-Density Power Connector, Digi Power with Dr. MOS, 15 gold contact in VGA PCIe Slot, XXL Aluminum Alloy Heatsink and 15 gold contact in DIMM slots
        ASRock X570 Phantom Gaming X Motherboard, Standing Up, Slightly ANgled to the Right with Graphics Showing Its RGB Lighting along with a geometrically split background image showing pieces of the motherboard
        Revolutionary X570 Motherboards: Your PC Transformed

        Style . More reliable. Design that delivers.

        AMD Ryzen 300 Series banner that shows a graphic of a motherboard with the AMD Ryzen 3000 CPU Approaching the Socket with Light and streaming geometric graphics in between. There is also text that reads: GET READY FOR AMD RYZEN 3000-SERIES -  AMD RYZEN DESKTOP 3000 READY - PLUG & PLAY READY - LOOK FOR THE BADGE WHEN PURCHASING A MOTHERBOARD
        WiFi Band Next to the Port Area of the ASRock X570 Phantom Gaming X Motherboard along with graphics and icons for 6 802.11ax Wifi for gaming, video streaming, stocks, email, photos, Internet, Files and Cloud computing
        Wi-Fi 6 802.11ax

        Welcome to the new Wi-Fi standard! ASRock's motherboard will be the 1st product coming with a next-generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4GHz and 5GHz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.

        Graphic Icon for Bluetooth 5.00 and 2.4Gbps WiFiMetered Bar Graph Graphics That Shows 802.11ac does 1.7Gbps while 6 WiFi 802.11ax does 2.4Gbps—More than a 40% Boost
        ASRock X570 Phantom Gaming X Motherboard Standing Up, Angled to the Right Along with Text That Reads PHANTOM GAMING 2.5G LAN and a hotspot shot of the port area of the motherboard
        Phantom Gaming 2.5Gbps LAN

        The intelligent Phantom Gaming 2.5Gbps LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you'll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

        Speedometer Graphics Showing 1Gbps LAN and 2.5Gbps LAN that's 2.5X Faster

        Software window for different WiFI activities being split up

        Automatically detects and accelerates game traffic ahead of other network traffic for smoother, stutter-free in-game performance and a true competitive edge.

        2.5Gbps Ethernet, High TCP & UDP Throughput

        Go beyond gaming! This ASRock 2.5Gbps LAN motherboard with higher throughput that's excellent at small-package file transferring while unleashing stunning performance, especially for gaming.

        Bar Graphs showing the different between 2.5Gbps versus 1Gbps TCP versus UDP
        Closeup shots of the three steel slots on the ASRock X570 Phantom Gaming X Motherboard
        Steel Slot with New-Gen PCI-Express 4.0

        The next-generation PCI-Express 4.0 is capable of performing twice the speed compared to the previous 3rd generation. ASRock's exclusive steel slot with extra anchor points are revolutionary added to ensure signal stability and also making sure heavy graphics cards to be well-installed in the PCI-E slot safely.

        Highlight graphic showing the three M.2 slots on the ASRock X570 Phantom Gaming X Motherboard, with the third bottom one being Hyper M.2
        Unbeatable Heatsink Armor with Hyper M.2 (Gen 4 x4)

        Forged with an aluminum-alloy heatsink top cover that effectively improves heat dissipation. Underneath is the next-generation PCI-Express 4.0 Hyper M.2 Socket, with twice the transfer speed of the previous 3rd Generation.

        ASRock X570 Phantom Gaming X Motherboard Standing Up, Slightly Angled to the Right with Hotspots Showing the Two RGB LED Headers and Addressable RGB LED Header on the Motherboard
        Rule Your Own Lighting Way with Polychrome RGB

        ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.

        ASRock POLYCHROME SYNC and ASROCK POLYCHROME RGB Badges

        The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
        The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

        Different Closeup Shots of RGB-Lit Components and the RGB-Lit Areas on the ASRock X570 Phantom Gaming X Motherboard

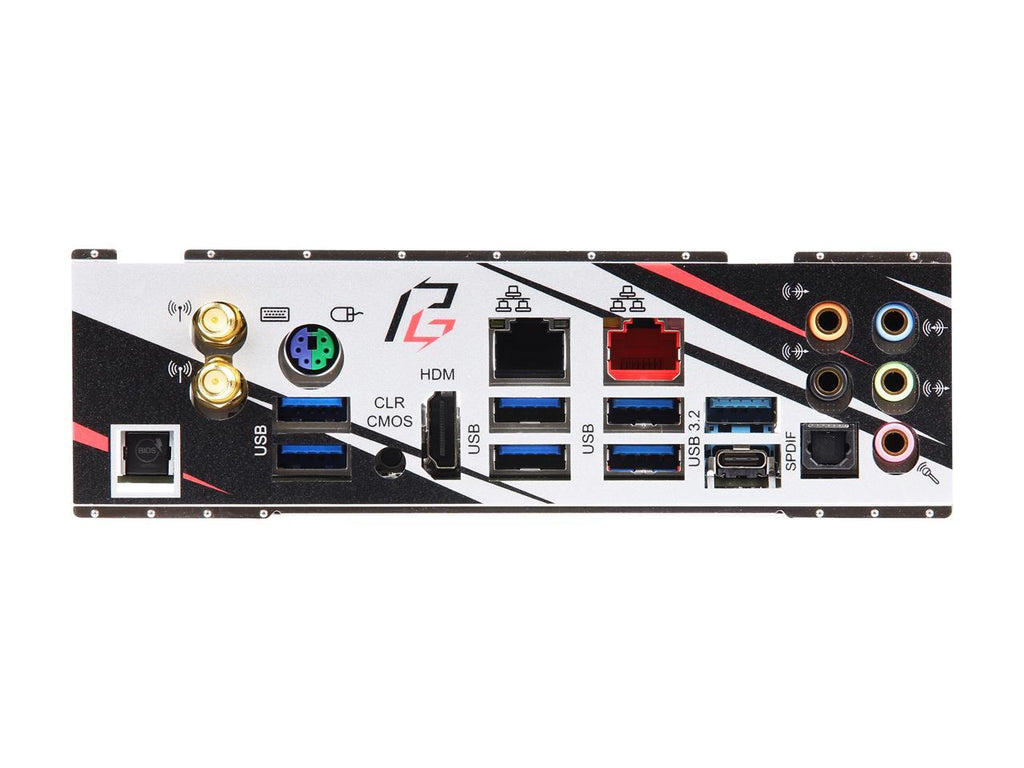

        ASRock X570 Phantom Gaming X Motherboard's Ports Area
        Flexible Integrated I/O Shield

        Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow I/O shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

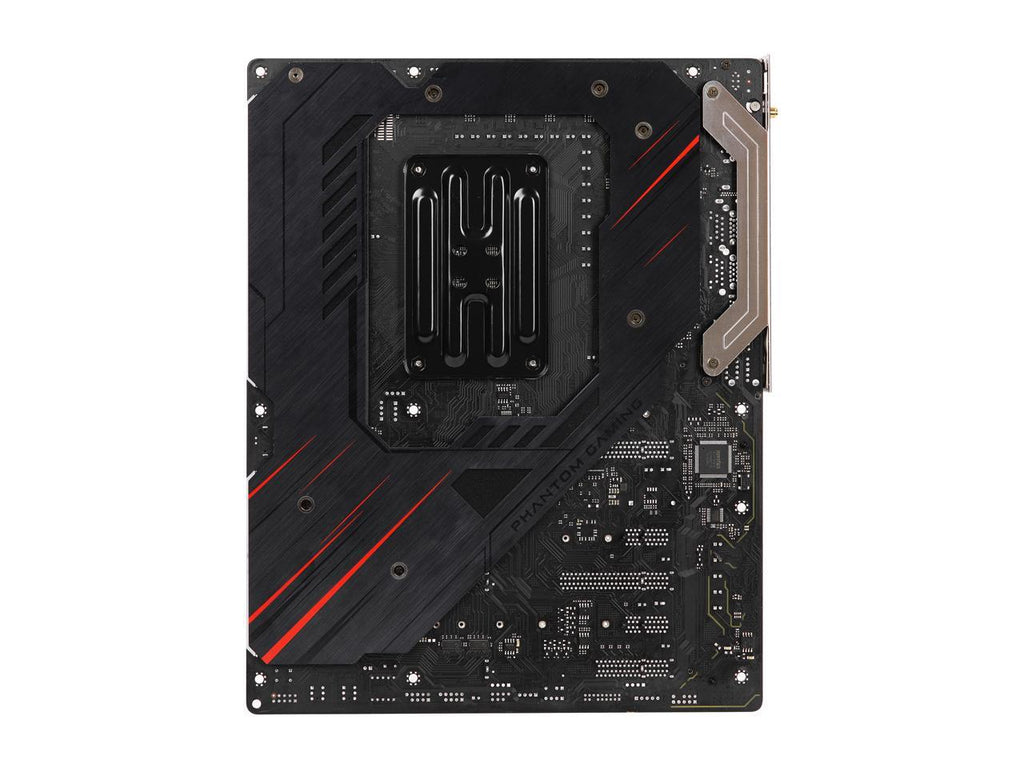

        ASRock X570 Phantom Gaming X Motherboard Facing Away, Showing Off Its Backplate
        Metal Backplate

        Strengthens the motherboard to prevent bending caused by heavy coolers or graphics cards with better airflow and enhanced stability.

        14 Power-Phase Design

        Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

        Graphic Highlighting the Power Connectors and Capacitors on the ASRock X570 Phantom Gaming X Motherboard
        DR MOS Chipset above a color-spectrum filtered ASRock X570 Phantom Gaming X Motherboard
        Dr. MOS

        Dr. MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.

        Graphic Showing the USB 3.2 Gen Ports in Front of Light Filter Graphic
        Dual USB 3.2 Gen2 (Type-A + Type-C)

        This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear I/O for supporting next-generation USB 3.2 Gen2 devices and to deliver up to 10Gbps data-transfer rates.

        USB 3.2 Gen2 doubles the data transfer rate!
        Bar Graph Showing USB 3.2 Gen2 as 2X faster with 10Gbps speeds compared to USB 3.2 Gen1's 5Gbps

        USB 3.2 Gen2 Type-C doubles the charge speed!
        Bar Graph Showing USB 3.2 Gen2 Type-C as 2X faster with 3.0A speeds compared to USB 3.2 Gen1's Type-A's 1.5A
        Premium 60A Power Choke

        ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

        Capacitors on the ASRock X570 Phantom Gaming X Motherboard
        Graphics Showing a Hand Pointing to the BIOS Flashback Button Next to the USB port where you can plug in your boot mediaX570 Phantom Gaming X
        BIOS Flashback

        Get the most convenient BIOS flashing with just a simple click. Users can easily achieve the latest BIOS support with a USB and power supply, No CPU, RAM or other components required.

        A man listening to overear headphones he is wearing, along with a closeup of the ASRock's X570 Phantom Gaming X Motherboard's Gold Audio Capacitors, along with the Sound Blaster Cinema 5 Logo
        CREATIVE SOUND BLASTER™ CINEMA5

        A new world of cinematic audio that delivers unprecedented levels of audio realism, dynamics and punch to gaming sound. Whether you're gaming or watching a movie, Reality 3D technology lets you enable 5.1/7.1 surround sound for an additional layer of transience to your listening experience even with just a pair of headphones or stereo speakers.

        Graphic That Reads: Super Alloy Motherboard
        XXL Aluminum Alloy Heatsink
        ASRock X570 Phantom Gaming X Motherboard's Alloy Heatsinks

        Extra-large, aluminum-alloy heat sinkseffectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.

        Premium 60A Power Choke
        Power Chokes on the ASRock X570 Phantom Gaming X Motherboard

        Compared to traditional chokes, ASRock's premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

        Dr. MOS

        Dr. MOS on the ASRock X570 Phantom Gaming X Motherboard's Chipset

        Dr. MOS design features the latest SPS (Smart Power Stage) technology. It's optimized for monitoring current and temperature of each phase, thus delivering smoother and neater power to the CPU with enhanced performance and OC capability.

        Premium Memory Alloy Choke
        Closeup of the Premium Memory Alloy Choke on the ASRock X570 Phantom Gaming X Motherboard

        Specifically designed for memory power delivery, these new alloy chokes feature a highly magnetic and heat-resistant design, thus delivering more stable and reliable power to the motherboard and memory modules.

        Combo Caps


        Combo Caps on the ASRock X570 Phantom Gaming X Motherboard

        A combination of 820uF and 100uF capacitors. Together these capacitors provide clearer, efficient and more responsive CPU Vcore power, helping overclockers may achieve higher scores.

        Nichicon 12K Black Caps

        Nichicon 12K Black Caps on the ASRock X570 Phantom Gaming X Motherboard

        Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.

        I/O Armor

        Armor over the ASRock X570 Phantom Gaming X Motherboard's Port Area

        A new designed protective cover for all of the crucial parts near the motherboard's rear I/O, so that they won't easily be damaged by static electricity.

        Matte Black PCB

        Corner of the ASRock X570 Phantom Gaming X Motherboard

        A new mysterious matte black and copper color scheme to match the prestigious components on ASRock's high-end motherboards.

        High Density Glass Fabric PCB
        Tight, High Density Fabric versus Traditional Fabric That's a Bit Looser

        Using the High Density Glass Fabric PCB design reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

        Full Spike Protection Logo
        Full Spike Protection

        Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

        ASRock App Shop Logo Along with Compatible Features and Programs
        Live Update & APP Shop

        ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
