ASRock

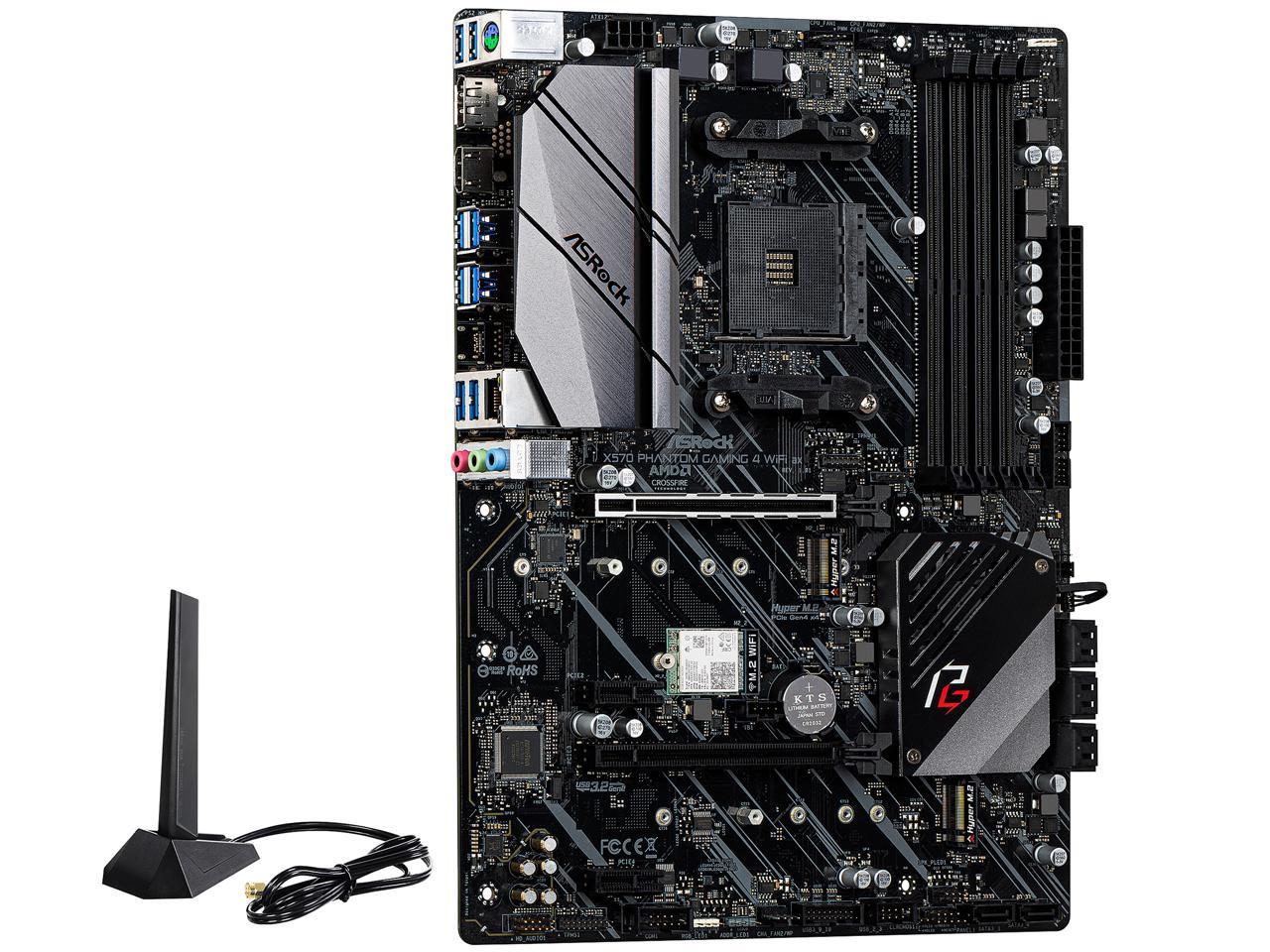

Asrock X570 Phantom Gaming 4 Wifi Ax Am4 Amd X570 Sata 6Gb/S Atx Amd Motherboard

Asrock X570 Phantom Gaming 4 Wifi Ax Am4 Amd X570 Sata 6Gb/S Atx Amd Motherboard

SKU:X570 PHANTOM GAM4 WI-teci

Regular price $197.62
Regular price Sale price $197.62
Sale Sold out
Shipping calculated at checkout.
        View full details
        Description
        Reviews, Que. & Ans.

        Description :

        • AMD X570
        • Supports AMD AM4 socket Ryzen 2000 and 3000 series processors
        • AMD Ryzen series CPUs (Matisse) support DDR4 4066+(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
        • AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory
        • AMD Ryzen series CPUs (Picasso) support DDR4 3466+(OC)/ 3200(OC)/ 2933/ 2667/ 2400/ 2133 non-ECC, un-buffered memory

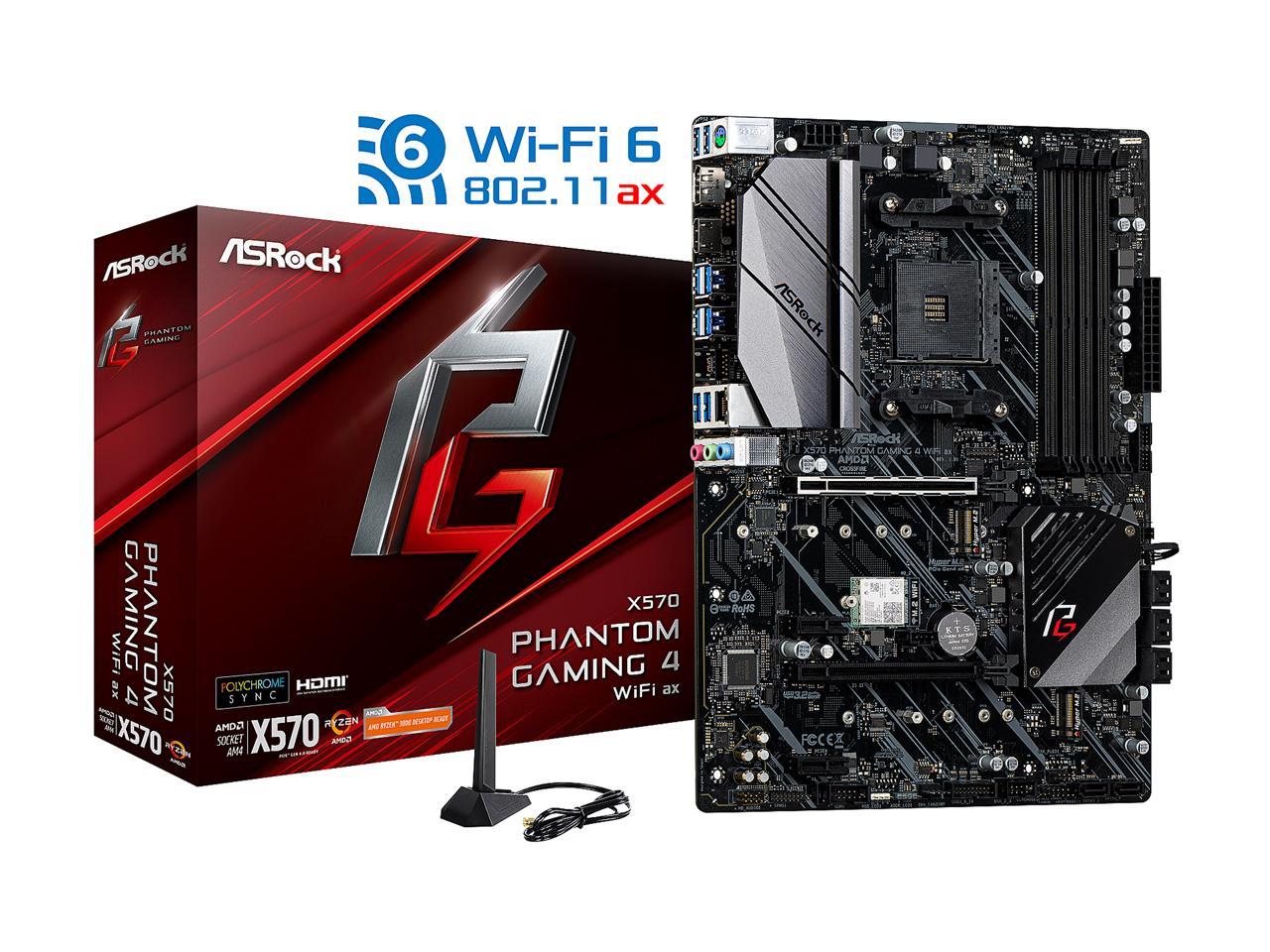

        ASRock X570 Phantom Gaming 4 WiFi ax Motherboard Next to Its Product Box and the AMD 50 Logo

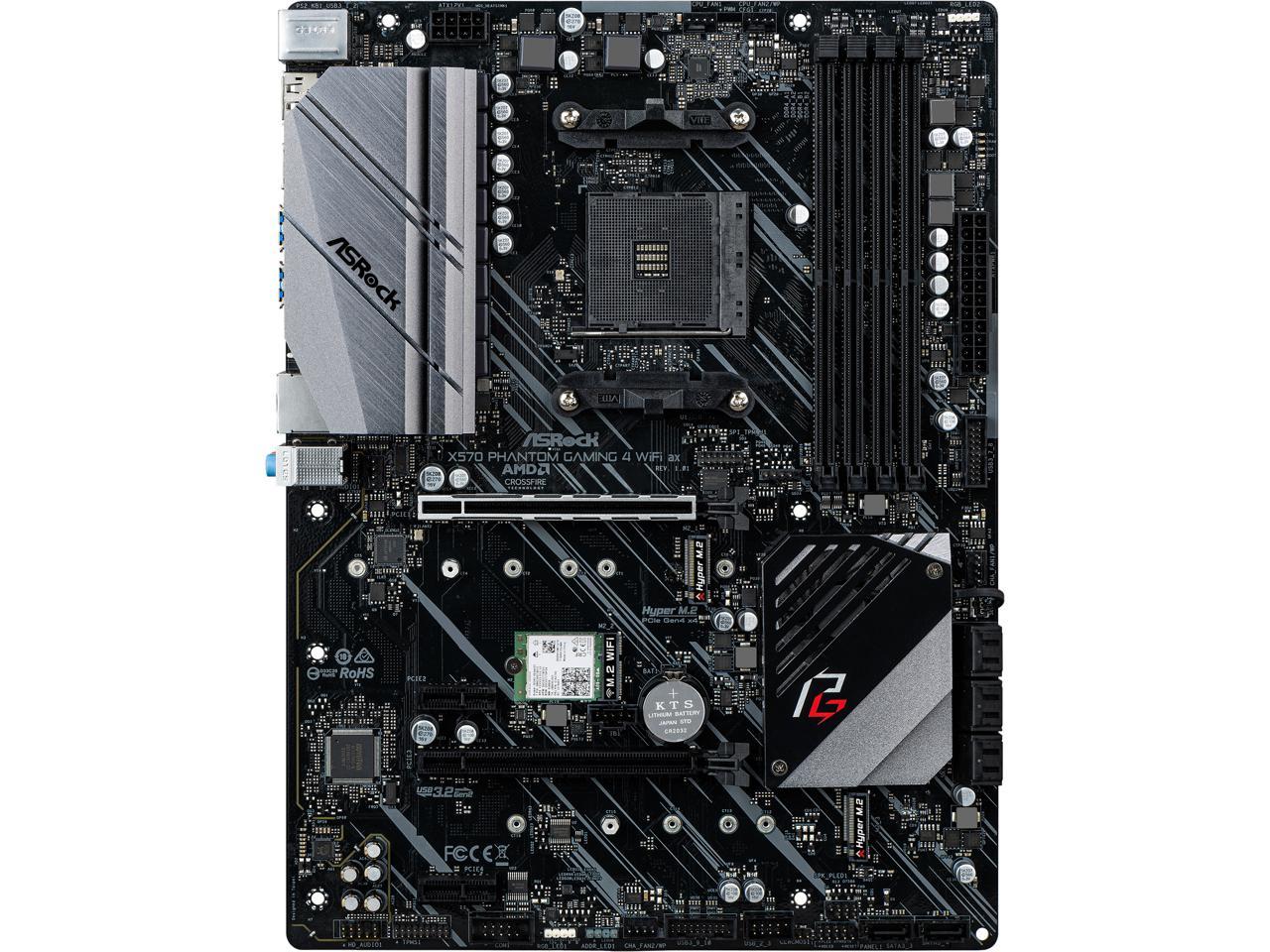

        ASRock X570 Phantom Gaming 4 WiFi ax Motherboard
        • Supports AMD AM4 Socket Ryzen™ 2000 and 3000 Series Processors
        • 10 Power-Phase Design
        • Supports DDR4 4066+ (OC)
        • 2x PCIe 4.0 x16, 2x PCIe 4.0 x1 and 1x M.2(Key E) for WiFi
        • AMD Quad CrossFireX™ and CrossFireX™
        • Graphics Output Options: HDMI, DisplayPort
        • 7.1 CH HD Audio (Realtek ALC1200 Audio Codec), ELNA Audio Caps
        • 8x SATA3, 1x Hyper M.2 (PCIe Gen4 x4 & SATA3) and 1x Hyper M.2 (PCIe Gen4 x4)

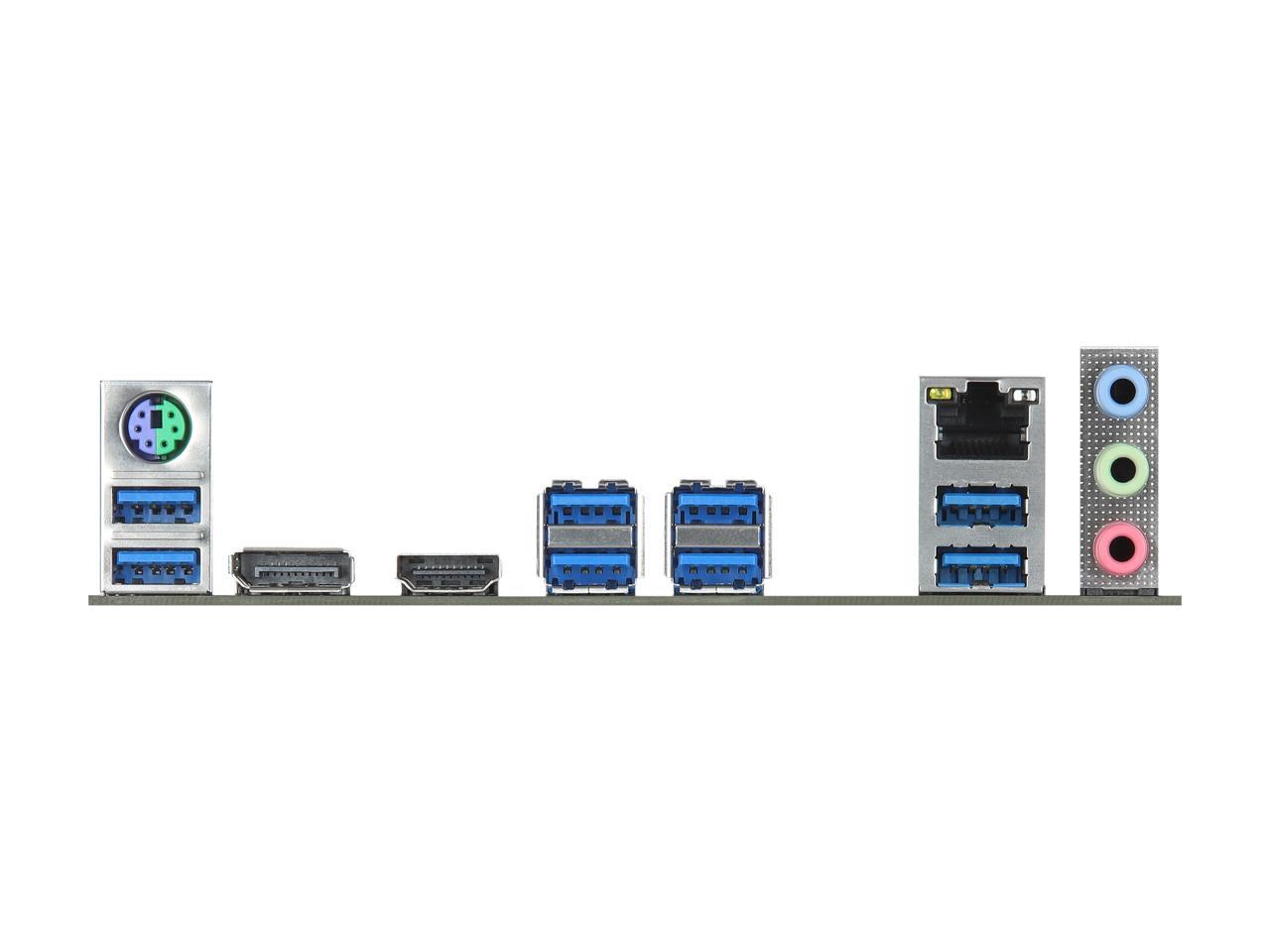

        • 2x USB 3.2 Gen 2 (Rear Type-A) and 10x USB 3.2 Gen 1 (4x Front, 6x Rear)
        • Intel® Wi-Fi 6 802.11ax (2.4Gbps) + Intel® Gigabit LAN
        • ASRock Polychrome SYNC

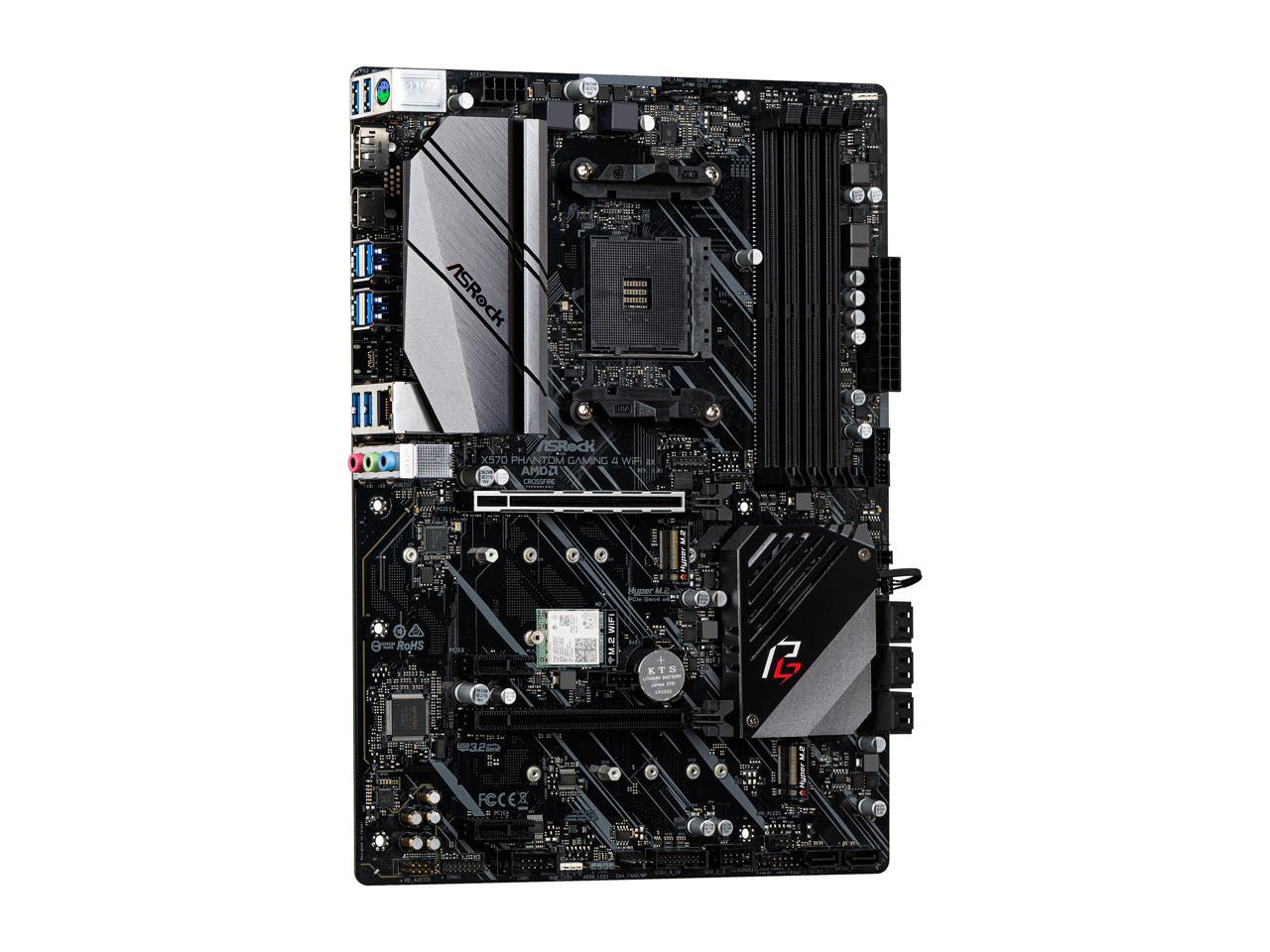

        X570 Phantom Gaming 4 WiFi ax closeup shots next to a full profile
        Revolutinary X570 Motherboards:
        Your PC Transformed

        A More Reliable Design That Delivers

        AMD Ryzen 3000 Series Banner
        PCIeSteel-X570 Phantom Gaming 4 WiFi ax
        Steel Slot with New-Gen PCI-Express

        The next-generation PCI Express 4.0 is capable of performing at twice the speed, compared to previous 3rd generation. ASRock's exclusive steel slot with extra anchor points are revolutionary additions that ensure signal stability and also make sure heavy graphics cards can be well-installed into the PCI-E slot safely.

        DualM2-SSD-X570 Phantom Gaming 4 WiFi ax
        Dual Hyper M.2 for SSDs

        Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data-transferring experience.

        POLY RGB LED Lights X570 Phantom Gaming 4 WiFi ax Motherboard
        Rule Your Own Lighting Way with Polychrome RGB

        This motherboard features onboard RGB headers and an addressable RGB header that allow motherboard to be connected to compatible LED devices such as strip, CPU fans, coolers, chassis and so on. Users may also synchronize RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

        ASRock Polychrome RGB and Sync BadgesThe addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
        The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.
        RGB_accessories and components for the ASRock Phantom Gaming 4 WiFi ax Motherboard
        PowerPhase10-X570 Phantom Gaming 4 WiFi ax
        10 Power-Phase Design

        Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

        Status LED on the X570 Phantom Gaming 4 WiFi ax

        An easy troubleshooting tool that shows the CPU / DRAM / VGA / BOOT operation every time you start up the system. Post Status Checker is an fast and easy way to identify the source of the problem.

        Two USB 3.2 Gen 2 for the ASRock Phantom Gaming 4 WiFi ax Motherboard
        2x USB 3.2 Gen 2

        Delivering data transfer rates up to 10X faster than USB 2.0 with optimized power efficiency. USB 3.2 Gen 2 technology advances the data transfer rate up to 10Gb/s. ASRock provides 2x USB 3.2 Gen 2 ports onboard allows you to have a stunning data-transfer experience.

        802.11ac WiFi Graphic and Antenna for ASRock X570 Steel Legend WiFi ax
        Wi-Fi 6 802.11ax

        Welcome to the new Wi-Fi standard! ASRock's motherboard will be the 1st product coming with next generation Intel® Wi-Fi 6 802.11ax adapter. The speed will be working up to 2.4Gbps and it will also natively operate with both 2.4GHz and 5GHz simultaneously. Significant improvement in bi-directional MU-MIMO support is another attractive feature as well.

        Bluetooth 5.0 and 2.4Gbps Badges802.11ac 1.7Gbps versus 802.11ax 2.4Gbps that's a 40% boost
        Intel LAN Port Graphic
        Intel® LAN

        Intel® LAN provides the best throughput performance, lower CPU utilization, enhanced stability and is able to deliver an ultimate network experience to users!

        Thunderbolt 3 Header
        Thunderbolt 3 AIC Header

        Thunderbolt 3 is no longer limited to certain chipset, ASRock is the first motherboard manufacturer to skillfully implement the Thunderbolt 3 technology onto AMD X570 motherboards. All you need is a Thunderbolt 3 AIC R2.0 card!

        1: Only three TB3 devices can be detected.
        2: Some USB 3.2 Type-C devices will cause system reboot after wake up from S3/S4.
        3: Cannot light up the TB3 monitor after wake up from S3/S4, re-plug the cable is needed.
        4: Does not support Thunderbolt 3 PCIe graphics card box.
        Super Alloy Motherboard Graphic
        XXL Aluminum Alloy Heatsink
        Super Alloy Heatsink-X570

        Extra-large aluminum alloy heat sinks effectively take away heat from the MOSFET and chipset so that your whole system may perform more stably.

        Premium 50A Power Choke
        Super Alloy 50A Power Choke

        Compared to traditional chokes, ASRock's premium 50A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

        Sapphire Black PCB
        Super Alloy Matte PCB

        Pure black PCB appearance. The new Sapphire Black PCB represents rock-solid quality and gives the motherboard a more mysterious touch.

        High-Density Glass-Fabric PCB
        Super Alloy High-Density PCB

        Using a high-density glass-fabric PCB design reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.

        2oz Copper PCB
        Super Alloy 2oz Copper PCB

        Using only carefully selected copper materials for PCB layers, 2oz copper PCB delivers lower temperature and higher energy efficiency for overclocking.

        ELNA Audio Caps X570 Phantom Gaming 4 WiFi ax
        ELNA Audio Caps

        Who says high-quality audio is only available on high-end motherboards? ASRock applied ELNA audio capacitors on mainstream and entry-level motherboards! Compared with traditional solid caps, the leakage current of ELNA audio caps is merely 3uA. This is the key to reduce noise level significantly and satisfy even the pickiest audiophiles.

        Full Spike Protection Logo
        Full Spike Protection

        Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard's components from being damaged by these unexpected voltage spikes.

        ASRock APP Shop
        Live Update & APP Shop

        ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.
