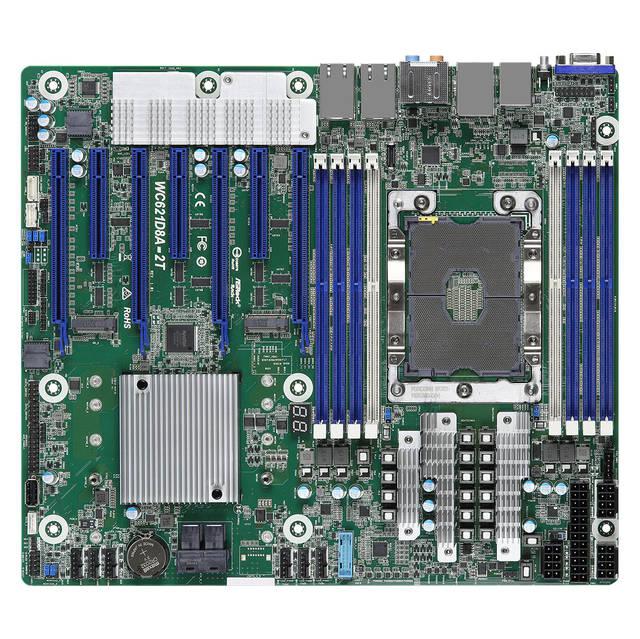

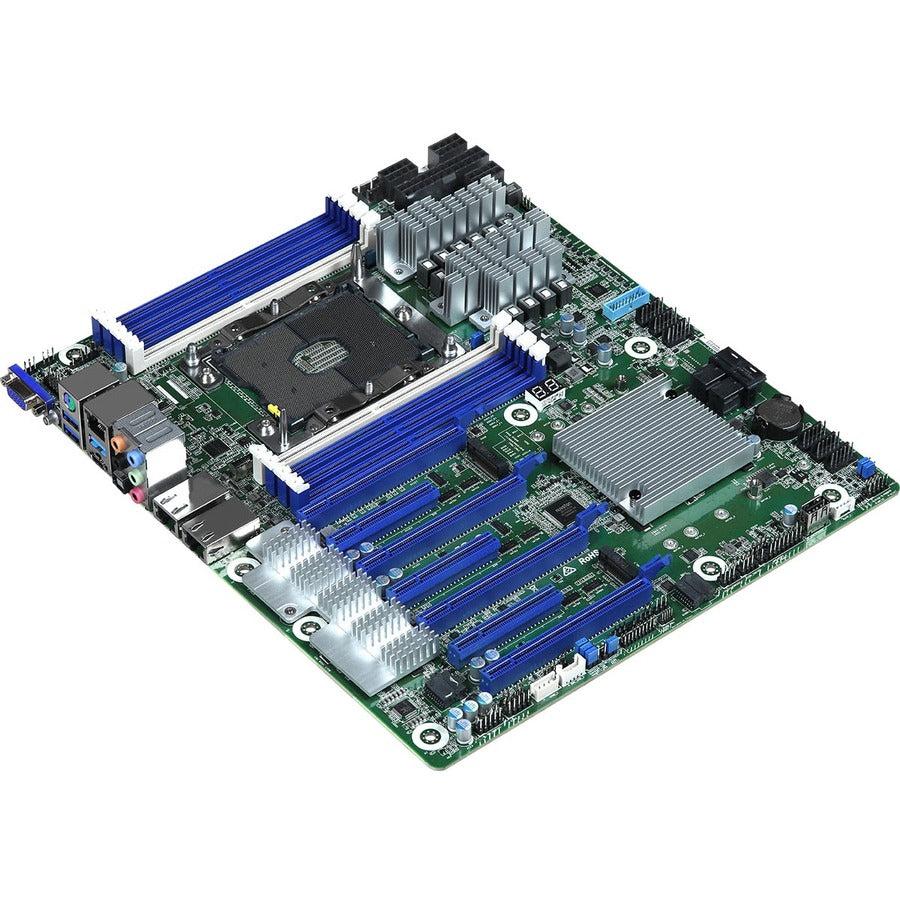

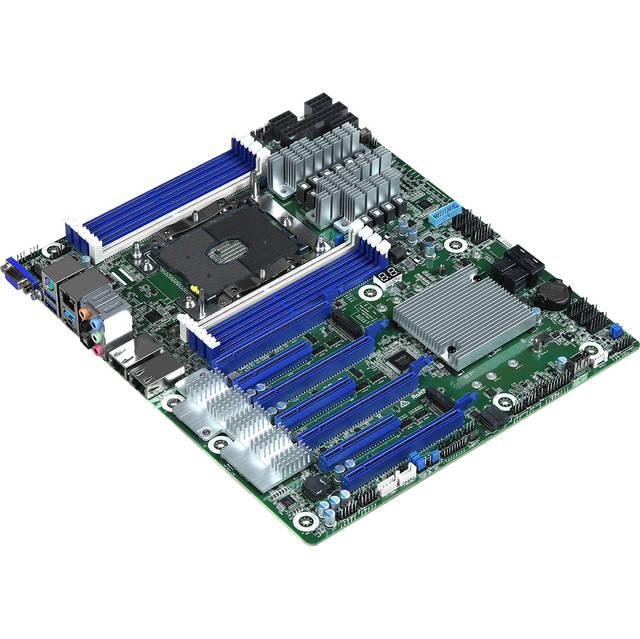

Name: Asrock Rack Wc621D8A-2T Single Socket P Lga3647/ Intel C621/ Ddr4/ Sata3&Usb 3.1/ V&A&2Gbe/ Ceb Server Motherboard
Brand: ASRock Rack
SKU: WC621D8A-2T
Price: 899.99 USD
Availability: OutOfStock

Asrock Rack Wc621D8A-2T Single Socket P Lga3647/ Intel C621/ Ddr4/ Sata3&Usb 3.1/ V&A&2Gbe/ Ceb Server Motherboard

Roll over image to zoom in Click on image to zoom

Mfr Part Number: WC621D8A-2T
CPU: Single Socket P LGA 3647
- Support Intel Xeon Scalable Processors (Max 205W) and Intel Xeon W Processor (MAX 255W)
Chipset: Intel C621
Memory: 8x 288pin DDR4 DIMM Slots, 6 Channel, Supports DDR4 2933/2666/2400 R DIMM & LR DIMM and Intel Optane DC Persistent Memory in memory mode
Slots: 4 x PCIe3.0 x16, 3 x PCIe 3.0 x8
SATA: Supports 10 x SATA3 6.0 Gb/s by INTEL C621(including 2 x miniSAS, 2 x M.2)
Video: Aspeed AST2500 Graphics w/ 256MB DDR4 Video Memory
Audio: Realtek ALC892
LAN: 2x RJ45 GLAN by Intel x550-AT2; 1x Realtek RTL8211E for Dedicated Management GLAN

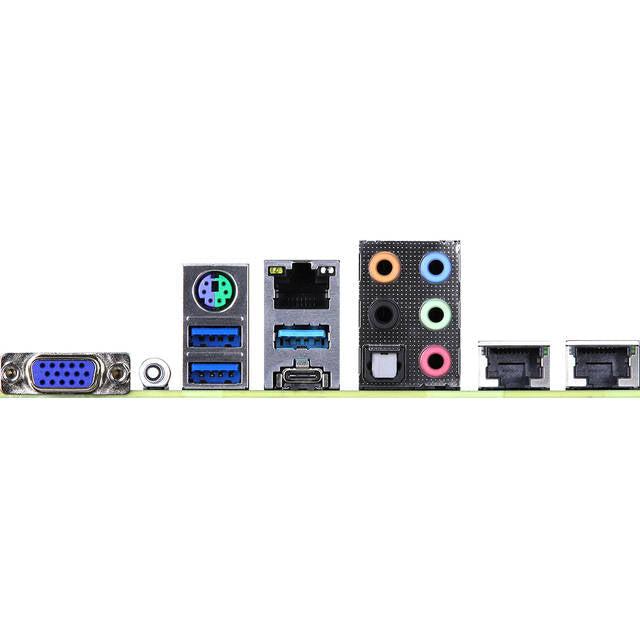

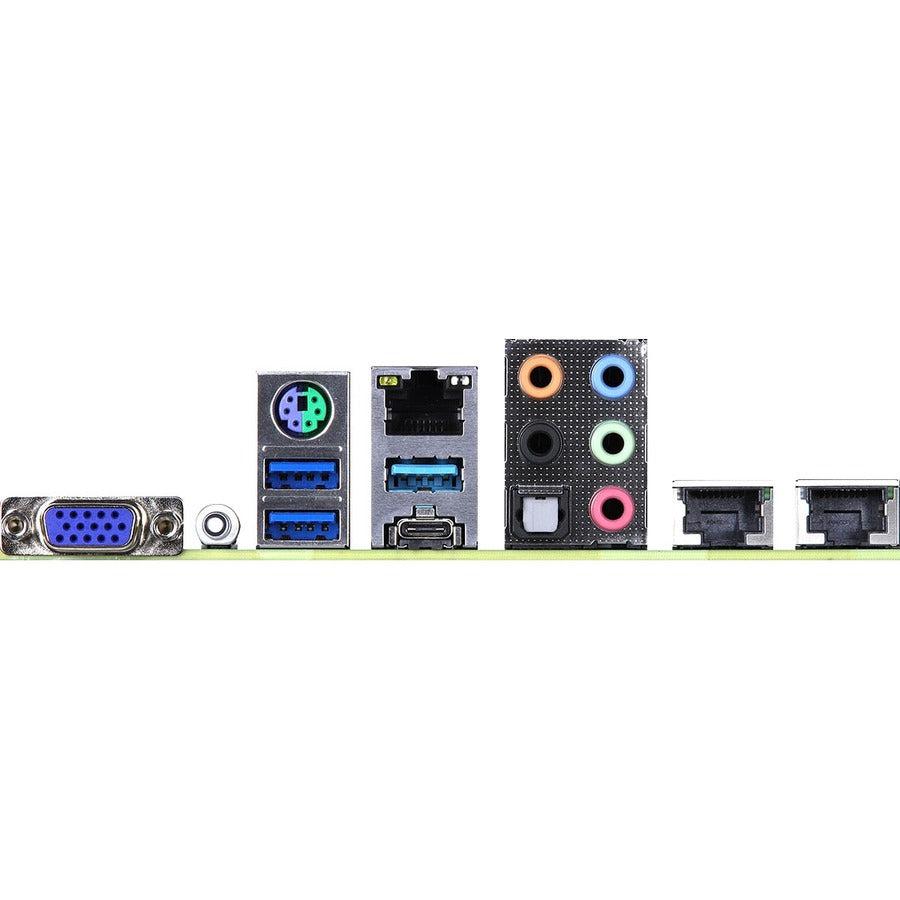

Ports: 1x PS/2 KB/Mouse, 1x D-Sub VGA, 3x USB 3.1 Gen1 Ports, 1x USB 3.1 Gen2 Port (type C), 2x RJ45 LAN Ports, 1x RJ45 Dedicated IPMI LAN Port, Lan port with LED, 1x UID Button/UID LED, Audio I/O Jacks
Power Connector: 1x 24pin ATX Power Connector, 3x 8pin ATX Power Connectors
Form Factor: CEB, 12.0 x 10.5 inch / 30.5 x 26.7 cm

General Information

Manufacturer	ASRock, Inc
Manufacturer Part Number	WC621D8A-2T
Manufacturer Website Address	http://www.asrock.com
Brand Name	ASRock
Product Model	WC621D8A-2T
Product Name	WC621D8A-2T Workstation Motherboard
Product Type	Workstation Motherboard

Chipset

Chipset Manufacturer	Intel

Graphics Controller Manufacturer	ASPEED
Graphics Controller Model	AST2500

Total Number of USB Ports	4
Number of USB 3.2 Gen 1 Ports	3

Width	12"
Depth	10.5"

Environmentally Friendly	Yes

Asrock Rack Wc621D8A-2T Single Socket P Lga3647/ Intel C621/ Ddr4/ Sata3&Usb 3.1/ V&A&2Gbe/ Ceb Server Motherboard

Description

Asrock Rack Wc621D8A-2T Single Socket P Lga3647/ Intel C621/ Ddr4/ Sata3&Usb 3.1/ V&A&2Gbe/ Ceb Server Motherboard
