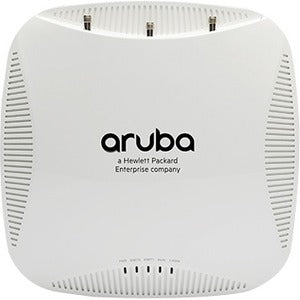

HPE Instant IAP-224 IEEE 802.11ac 1.90 Gbit/s Wireless Access Point JW237A

Description :

Aruba Instant IAP-224 IEEE 802.11ac 1.90 Gbit/s Wireless Access Point
Multifunctional 220 series wireless APs deliver gigabit Wi-Fi performance to 802.11ac mobile devices. Integrated Aruba ClientMatch technology ensures consistently high performance across the WLAN infrastructure.

With a maximum data rate of 1.3 Gbps in the 5-GHz band and 600 Mbps in the 2.4-GHz band, 220 series APs are three-times faster than 802.11n APs and provide performance similar to a wired connection.

The 220 series APs include ClientMatch technology, which eliminates sticky clients by continuously gathering session performance metrics from mobile devices. This information is then used to steer each mobile device to the best AP and radio on the WLAN.

Proactive and deterministic, ClientMatch dynamically optimizes Wi-Fi client performance as users roam and RF conditions change. If a mobile device moves out of range of an AP or RF interference impedes performance, ClientMatch automatically steers it to a better AP.

With ClientMatch, 220 series APs load web pages faster, deliver video streams with improved quality and support high densities of mobile devices. An 802.11ac network without ClientMatch performs no different than an 802.11n WLAN.

The 220 series APs additionally support priority handling and policy enforcement for individual Microsoft Lync media on the same device, including encrypted videoconferencing, voice, chat and desktop sharing.

• A second Gigabit Ethernet port on the 220 series doubles the network backhaul capacity and acts as a redundant link.


• Connect Aruba Beacons to any 210-series USB port to deliver indoor location services that can be centrally managed.


• With AppRFTM and ClientMatchTM, 210-series APs protect business-critical apps and eliminate sticky clients while roaming.

Product Type: Wireless Access Point
Environmentally Friendly: Yes
Environmental Certification: cTUVus
Product Series: 220
Brand Name: Aruba
Form Factor: Ceiling Mountable
Manufacturer: Hewlett Packard Enterprise
Product Model: IAP-224
Product Name: Instant IAP-224 Wireless Access Point
Product Line: Instant
Manufacturer Part Number: JW237A
Manufacturer Website Address: http://www.hpe.com
Package Contents:

• Instant IAP-224 Wireless Access Point
• 2 x Mounting Brackets for Attaching to 9/16-inch or 15/16-inch T-Bar Drop-Tile Ceiling
