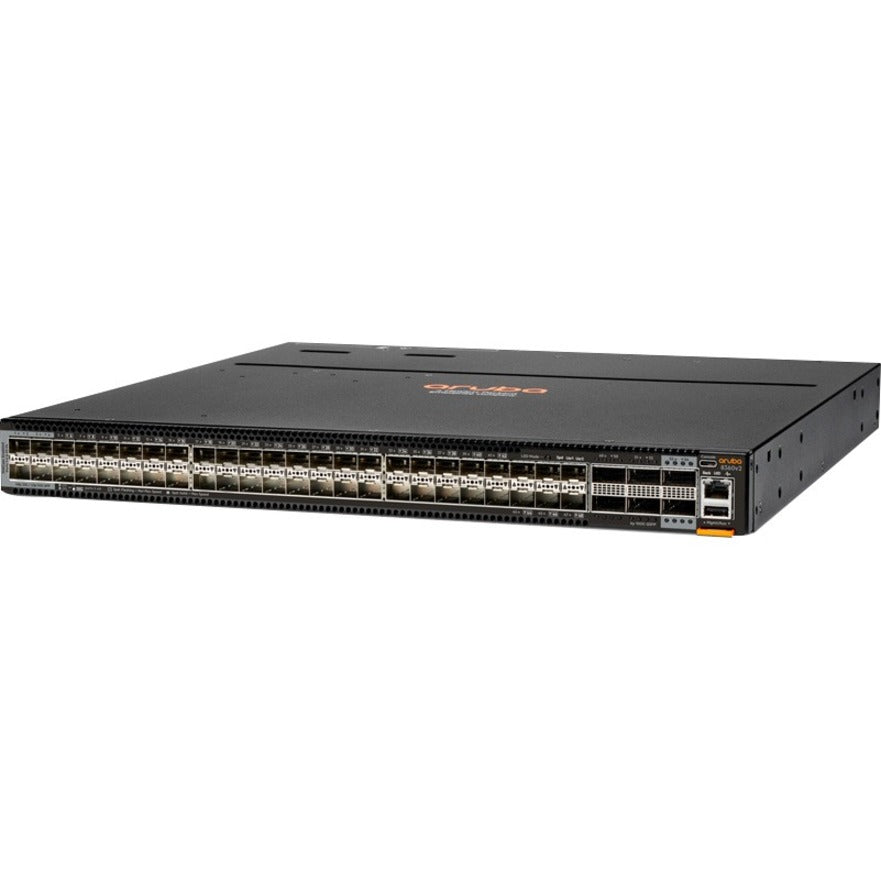

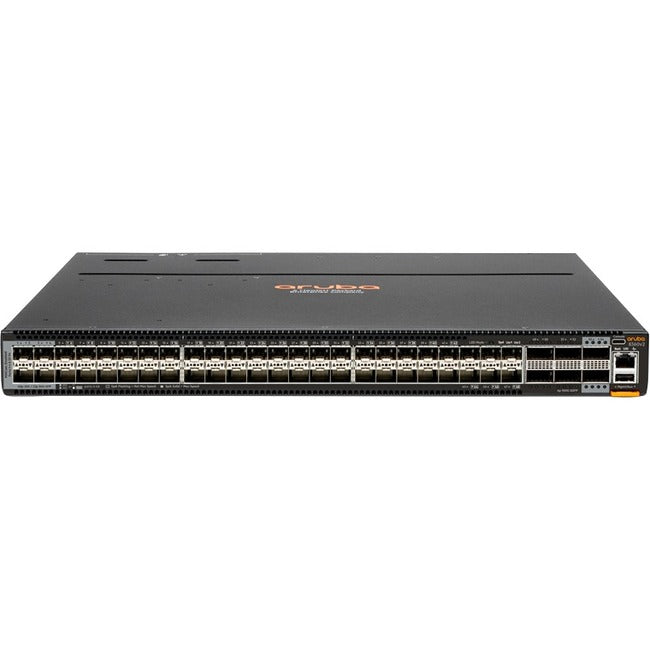

Aruba 8360V2-48Y4C Ethernet Switch

Description :

Aruba 8360v2-48Y4C Ethernet Switch
Aruba CX 8360 Switch Series

The Aruba CX 8360-48Y6C v2 Switch Series offers a flexible and innovative approach to addressing the application, security, and scalability demands of the mobile, cloud, and IoT era. These switches serve the needs of the next-generation core and aggregation layer of campuses, as well as virtual and highly dynamic data center environments. They provide up to 4.8Tbps of capacity, with line-rate Gigabit Ethernet interfaces including support for Smart Rate (1/2.5, 5 Gbps), 10Gbps, 25Gbps, 40Gbps, 50Gbps, and 100Gbps.

The 8360-48Y6C v2 series includes industry-leading line rate ports with 1/10/25/50GbE (SFP/SFP+/SFP28) and 40/100 GbE (QSFP+/QSFP28) connectivity in a compact 1U form factor. 4x10Gbps and 4x25Gbps break out from 40/100G ports offer advanced flexibility in connectivity and aggregation. These switches deliver a fantastic investment for customers wanting to migrate from older 1GbE/10GbE to faster 25GbE, or from 10GbE/40GbE uplinks to 50/100GbE ports.

In addition, the switch supports low- density MACsec ports enabling secure connectivity at 10GbE and 25GbE over unsecured domains.

• 50G support on 8360-48Y6C, 32Y4C and 16Y2C switches


• Addition of Smart Rate (1/2.5/5/10G) ports on the 8360-48XT4C


• Advanced Layer 2/3 feature set includes BGP, OSPF, VRF, and IPv6


• ArubaOS-CX automation and programmability using built-in REST APIs and Python scripts


• MACsec secured connectivity over untrusted domains


• Designed for core/aggregation in the campus or Top of Rack or End of Row in data center environments


• High availability with industry leading VSX redundancy, and redundant power supplies and fans


• Intelligent monitoring and visibility with Aruba Network Analytics Engine


• High-performance 4.8Tbps and 2,678 Mpps

Product Type: Ethernet Switch
Environmentally Friendly: Yes
Environmental Certification: RoHS
Compatible Rack Unit: 1U
Taa Compliant: Yes
Product Series: CX 8360
Brand Name: Aruba
Form Factor: Rack-mountable
Manufacturer: Hewlett Packard Enterprise
Product Model: 8360v2- 48Y4C
Product Name: 8360v2-48Y4C Ethernet Switch
Manufacturer Part Number: JL705C#ABA
Manufacturer Website Address: http://www.hpe.com
Package Contents:

• 8360v2-48Y4C Ethernet Switch
• 2 x PSU

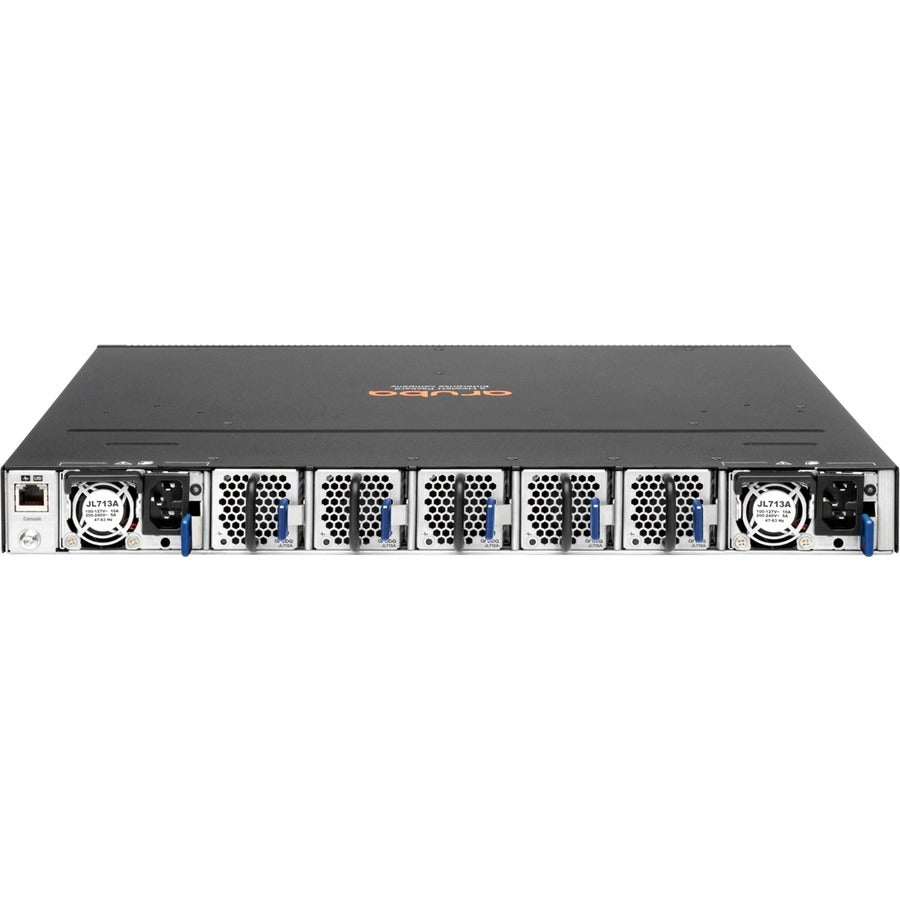

• 5 x Fans
• 2 x Post Rack Kit
