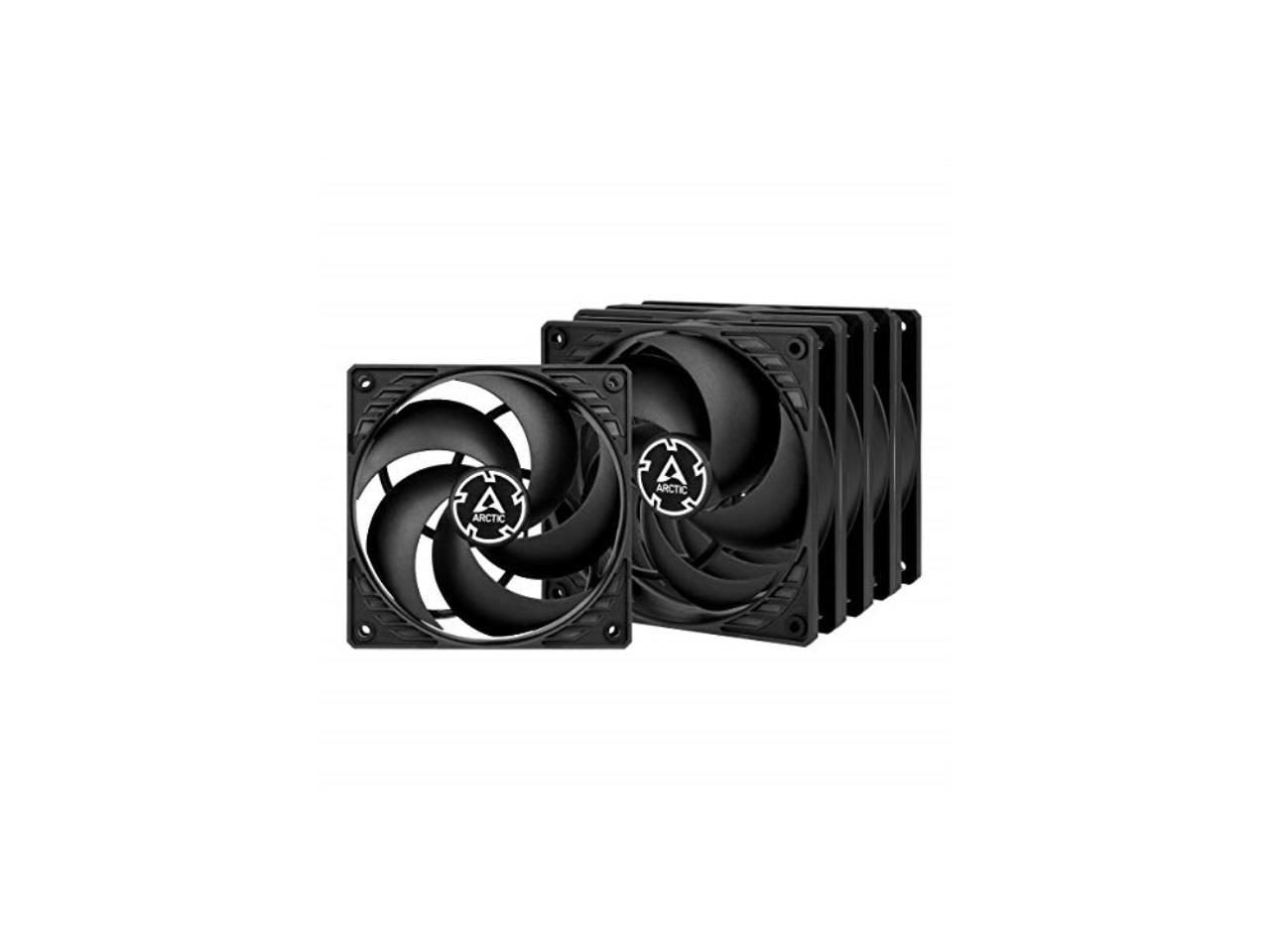

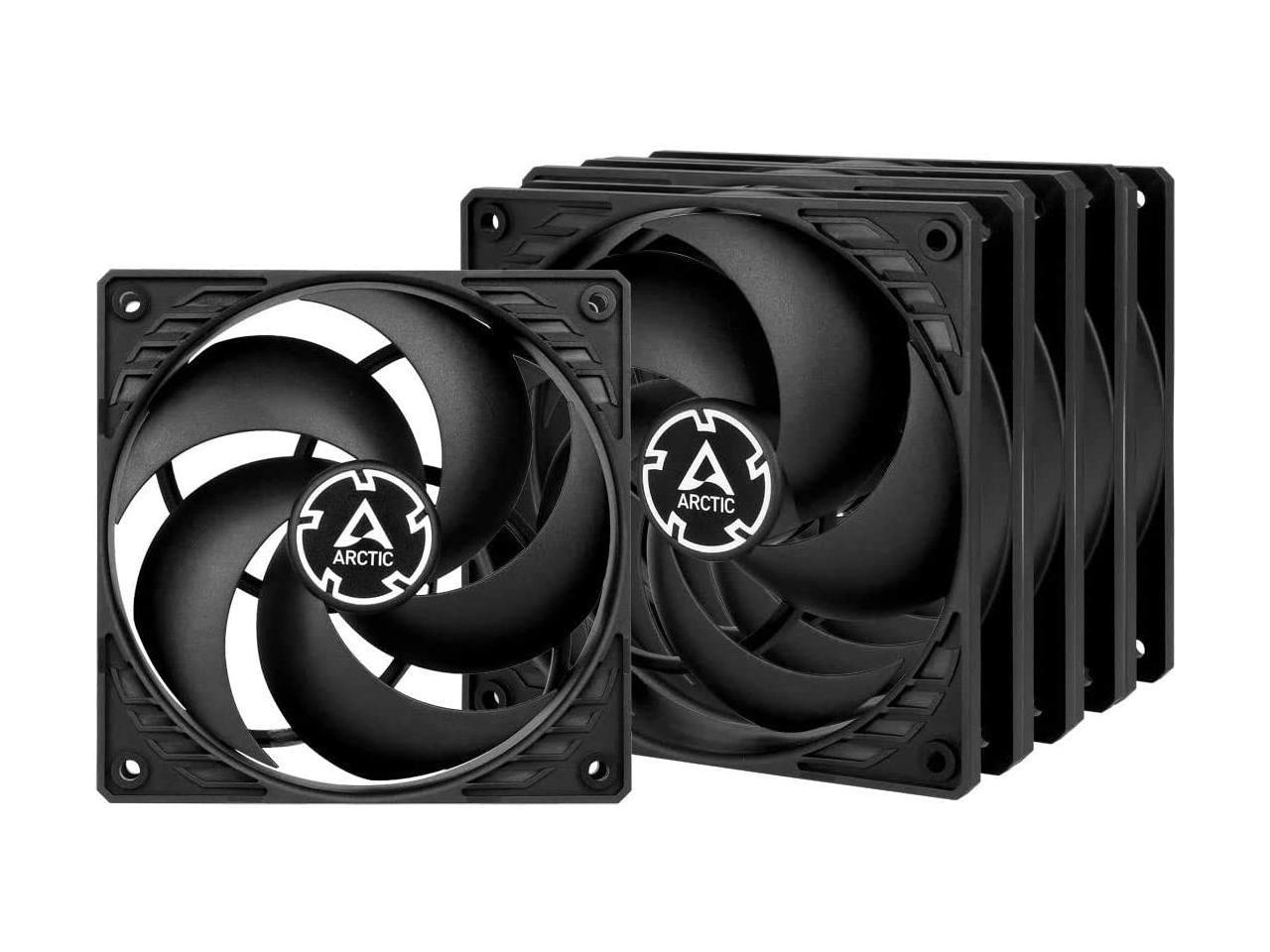

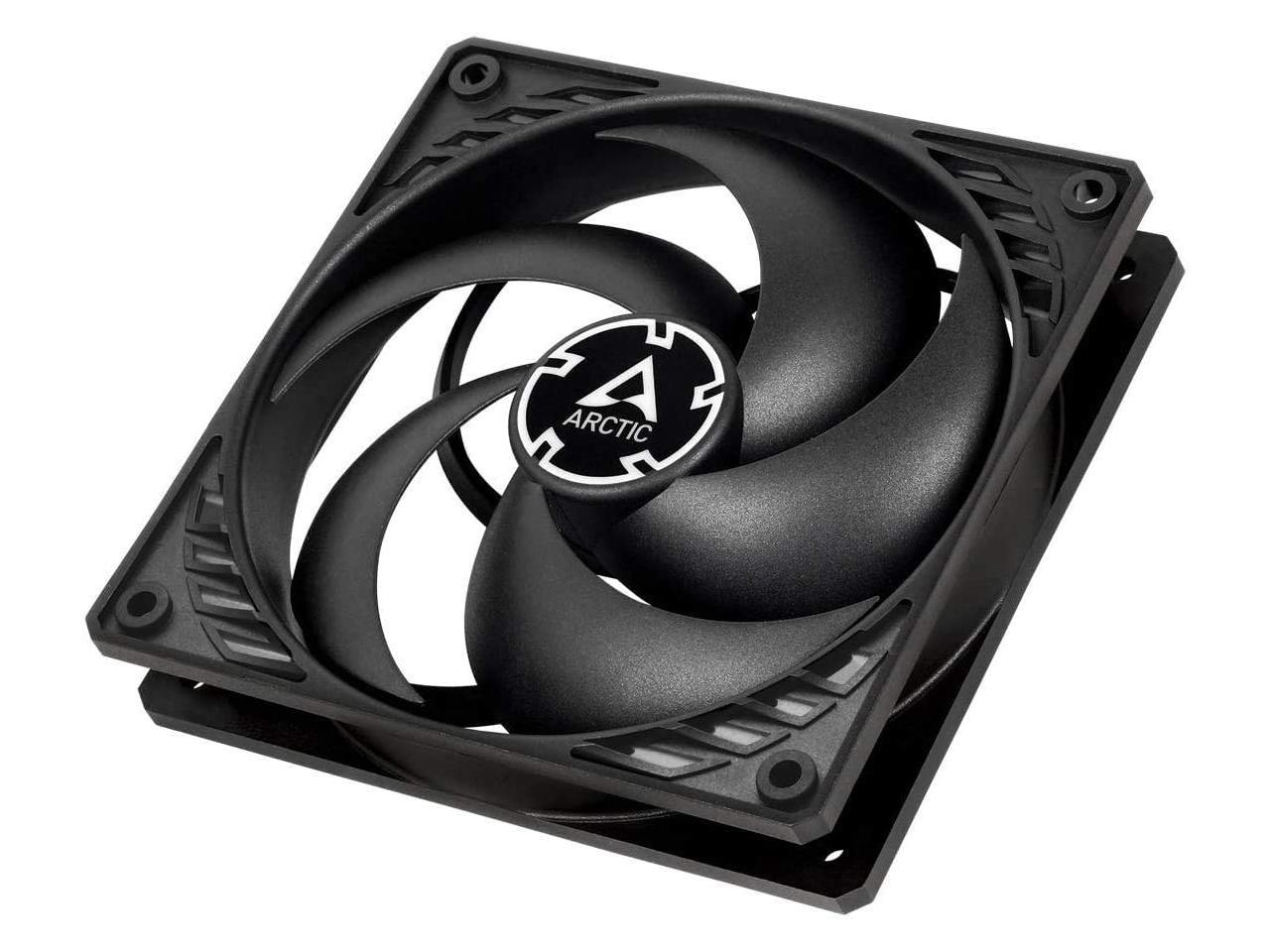

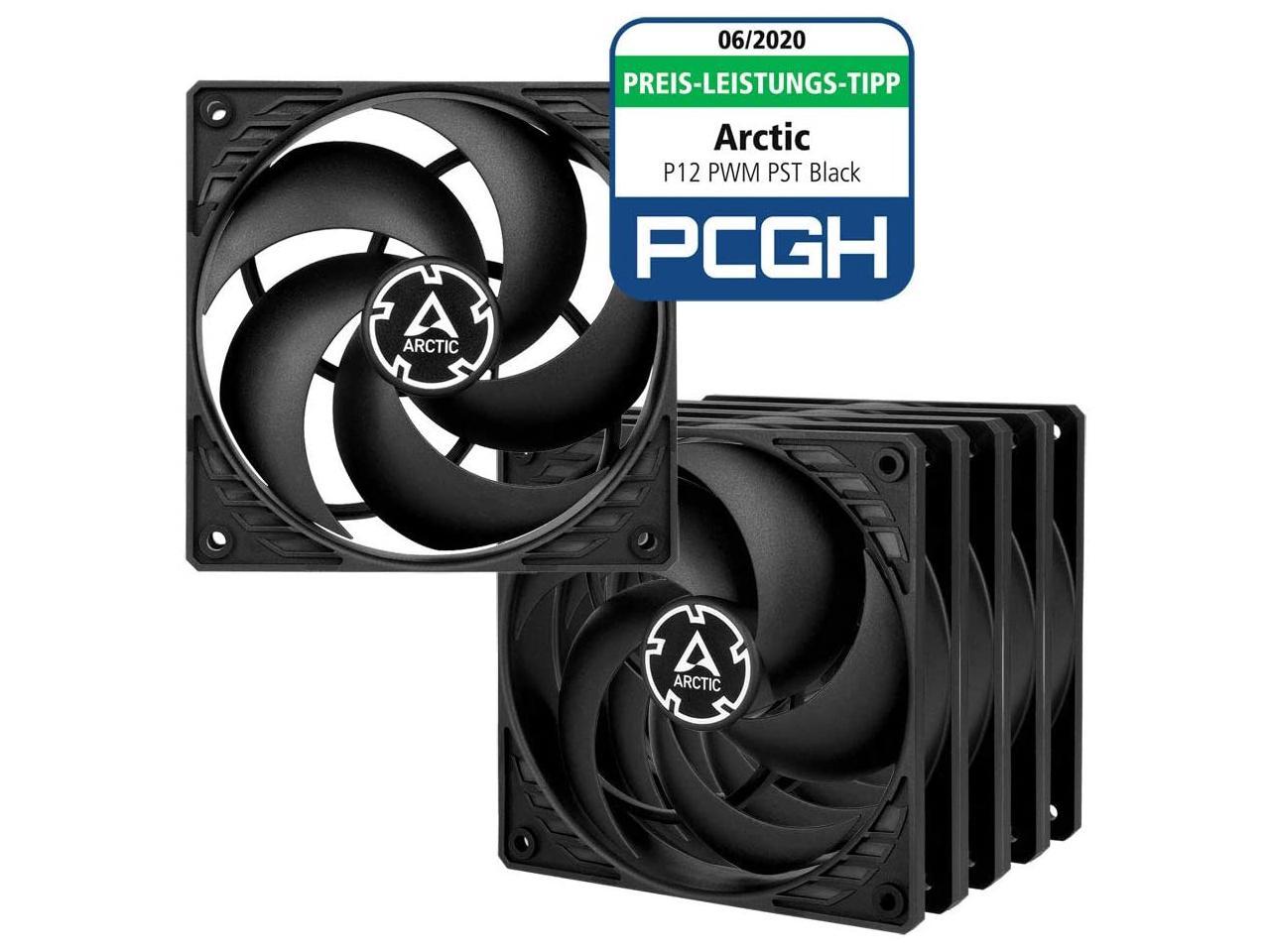

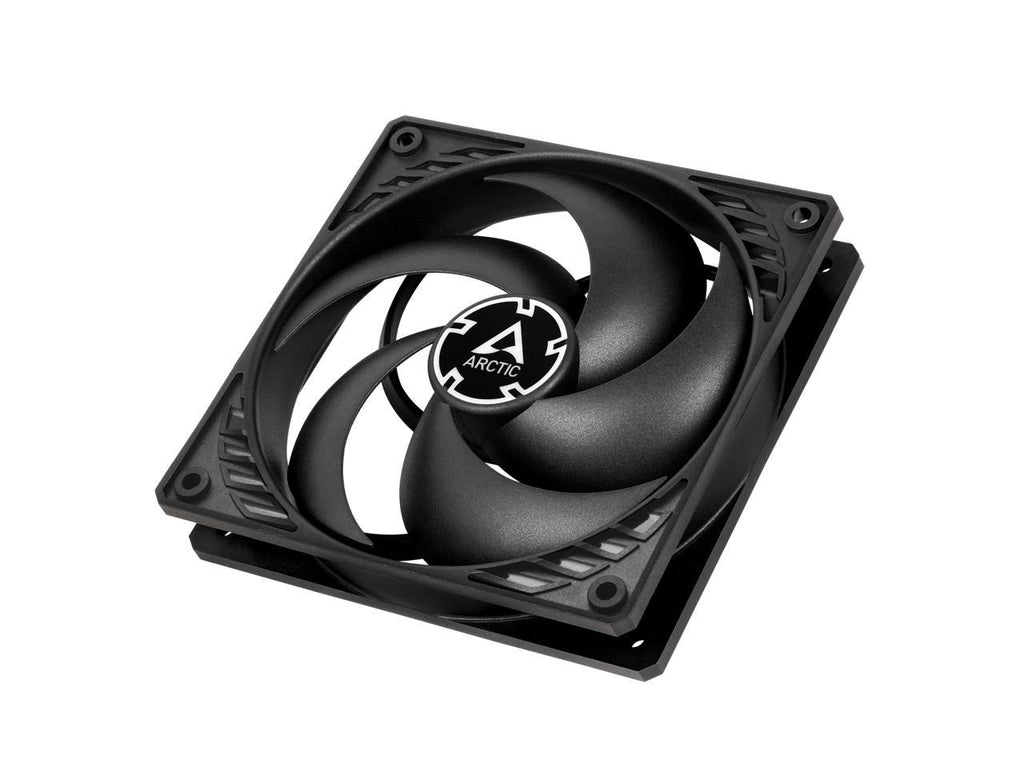

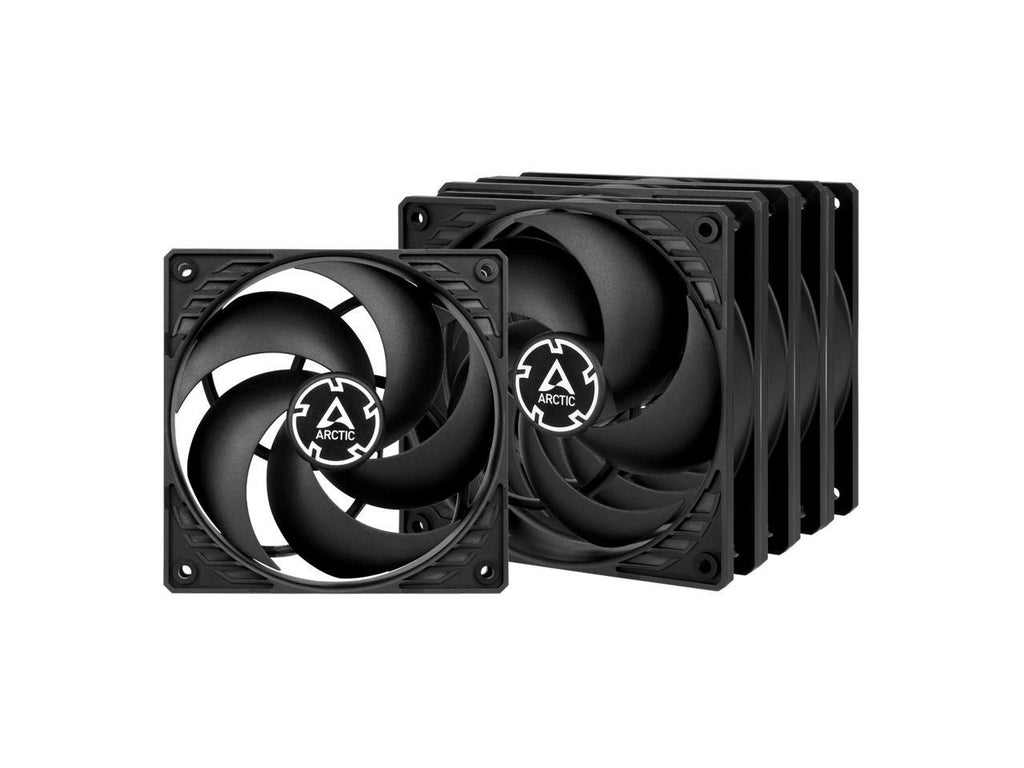

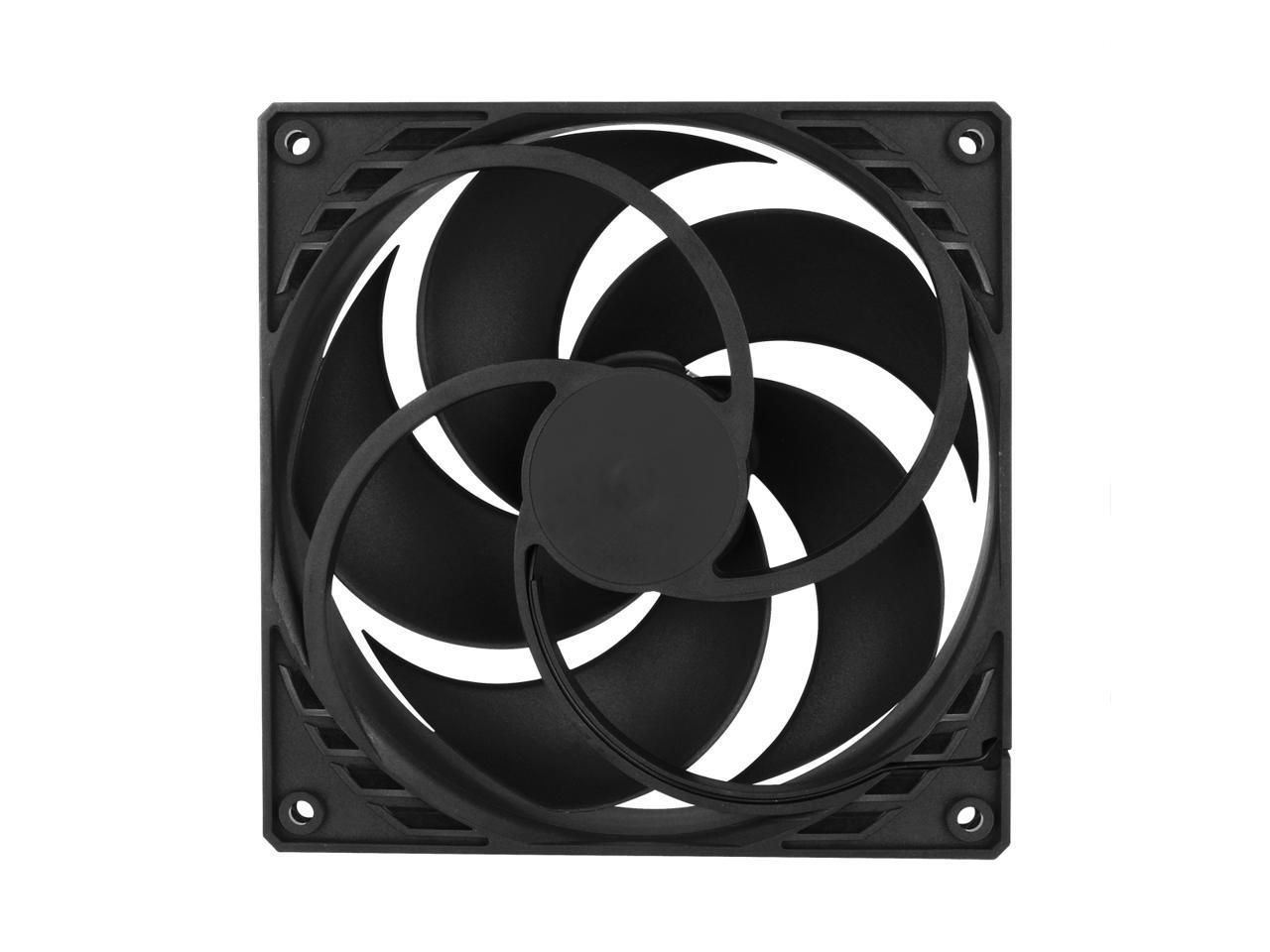

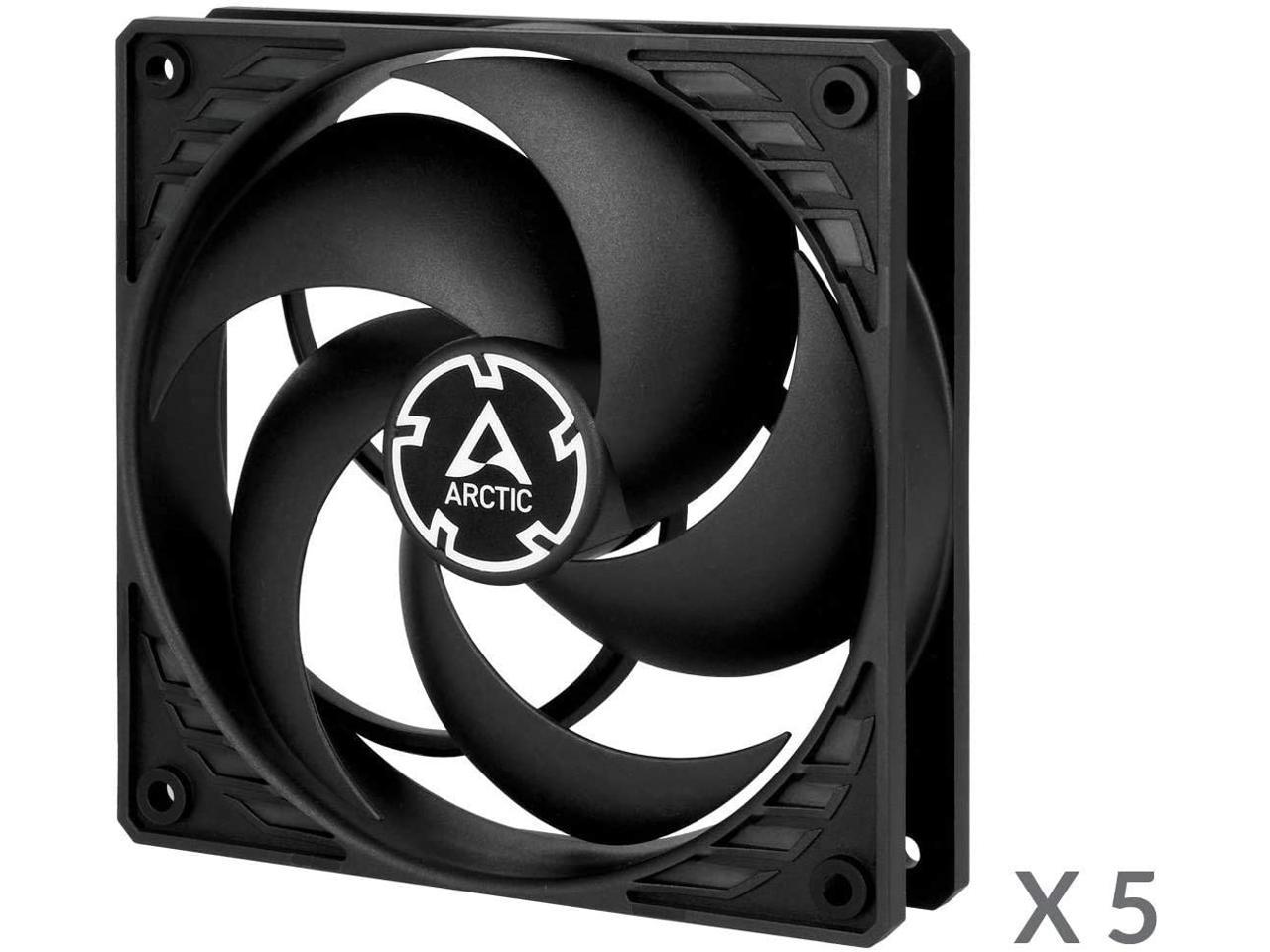

Arctic P12 Pwm Pst (Black/Black) Value Pack 5Pack - Pressure-Optimised 120 Mm Fan With Pwm And Pst (Pwm Sharing Technology)

Description :

• The P12 PWM PST is a 120 mm fan with PWM PST connectors. It features Completely redesigned fan blades and is optimized for high static pressure.
• Thanks to this, it is especially effective when used on heatsinks and in situations with higher air resistance.
• The wide RPM range from 200 to 1800 RPM can be regulated seamlessly and synchronously with other fans thanks to ARCTIC PWM Sharing Technology (PST).
• The newly developed motor with a low coil temperature significantly increases the life span of the fan.

Performance

• Model:   ACFAN00137A
• Fan: 120 mm, 200 - 1 800 RPM (Controlled by PWM), 0 dB fan mode below 5 % PWM
• Air Flow: 56.3 CFM / 95.65 m³/h
• Noise Level: 0.3 Sone (@ 1 800 RPM)
• Static Pressure: 2.2 mm H2O (@ 1 800 RPM)

Electrical Characteristics

• Typical Voltage: + 12 V DC
• Start-up Voltage: 3.9 V DC
• Cable Length: 400 mm
• Sub PST Cable Length: 50 mm

Connection
Motherboard:

• + 12 V DC
• PWM control signal
• 4-pin connector + 4-pin socket
