Description :
-

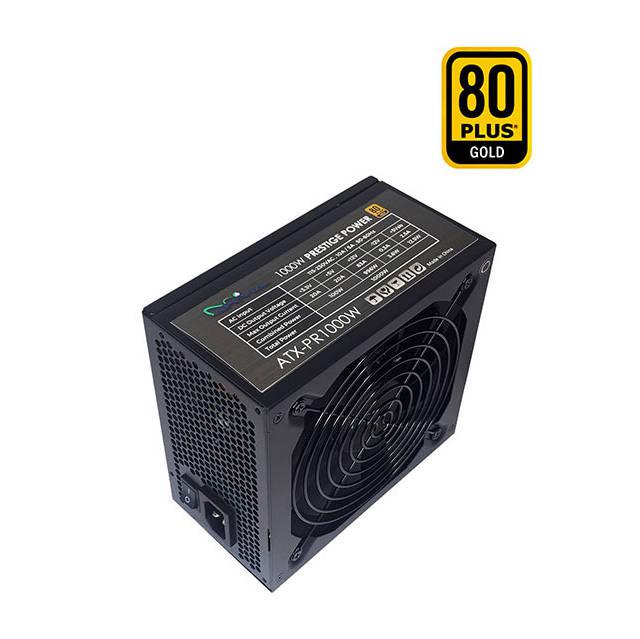

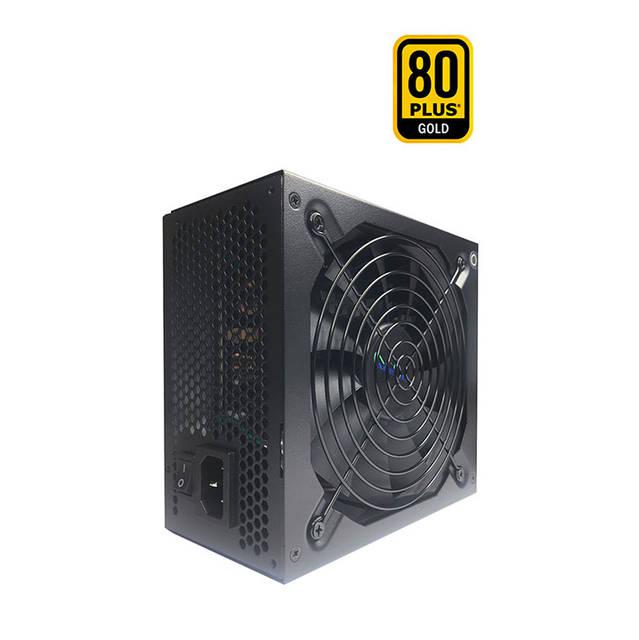

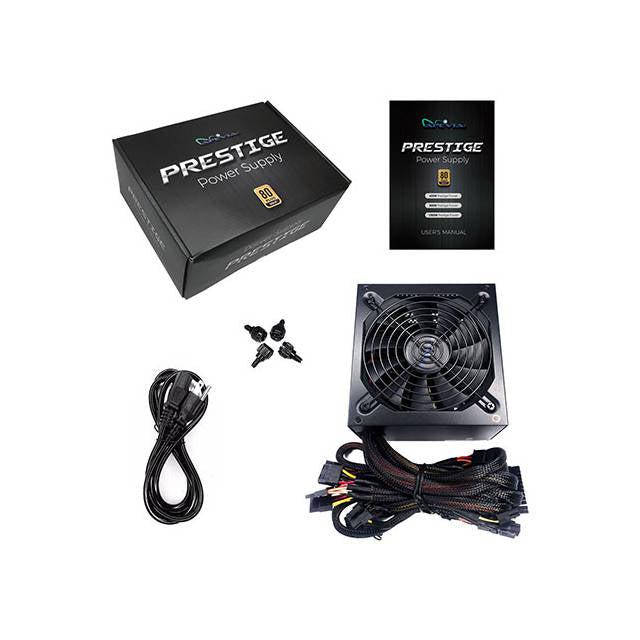

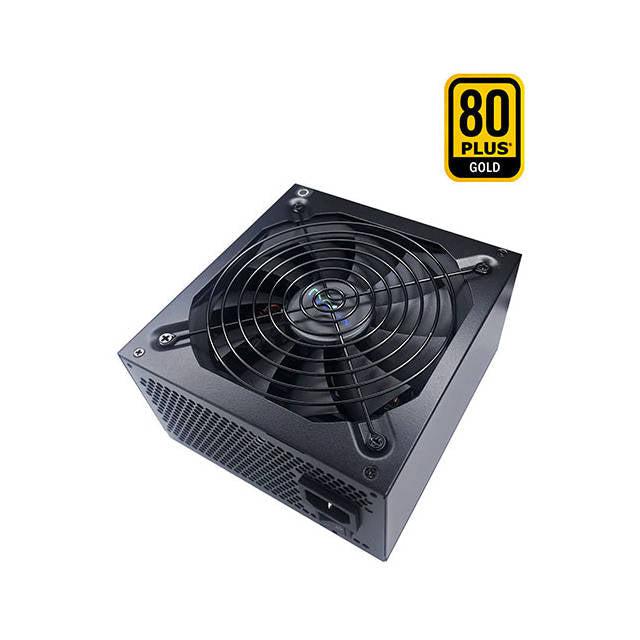

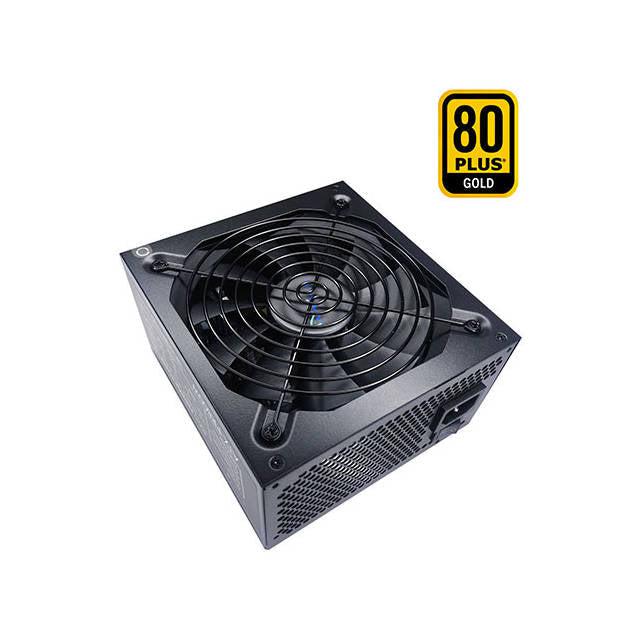

Mfr Part Number: ATX-PR1000W
-
Features:
- 1000W Power with 13.5cm black fan
- 80+ Gold & ROHS certified
- High stability with 5% tolerance of 5V, 3.3V & 12V output
- High quality components and housing
- Universal AC input by active PFC (99%PF Typical)
- Maximum Power: 1000 W
- Material: Metal
-
Input:
- Voltage: 115 - 230 V
- Frequency Range: 50 - 60 Hz
-
Current: 8A for 115VAC, 4A for 230VAC
-
Type: ATX 12V
- Fan: Forced air ventilation by 1x 135mm black fan
- Output: +3.3V @ 20A, +5V @ 20A, +12V @ 83A, -12V @ 0.3A, +5Vsb @ 2.5A

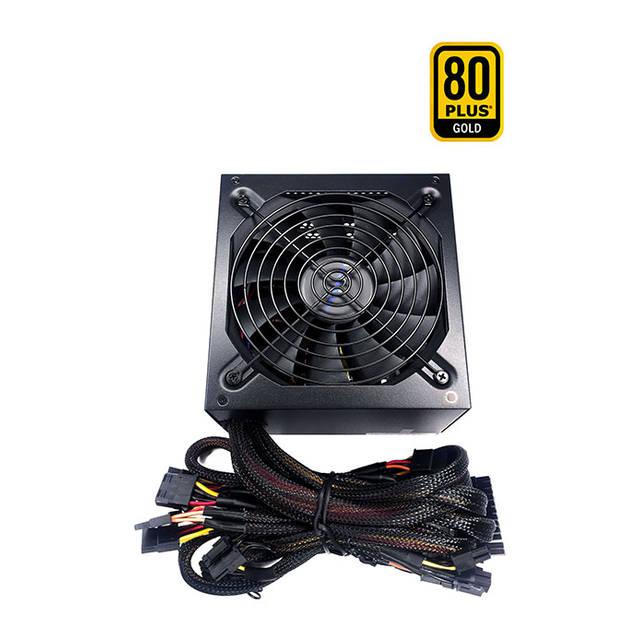

- Connectors: 1x 20/24pin Main Power Connector, 1x 4/8pin + 12V & EPS Connector, 2x 6+2pin PCI-Express Connectors, 7x SATA Connectors, 4x Peripheral Connectors
- Color: Cosmic black casing
- Dimensions (WxLxH): 5.9 x 6.3 x 3.4 inch / 150.0 x 160.0 x 85.0 mm
- Weight: 5.0 lbs
🔥Don't forget your OS, we have Windows 11 OEM, 10 OEM, Download and USB versions available
Specifications :
General Information
UPC | 810047131151 |
---|
